TRU COMPONENTS TC-13224172 ONPOW6316F-10ZE/Q/Y/12V/S Pushbutton 36 V DC/AC 2 A 1 x Off/(On) latch Yellow IP65 1 pc(s)

Metal switch with a round yellow ring and ribbed casing, alongside a black sealing ring.

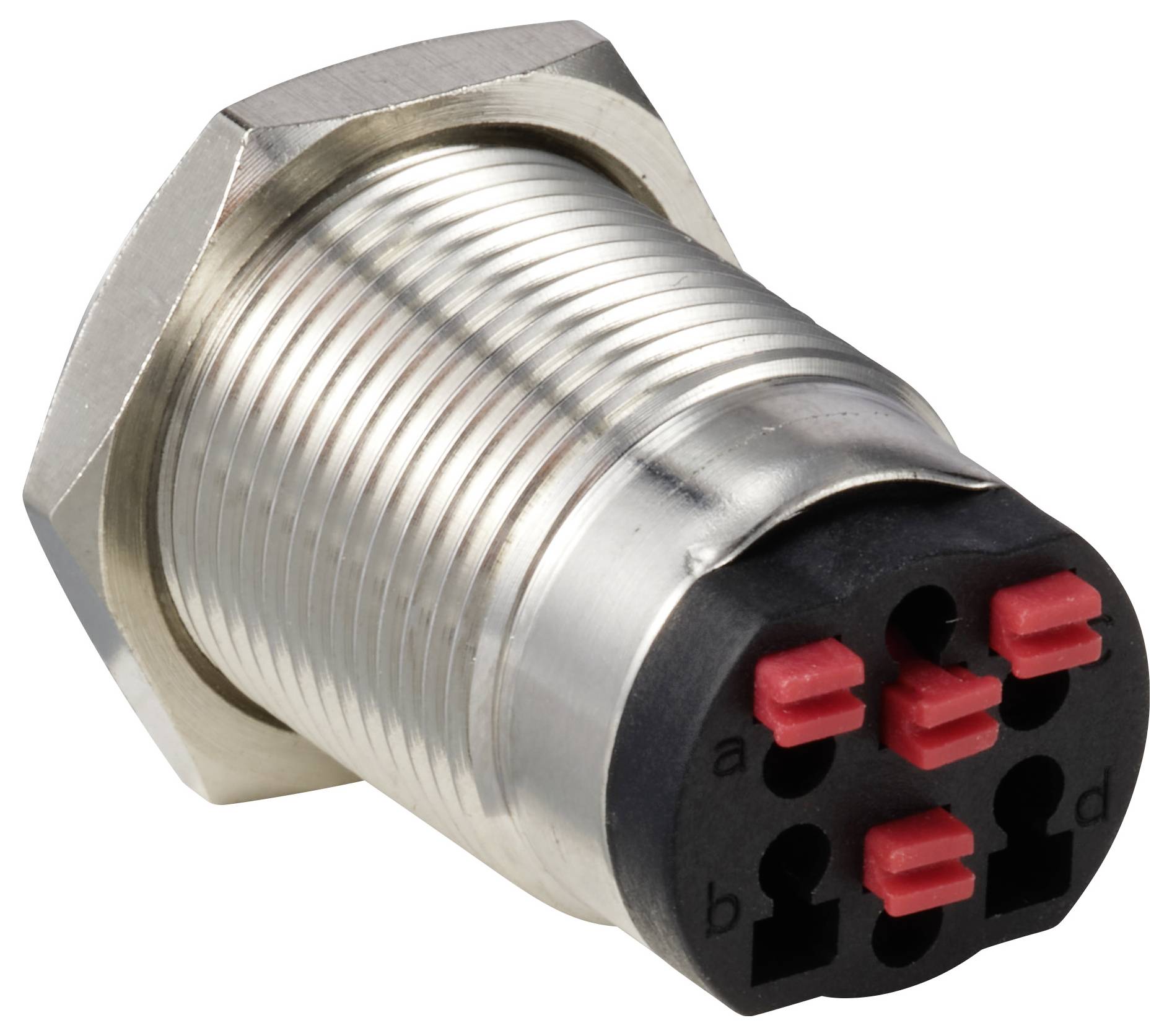

A cylindrical, metallic connector with six red-marked terminals. Suitable for electrical connections.
Links: Two side-by-side images show electrical connections. Left: 'Rigid cable, direct insertion'. Right: 'Flexible cable, insert with tool'.
1/3
Packaging type
Piece
Product type
Pushbutton
Lighting type
Circular lighting
Switch position
1 x Off/(On)
Connection
Quick-connect
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
47 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.54 / piece)
€ 6.54
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Pushbutton

  • Quick-connect type socket
  • Short body

Our service for you

  • The image shows the text 'powered by ONPOW' on a white background.

Technical specifications

  • Head shape: Round flat head
  • Mechanical life: 500,000 times
  • Terminal: Quick connect
  • LED voltage: 12 V
Packaging type

Piece

Product type

Pushbutton

Switch/button features

lockable

Casing/button colour

Yellow

Functions

latch

Lighting type

Circular lighting

Colour

Yellow

Bulb type

LED (monochrome)

Switch position

1 x Off/(On)

Material

Stainless steel

Connection

Quick-connect

Switching voltage

36 V DC/AC

Switching current (max.)

2 A

Dielectric strength

1,500 V, RMS 50 Hz, 1 min.

Min. temperature

-25 °C

Max. temperature

55 °C

Recess diameter

16 mm

Electrical lifespan

50,000 cycles

IP65

Content

1 pc(s)

RoHS-compliant

Yes

Type

ONPOW6316F-10ZE/Q/Y/12V/S

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3306043 TRU COMPONENTS TC-13224172 ONPOW6316F-10ZE/Q/Y/12V/S Pushbutton 36 V DC/AC 2 A 1 x Off/(On) latch Yellow IP65 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3306043 TRU COMPONENTS TC-13224172 ONPOW6316F-10ZE/Q/Y/12V/S Pushbutton 36 V DC/AC 2 A 1 x Off/(On) latch Yellow IP65 1 pc(s)

Description

Scope of delivery

  • Main unit

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
