TRU COMPONENTS TC-D6GE TC-D6GE Impulse relay 35 V DC 0.01 A momentary 1 pc(s)
Product type
Impulse relay
Lighting type
None
Contact type
1 maker
Connection
Solder pins
Switching voltage
35 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 2
Total (€ 1.30 / piece)
€ 1.30
incl. VAT
14-day return policy included
Technical specifications
- Product type
Impulse relay
- Casing/button colour
Yellow
- Functions
momentary
- Lighting type
None
- Key type
Input button
- Contact type
1 maker
- Connection
Solder pins
- Resistance
100 mΩ
- Switching voltage
35 V DC
- Switching current (max.)
0.01 A
- Min. temperature
-10 °C
- Max. temperature
60 °C

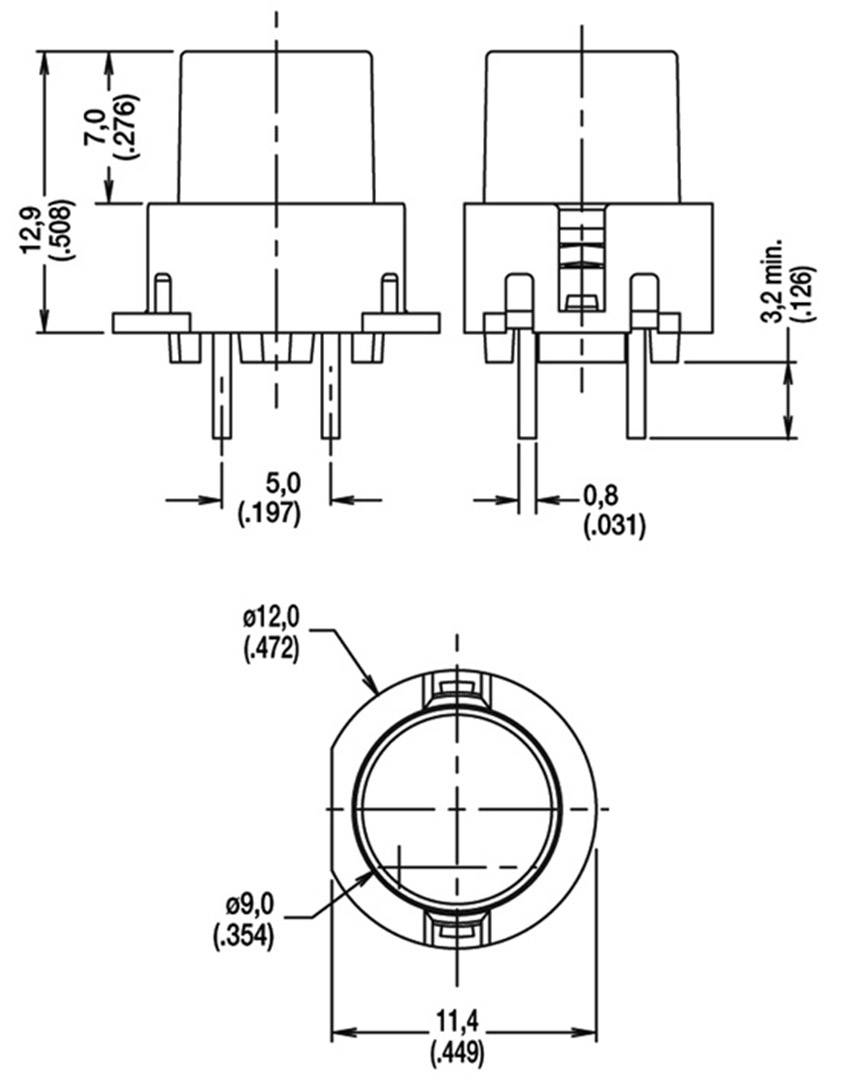

- Button diameter
9 mm
- Durability
100000
- Recess diameter
11.4 mm
- Actuating force
1.3 N
- Content
1 pc(s)
- Insulation resistance
100 GΩ
- Type
TC-D6GE
Documents & Downloads
Datasheet
Datasheet 1589416 TRU COMPONENTS TC-D6GE TC-D6GE Impulse relay 35 V DC 0.01 A momentary 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1589416 TRU COMPONENTS TC-D6GE TC-D6GE Impulse relay 35 V DC 0.01 A momentary 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
