Name: Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 670688000 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2449846
Availability: InStock

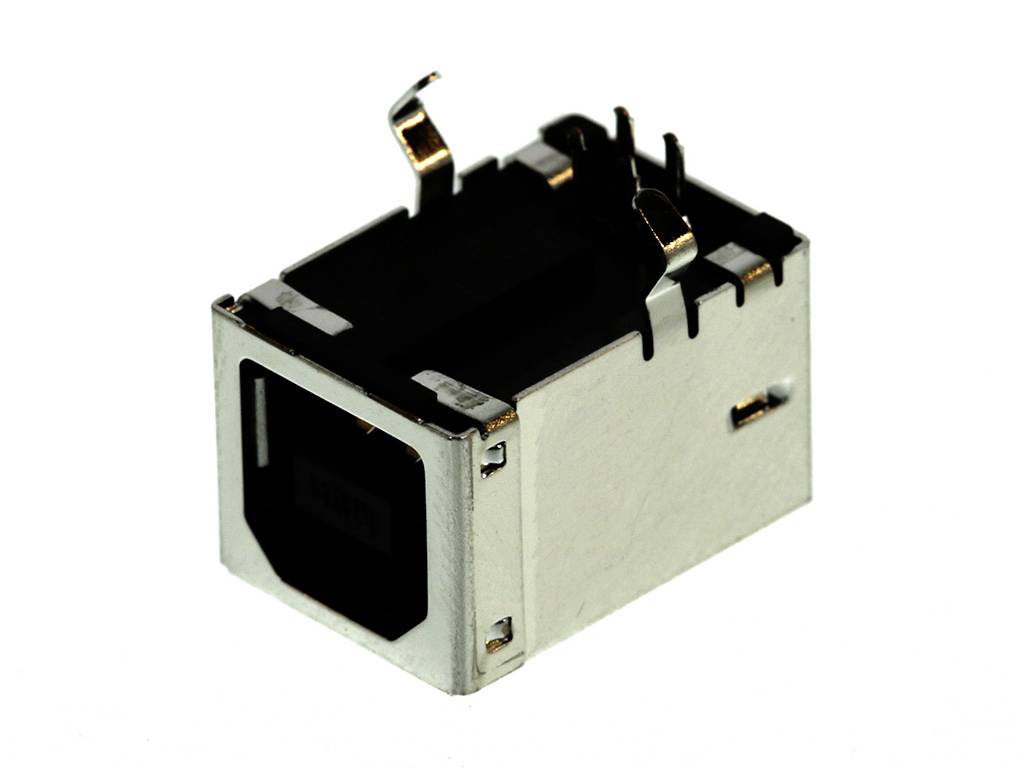

A rectangular USB socket in silver with black accents, contact pins and mounting elements visible.

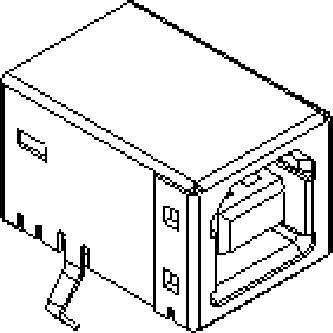

Drawing of a rectangular plug with contact pins inside and a mounting clip on the side.

1/2

Image similar

Packaging type

Tray

Product type

USB connector

Connector type

Socket

Number of pins

USB type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

21 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 3

Total (€ 1.49 / piece)

€ 1.79

-17 %

€ 1.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Universal Serial Bus

Universal Serial Bus (USB) Shielded I/O Type B Receptacle, Right-Angle, with Kinked Solder Tabs, Color Black, Gold (Au) Flash Plating, Tray Pack, Lead-Free
This text is machine translated.

Technical specifications

Application: Cable to PCBNumber of rows: 2Min. Coating - Crimp range: 1,905 µmMin. Coating - Plug-in range: 0.051 µmInputs: 1Recommended PCB thickness is 1.60 mmLength of soldering pins 2.80 mmMaterial - Coating Crimp range: TinMaterial - Coating Plug-in area: GoldPitch - Crimp range 2.50 mmPitch - mating range 2.50 mmRetention force PCB: YesCoded to counterpart: Yes

Packaging type: Tray

Type: Molex MOL Micro Solutions

Product type: USB connector

Connector type: Socket

Type: Right-angled

Number of pins: 4

USB type: B

Connection: Soldering

Manufacturer part #: 670688000

Factory colour: Black

Content: 1 pc(s)

Material: Thermoplastic

Nominal voltage (details): 30 V

Nominal current (details): 1.5 A

RoHS-compliant: Yes

Features: + shielding
+ locking mechanism

Max. temperature: +50 °C

Min. temperature: 0 °C

Temperature range: Process temperature max. 260 °C

Engineering Part No: 67068-8000

Engineering Series Name: USB B R/A RCPT

Engineering Series No: 67068

UKCA: yes
