Name: Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676432910 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2449858
Availability: InStock

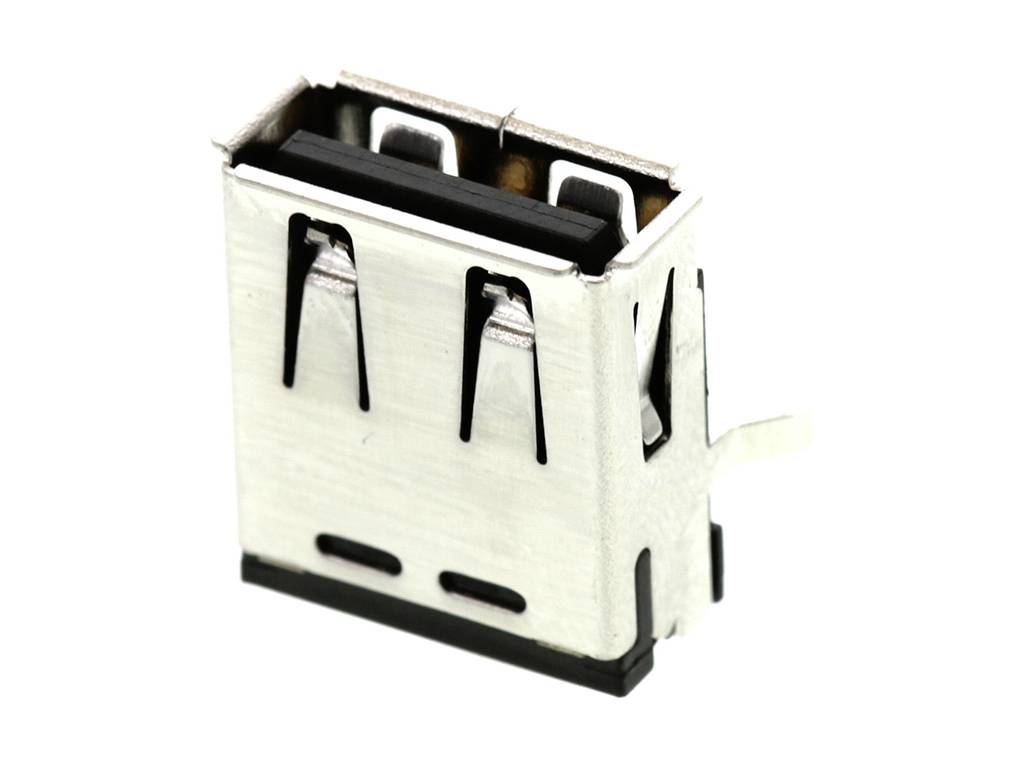

A rectangular USB socket in a metal casing, Type A, which is typical for computer and charger connections.

An open paper cassette slot, depicted in a technical drawing.

1/2

Image similar

Packaging type

Tray

Product type

USB connector

Connector type

Socket

Number of pins

USB type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

8 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.95 / piece)

€ 2.19

-57 %

€ 0.95

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Universal Serial Bus

Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Type A, High-Temperature Black Nylon, Gold (Au) Flash, PCB Thickness 1.60mm, without Upper Flange, for IR Reflow Process, Lead-Free
This text is machine translated.

Our service for you

Technical specifications

Application: Cable to PCBNumber of rows: 1Recommended PCB thickness is 1.60 mmLength of soldering pins 2.60 mmMaterial - Coating Crimp range: TinMaterial - Coating Plug-in area: GoldPitch - mating range 2.50 mmRetention force PCB: YesCoded to counterpart: Yes

Packaging type: Tray

Type: Molex MOL Micro Solutions

Product type: USB connector

Connector type: Socket

Type: Right-angled

Number of pins: 4

USB type: A

Connection: Soldering

Connection: Front-panel mounting

Manufacturer part #: 676432910

Factory colour: Black

Content: 1 pc(s)

Nominal voltage (details): 30 V

Nominal current (details): 1.5 A

RoHS-compliant: Yes

Features: + shielding
encodable
+ locking mechanism

Max. temperature: +85 °C

Min. temperature: -40 °C

Temperature range: Process temperature max. 245 °C

Engineering Part No: 67643-2910

Engineering Series Name: USB B R/A RCPT

Engineering Series No: 67643

Documents & Downloads

Datasheet

Datasheet 2449858 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676432910 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2449858 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676432910 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2449858 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676432910 Molex Content: 1 pc(s)

Description

Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Type A, High-Temperature Black Nylon, Gold (Au) Flash, PCB Thickness 1.60mm, without Upper Flange, for IR Reflow Process, Lead-Free

Description

Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Type A, High-Temperature Black Nylon, Gold (Au) Flash, PCB Thickness 1.60mm, without Upper Flange, for IR Reflow Process, Lead-Free
