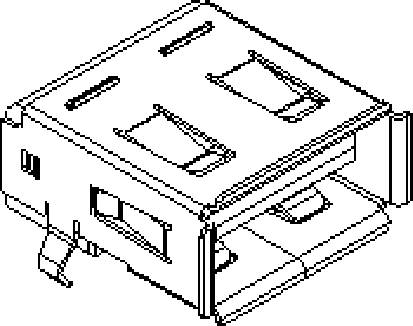

Image similar
1/2

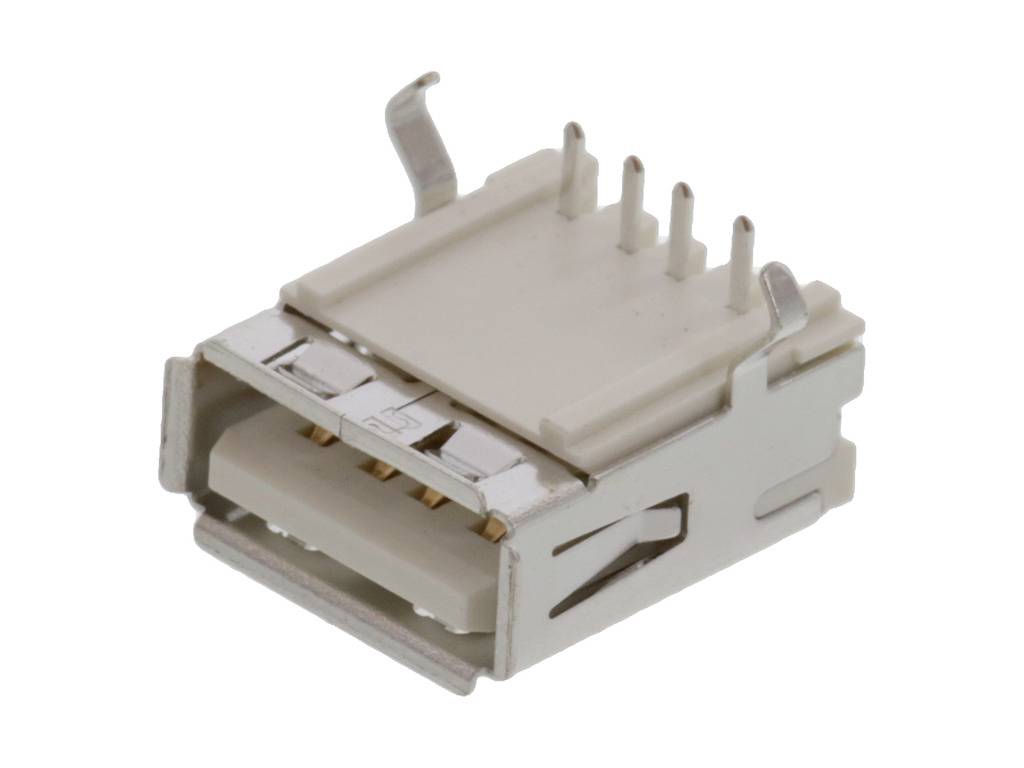

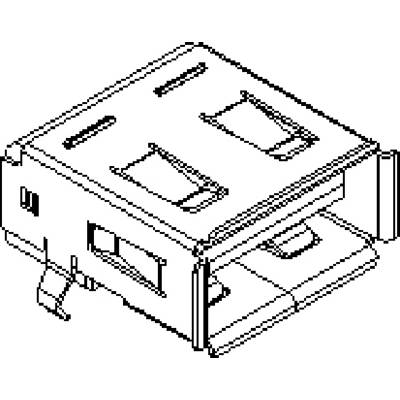

Image similar
Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676433910 Molex Content: 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 2
Total (€ 1.08 / piece)
€ 1.56
-31 %
€ 2.16
plus VAT.
Highlights & Details
Universal Serial Bus
- Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Type A, High-Temperature White Nylon, Gold (Au) Flash, PCB Thickness 1.60mm, without Upper Flange, for IR Reflow Process, Lead-Free
- This text is machine translated.
Technical specifications
- Application: Cable to PCBNumber of rows: 1Recommended PCB thickness is 1.60 mmLength of soldering pins 2.60 mmMaterial - Coating Crimp range: TinMaterial - Coating Plug-in area: GoldPitch - mating range 2.50 mmRetention force PCB: YesCoded to counterpart: Yes
- Packaging type
Tray
- Type
Molex MOL Micro Solutions
- Type
Right-angled
- Content
1 pc(s)
- Factory colour
White
- Connector standard
USB 2.0
- Engineering Part No
67643-3910
- Engineering Series Name
USB B R/A RCPT
- Engineering Series No
67643
- Features
+ shielding
encodable
+ locking mechanism
- Connection
Soldering
- USB type
A
- Manufacturer part #
676433910
- Number of pins
4
- Connector type
Socket
- Nominal voltage (details)
30 V
- Nominal current (details)
1.5 A
- Connection
Front-panel mounting
- Temperature range
Process temperature max. 260 °C
- RoHS-compliant
Yes
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Product type
USB connector
Documents & Downloads
Datasheet
Datasheet 2449859 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676433910 Molex Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2449859 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676433910 Molex Content: 1 pc(s)
Circuit diagramm
Circuit diagramm 2449859 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676433910 Molex Content: 1 pc(s)
Description
Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Type A, High-Temperature White Nylon, Gold (Au) Flash, PCB Thickness 1.60mm, without Upper Flange, for IR Reflow Process, Lead-Free
