Name: Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 1050570001 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2446858
Availability: InStock

A USB plug with six golden contact points and four solderable pins on the base section, suitable for electronic connections.

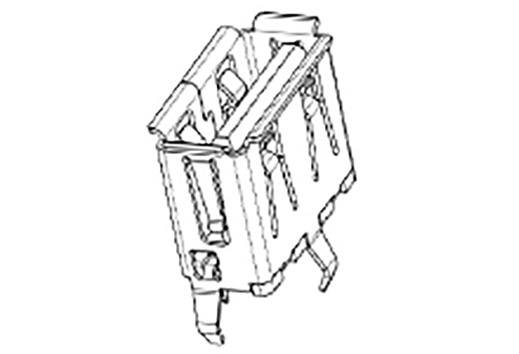

Black and white technical drawing of an electronic connector with multiple pins and a rectangular shape.

1/2

Image similar

Packaging type

Tray

Product type

USB connector

Connector type

Socket

Number of pins

USB type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

116 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.79 / piece)

€ 1.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Universal Serial Bus

Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Vertical, 0.76µm Gold (Au) Plating, 2.80mm Tail Length, with 3 Beveled Solder Tabs, Tray, Lead-Free
This text is machine translated.

Technical specifications

Application: Cable to PCBMin. Coating - Crimp range: 3,810 µmMin. Coating - Plug-in range: 0.762 µmRecommended PCB thickness is 1.60 mmDurability (max. mating cycles): 20000Length of soldering pins 2.80 mmMaterial - Coating Crimp range: TinMaterial - Coating Plug-in area: GoldPitch - Crimp range 2.00 mm, 2.50 mmPitch - mating range 2.00 mm, 2.50 mmRetention force PCB: YesCoded to counterpart: Yes

Packaging type: Tray

Type: Molex MOL Micro Solutions

Product type: USB connector

Connector type: Socket

Type: Vertical

Number of pins: 4

USB type: A

Connection: Soldering

Manufacturer part #: 1050570001

Factory colour: Black

Content: 1 pc(s)

Nominal voltage (details): 30 V

Nominal current (details): 1.5 A

RoHS-compliant: Yes

Features: + shielding
+ locking mechanism

Max. temperature: +85 °C

Min. temperature: -40 °C

Temperature range: Process temperature max. 245 °C

Engineering Part No: 105057-0001

Engineering Series Name: Vertical USB A type

Engineering Series No: 105057

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2446858 Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 1050570001 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2446858 Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 1050570001 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2446858 Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 1050570001 Molex Content: 1 pc(s)

Description

Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Vertical, 0.76µm Gold (Au) Plating, 2.80mm Tail Length, with 3 Beveled Solder Tabs, Tray, Lead-Free

Description

Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Vertical, 0.76µm Gold (Au) Plating, 2.80mm Tail Length, with 3 Beveled Solder Tabs, Tray, Lead-Free
