Name: Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 482040001 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2448938
Availability: InStock

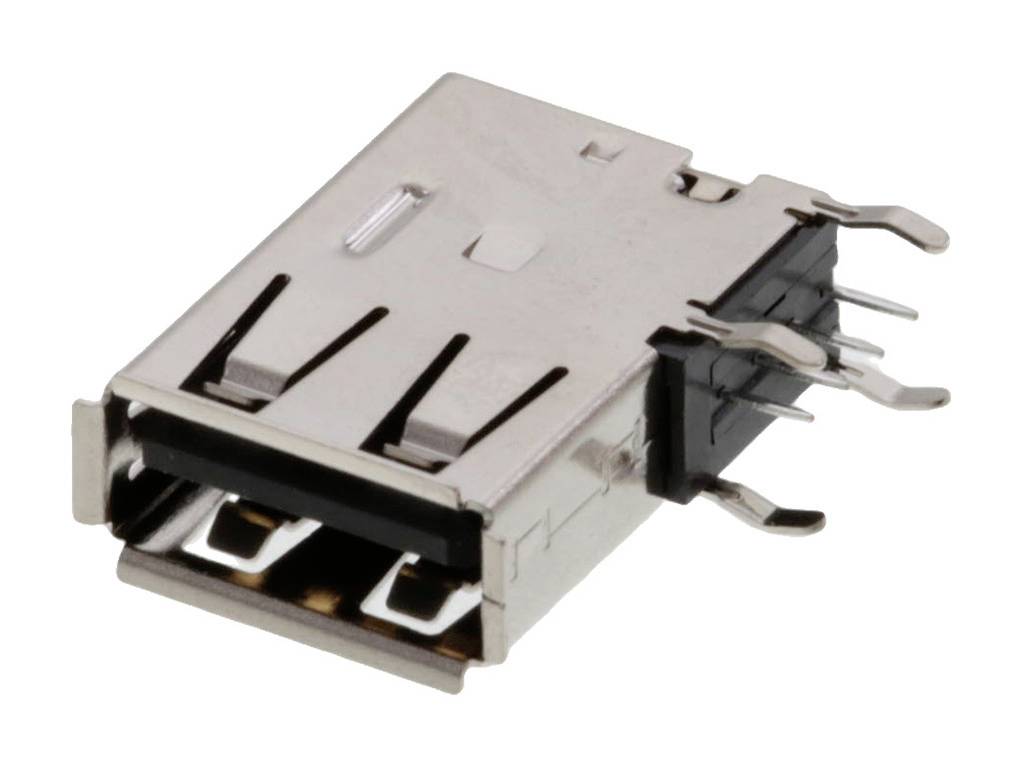

USB socket, rectangular, metal housing, with four pins on the side. Suitable for connecting USB components.

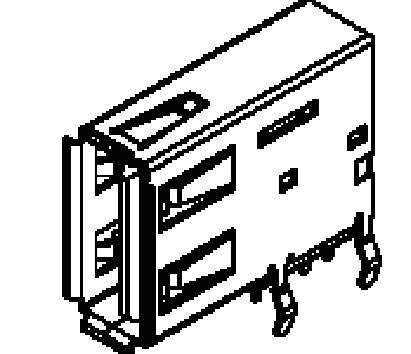

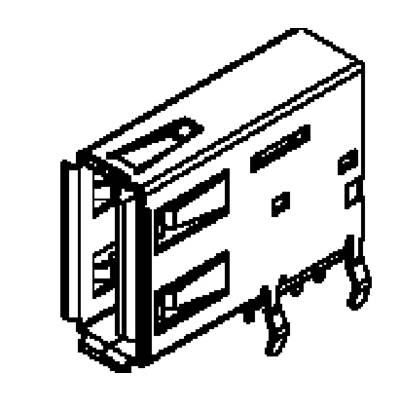

'Black and white pixel drawing of a rectangular connector with multiple openings and pins, top-down view. Technical icon.'

1/2

Image similar

Packaging type

Tray

Product type

USB connector

Connector type

Socket

Number of pins

USB type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

87 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.75 / piece)

€ 1.69

-56 %

€ 0.75

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Universal Serial Bus

Universal Serial Bus (USB) Shielded I/O Receptacle, Type A Upright Right-Angle, Reverse Mount, Solder Tail Length 2.90mm, 3.70mm Beveled Metal Pins, PCB Thickness 1.60mm, 0.76µm Gold (Au) Plating, Lead-Free
This text is machine translated.

Technical specifications

Application: Cable to PCBNumber of rows: 4Min. Coating - Plug-in range: 0.762 µmInputs: 1Recommended PCB thickness is 1.60 mmLength of soldering pins 2.90 mmMaterial - Coating Crimp range: TinMaterial - Coating Plug-in area: GoldRetention force PCB: YesCoded to counterpart: Yes

Packaging type: Tray

Type: Molex MOL Micro Solutions

Product type: USB connector

Connector type: Socket

Type: Vertical

Number of pins: 4

USB type: A

Connection: Soldering

Manufacturer part #: 482040001

Factory colour: Black

Content: 1 pc(s)

Nominal voltage (details): 30 V DC/AC

Nominal current (details): 1.5 A

RoHS-compliant: Yes

Features: + shielding
+ locking mechanism

Max. temperature: +85 °C

Min. temperature: -55 °C

Temperature range: Process temperature max. 265 °C

Engineering Part No: NT501-5121

Engineering Series Name: USB Flag Reverse

Engineering Series No: 48204

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2448938 Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 482040001 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2448938 Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 482040001 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2448938 Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 482040001 Molex Content: 1 pc(s)

Description

Universal Serial Bus (USB) Shielded I/O Receptacle, Type A Upright Right-Angle, Reverse Type, Solder Tail Length 2.90mm, 3.70mm Beveled Metal Pins, PCB Thickness 1.60mm, 0.76µm Gold (Au) Plating, Lead-Free
