Name: Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 894858000 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2450504
Availability: InStock

Metal Micro USB-B socket with multiple pins, used for connecting electronic devices.

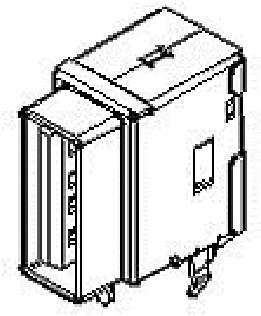

A switching device with a visible opening on the left side. Top surface marked with a plus symbol.

1/2

Image similar

Packaging type

Tray

Product type

USB connector

Connector type

Socket

Number of pins

USB type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

110 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.85 / piece)

€ 1.83

-54 %

€ 0.85

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Universal Serial Bus

Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Single Upright, Right-Angle, Terminal Length 2.00mm, Without Mylar, Gold (Au) Flash, Tray Package, Lead-Free
This text is machine translated.

Technical specifications

Application: Cable to PCBNumber of rows: 1Min. Coating - Crimp range: 2,540 µmMin. Coating - Plug-in range: 0.102 µmInputs: 1Recommended PCB thickness is 1.60 mmSolder pin length 2.00 mmMaterial - Coating Crimp range: TinMaterial - Coating Plug-in area: GoldPitch - Crimp range 1.40 mmPitch - mating range 2.00 mm, 2.50 mmRetention force PCB: YesCoded to counterpart: Yes

Packaging type: Tray

Type: Molex MOL Micro Solutions

Product type: USB connector

Connector type: Socket

Type: Vertical

Number of pins: 4

USB type: A

Connection: Soldering

Manufacturer part #: 894858000

Factory colour: Black

Content: 1 pc(s)

Material: Thermoplastic

Nominal voltage (details): 750 V AC

Nominal current (details): 1 A

RoHS-compliant: Yes

Features: + shielding
+ locking mechanism

Max. temperature: +50 °C

Min. temperature: 0 °C

Temperature range: Process temperature max. 250 °C

Engineering Part No: 89485-8000

Engineering Series Name: USB A R/A RCPT U/R

Engineering Series No: 89485

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2450504 Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 894858000 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2450504 Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 894858000 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2450504 Universal Serial Bus Socket Molex MOL Micro Solutions Vertical 894858000 Molex Content: 1 pc(s)

Description

Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Single Upright, Right-Angle, Terminal Length 2.00mm, Without Mylar, Gold (Au) Flash, Tray Package, Lead-Free

Description

Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Single Upright, Right-Angle, Terminal Length 2.00mm, Without Mylar, Gold (Au) Flash, Tray Package, Lead-Free
