Connectors & CablesConnectorsTelecom & IT ConnectorsUSB Connectors

USB 2.0 plug Mini-B RJ45 socket, mount 1310-1026-05 M30 1310-1026-05 encitech Content: 1 pc(s)

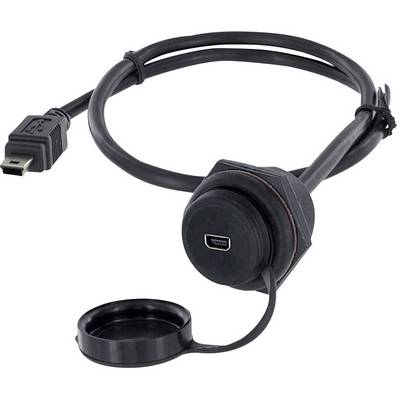

Black USB cable with micro-USB connector and removable protective cover, suitable for waterproof applications.

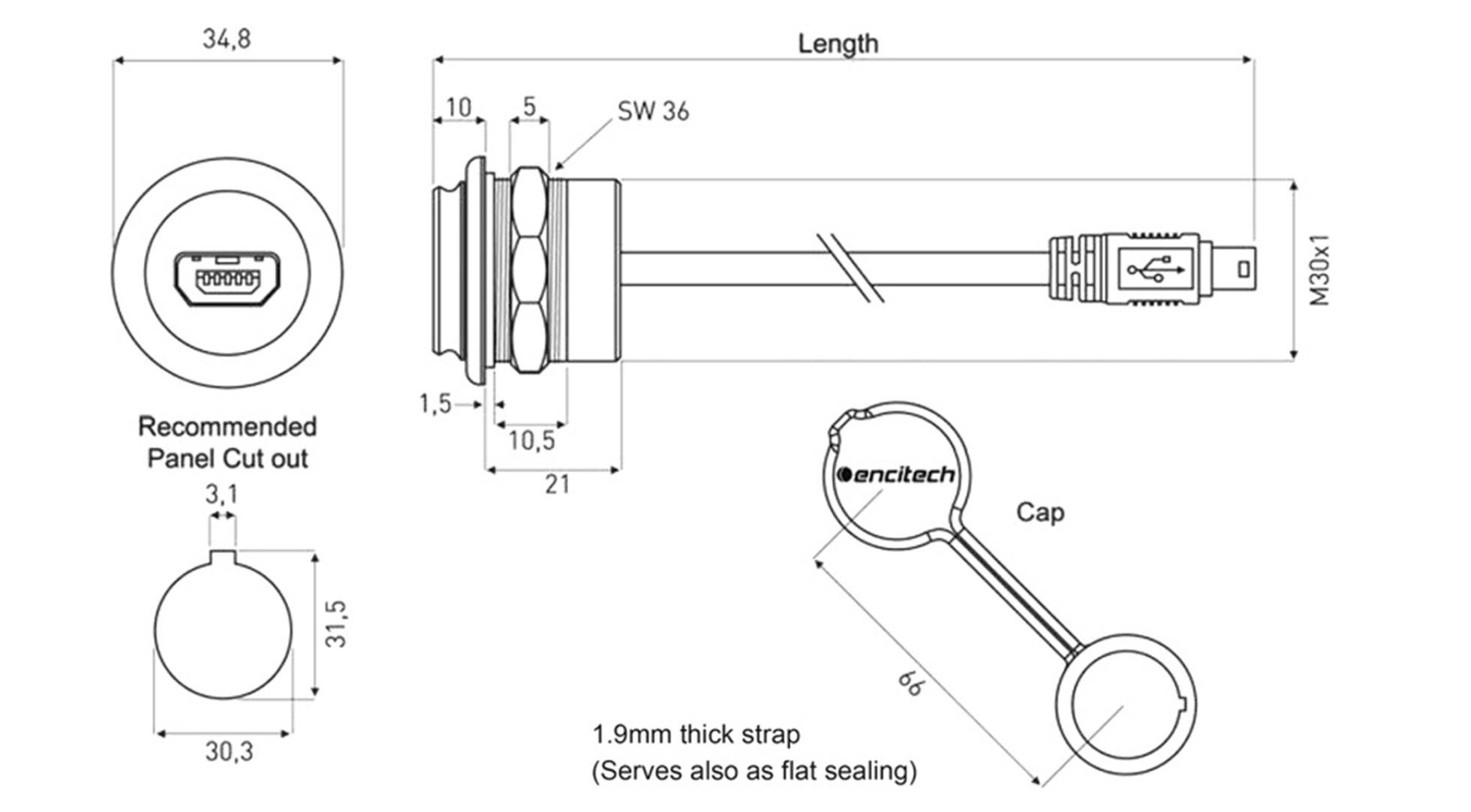

Technical drawing of a USB connection with dimensions and protective cap. Includes measurements for 'Recommended Panel Cut out', 34.8 mm length.
1/2
Image similar
Product type
USB connector
Connector type
RJ45 socket, mount
Number of pins
5
Type
1310-1026-05
Type
M30
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 22.99 / piece)
€ 22.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

1310-1026-05

Product type

USB connector

Connector type

RJ45 socket, mount

Type

M30

Number of pins

5

Connection

Cable + connector

Type A

USB 2.0 port A

Type B

USB 2.0 connector Mini B

Bore Ø

31 mm

Case material

PA

Manufacturer part #

1310-1026-05

Factory colour

Black

Content

1 pc(s)

Cable length

3.00 m

Contact material

Gold plated

Compatible with (details)

M30 thread

IP67

Features

+ plastic cap

+ locknut

Documents & Downloads

Datasheet

Datasheet 1656554 USB 2.0 plug Mini-B RJ45 socket, mount 1310-1026-05 M30 1310-1026-05 encitech Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1656554 USB 2.0 plug Mini-B RJ45 socket, mount 1310-1026-05 M30 1310-1026-05 encitech Content: 1 pc(s)
