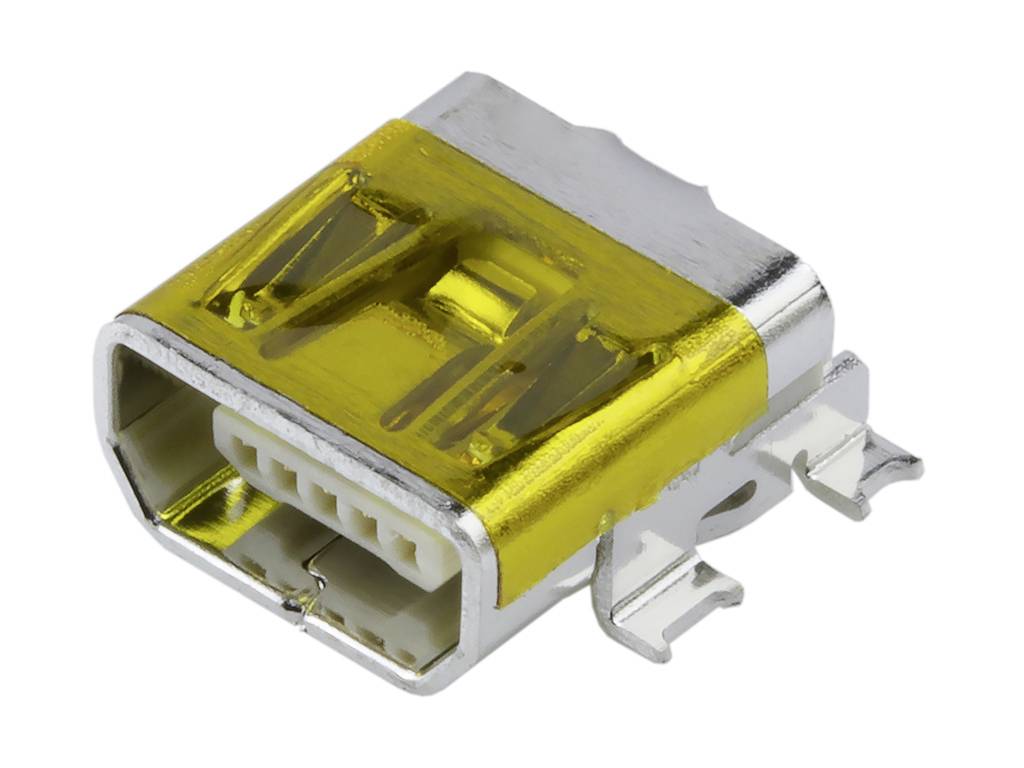

USB on the go Socket MOL Micro Solutions Right-angled 678038020 Molex Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
USB connector
Connector type
Socket
Number of pins
5
USB type
Mini B
Datasheet (PDF)
Number
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 1.08 / piece)
€ 1.08
plus VAT.
14-day return policy included
Highlights & Details
USB on the go
- Mini USB, AB-Recipe, Right-Angle, Surface Mount, with Shell Tabs, Plastic Pegs and Cover Tape, Colour Gray, Lead-Free
- This text is machine translated.
Our service for you
Technical specifications
- Application: Cable to PCB
- Number of rows: 1
- Min. Coating - Crimp area: 3,810 µm
- Min. Coating - Plug-in area: 0,762 µm
- Inputs 1
- Material - coating Crimp area: Tin
- Material - coating plug area: Gold
- Pitch – crimp range 0.80 mm
- Grid pitch - plug-in area 0.80 mm
- Board retention force: Yes
- Coded to the opposite: Yes
- Packaging type
Tape on Full reel
- Type
MOL Micro Solutions
- Product type
USB connector
- Connector type
Socket
- Type
Right-angled
- Number of pins
5
- USB type
Mini B
- Connector standard
Mini-B USB
- Connection
SMT
- Manufacturer part #
678038020
- Factory colour
Grey
- Content
1 pc(s)
- Contact material
Copper alloy
- Material
Nylon
- Nominal voltage (details)
30 V
- Nominal current (details)
1 A
- RoHS-compliant
Yes
- Features
+ shielding
+ locking mechanism
- Max. temperature
+50 °C
- Min. temperature
0 °C
- Temperature range
Process temperature max. 260 °C
