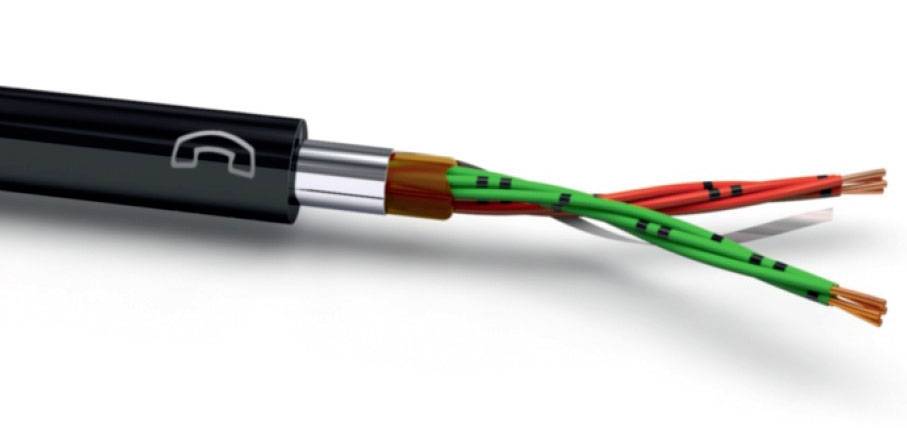

VOKA Kabelwerk 10974400 Fire alarm cable A-2YF(L)2Y 20 x 2 x 0.8 mm² Black (RAL 9005) 100 m
EAN:
Part number:
Item no:
Product type
Fire alarm cable
Cable type
A-2YF(L)2Y
No. of leads
40 x
Cross section (each core)
0.8 mm²
Content
100 m
Datasheet (PDF)
Number
Total (1 m = € 6.34)
€ 634.45
plus VAT.
Technical specifications
- Product type
Fire alarm cable
- Cable type
A-2YF(L)2Y
- No. of leads
40 x
- Cross section (each core)
0.8 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
20 x 2 x 0.8 mm²
- Cable features
Outdoor phone cable
suitable for outdoor use
for underground installation
Metal foil shield
rigid core
- Outside Ø
20.8 mm
- Factory colour
Black (RAL 9005)
- Content
100 m
- Nominal voltage
225 V AC
- Bend radius (no. of ODs for fixed installation)
10
- Bend radius (no. of ODs for flexible installation)
10
- Sold per metre
No
- Halogen-free
Yes
- Shielded
Yes
- Manufacturer part #
10974400
- Insulation material
Polyethylene (PE)
- Max. temperature range (fixed installation)
70 °C
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
50 °C
- Standards
VDE 0816
- Type
10974400
- Max. length sold by the metre
500 m
Documents & Downloads
Datasheet
Datasheet 2358955 VOKA Kabelwerk 10974400 Fire alarm cable A-2YF(L)2Y 20 x 2 x 0.8 mm² Black (RAL 9005) 100 m
User & Safety Instructions
User & Safety Instructions 2358955 VOKA Kabelwerk 10974400 Fire alarm cable A-2YF(L)2Y 20 x 2 x 0.8 mm² Black (RAL 9005) 100 m
Description
As connection and connection cable in industry or
Ancillary equipment. Suitable for outdoor and ground laying, for
High-current installation not approved, cross-proof.
This text is machine translated.
Ancillary equipment. Suitable for outdoor and ground laying, for
High-current installation not approved, cross-proof.
This text is machine translated.
