Name: VOLTCRAFT MP-10 rot Jack plug Plug, straight Pin diameter: 4 mm Red 1 pc(s) Bulk
Brand: VOLTCRAFT
SKU: 3771289
Availability: InStock

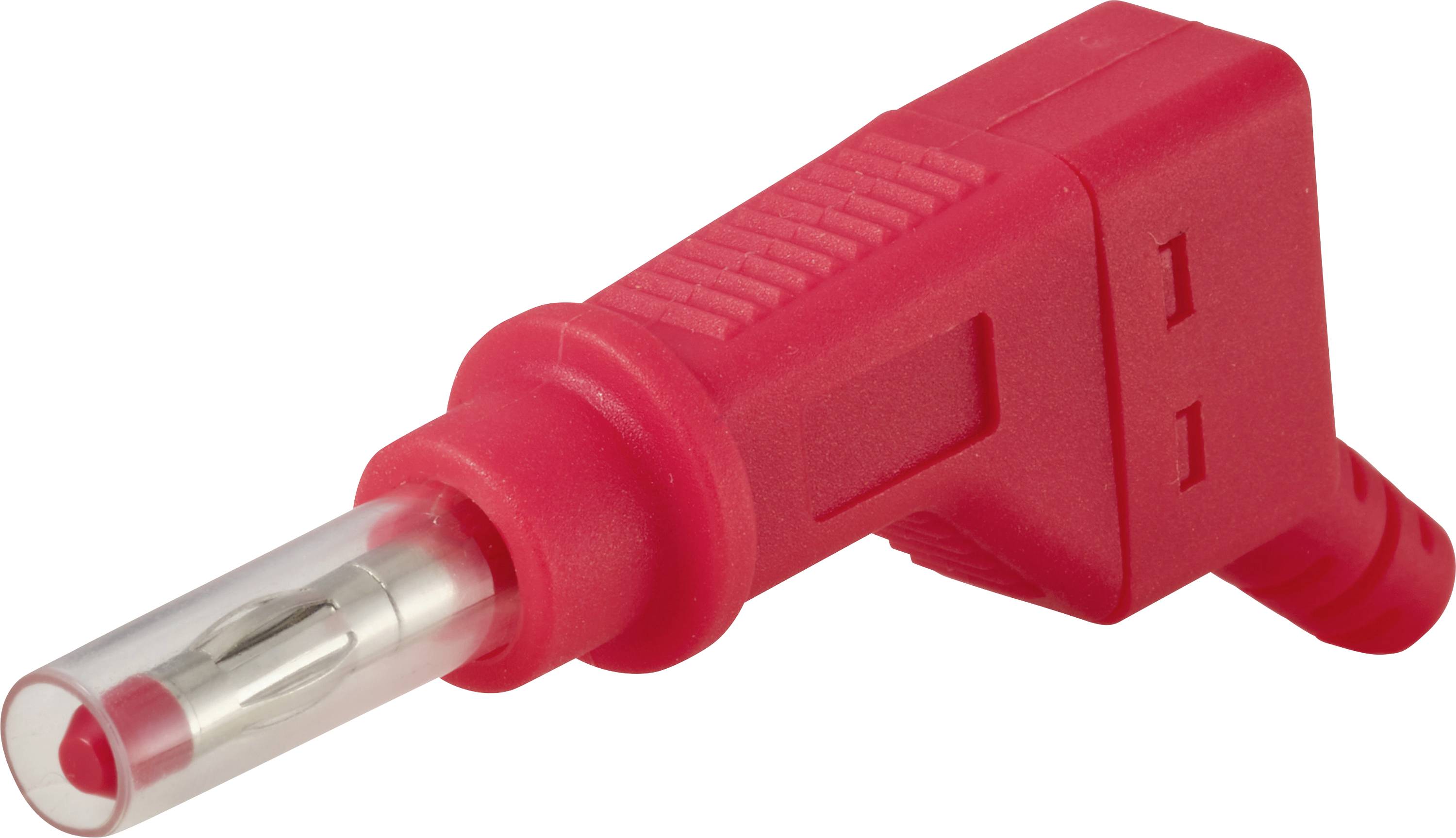

Red insulated banana plug connector with metal tip, shown on a white background.<br>

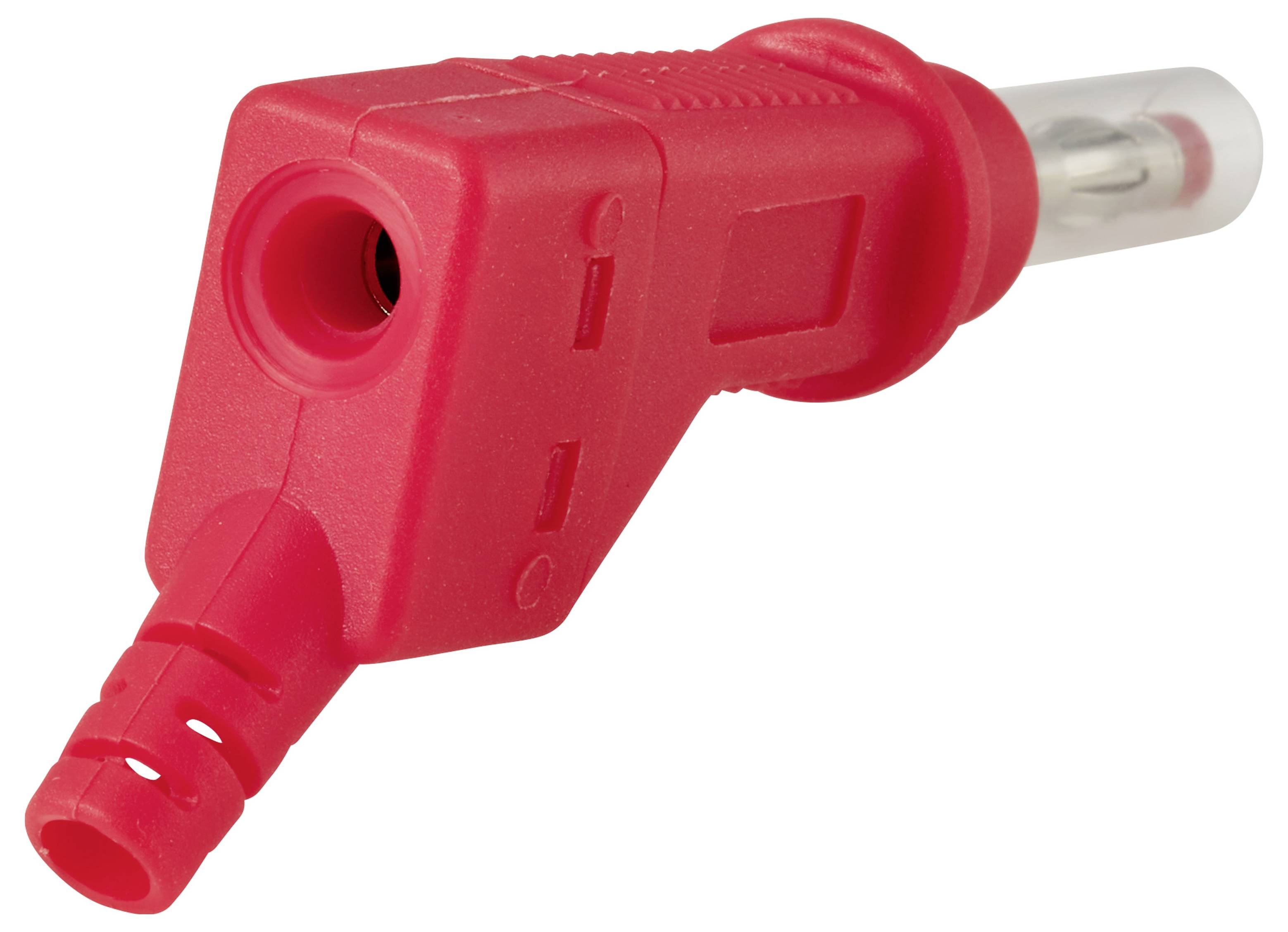

Red angled electrical plug connector with a metal pin, shown on a white background.

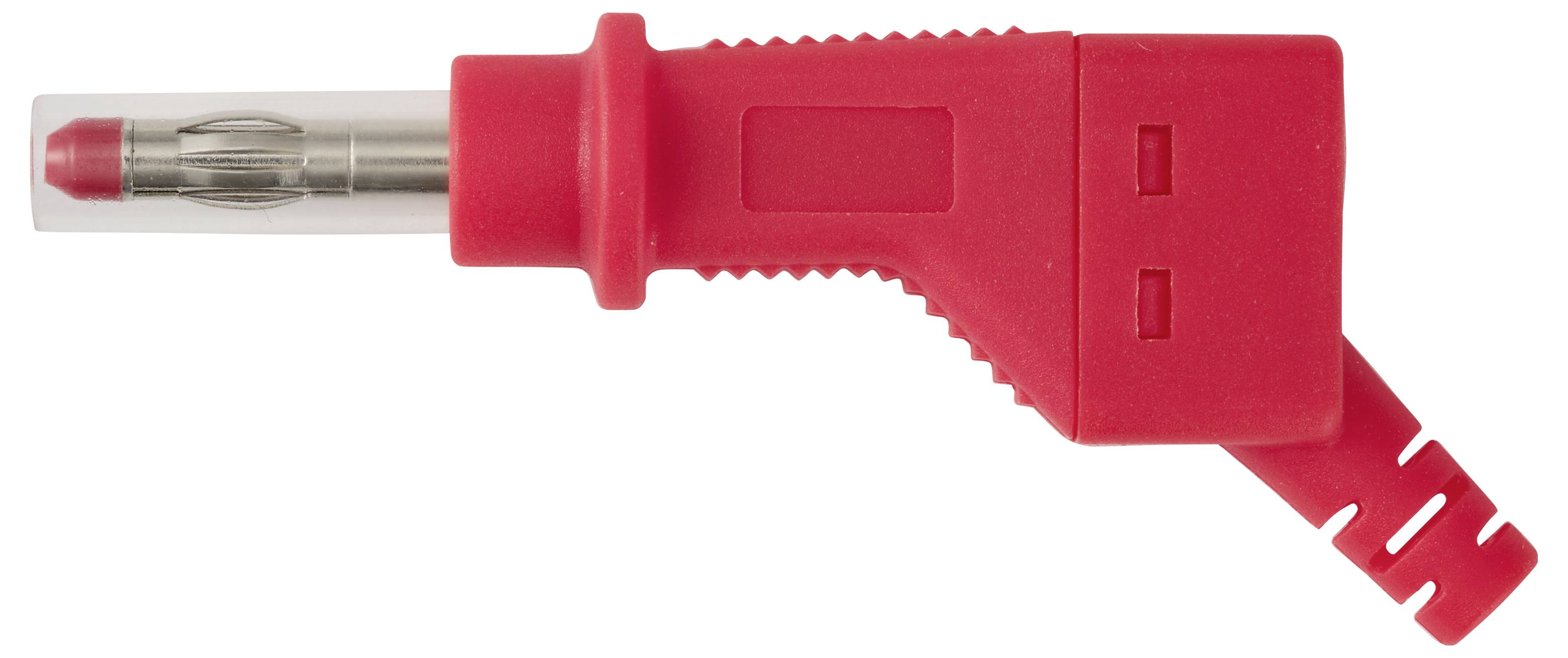

Red right-angle electrical plug adapter with a translucent metal-prong connector on a white background.

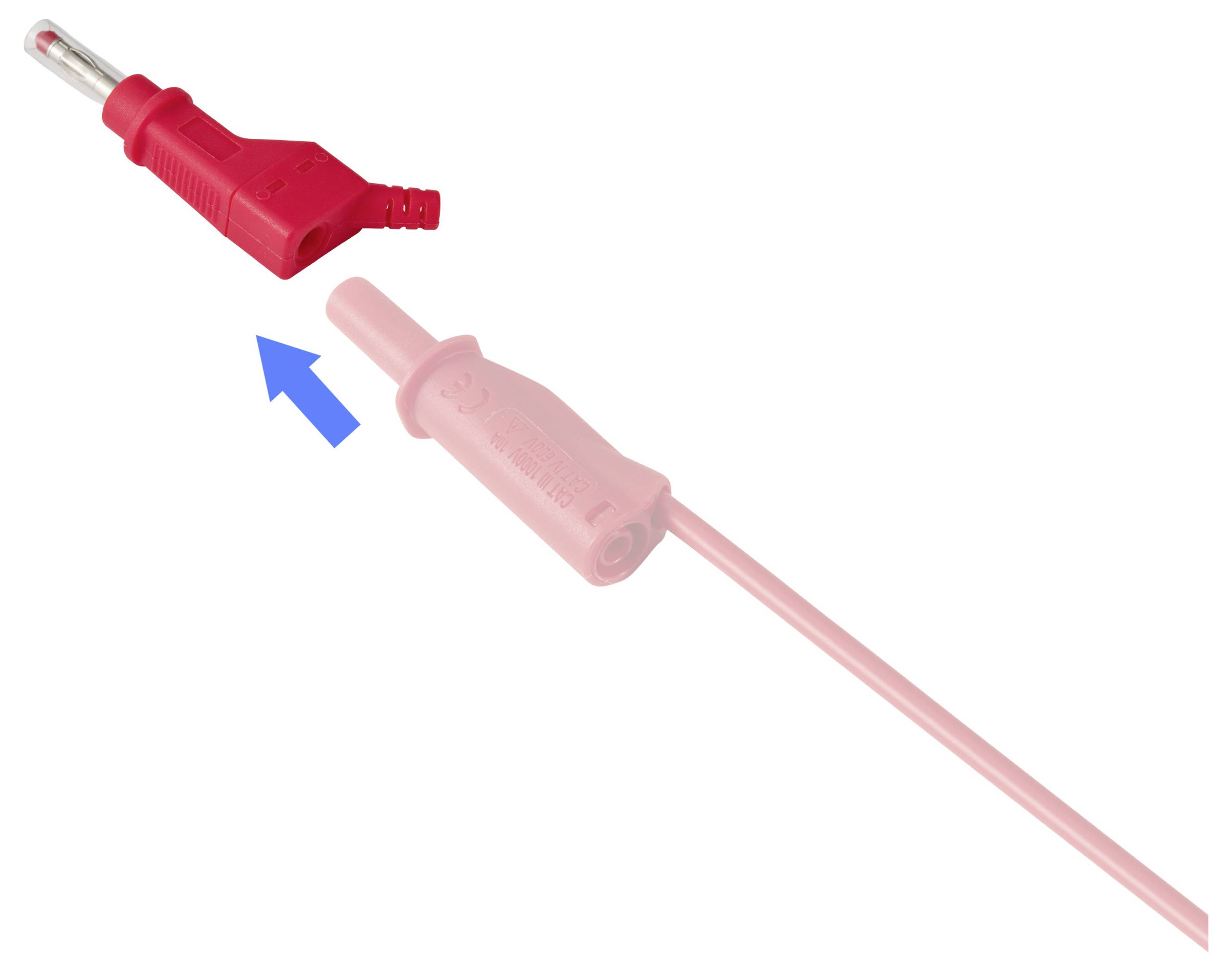

Illustration showing a red electrical connector being inserted into a matching pink plug, with a blue arrow indicating the connection direction.

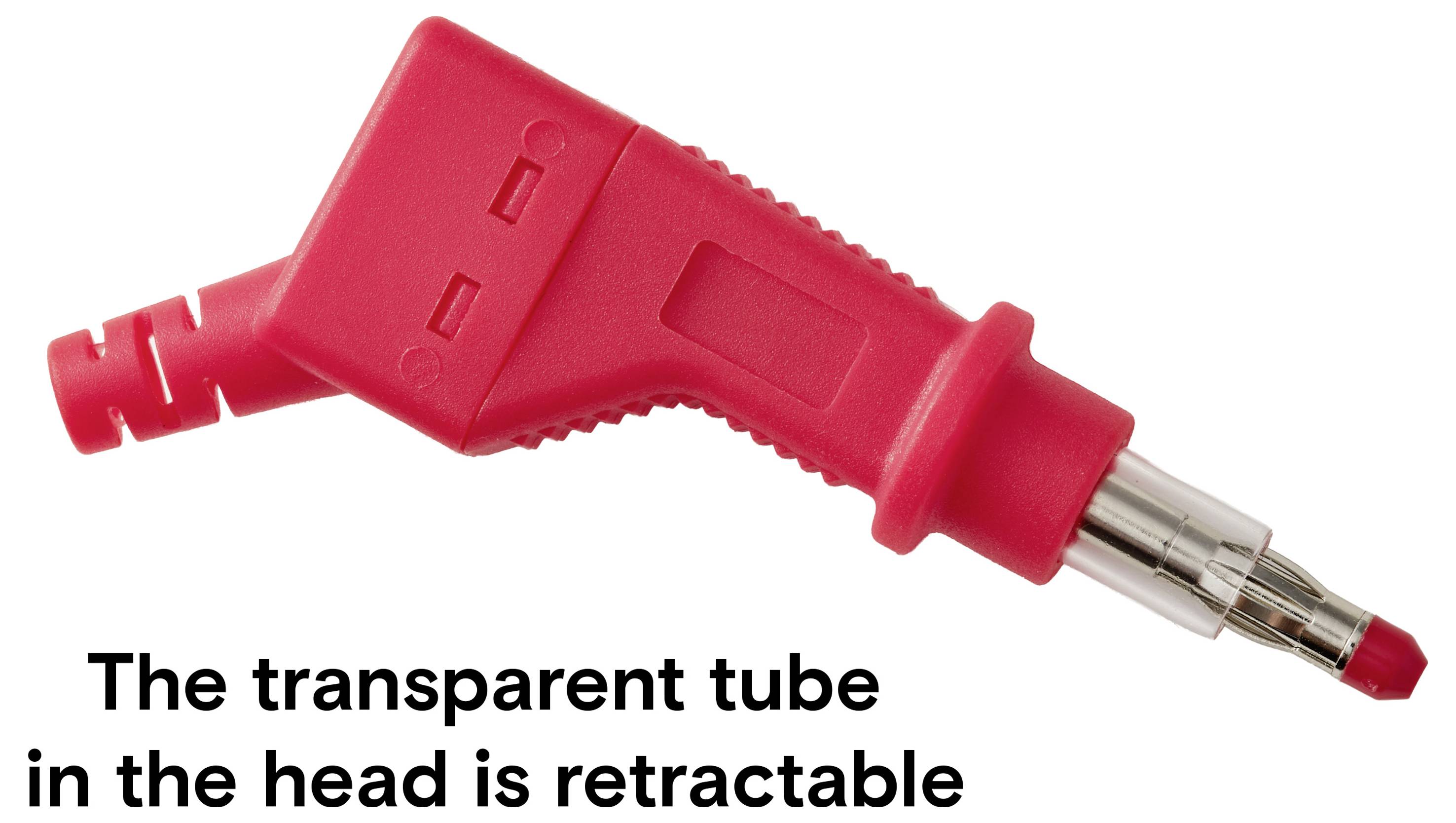

Close-up of a red retractable plug tip connector with the caption 'The transparent tube in the head is retractable'.

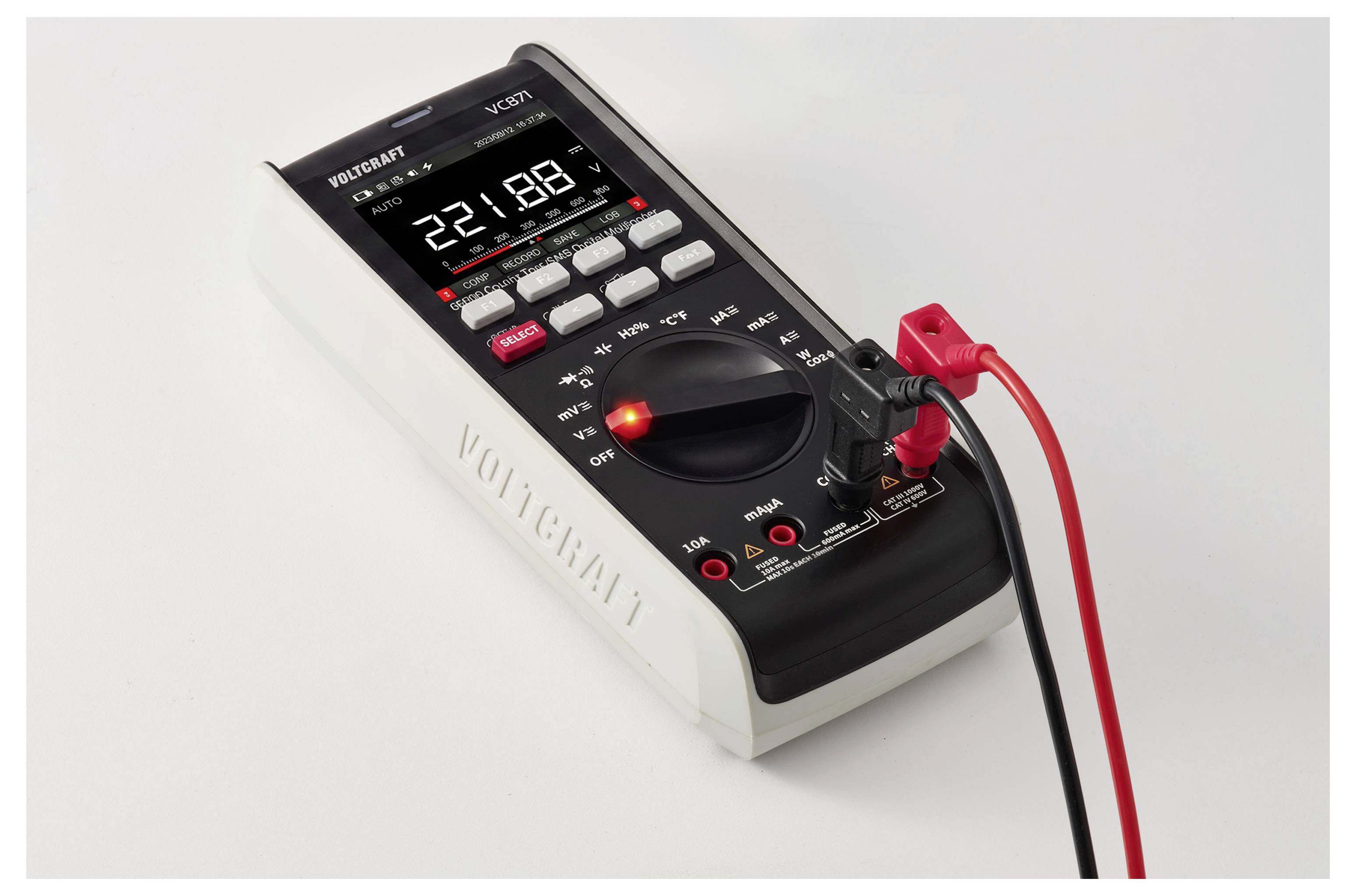

Digital multimeter showing a 221.8 reading, with red and black test leads attached and a lit selector knob on a white background.

1/6

Packaging type

Bulk

Product type

Jack plug

Connector type

Plug, straight

Pin Ø

4 mm

Connection

4 mm plug

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

941 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT MP-10 rot Laboratory Plug, Red, 32 A, Sliding Sleeve, Stackable

CAT II 1000V / CAT III 600V
Nominal voltage: 1000 V
Rated current: 32 A
Stackable 4mm insulated plug

Our service for you

Technical specifications

Packaging type: Bulk

Product type: Jack plug

Connector type: Plug, straight

Pin Ø: 4 mm

Nominal current: 32 A

Nominal current - rounded value: 32 A

Connection: 4 mm plug

Factory colour: Red

Insulation type: Partially insulated

Manufacturer part #: VC-18856445

Type: MP-10 rot

Dim: (Ø x L) 4 mm x 61.5 mm

Jack diameter: 4 mm

Content: 1 pc(s)

Insulation material: PA

Contact material: Copper nickel-plated

Nominal voltage: 1000 V

Length: 61.5 mm

(Ø): 4 mm

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3771289 VOLTCRAFT MP-10 rot Jack plug Plug, straight Pin diameter: 4 mm Red 1 pc(s) Bulk

User & Safety Instructions

User & Safety Instructions 3771289 VOLTCRAFT MP-10 rot Jack plug Plug, straight Pin diameter: 4 mm Red 1 pc(s) Bulk

Warranty Terms

Warranty Terms 3771289 VOLTCRAFT MP-10 rot Jack plug Plug, straight Pin diameter: 4 mm Red 1 pc(s) Bulk

Description

The red VOLTCRAFT MP-10 laboratory plug is a functional solution for measuring tasks in the laboratory and workshop. With a nominal voltage of 1000 V and a nominal current of 32 A, this straight 4-mm plug is specified for the measurement categories CAT II (1000 V) and CAT III (600 V).

Stackable design
The design has an integrated 4-mm jack, which enables the plug-in of further plugs on the rear side. This simplifies the setup of measuring circuits and reduces the wiring costs directly at the test site.

Robust materials
The pin is made of nickel-plated copper, WAS supports a continuous and correct signal transmission. In addition, the partially insulated PA housing with sliding sleeve offers stability during everyday work.

This text is machine translated.
