Name: VOLTCRAFT UC-3C1A140W01 USB charger 140 W 3x USB-C®, 1x USB-A USB PD 3.1 White Indoors GaN
Brand: VOLTCRAFT
SKU: 3209070
Availability: InStock

Highlights & Details

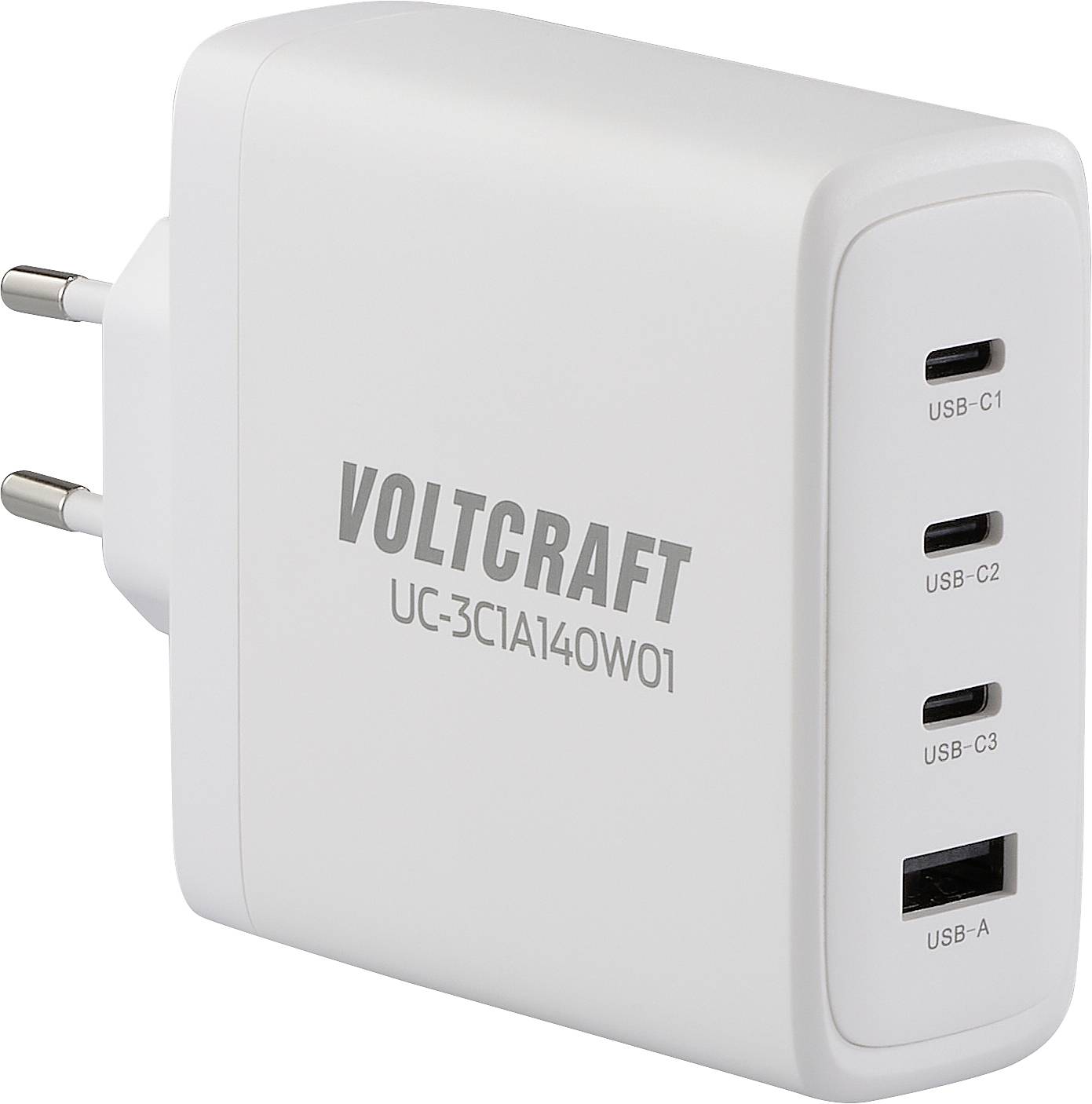

Voltcraft USB charger 140W UC-3C1A140W01

Fast charger with PD3.1 support
Max. 140W

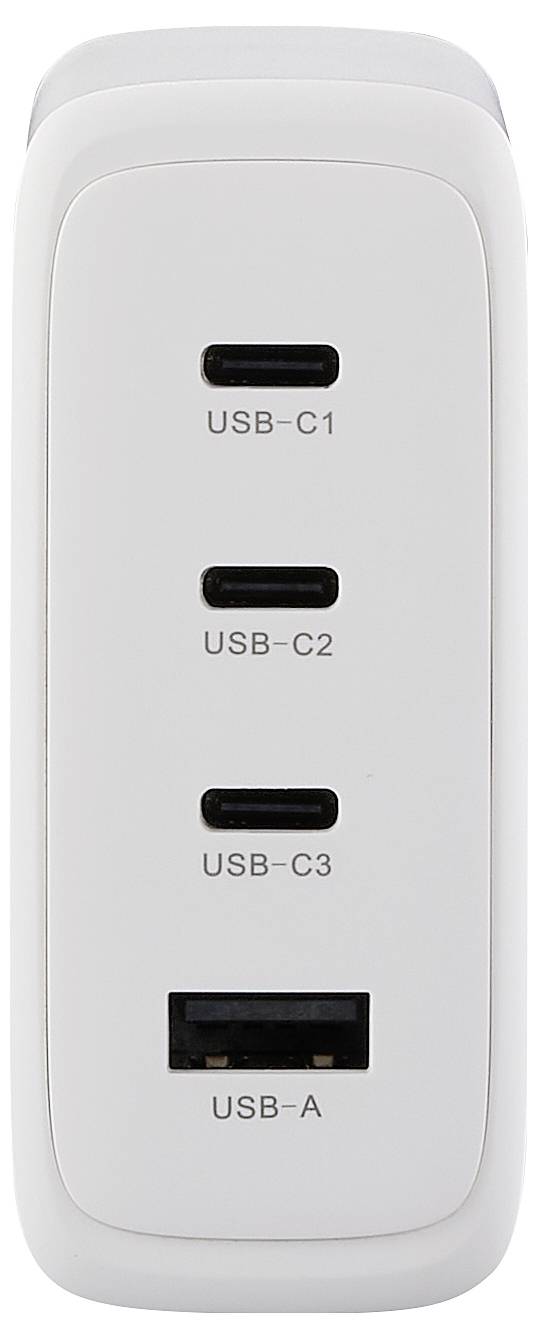

3 x USB-C® + 1 x USB-A
Supports fast charging for iPhone 8 or later, notebook and Mac
iPad mini (4th or later), iPad (8th generation or later),
iPad Air (3rd generation or later), iPad Pro (2nd generation or later), iPad Pro (4th generation or later)

Our service for you

Technical specifications

Product type: USB charger

: 140 W

Inputs: Europlug

Input voltage: 100-240 V/50 - 60 Hz

No. of outputs: 4 x

Outputs: 3x USB-C®
1x USB-A

Output current (max.) - rounded: 5 A

Max. output current: 5 A

Max. output current per channel: 5 A

Type: UC-3C1A140W01

Suitable for: iPad
iPhone
Smartphone
Tablet
MacBook
Notebook

Suitable for: Universal
iPhone 8, 8 Plus
iPhone X, XS, XS Max
iPhone 11, 11 Pro, 11 Pro Max
iPhone 12, 12 mini, 12 Pro, 12 Pro Max
iPhone 13, 13 mini, 13 Pro, 13 Pro Max
iPhone 14, 14 Plus, 14 Pro, 14 Pro Max
iPhone 15, 15 Plus, 15 Pro, 15 Pro Max
iPhone 16, 16 Plus, 16 Pro, 16 Pro Max
iPhone SE
iPad Pro 12.9 (Gen. 2/3/4/5/6), iPad Pro 11 Gen. 1/2/3)
Pad Air (Gen. 3/4/5)
iPad mini (Gen. 4/5)
iPad (Gen. 8/9/10)
Show more

PSU features: GaN

Dim: (L x W x H) 93 x 32 x 76 mm

Height: 76 mm

Length: 93 mm

Width: 32 mm

Weight: 300 g

Factory colour: White

Used at: Indoors

Charging method: USB PD 3.1

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3209070 VOLTCRAFT UC-3C1A140W01 USB charger 140 W 3x USB-C®, 1x USB-A USB PD 3.1 White Indoors GaN

User & Safety Instructions

User & Safety Instructions 3209070 VOLTCRAFT UC-3C1A140W01 USB charger 140 W 3x USB-C®, 1x USB-A USB PD 3.1 White Indoors GaN

Warranty Terms

Warranty Terms 3209070 VOLTCRAFT UC-3C1A140W01 USB charger 140 W 3x USB-C®, 1x USB-A USB PD 3.1 White Indoors GaN

Description

Fast chargers for phones, tablets, switches, powerbanks and laptops. Charge your device quickly, safely and reliably.

GaN technology (low heat generation)
Galliumnitride short GaN is a material that is used for semiconductors in modern chargers of the latest generation. It has been used for many years with LED technology as well as with solar cells. The outstanding feature of the GaN material in the field of charging technology is particularly the low development of heat. Less heat means more efficient performance and adherence to the highest safety standards. The innovative material enables a small, space-saving design as compared to the conventional standard chargers.

This text is machine translated.

Features

Compatible devices: iOS, Android and USB devices
Lightweight and portable design
Fast, safe and reliable charging of devices
Input: 100-240V~50/60Hz
Output current:
USB-C1: 5V3A/9V3A/12V3A/15V3A/20V5A/28V5A (140W MAX)
USB-C2: 5V3A/9V3A/12V3A/15V3A/20V5A (100W MAX)
USB-C3: 5V3A/9V3A/12V3A/15V3A/20V5A (100W MAX)
USB-A: 5V3A/9V2A/12V1.5A OR 4.5V5A/5V4.5A (22.5W MAX)

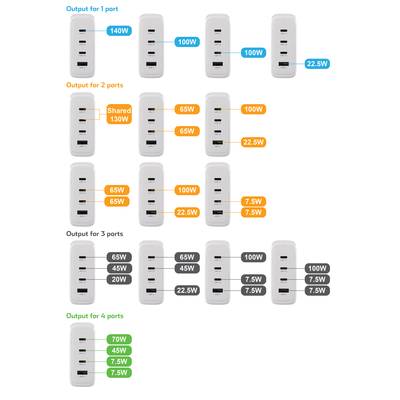

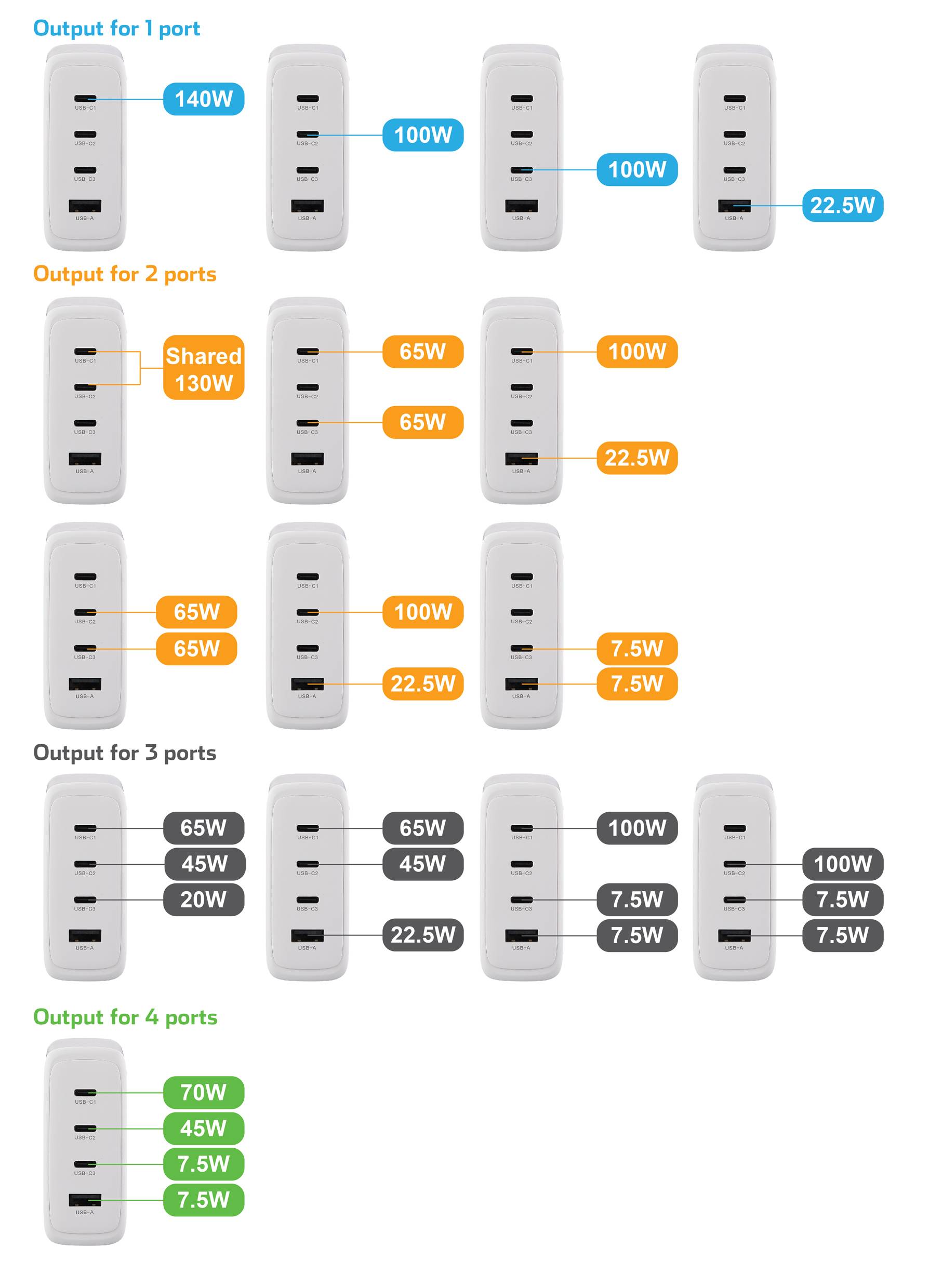

USB-C1+C2: 65W+65W
USB-C1+C3: 65W+65W
USB-C1+A: 100W+22.5W (122.5W MAX)
USB-C2+C3: 65W+65W
USB-C2+A: 100W+22.5W (122.5W MAX)
USB-C3+A: 7.5W+7.5W
USB-C1+C2+C3+A: 70W+45W+15W (131W MAX)
PPS 5A
Average active efficiency : 88 %
Efficiency at low load (10 %) : 81%
No-load power consumption : ≤0.30W

Scope of delivery

USB charger
operating manual

Description

Fast chargers for phones, tablets, switches, powerbanks and laptops. Charge your device quickly, safely and reliably.

GaN technology (low heat generation)
Galliumnitride short GaN is a material that is used for semiconductors in modern chargers of the latest generation. It has been used for many years with LED technology as well as with solar cells. The outstanding feature of the GaN material in the field of charging technology is particularly the low development of heat. Less heat means more efficient performance and adherence to the highest safety standards. The innovative material enables a small, space-saving design as compared to the conventional standard chargers.

This text is machine translated.
