Name: VOLTCRAFT UC-45W002 USB charger 45 W 1x USB-A, 2x USB-C® Power Delivery Black Indoors GaN, USB Power Delivery (USB-PD),
Brand: VOLTCRAFT
SKU: 3466185
Availability: InStock

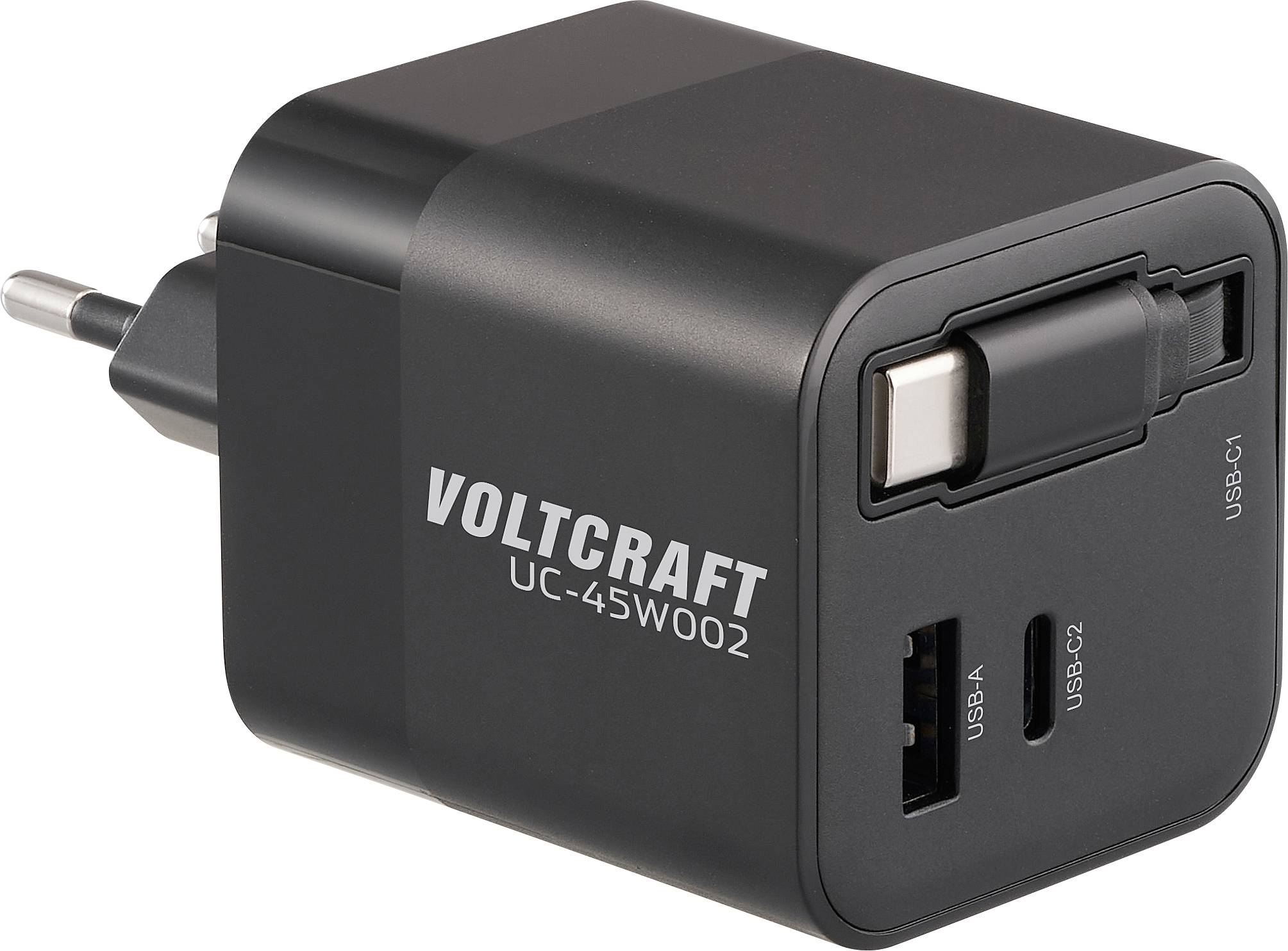

A black Voltcraft UC-45W002 charger with USB-A, USB-C1, and USB-C2 ports is shown, suitable for various devices.

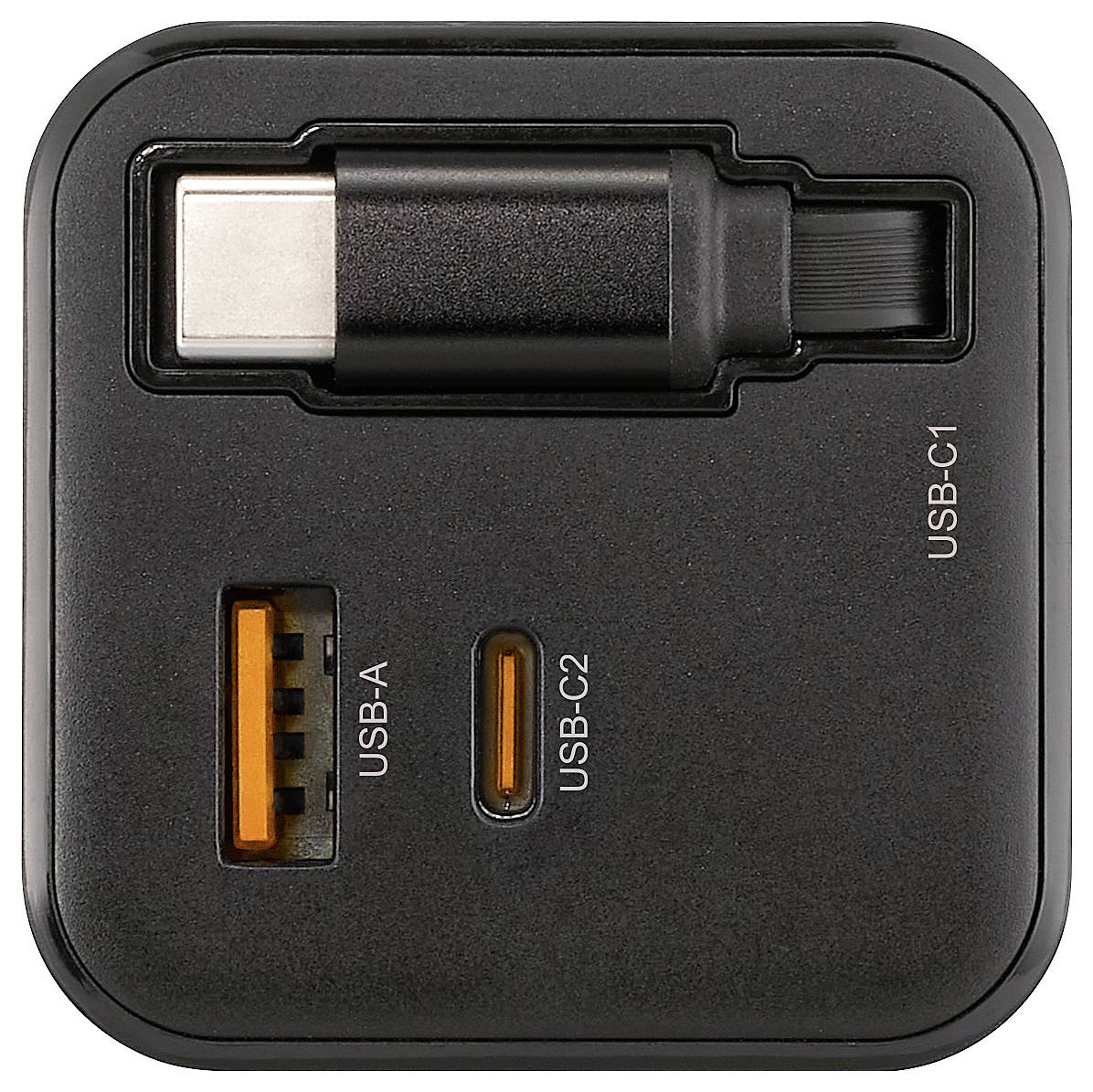

A black multi-port charging station with one USB-A and two USB-C ports labeled USB-C1 and USB-C2.

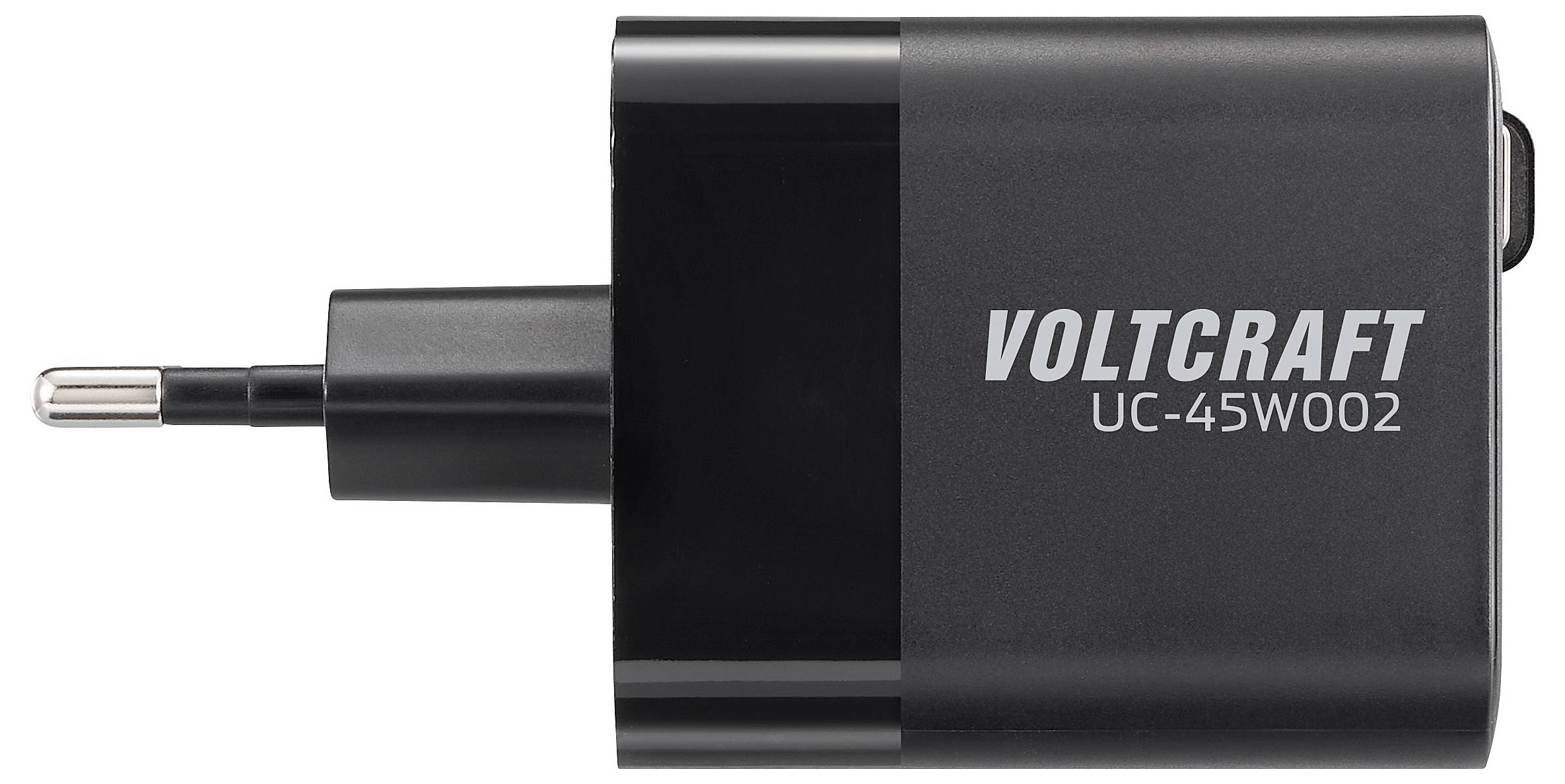

Black wall charger labeled 'Voltcraft UC-45W002' with one USB-C port and European plug.

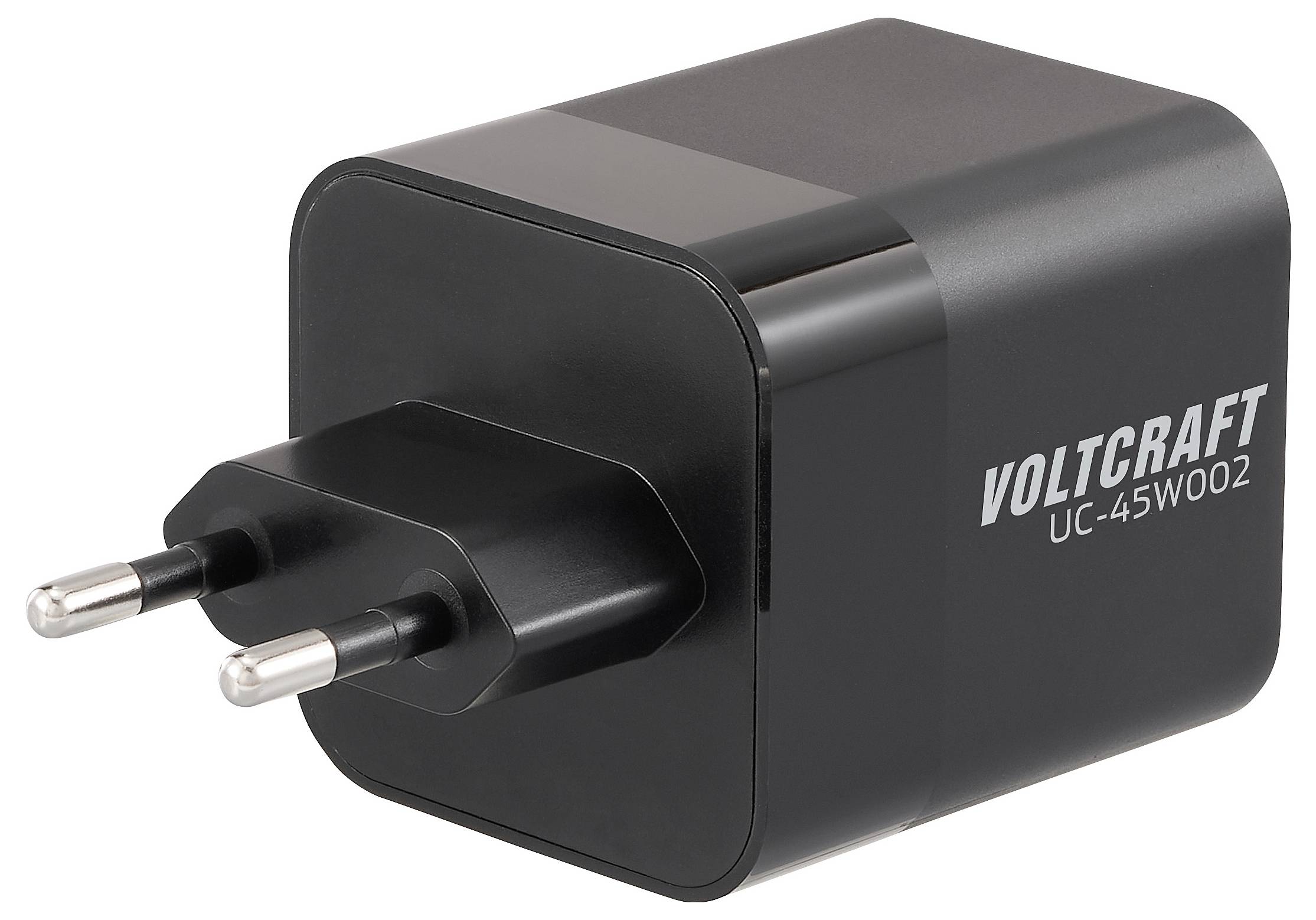

A black Voltcraft UC-45W002 power adapter with two prongs designed for EU outlets, used for charging electronic devices.

A smartphone and wireless earbuds are plugged into a power adapter labeled '45W' for fast charging, with a laptop displaying a stock chart.

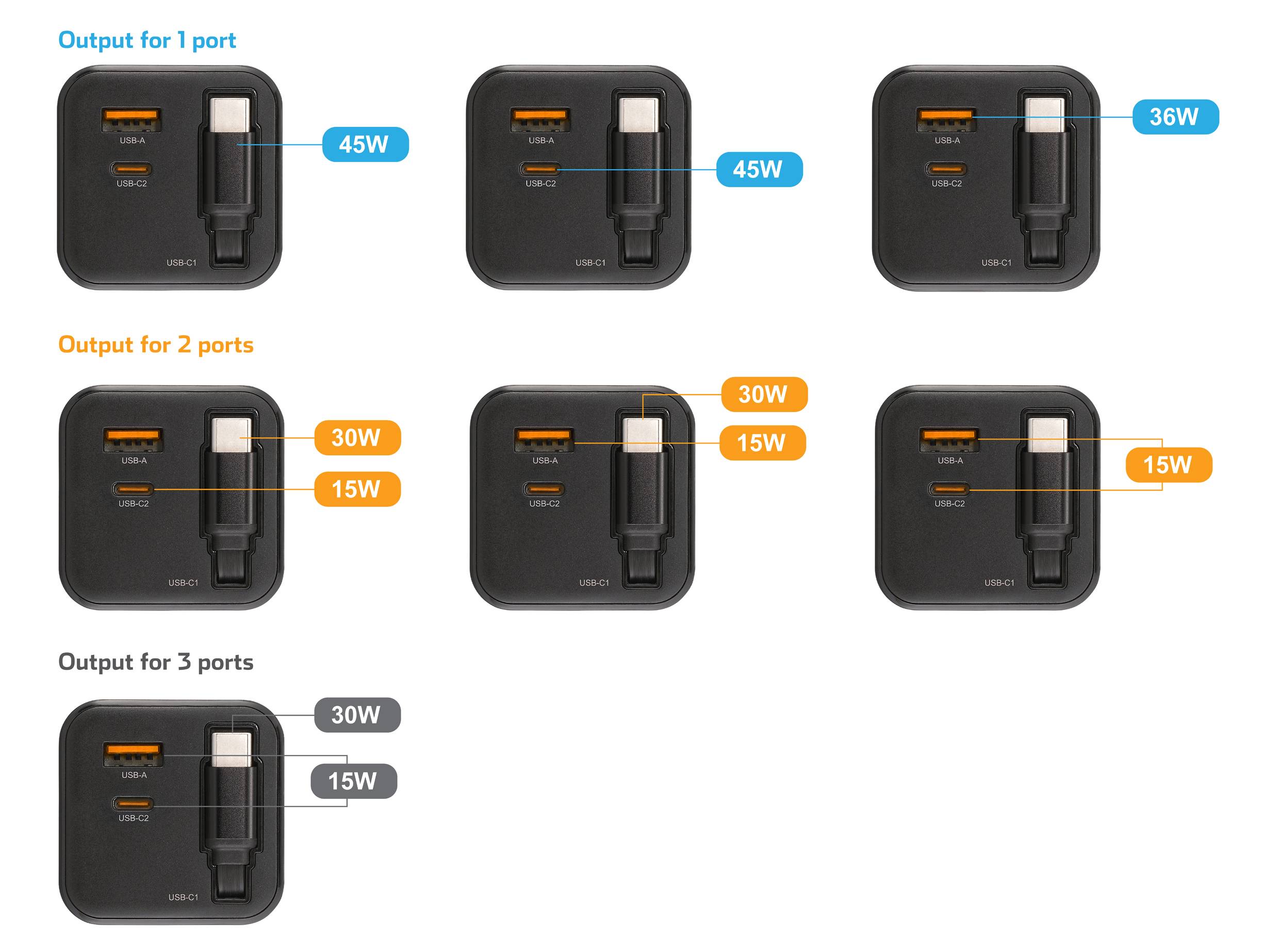

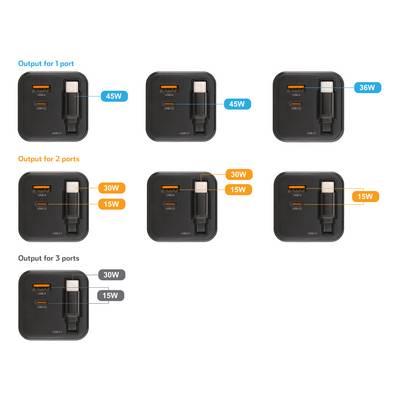

Image of a charger with three USB-C ports. Outputs vary based on usage: 45W for one port, combined 30W and 15W for two ports, 30W, 15W, and 15W for three ports.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

139 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 18.99 / piece)

€ 18.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT USB wall charger 75W GaN with display and retractable cable, 2x USB-C, USB-A, Black

Built-in display to show output power
Retractable cable and USB-C® plug
Fast charger with PD3.0 support
Max. 45W
2 x USB-C® 1 x USB-A
Supports fast charging for iPhone 8 and above, Laptop,
iPad mini (from 4th generation), iPad (from 8th generation), iPad Air (from 3rd generation), iPad Pro (from 2nd generation), and iPad Pro (from 4th generation)

Our service for you

Technical specifications

Product type: USB charger

: 45 W

Inputs: Europlug

Input voltage: 100 V
240 V

Input voltage: 100-240 V/50 - 60 Hz

No. of outputs: 3 x

Outputs: 1x USB-A
2x USB-C®

Type: UC-45W002

Suitable for: Universal

PSU features: GaN
USB Power Delivery (USB-PD)
Quick charger

Dim: (L x W x H) 92 x 47 x 47 mm

Height: 47 mm

Length: 92 mm

Width: 47 mm

Weight: 152 g

Factory colour: Black

Used at: Indoors

Charging method: Power Delivery

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3466185 VOLTCRAFT UC-45W002 USB charger 45 W 1x USB-A, 2x USB-C® Power Delivery Black Indoors GaN, USB Power Delivery (USB-PD),

User & Safety Instructions

User & Safety Instructions 3466185 VOLTCRAFT UC-45W002 USB charger 45 W 1x USB-A, 2x USB-C® Power Delivery Black Indoors GaN, USB Power Delivery (USB-PD),

Warranty Terms

Warranty Terms 3466185 VOLTCRAFT UC-45W002 USB charger 45 W 1x USB-A, 2x USB-C® Power Delivery Black Indoors GaN, USB Power Delivery (USB-PD),

Description

Power meets precision. The VOLTCRAFT 45W GaN Charger is more than just a charger.
Thanks to the latest GaN technology it charges your devices up to 45W quickly and efficiently. The integrated display shows you the charging status at all times. The practical, unwinding cable ensures order and is perfect for traveling. With the 2 USB-C® and 1 USB-A connection you can simultaneously charge all your devices.

Features

Compatible devices: iOS, Android and USB devices
Input: 100V-240V~ 50/60Hz 1.0A
5.0V/DC 3.0A 15.0W;
9.0V/DC 3.0A 27.0W;
12.0V/DC 3.0A 36.0W;
15.0V/DC 3.0A 45.0W;
20.0V/DC 2.25A (max 45W)
PPS1: 3.3~11V 4.05A, PPS2: 3.3~20V 2.25A)
C2
5.0V/DC 3.0A 15.0W;
9.0V/DC 3.0A 27.0W;
12.0V/DC 3.0A 36.0W;
15.0V/DC 3.0A 45.0W;
20.0V/DC 2.25A (max 45W)
PPS: 3.3~20V 2.25A
Output C1+C2: 30W C1 5V3A, 9V3A, 12V2.5A, 15V2A, 20V1.5A & C2 (15W) 5V3A, 9V1.67A
Output(USB-A) :
5.0V/DC 3.0A 15.0W;
9.0V/DC 3.0A 27.0W;
12.0V/DC 3.0A 36.0W
Output(C+A):
C1+A: C1 (30W) 5V3A, 9V3A, 12V2.5A, 15V2A, 20V1.5A & A (15W) 5V3A, 9V1.67A
C2+A: 5V3A
C1+ (C2+A): 30W + 5V3A
Max output : 45.0W
USB-C® retractable cable length: 65cm
Average active efficiency: ? %
Efficiency at low load (10 %): ? %
No-load power consumption: ≤ ? W

Scope of delivery

USB charger
Operating instructions

Description

Features

Compatible devices: iOS, Android and USB devices
Input: 100V-240V~ 50/60Hz 1.0A
5.0V/DC 3.0A 15.0W;
9.0V/DC 3.0A 27.0W;
12.0V/DC 3.0A 36.0W;
15.0V/DC 3.0A 45.0W;
20.0V/DC 2.25A (max 45W)
PPS1: 3.3~11V 4.05A, PPS2: 3.3~20V 2.25A)
C2
5.0V/DC 3.0A 15.0W;
9.0V/DC 3.0A 27.0W;
12.0V/DC 3.0A 36.0W;
15.0V/DC 3.0A 45.0W;
20.0V/DC 2.25A (max 45W)
PPS: 3.3~20V 2.25A
Output C1+C2: 30W C1 5V3A, 9V3A, 12V2.5A, 15V2A, 20V1.5A & C2 (15W) 5V3A, 9V1.67A
Output(USB-A) :
5.0V/DC 3.0A 15.0W;
9.0V/DC 3.0A 27.0W;
12.0V/DC 3.0A 36.0W
Output(C+A):
C1+A: C1 (30W) 5V3A, 9V3A, 12V2.5A, 15V2A, 20V1.5A & A (15W) 5V3A, 9V1.67A
C2+A: 5V3A
C1+ (C2+A): 30W + 5V3A
Max output : 45.0W
USB-C® retractable cable length: 65cm
Average active efficiency: ? %
Efficiency at low load (10 %): ? %
No-load power consumption: ≤ ? W
