VOLTCRAFT UC-650W02 USB charging station 650 W Power Delivery Black Indoors USB Power Delivery (USB-PD)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 214.99 / piece)
€ 214.99
incl. VAT
14-day return policy included
Highlights & Details

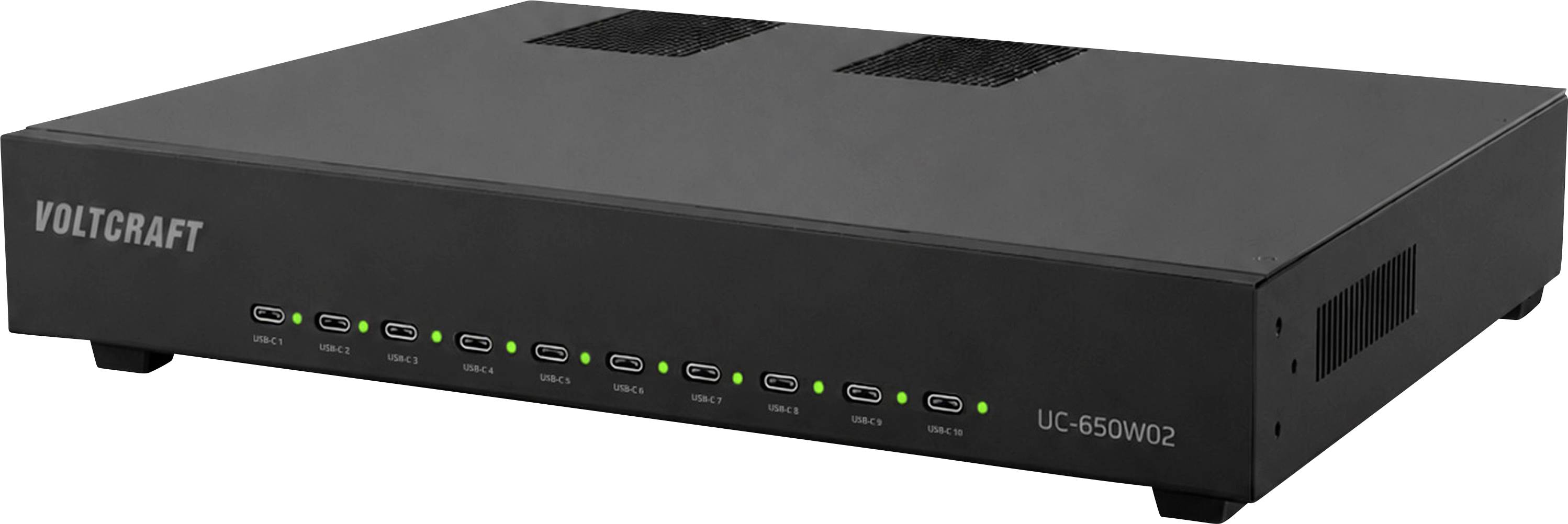

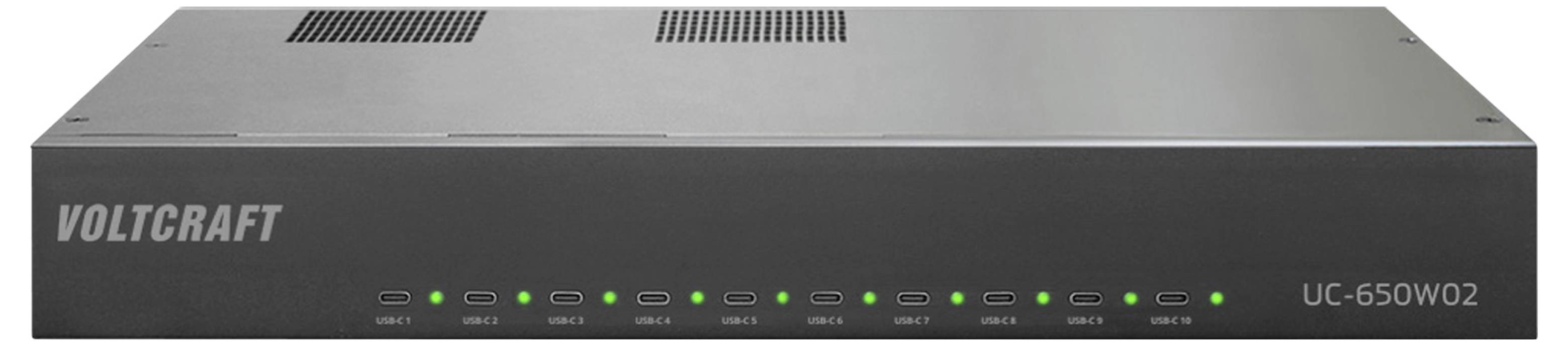

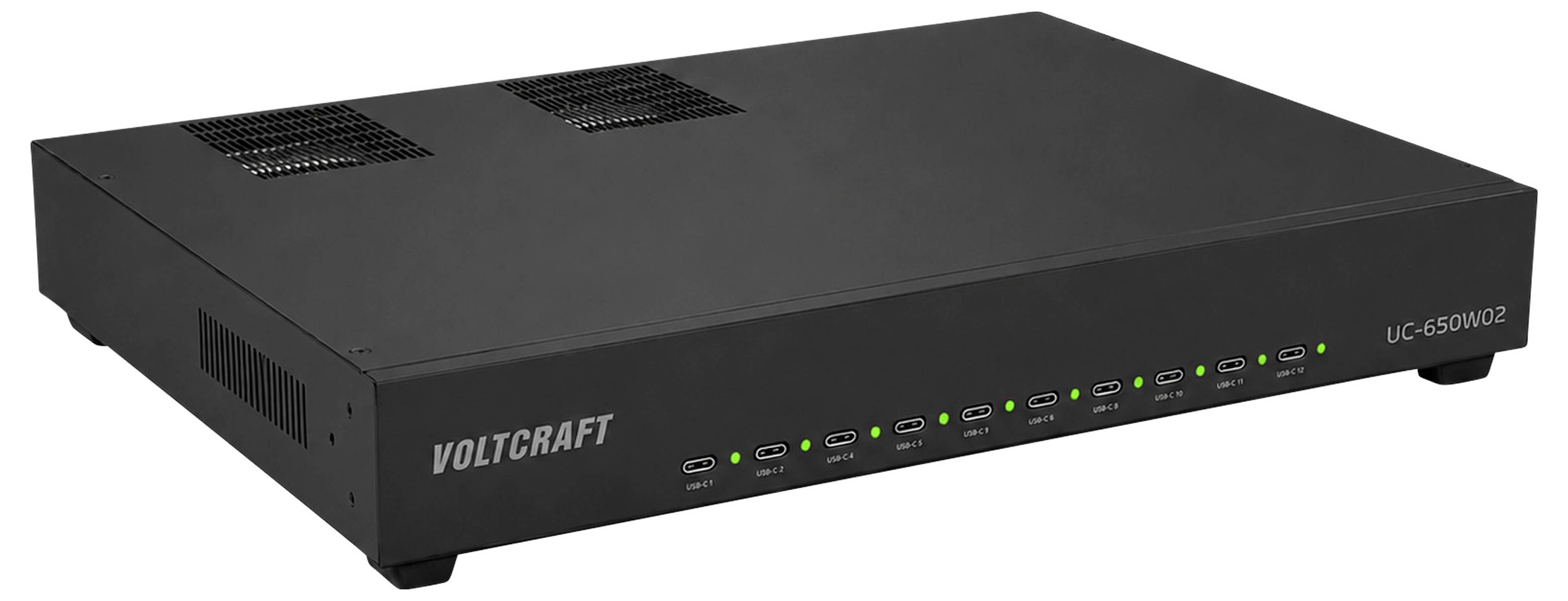

VOLTCRAFT UC-650W02 USB charging station
- Powerful 650 W total output for simultaneous charging of up to 10 devices
- Integrated safety features including overheating and short-circuit protection
- Built-in cooling fan for efficient heat dissipation
- Convenient On/Off power switch
- Fast-charging support for smartphones, tablets, and laptops, including iPad and MacBook
- Versatile installation for 19-inch (48.3 cm) racks, server cabinets, or desktop use
- Robust design for continuous operation in schools, workshops, and commercial environments
Our service for you
Technical specifications
- Product type
USB charging station
650 W
- Input voltage
200-240 V/50 - 60 Hz
- No. of outputs
10 x
- Output voltage
5V, 9V, 12V, 15V, 20 V
- Output current (max.) - rounded
3.25 A
- Max. output current
3.25 A
- Type
UC-650W02
- Suitable for
AirPods
Android
Apple Watch
iPhone
Notebook
Smartwatch
Tablet
iPad
Nintendo Switch
- Suitable for
Universal
- PSU features
USB Power Delivery (USB-PD)
- Dim
(L x W x H) 440 x 305 x 55 mm
- Height
55 mm
- Length
440 mm
- Width
305 mm
- Weight
3.88 kg
- Factory colour
Black
- Used at
Indoors
- Charging method
Power Delivery
- Plastic free packaging
Plastic-free packaging
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3766632 VOLTCRAFT UC-650W02 USB charging station 650 W Power Delivery Black Indoors USB Power Delivery (USB-PD)
User & Safety Instructions
User & Safety Instructions 3766632 VOLTCRAFT UC-650W02 USB charging station 650 W Power Delivery Black Indoors USB Power Delivery (USB-PD)
Warranty Terms
Warranty Terms 3766632 VOLTCRAFT UC-650W02 USB charging station 650 W Power Delivery Black Indoors USB Power Delivery (USB-PD)
Description

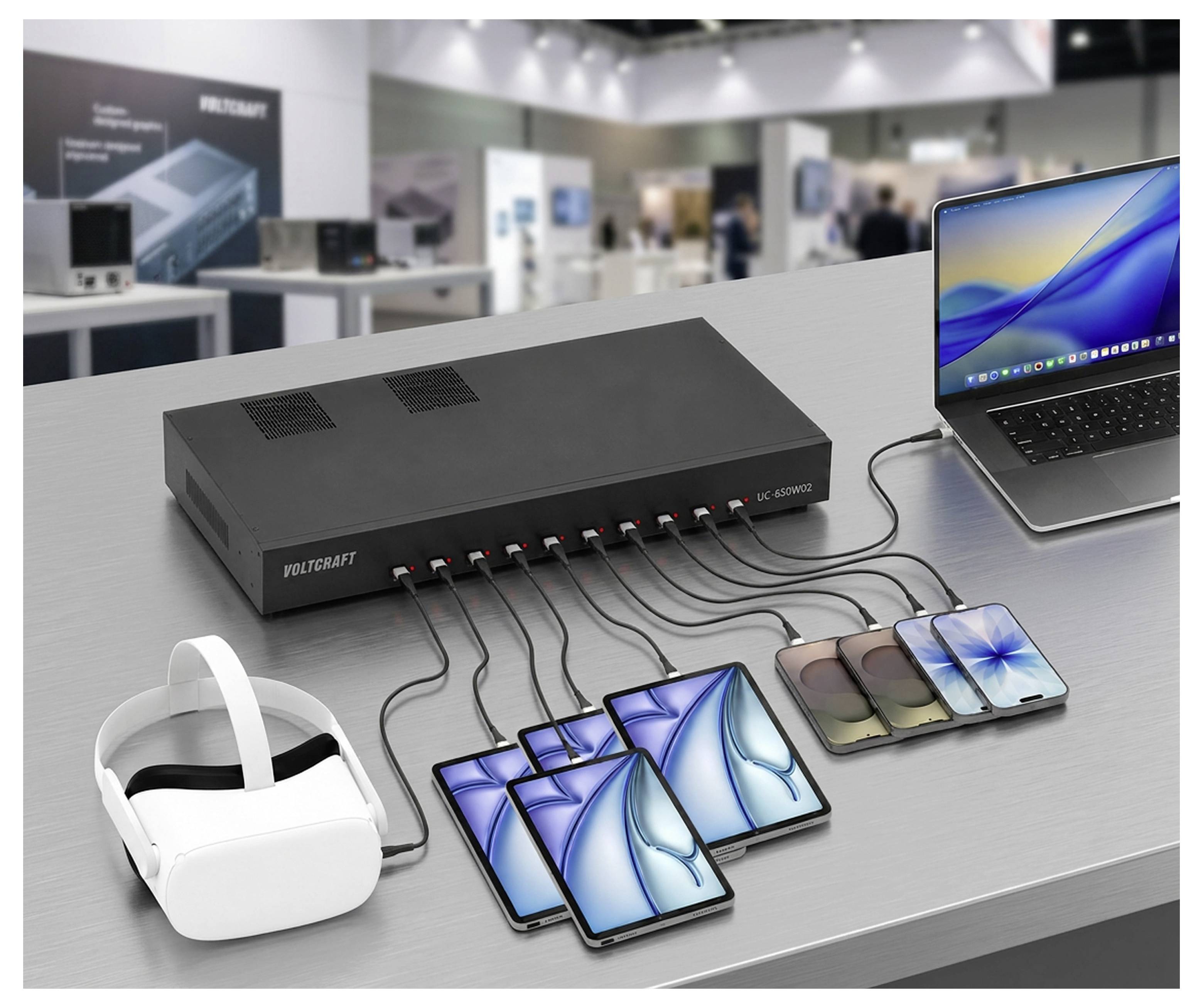

The VOLTCRAFT UC-650W02 USB charging station in black is designed for indoor use. With a total power output of 650 W and 10 USB-C® connections, the 3.88 kg device is designed for continuous operation in schools, workshops and commercial environments.
Central power supply
The device offers 65 W output power per port and enables the simultaneous charging of up to 10 devices. Thanks to USB Power delivery (USB-PD) technology and an automatic adjustment of the quick-charge protocol (5 V to 20 V), universal devices such as notebooks, tablets, smartphones and smartwatches can be centrally supplied with power.
Safety features for operation

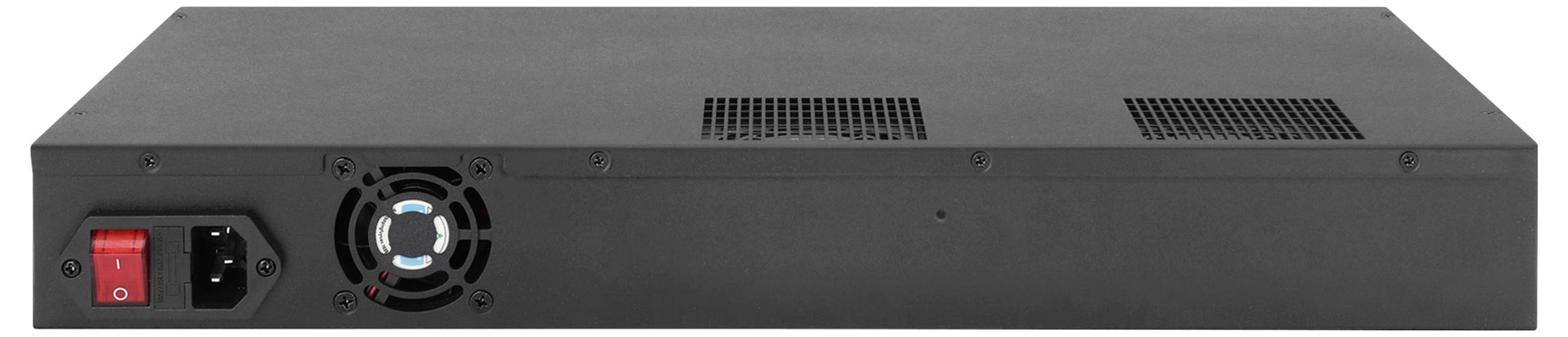

For safe use, the charging station is equipped with an overheating and short-circuit protection. A built-in fan supports heat dissipation during the charging process. In addition, the device can be disconnected directly from the mains when needed by means of the integrated on/off switch.
Flexible integration into the work environment

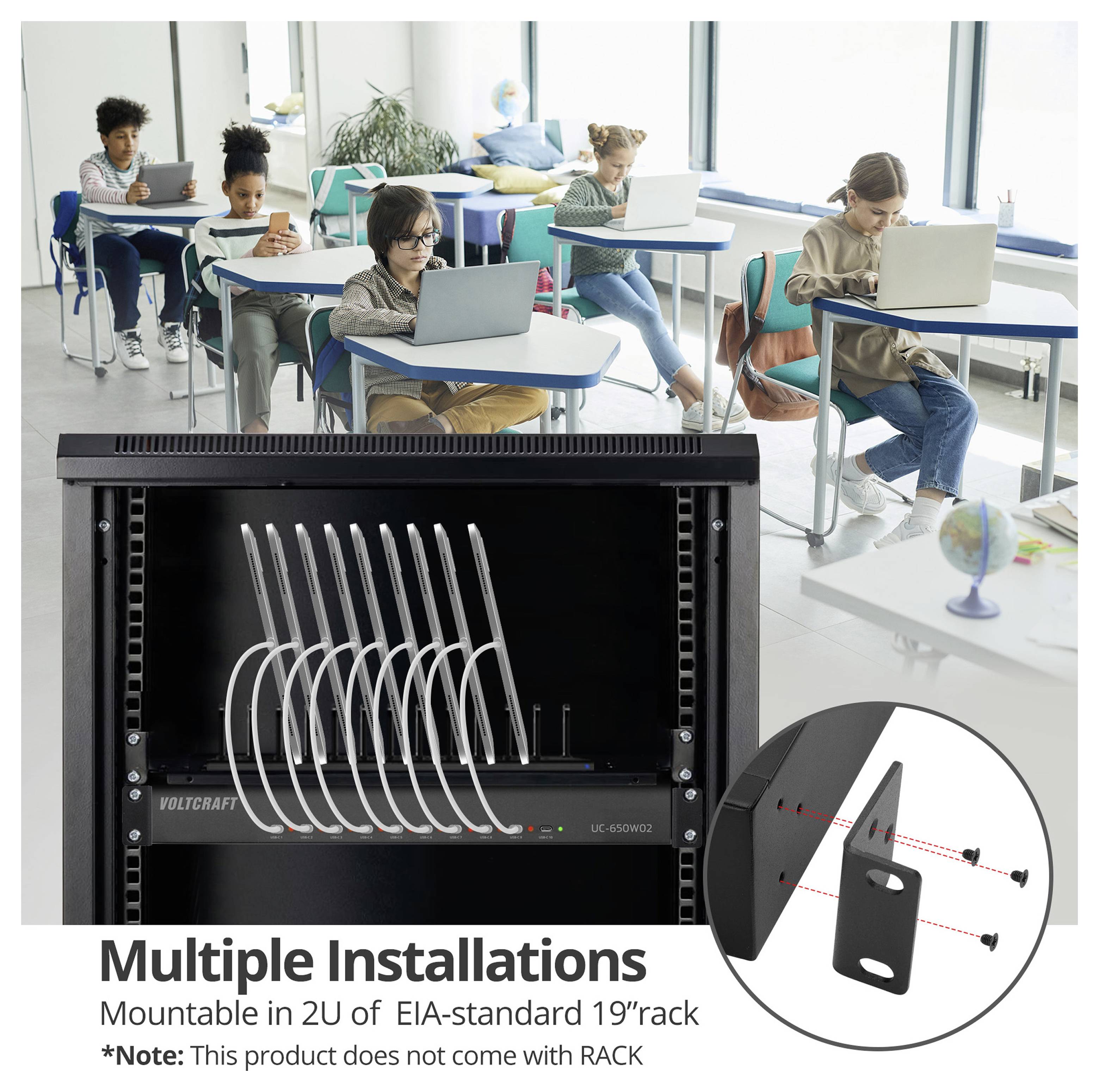

The station (305 x 55 x 440 mm) can either be placed on a desk or installed in 48.3 cm (19 inch) racks as well as server cabinets. A 2 meter long cable allows sufficient clearance for the connection to the power source (200 - 240 V/AC).
This text is machine translated.
Central power supply
The device offers 65 W output power per port and enables the simultaneous charging of up to 10 devices. Thanks to USB Power delivery (USB-PD) technology and an automatic adjustment of the quick-charge protocol (5 V to 20 V), universal devices such as notebooks, tablets, smartphones and smartwatches can be centrally supplied with power.
Safety features for operation
For safe use, the charging station is equipped with an overheating and short-circuit protection. A built-in fan supports heat dissipation during the charging process. In addition, the device can be disconnected directly from the mains when needed by means of the integrated on/off switch.
Flexible integration into the work environment
The station (305 x 55 x 440 mm) can either be placed on a desk or installed in 48.3 cm (19 inch) racks as well as server cabinets. A 2 meter long cable allows sufficient clearance for the connection to the power source (200 - 240 V/AC).
This text is machine translated.
Features
- Powerful 650 W total output (65 W per port)
- 10 x USB-C® ports
- Output voltage range: 5 V to 20 V with automatic fast charging protocol adjustment
- Input: 200–240 V/AC 50/60 Hz, 3.4 A
- Output: @65 W per port with voltage options of 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3.25 A, dual 325 W
- Cable length: 2 m

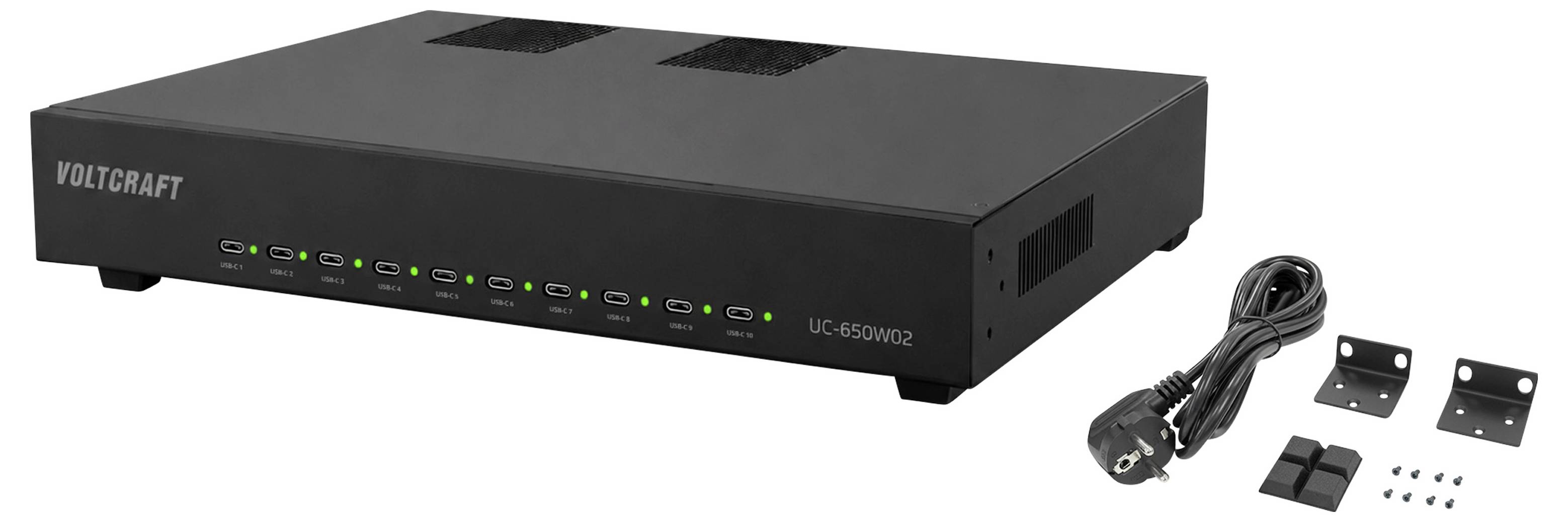

Scope of delivery
- USB-C® charger station
