VOLTCRAFT VC541 Clamp meter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 2000
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Highlights & Details
VOLTCRAFT VC541 Leakage current clamp (K)
- CAT III 600 V
- High-resolution leakage current: Up to 100 μA AC
- 2000 counts
- AC/DC-voltage measurement
- Variable Frequency Voltage Measurement (LPF)
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
600 V
- A AC reading range (min.)
100 µA
- Amperage reading range AC (max.)
200 A
- Reading range - resistance
0.1 Ω - 20 MΩ
- Power supply (details)
3 x AAA
- Height
199 mm
- Width
67 mm
- Length
35 mm
- Weight
280 g
ISO standards
- Reading category
CAT III 600 V
- Current reading
AC
- Type
VC541
- Display
Digital
- Display (counts)
2000
- Dim
(L x W x H) 35 x 67 x 199 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3766660 VOLTCRAFT VC541 Clamp meter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 2000
Warranty Terms
Warranty Terms 3766660 VOLTCRAFT VC541 Clamp meter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 2000
Description
The clip-on ammeter VC-541 from VOLTCRAFT enables the safe and efficient detection of leakage currents from 100 μA AC.

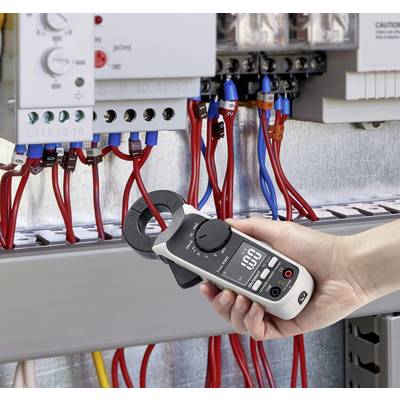

For differential current measurement (which basically corresponds to the principle of an FI-circuit breaker / RCD) all active conductors of a circuit are enclosed together by the leakage current clamp. Ideally, the clamp should not indicate any value if no leakage current flows at all.
The 3-1/2-digit LCD display with 1999 counts and black LED backlight provides clear and easy readability of the measuring results. The data-hold function enables the freezing of the measured values if the display cannot be read during the measuring process.
This text is machine translated.
For differential current measurement (which basically corresponds to the principle of an FI-circuit breaker / RCD) all active conductors of a circuit are enclosed together by the leakage current clamp. Ideally, the clamp should not indicate any value if no leakage current flows at all.
The 3-1/2-digit LCD display with 1999 counts and black LED backlight provides clear and easy readability of the measuring results. The data-hold function enables the freezing of the measured values if the display cannot be read during the measuring process.
This text is machine translated.
Features
- Measure functions: Current, voltage, resistance, continuity test, diode test
- Auto switch-off
- Data-hold function Data-hold function
- Display for weak battery
- Overload indicator OL

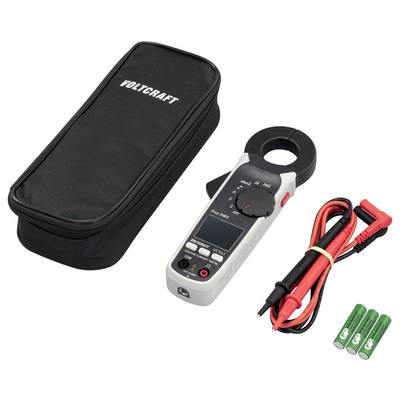

Scope of delivery
- VC541 Leakage current clamp
- 3 x AAA batteries
- Neoprene case
- Safety measuring leads
- User manual
