Name: WAGO 2086-1225/300-000 Print terminal 1.50 mm² Number of pins 5 Black 1 pc(s)
Brand: WAGO
SKU: 2624790
Availability: InStock

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

Black 6-pin connector with rectangular terminals, suitable for electronic devices.

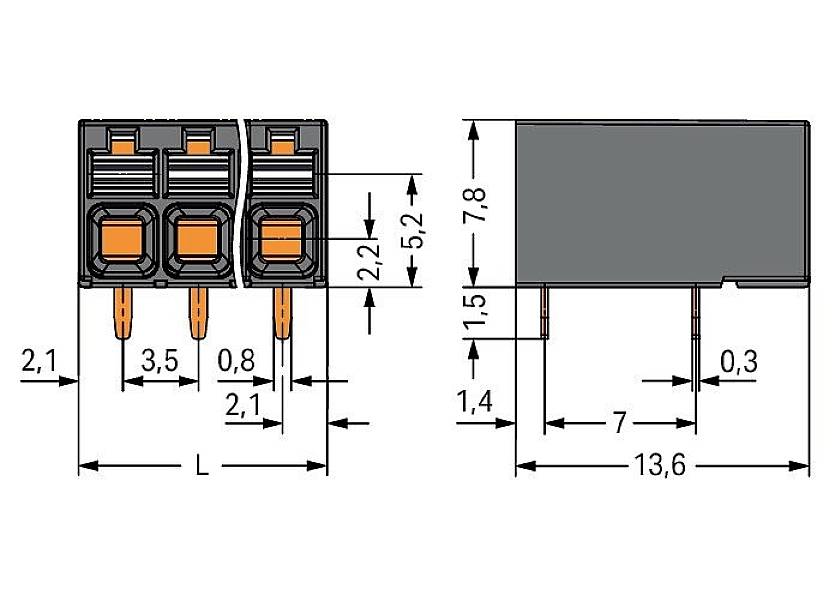

Top view and side view of a three-pole connector with dimensional specifications in millimetres from 0.3 to 13.6 for precise connections.

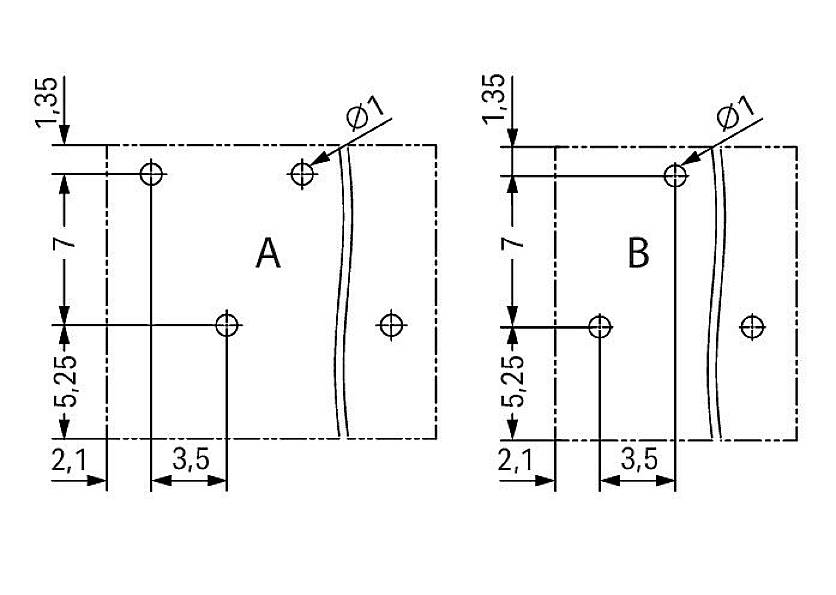

Drawing with two technical sketches, marked as 'A' and 'B', with dimensions and hole designations in millimetres.

1/3

Product type

Print terminal

3.50 mm

Pins per row

Number of pins

Connection

Spring-loaded heavy duty connector

Fast track dispatch on Tue 20 Oct

150 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 3

Total (€ 1.49 / piece)

€ 4.47

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

THR PCB terminal; pusher; 1.5 mm²; pitch 3.5 mm; 5-pin; Push-in CAGE CLAMP®; soldering pin length 1.5 mm; 1.50 mm²; black

Our service for you

Technical specifications

Type: 2086-1225/300-000

Product type: Print terminal

CS: 3.50 mm

No. of rows: 1

Pins per row: 5

Number of pins: 5

Min. stripping length: 8 mm

Stripping length (max.): 9 mm

Connection: Spring-loaded heavy duty connector

Nominal current: 17.5 A

Cross section (flexible) (min.): 0.14 mm²

Nominal current - rounded value: 17.5 A

Cross section (inflexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (max.): 1.50 mm²

AWG (min.): 24

AWG max.: 16

Factory colour: Black

Manufacturer part #: 2086-1225/300-000

Content: 1 pc(s)

Nominal voltage: 630 V

Width: 18.2 mm

Height: 9.3 mm
