Connectors & CablesConnectorsTerminal BlocksSerial Terminals

WAGO 270-570/281-434 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

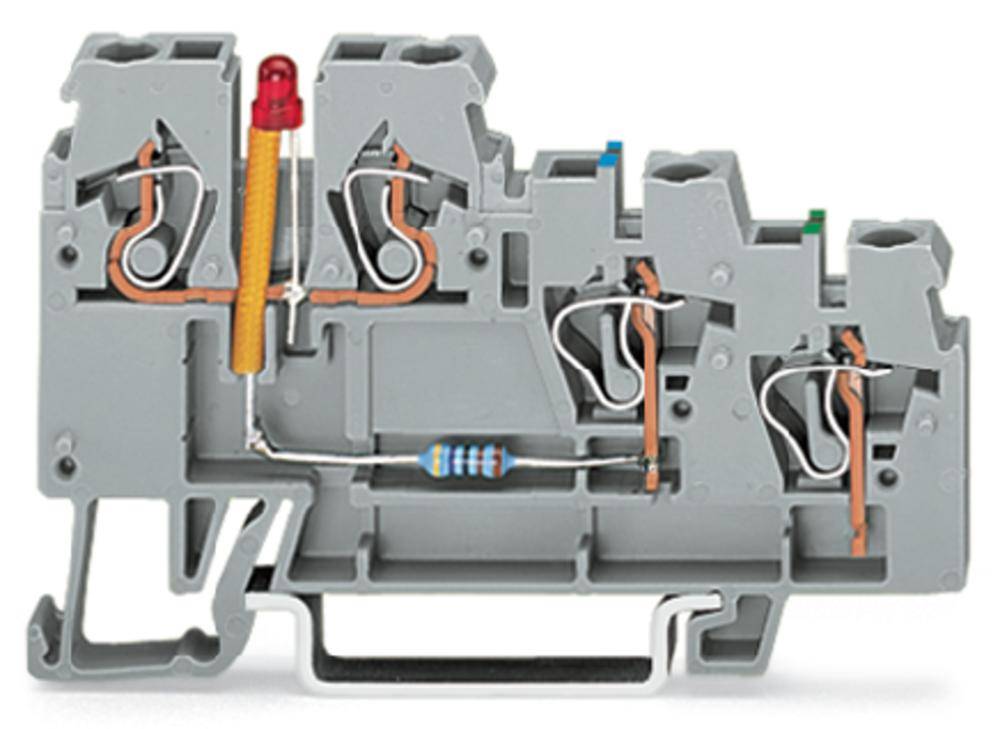

Grey-blue row terminal block with multiple connections, wiring, and a red LED in the top left corner.
'Terminal block with four connections, an integrated resistor, and a red indicator light. Dimensions: 33 mm wide, 39 mm high, 83 mm long.'
Electrical circuit diagram shows cable connections: Blue for earth/screen, Orange for positive pole, with LED component between two connections.
1/3
Packaging type
Piece
Product type
Proximity switch terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue, 12 Jan 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 8.70 / piece)
€ 435.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

4-conductor sensor LED terminal block

  • 270-570/281-434

Technical specifications

  • 4L-INITIATOREN-LED-KLEMME GRAU
Packaging type

Piece

Product type

Proximity switch terminal

Features

+ red LED

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

4

Number of pins

5

Factory colour

Grey

Nominal voltage

24 V

Min. stripping length

6 mm

Stripping length (max.)

7 mm

Manufacturer part #

270-570/281-434

Content

50 pc(s)

Industrial packaging

Yes

Type

270-570/281-434

Dim

(W x H) 5 mm x 39 mm

Width

5 mm

Height

39 mm

Flammability rating

V0

Insulation material

Thermoplastic

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 535213 WAGO 270-570/281-434 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 535213 WAGO 270-570/281-434 Proximity switch terminal 5 mm Pull spring Configuration: L Grey 50 pc(s) Piece

Description

For PNP (plus) switching initiators, red LED, DC 24 V, grey.

This text is machine translated.
