Industrial control unit with colour-coded connections and labels '13', '14', 'A1', 'A2', '+', '-', '0V'.

Industrial control unit with colour-coded connections and labels '13', '14', 'A1', 'A2', '+', '-', '0V'.

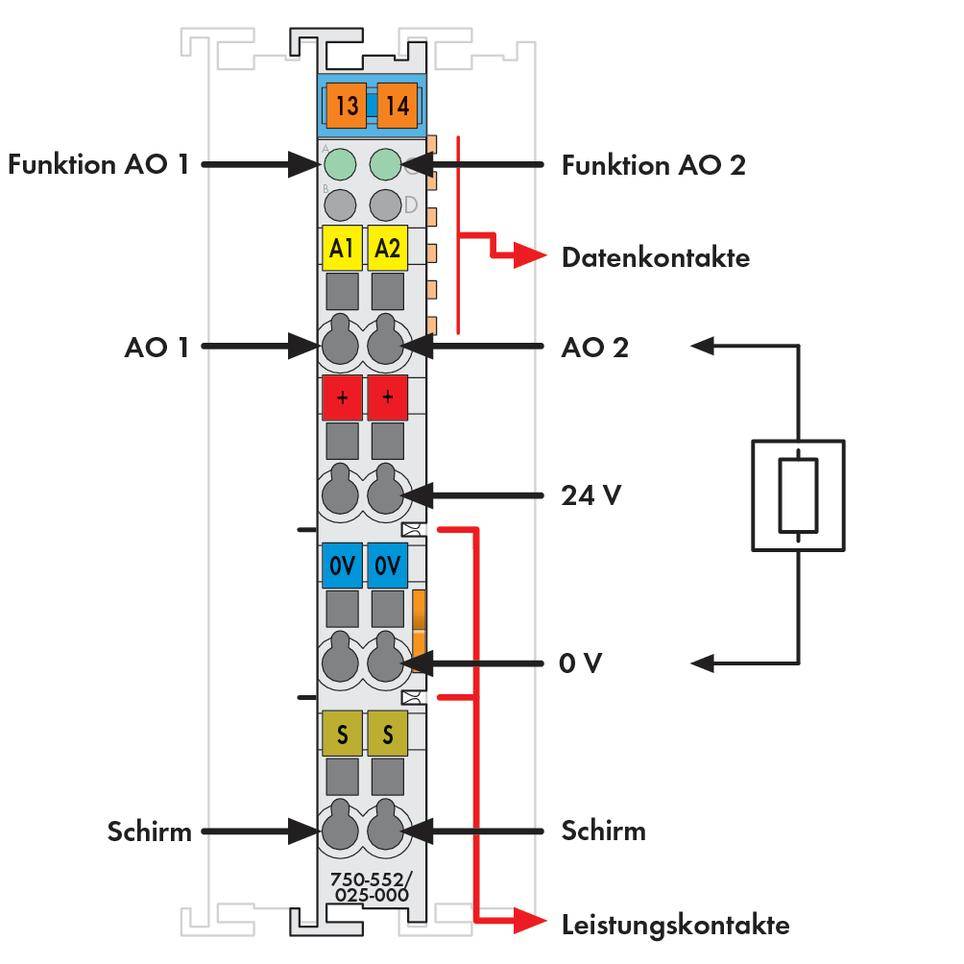

'Representation of Module AO 1: Circuit diagram with functions, data contacts, connection terminals and notes on assembly and connection.'

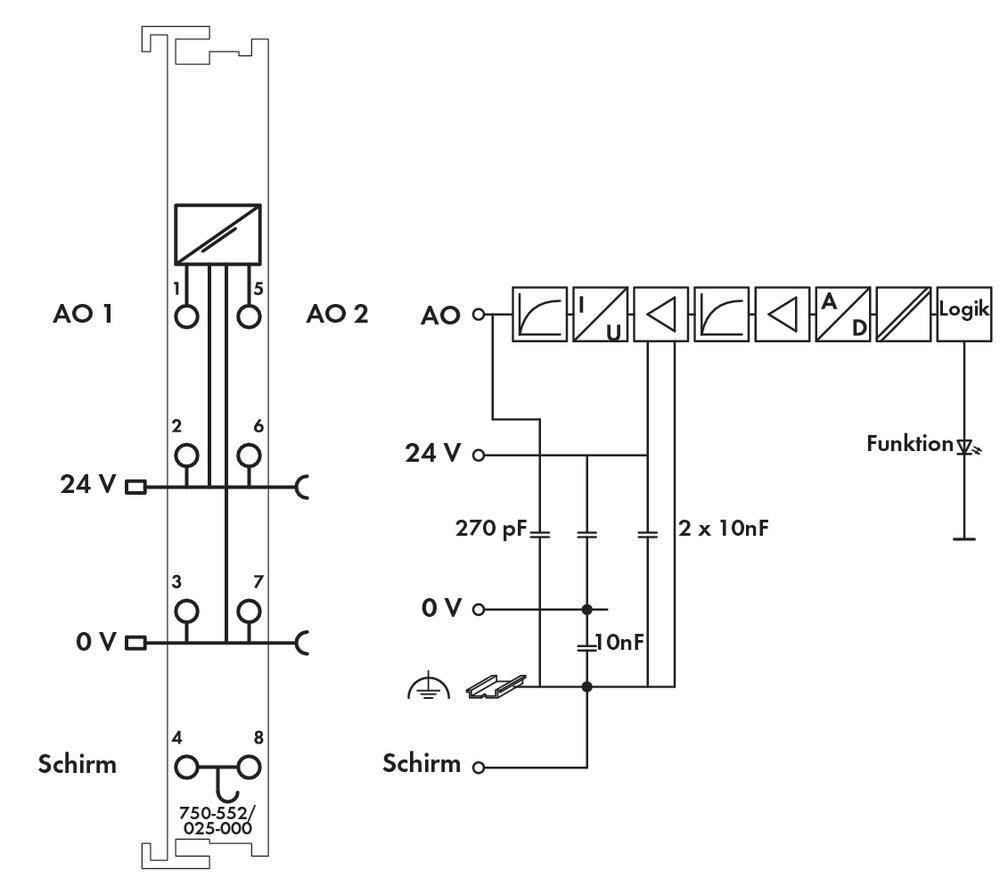

Electrical circuit diagram with components and connections. On the left: Module with two AO connections. On the right: Logic control and functional input.

1/3

WAGO

Datasheet (PDF)

Dispatches on Wed, 21 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 326.89 / piece)

€ 326.89

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Color: light gray
Cross-section 0.08 - 2.5 mm²
AWG 28 - 14
Stripping length: 8 - 9 mm
Current consumption: 70 mA
Installation type: TS 35
Protection class: IP20
Operating temperature: -20 to +60°C

Product type: PLC analogue output module

Type: 750-552/025-000

No. of analogue outputs: 2

No. of outputs (max.): 2

Operating voltage: 24 V DC

Height: 64 mm

Length: 100 mm

Width: 12 mm

Max. ambient temperature: +60 °C

Min. ambient temperature: -20 °C

: IP20

Dim: (L x W x H) 100 x 12 x 64 mm

Manufacturer part #: 750-552/025-000

Weight: 53.5 g

Mounting type: DIN rail

Inputs / outputs: Outputs: 2

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 191962 WAGO 750-552/025-000 PLC analogue output module 750-552/025-000 1 pc(s)

User & Safety Instructions

User & Safety Instructions 191962 WAGO 750-552/025-000 PLC analogue output module 750-552/025-000 1 pc(s)

Description

0-20mA, external light gray.

This text is machine translated.
