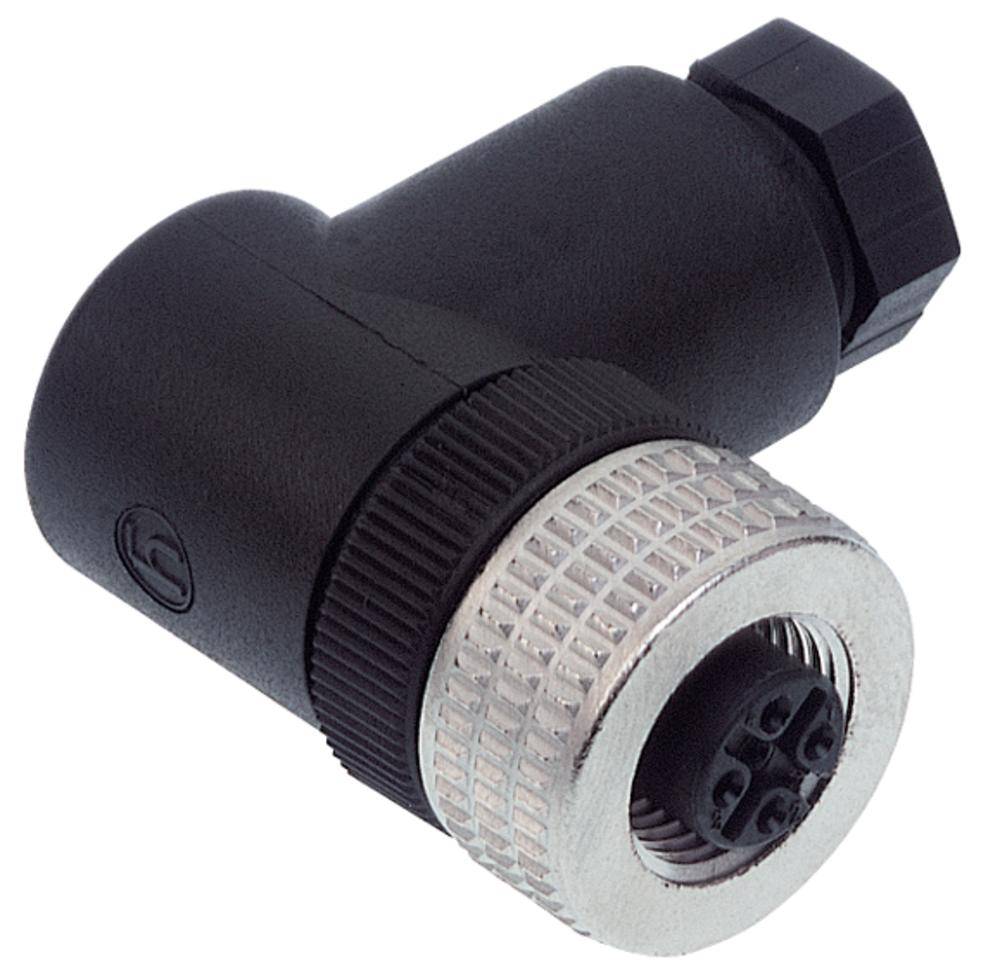

Black, right-angled connector with a silver, ribbed connection area and four socket positions for electrical connections.

Black, right-angled connector with a silver, ribbed connection area and four socket positions for electrical connections.

'M12 socket pin assignment, circular: top left 3, top right 4, bottom left 2, bottom right 1.'

Connectable cable shows cable diameter and cross-section for screw and spring technology: Ø 4-6 mm, 0.25-0.75 mm², 0.14-0.50 mm².

Technical drawing of a connector with dimensions: Height 35 mm, Width 30.5 mm. Details: M 12, Ø 20 mm, ~10 mm, PG 7, Ø 17 mm.

1/4

WAGO

Product type

Sensor/actuator connector

Connector type

Socket, right angle

Connector standard

Sensor connector

Connection side A

M12 socket, right angle

Connection side B

Customisable

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 18 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 5 pc(s))

Set(s)

Total (€ 15.60 / piece)

€ 77.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Connectors for sensor/actuator cable

756-9214/040-000
Industrial packaging with 5 pieces

Technical specifications

4-POL. M12 BUCHSE WINKLIG SCHRAUB.

Type: 756-9214/040-000

Product type: Sensor/actuator connector

Connector type: Socket, right angle

Connector standard: Sensor connector

Connection side A: M12 socket, right angle

Connection side B: Customisable

No. of pins: 4

Nominal voltage: 250 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connection: Screw terminal

Thread type connection side: M12

Seal type: Screw-on

Manufacturer part #: 756-9214/040-000

Industrial packaging: Yes

Content: 5 pc(s)

Documents & Downloads

Datasheet

Datasheet 546626 WAGO 756-9214/040-000 Sensor/actuator connector M12 Socket, right angle No. of pins (RJ): 4 5 pc(s)

User & Safety Instructions

User & Safety Instructions 546626 WAGO 756-9214/040-000 Sensor/actuator connector M12 Socket, right angle No. of pins (RJ): 4 5 pc(s)

Description

M12-Socket, angled, 4-pin.

This text is machine translated.

Description

M12-Socket, angled, 4-pin.

This text is machine translated.
