WAGO 756-9501/040-000 Sensor/actuator connector M12 Plug, right angle No. of pins (RJ): 4 1 pc(s)

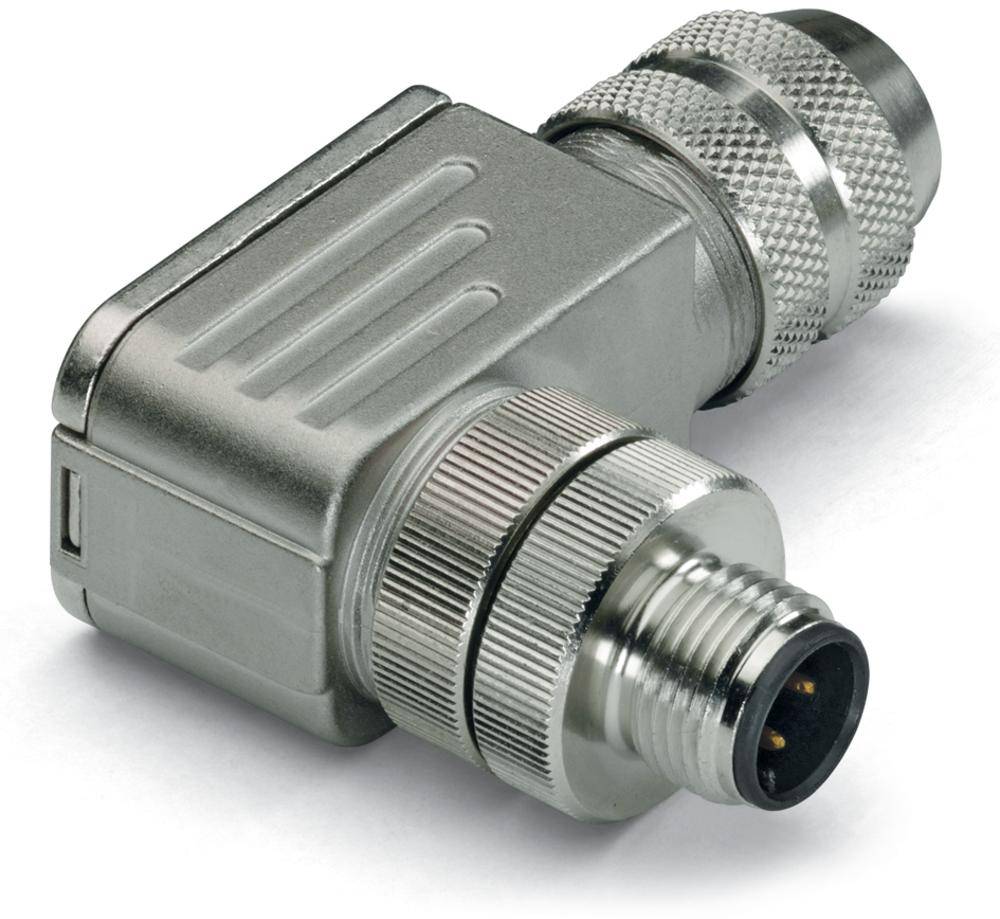

Silver-coloured, right-angled connector with a knurled screw thread, suitable for industrial applications and robust connections.
WAGO 756-9501/040-000 Sensor/actuator connector M12 Plug, right angle No. of pins (RJ): 4 1 pc(s)-1
Three circles with numbered segments. The left one has an opening at the bottom, the middle one has a wider opening, the right one has two at the base.
Technical drawing of a connector with dimensions: length 54mm, width 42mm, diameter 18mm. Perspectives from above and side view.
1/4
Product type
Sensor/actuator connector
Connector type
Plug, right angle
Connector standard
Sensor connector
Connection side A
M12 plug, right angle
Connection side B
Customisable
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 29 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 75.99 / piece)
€ 75.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • ETHERNET M12 ST WINKL D-KOD FEDER
Type

756-9501/040-000

Product type

Sensor/actuator connector

Connector type

Plug, right angle

Connector standard

Sensor connector

Connection side A

M12 plug, right angle

Connection side B

Customisable

No. of pins

4

Nominal voltage

250 V

Nominal current

4 A

Nominal current - rounded value

4 A

Connection

Spring-loaded terminal

Thread type connection side

M12

Coding

D

Seal type

Screw-on

Manufacturer part #

756-9501/040-000

Industrial packaging

Yes

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 546644 WAGO 756-9501/040-000 Sensor/actuator connector M12 Plug, right angle No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 546644 WAGO 756-9501/040-000 Sensor/actuator connector M12 Plug, right angle No. of pins (RJ): 4 1 pc(s)

Description

D-coded, Angularly configurable.

This text is machine translated.
