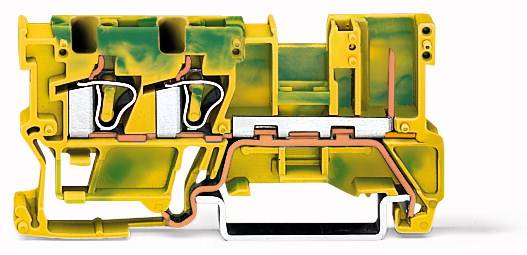

WAGO 769-257 Base terminal 5 mm Pull spring Configuration: Terre Green, Yellow 50 pc(s) Piece
Packaging type
Piece
Product type
Base terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
2-conductor/1-pin PE base terminal
- 769-257
- Industrial packaging, pack of 50
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
Base terminal
- Features
+ CAGE CLAMP®
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5 mm
- No. of rows
1
- Pins per row
1
- Number of pins
3
- Factory colour
Green
Yellow
- Stripping length (max.)
8 mm
- Manufacturer part #
769-257
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
769-257

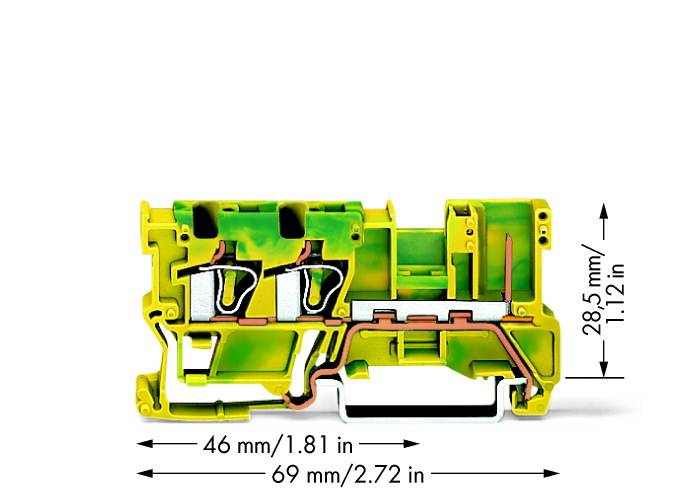

- Dim
(L x W x H) 5 x 5 x 28.50 mm
- Width
5 mm
- Height
28.50 mm
- Length
5 mm
- Weight
9.366 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 655180 WAGO 769-257 Base terminal 5 mm Pull spring Configuration: Terre Green, Yellow 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 655180 WAGO 769-257 Base terminal 5 mm Pull spring Configuration: Terre Green, Yellow 50 pc(s) Piece
