Walther Werke CEE power distributor 6823012 6823012
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 665.00 / piece)
€ 835.00
-20 %
€ 665.00
incl. VAT
14-day return policy included
Highlights & Details
Socket combination in: 40A m RCD type A
- Housing (682) made of silicon and halogen-free PC/ABS
- With transparent lid that snaps into place on top
- II protection rating
- Flammability class V0
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
2
- No. of PG sockets
4
- Inputs
4
- Outputs
7
- Nominal output voltage
400 V
IP44
- Cable length
0 m
- Protection
FI-circuit breaker : FI with IFN 0.03 A (standard)
- Factory colour
Grey-white (RAL 7035)
- Weight
6.3 kg
- Dim
(W x H x D) 290 x 404 x 171 mm
- Width
290 mm
- Height
404 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
171 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2305608 Walther Werke CEE power distributor 6823012 6823012
User & Safety Instructions
User & Safety Instructions 2305608 Walther Werke CEE power distributor 6823012 6823012
Description

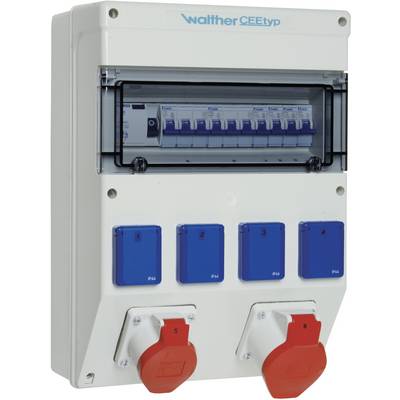

Socket combination in: 40A with one RCD type A, 6 MCB type C, 2 CEE outputs 16-32A, 4 Schuko and terminal set K25 10P
This text is machine translated.
This text is machine translated.
Features
- Connection:
- 3 knockouts at top and bottom M40/M50
- 1 clamping set K25 10P
- outputs/ protection:
- 1 earth leakage circuit breaker (RCD) 4P 40A/30mA -A-
- 1 straight CEE-mounted socket 32A 5P 400V 6h
- with circuit breaker (MCB) 3P 32A -C-
- 1 straight CEE-mounted socket 16A 5P 400V 6h
- with circuit breaker (MCB) 3P 16A -C-
- 4 earthing contact socket 16A 3P 230V
- with 1 circuit breaker each (MCB) 1P 16A -C.
Hints
Fuse for LS switch
