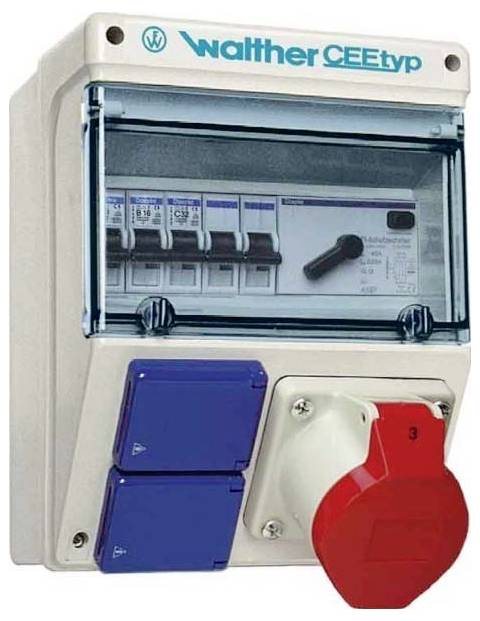

Walther Werke CEE power distributor 6920117 6920117
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 306.72 / piece)
€ 306.72
plus VAT.
Highlights & Details
Socket combination in: 32A m RCD type A
- Housing (692) made of silicon and halogen-free PC/ABS
- Color: Similar to RAL 7035 light gray-
- With transparent lid that snaps into place on top
- II protection rating
- Flammability class V0
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
1
- No. of PG sockets
2
- Inputs
3
- Outputs
4
- Nominal output voltage
400 V
IP44
- Protection
FI-circuit breaker : FI with IFN 0.03 A (standard)
- Factory colour
Grey-white (RAL 7035)
- Weight
2.4
- Dim
(L x W x H) 237 x 183 x 237 mm
- Length
237 mm
- Width
183 mm
- Height
237 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
152 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2305610 Walther Werke CEE power distributor 6920117 6920117
User & Safety Instructions
User & Safety Instructions 2305610 Walther Werke CEE power distributor 6920117 6920117
Description
Socket combination in: 32A with one RCD type A, 3 MCB, one CEE output 16A, 2 Schuko and connection up to 25qmm 10P
This text is machine translated.
This text is machine translated.
Features
- Connection:
- 2 knockouts at top and bottom M25/M32/M40
- 1 Connection up to 25qmm 10P
- Output/ protection:
- 1 fault current circuit breaker (RCD) 4P 40A/30mA -A-
- 1 CEE-mounted socket straight 16A 5P 400V 6h
- with miniature circuit breaker (MCB) 3P 16A -C-
- 2 protective contact sockets 16A 3P 230V
- each with 1 circuit breaker (MCB) 1P 16A -C-
Hints
Fuse for LS switch
