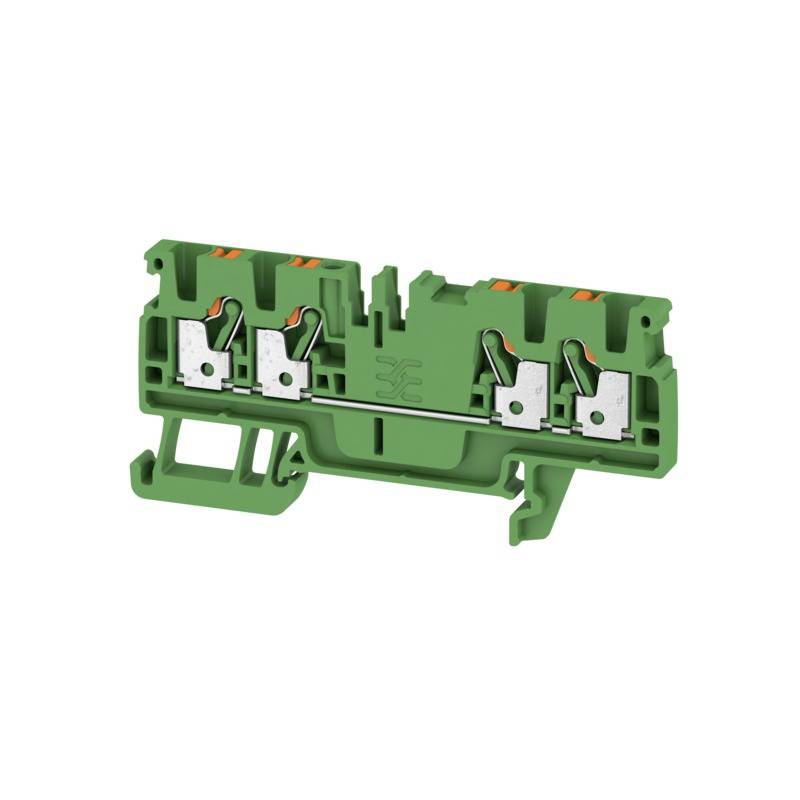

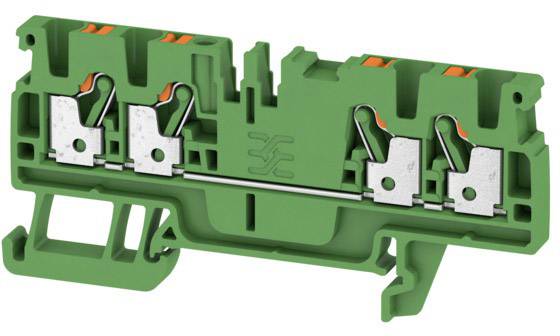

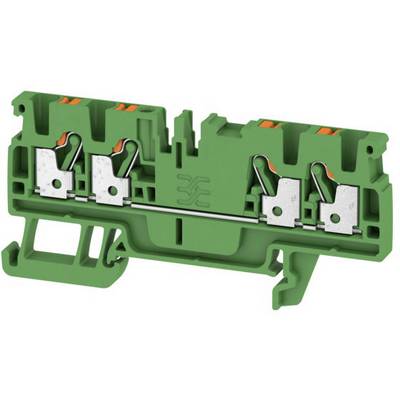

Weidmüller 1521770000 Continuity 5.1 mm Pull spring Green 100 pc(s)
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 100 pc(s))
Total (€ 1.25 / piece)
€ 124.99
incl. VAT
Only 5 Set(s) available
Highlights & Details
Feed-through terminal
- A4C 2.5 GN
Our service for you
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5.1 mm
- Number of pins
4
- Factory colour
Green
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
1521770000
- Content
100 pc(s)
- Type
A4C 2.5 GN
- Dim
(L x W x H) 36.5 x 5.1 x 77.5 mm
- Width
5.1 mm
- Height
77.5 mm
- Length
36.5 mm
- RoHS-compliant
Yes
- Connections
4
- Nominal voltage (details)
800 V
- Nominal current (details)
24 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1513836 Weidmüller 1521770000 Continuity 5.1 mm Pull spring Green 100 pc(s)
User & Safety Instructions
User & Safety Instructions 1513836 Weidmüller 1521770000 Continuity 5.1 mm Pull spring Green 100 pc(s)
