Buy Weidmüller 2421680000 Sensor/actuator built-in connector M12 Socket, vertical vertical No. of pins (RJ): 5 10 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

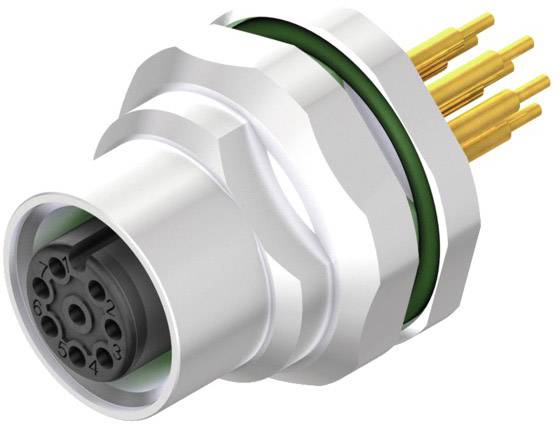

A round, silver connector plug with six numbered connection pins and gold, protruding contacts. Ideal for industrial applications.

A round, silver connector plug with six numbered connection pins and gold, protruding contacts. Ideal for industrial applications.

Image similar

Weidmüller

Product type

Sensor/actuator built-in connector

Connector type

Socket, vertical vertical

Connector standard

SAI Weidmüller

Connection side A

Customisable

Connection side B

M12 socket, built-in

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 4 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 16.00 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Sensor/actuator built-in connector

Our service for you

Technical specifications

Type: SAIE-M12B-5-H12TL-M16

Product type: Sensor/actuator built-in connector

Connector type: Socket, vertical vertical

Connector standard: SAI Weidmüller

Connection side A: Customisable

Connection side B: M12 socket, built-in

No. of pins: 5

Nominal voltage: 60 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connection: Print

Factory colour: Silver

Thread type connection side: M12

Thread type (wiring and installation): M16

Coding: A

Contact material: CuZn

Contact surface: Gold

Sensor/actuator connectivity fittings: Rear panel fitting

: IP67

Min. temperature: -30 °C

Max. temperature: +80 °C

Seal type: Screw-on

Manufacturer part #: 2421680000

Content: 10 pc(s)

RoHS-compliant: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1514248 Weidmüller 2421680000 Sensor/actuator built-in connector M12 Socket, vertical vertical No. of pins (RJ): 5 10 pc(s)

User & Safety Instructions

User & Safety Instructions 1514248 Weidmüller 2421680000 Sensor/actuator built-in connector M12 Socket, vertical vertical No. of pins (RJ): 5 10 pc(s)
