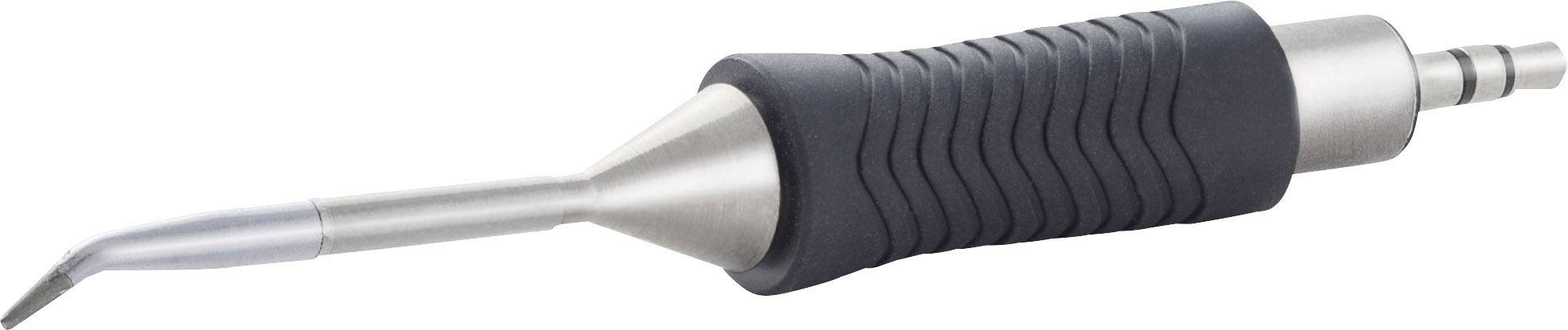

Weller RTM 008 S X MS Soldering tip Chisel-shaped, Curved Tip size 0.8 mm Tip length 23 mm Content 1 pc(s)

A dental ultrasonic instrument with a metal tip and ergonomic handle, used for tooth cleaning.

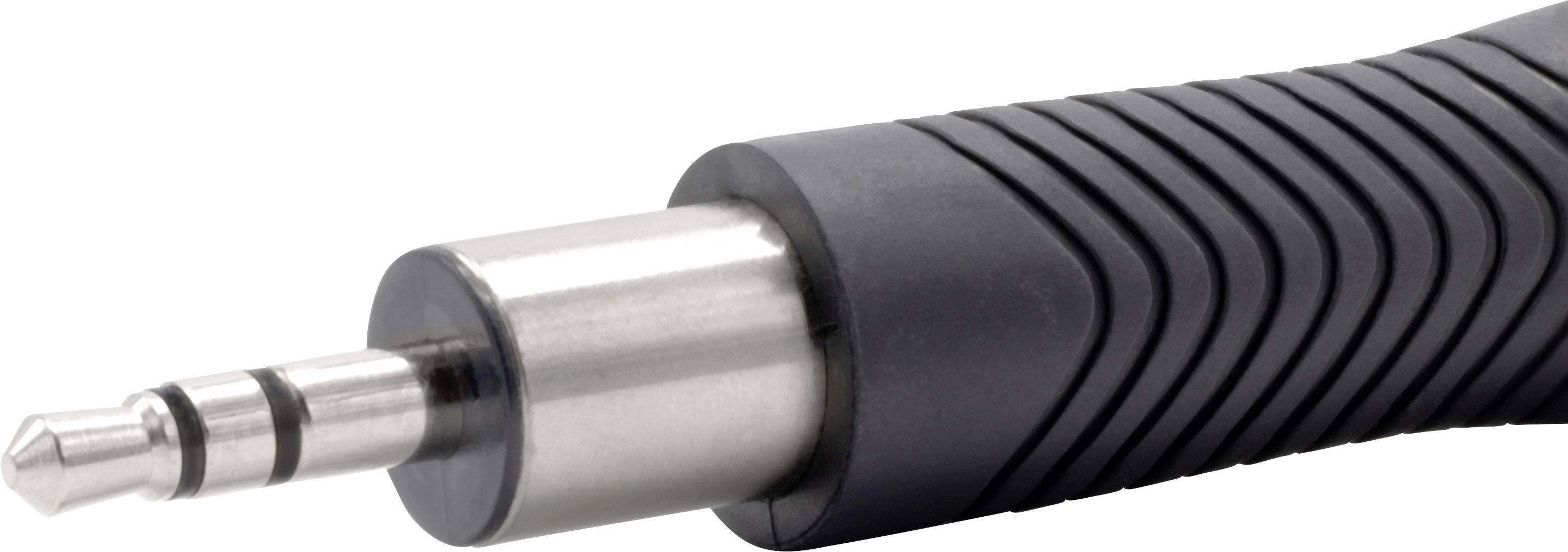

Close-up of a metal audio jack with a black, ridged grip. The connector has two black insulation rings and is used for audio connection.

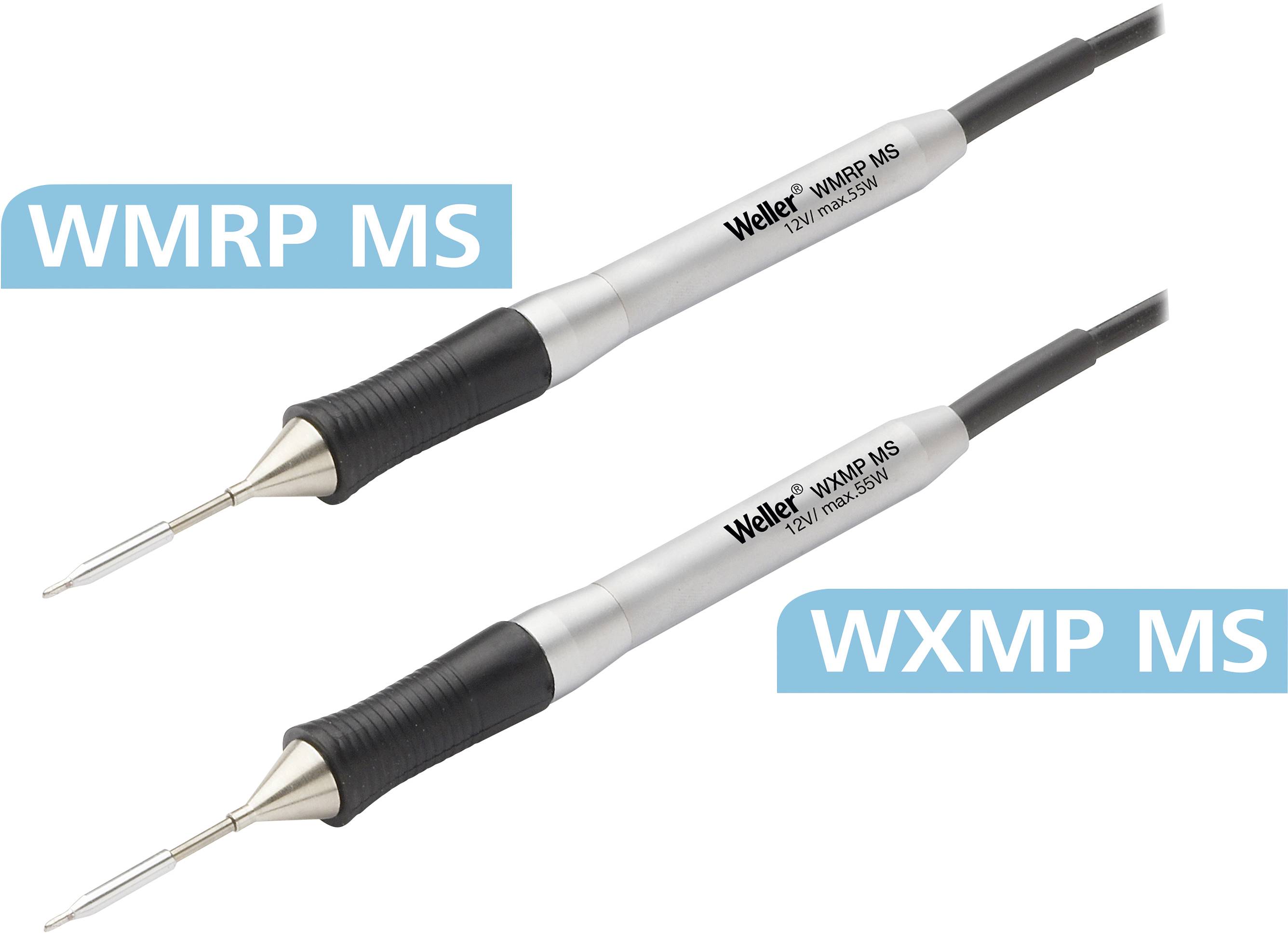

Two soldering irons marked 'Weller WMRP MS' and 'Weller WXMP MS'. Both have long, narrow tips and plastic handles.
A dental ultrasonic instrument with an ergonomic handle and angled tip for tooth cleaning.
Close-up of a black audio cable with a metal plug. The plug has three contact points and is intended for connection purposes.

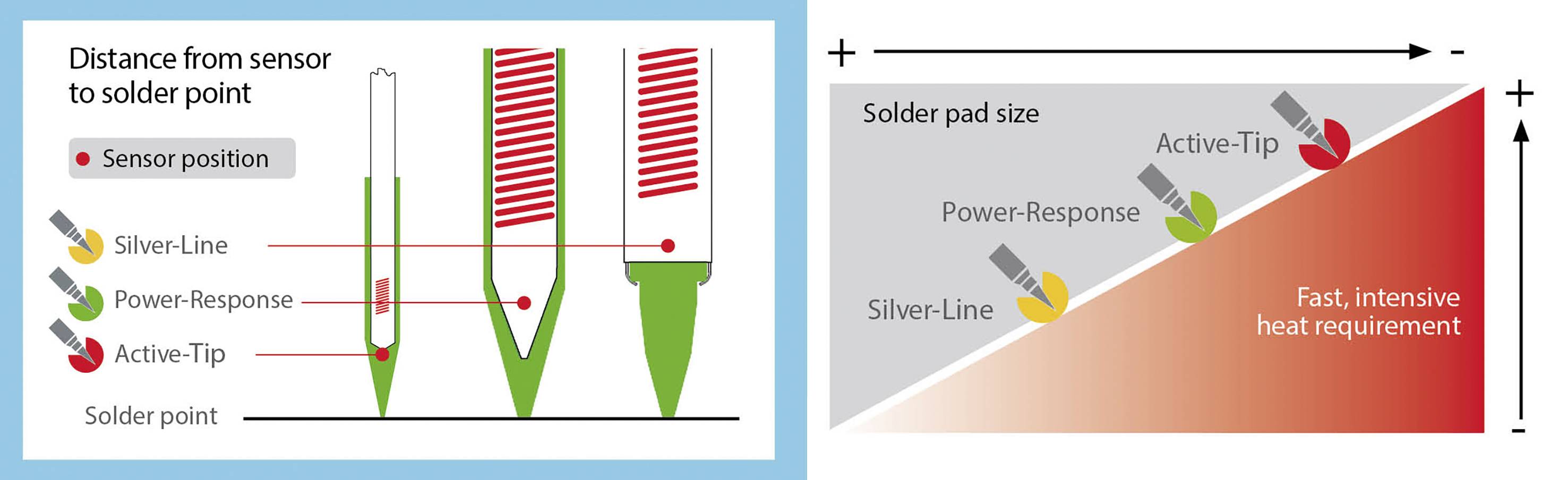

'Diagram compares soldering tips: Silver-Line, Power-Response, and Active-Tip. Active-Tip couples sensor closely, minimises heat demand.'

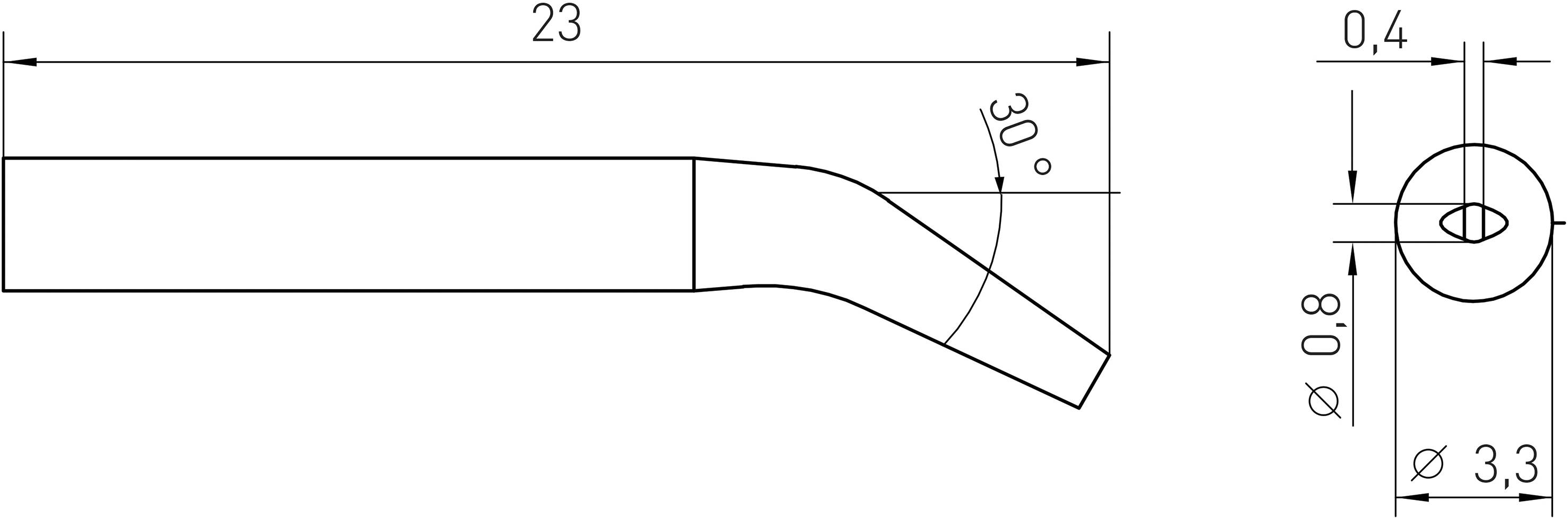

Technical drawing of a pipe end with a bend. Length 23, angle 30 degrees, diameter 3.3. Side and top view.

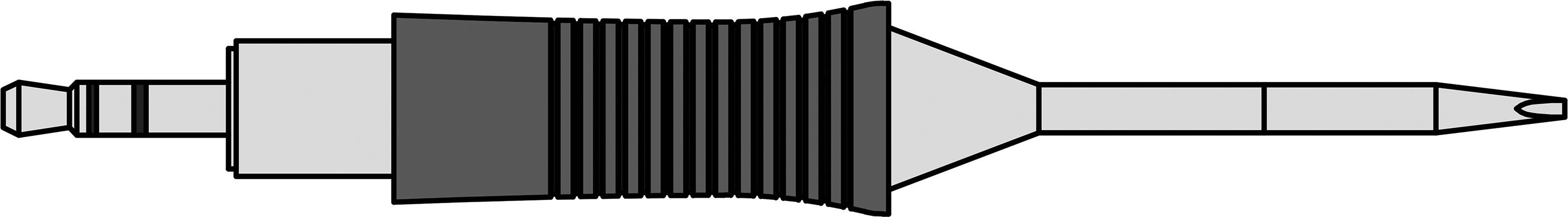

A symbol for a stereo jack plug, with a knurled grip and polished tip, shows the structure and connection elements of an audio cable.
1/8
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Tue 10 Nov
8 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 51.99 / piece)
€ 51.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 8 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Weller RT Micro soldering tip, chisel bent 0.8mmx0.4mm, MIL-SPEC

  • Handles all standard applications. A tool for all soldering needs.
  • Reduces the risk of damage to sensitive microcomponents and workpieces. No rework, lower operating costs.
  • Fast heating and reaction time, sensor close to the soldering spot, perfect heat transfer. No downtime, continuous workflow, excellent results.
  • Motion sensor for activation, operation and setup information stored in the tool. Energy-saving, longer tip life, flexibility for the user thanks to use at the bank/station.
  • Only soldering tip on the market with tool-free tip change. 20% faster tip change than comparable tools.
  • One station for all active tips and tools. WX system meets all manual soldering requirements and is the only ESD-safe soldering station on the market, including control panel.

Technical specifications

  • Chisel-shaped: Bent : 0.8 x 0.4
Tip shape

Chisel-shaped

Curved

Product type

Soldering tip

Compatible with

Weller

Compatible with

WXMPS MS soldering iron

Type

RTM 008 S X MS

Compatible with (details)

WXMP MS | | WMRP MS

Tip size

0.8 mm

Tip length

23 mm

Documents & Downloads

Datasheet

Datasheet 2177694 Weller RTM 008 S X MS Soldering tip Chisel-shaped, Curved Tip size 0.8 mm Tip length 23 mm Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2177694 Weller RTM 008 S X MS Soldering tip Chisel-shaped, Curved Tip size 0.8 mm Tip length 23 mm Content 1 pc(s)

Information

Information 2177694 Weller RTM 008 S X MS Soldering tip Chisel-shaped, Curved Tip size 0.8 mm Tip length 23 mm Content 1 pc(s)

Description

Powerful active soldering tip RT Micro MIL-SPEC for micro and standard components covers a wide range of applications.
