Wieland Electric 57.910.5755.0 Fuse terminal 12 mm Screws Grey 50 pc(s)
Product type
Fuse terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
10 A
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 13.10 / piece)
€ 655.00
incl. VAT
14-day return policy included
Highlights & Details
FUSE CLIP-WK 10/SIU6,3X32M.NGL/V0
- WK 10/SIU6,3X32M.NGL/V0
Technical specifications
- Product type
Fuse terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
1 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
1 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
12 mm
- No. of rows
1
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
500 V
- Manufacturer part #
57.910.5755.0
- Content
50 pc(s)
- Type
WK 10/SIU6,3X32M.NGL/V0
- Flammability rating
V0
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Grey
500 V
-40-55 °C
V0
TRUE
Screw connection
Screw connection
G-fuse 6.3x32 mm
Screwable
Glow lamp
1
AC/DC
1-10 mm²
1-10 mm²
16-16 mm²
Thermoplastic
10 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274581 Wieland Electric 57.910.5755.0 Fuse terminal 12 mm Screws Grey 50 pc(s)
Description

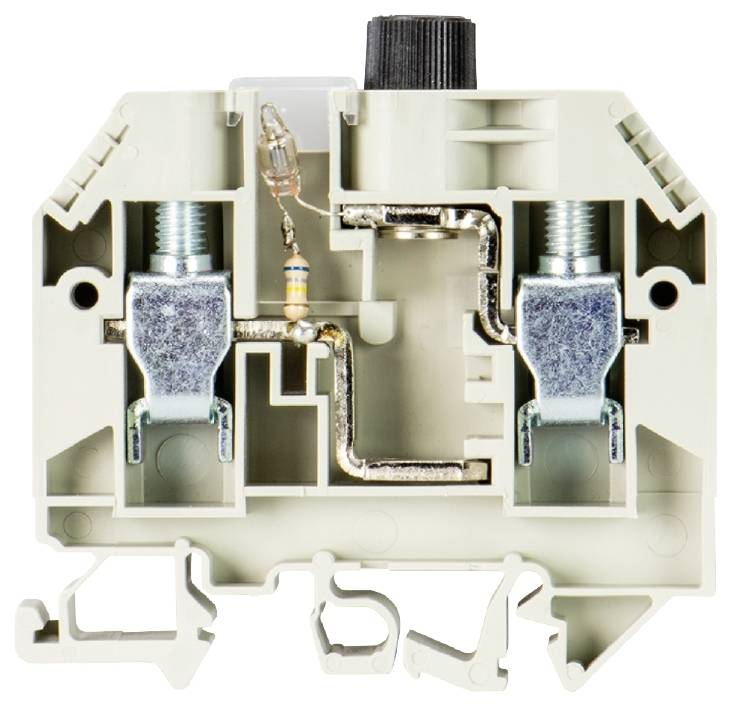

Fuse terminal with screw terminals for mounting on TS 35 and TS 32
Nominal cross-section 10 mm²
Installation width 12 mm.
Colour Grey
This text is machine translated.
Nominal cross-section 10 mm²
Installation width 12 mm.
Colour Grey
This text is machine translated.
