Wisualarm DHI-HY-GW01A DHI-HY-GW01A Wireless alarm system
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 31.99 / piece)
€ 31.99
incl. VAT
Only 3 Piece(s) available
Highlights & Details
Wisualarm by Dahua DHI-HY-GW01A WLAN base station for WisuLink wireless products
- Compatible with WisuLink wireless products
- Dual communication via Ethernet and WLAN
- Wall mounted or free-standing installation possible
- Supports OTA firmware updates
- Four LED-displays for operation, fault, alarm and Internet connection
- Supports up to 24 WisuLink wireless products
Technical specifications
- Product type
Wireless alarm system
- App compatibility
Yes
- Series
868 MHz
- Frequency range
2.4 GHz
- SPL
70 dB
50 m
- Dim
(W x H x D) 78.2 x 22.9 x 78.2 mm
Manufacturer-specific
- Display
No
- Frequency
2.4 GHz
- Weight
60 g
- Factory colour
White
- Width
78.2 mm
- Height
22.9 mm
- Depth
78.2 mm
- Signal transmission
Radio
- Power supply (LOV)
via DC in
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3782462 Wisualarm DHI-HY-GW01A DHI-HY-GW01A Wireless alarm system
User & Safety Instructions
User & Safety Instructions 3782462 Wisualarm DHI-HY-GW01A DHI-HY-GW01A Wireless alarm system
Description

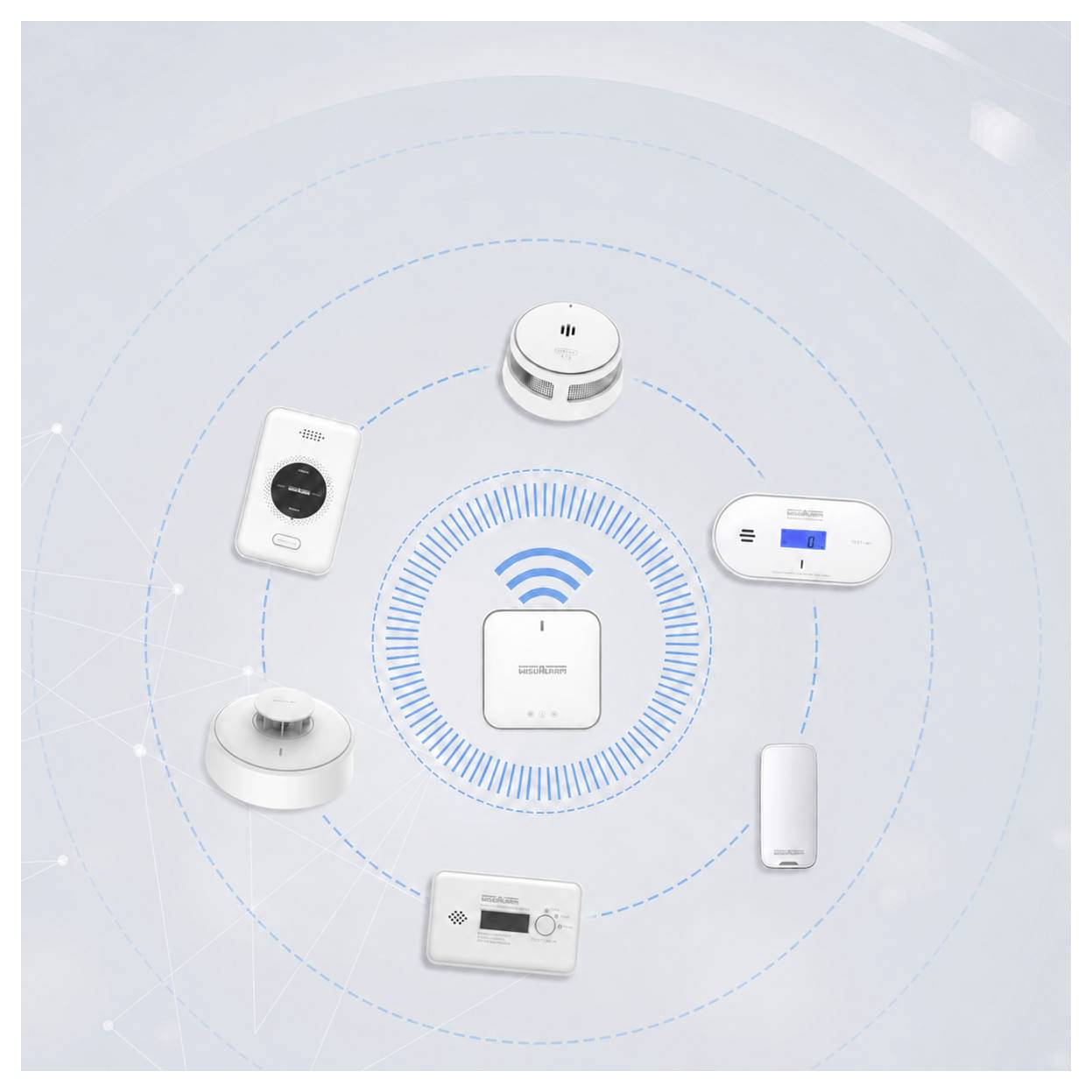

The Wisualarm DHI-HY-GW01A is a wireless base station for compatible Wisualert and WisuLink wireless products. It links networked wireless detectors to the Wisualarm APP and collects status, alarm and connection data of the connected devices.

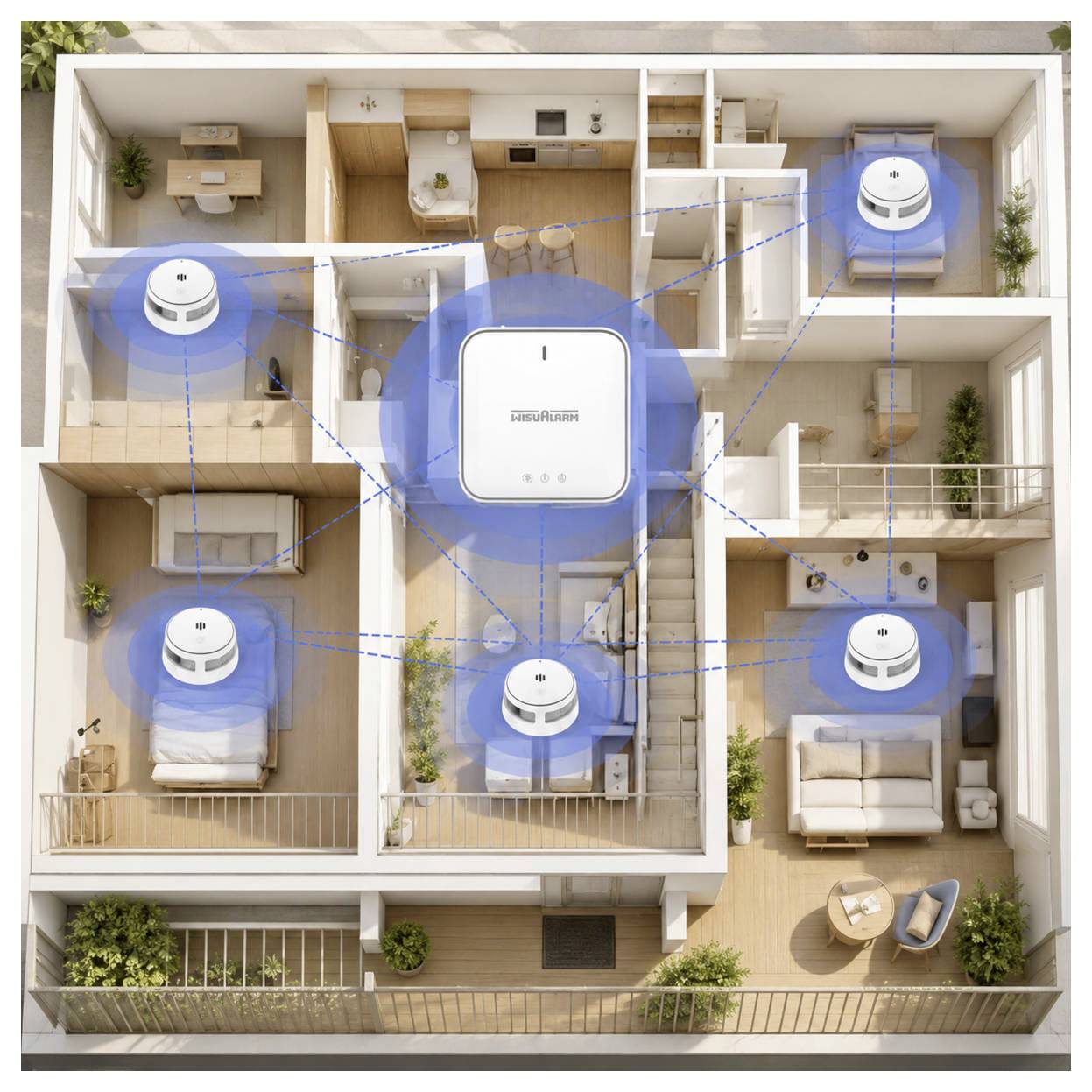

After successful pairing, the base station remains permanently connected to the networked detectors. In case of a fire or other emergency, a triggered detector can trigger the alarm of the connected devices; in addition, push notifications are sent to the smartphone.
Alarm messages can be received and supported functions can be operated remotely via the Wisualarm APP. In this way, the condition of the connected devices can also be monitored outside the building.
The communication takes place via Ethernet and WLAN. The WLAN connection supports a 2.4 GHz network according to IEEE 802.11b/g/n; 5 GHz WLAN networks are not supported.

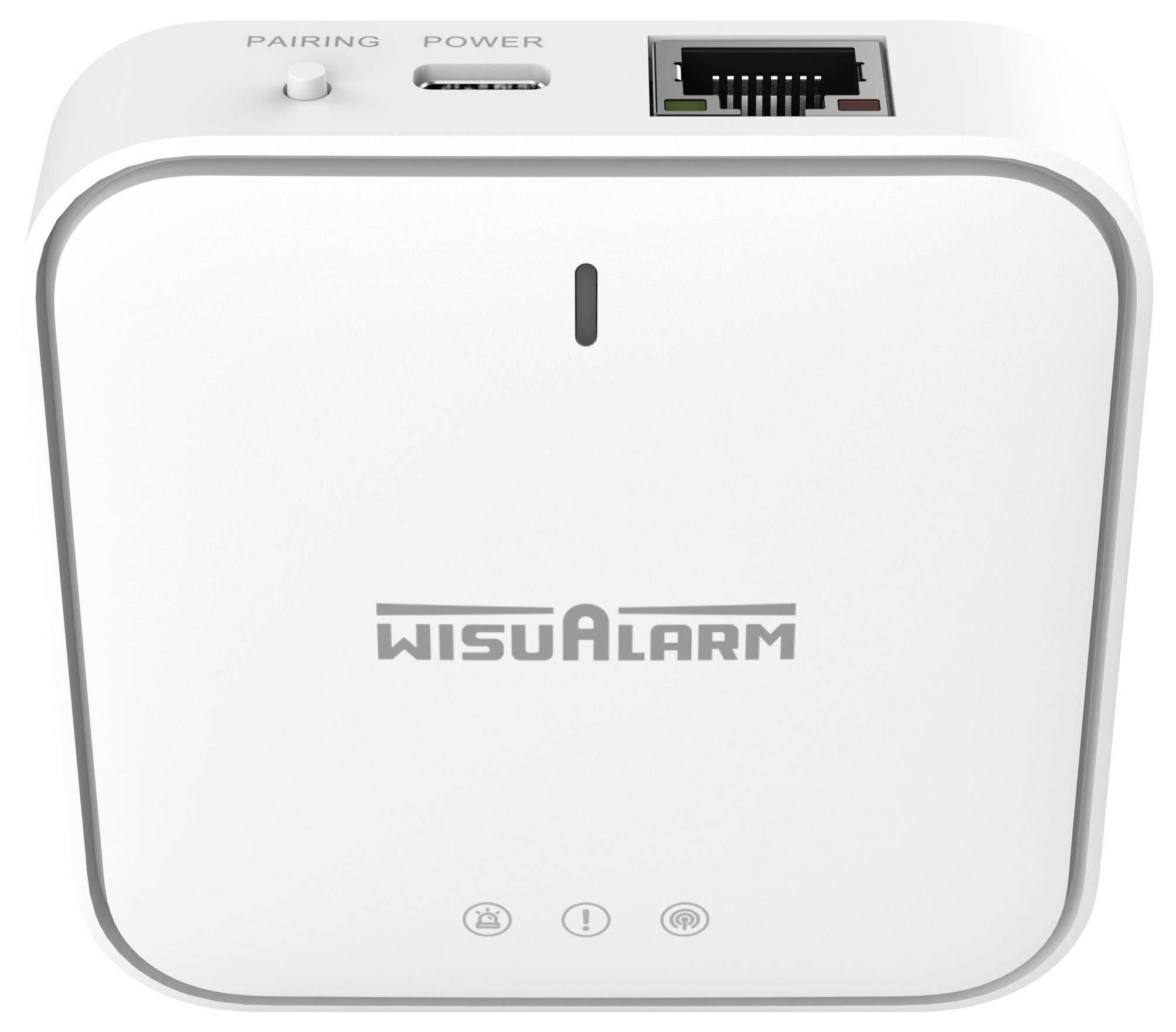

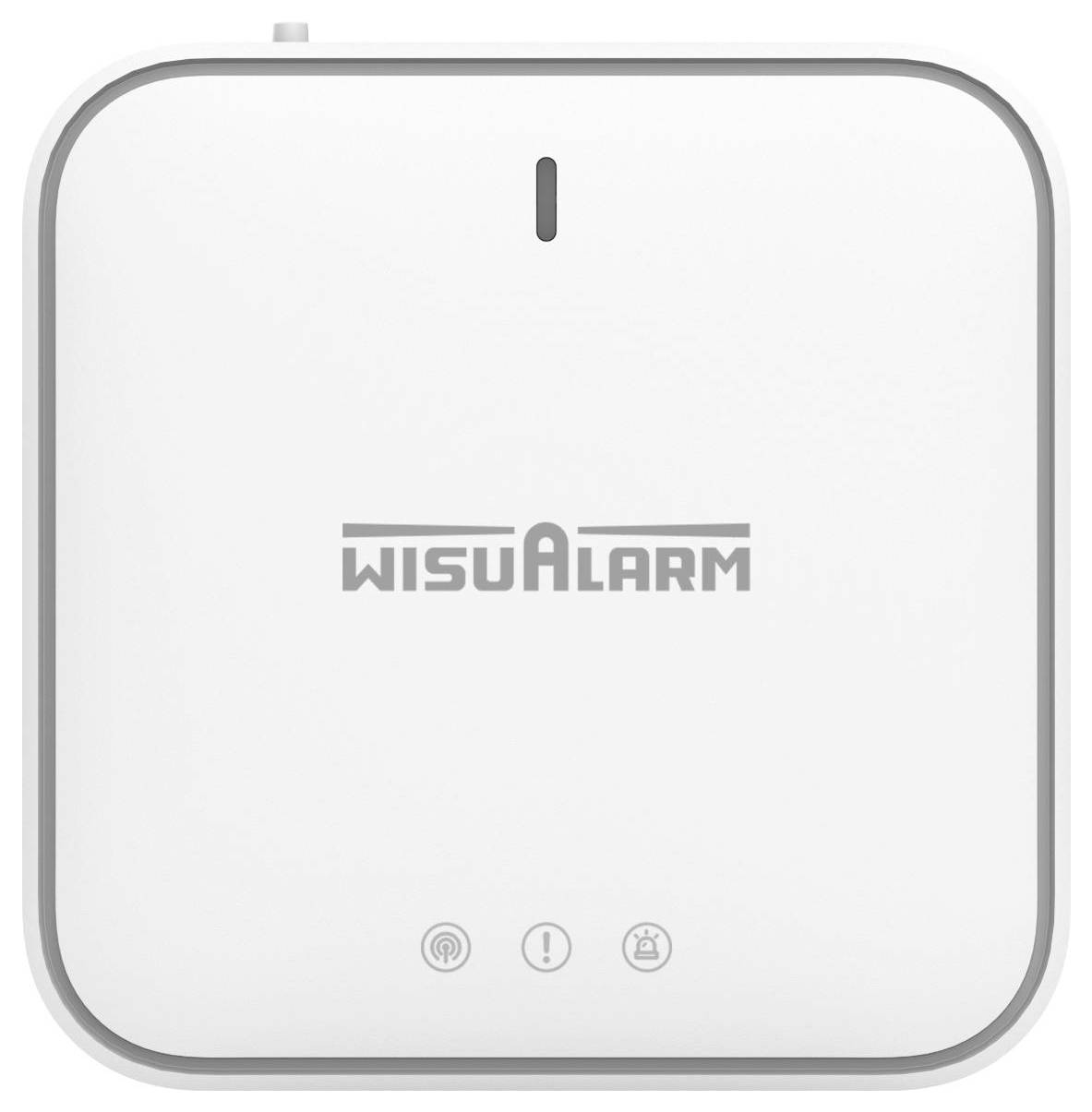

Four LED displays inform about operation, malfunction, alarm and internet connection. The base station supports OTA firmware updates, wall mounting, or freestanding, and can be connected to up to 24 WisuLink wireless products.
Technical data
Power supply 5.0 V/1.0 amp
Alarm volume 70 dB
Alarm mode: Audible and visual alarms
Display: Alarm, error and power indicator
LED indicators: Standby: Green on solid; Coupling: Green flashes fast (once per 0.5 s); Uncoupling: All displays light up continuously for 3 s; Alarm: Red on steady; Error: Yellow on steady; Network set up successfully: Blue on permanent; AP setup mode: Blue flashes fast (once per 0.5 s); Reset: Red flashes fast (once per 0.5 s)
WLAN frequency: 2.4 GHz (not compatible with 5 GHz wireless networks)
Wi-Fi coverage 50 meters
WLAN-protocol IEEE 802.11b/g/n
Operating frequency 868 MHz / 925 MHz
Maximum number of connected devices: 24 WisuLink wireless products
Colour: White
ABS casing material
Product dimensions 78.2 × 78.2 × 22.9 mm
Product weight 60 g

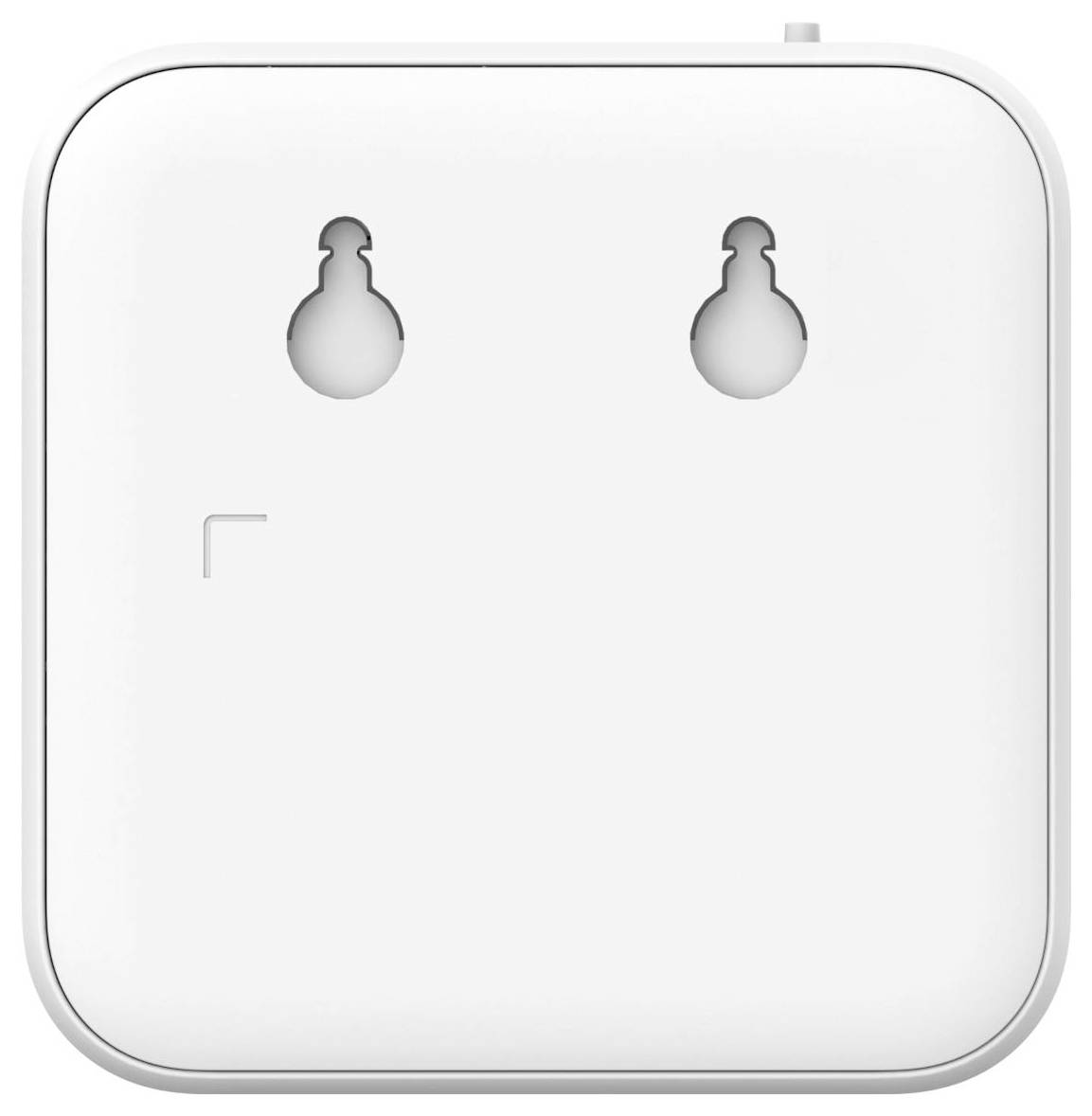

Mounting: Free-standing / wall mounting
Operating temperature: -10 °C to + +55 °C.
Relative humidity: ≤ 95% RH (non-condensing)
EN 62368-1:2014 + A11:2017
This text is machine translated.
After successful pairing, the base station remains permanently connected to the networked detectors. In case of a fire or other emergency, a triggered detector can trigger the alarm of the connected devices; in addition, push notifications are sent to the smartphone.
Alarm messages can be received and supported functions can be operated remotely via the Wisualarm APP. In this way, the condition of the connected devices can also be monitored outside the building.
The communication takes place via Ethernet and WLAN. The WLAN connection supports a 2.4 GHz network according to IEEE 802.11b/g/n; 5 GHz WLAN networks are not supported.
Four LED displays inform about operation, malfunction, alarm and internet connection. The base station supports OTA firmware updates, wall mounting, or freestanding, and can be connected to up to 24 WisuLink wireless products.
Technical data
Power supply 5.0 V/1.0 amp
Alarm volume 70 dB
Alarm mode: Audible and visual alarms
Display: Alarm, error and power indicator
LED indicators: Standby: Green on solid; Coupling: Green flashes fast (once per 0.5 s); Uncoupling: All displays light up continuously for 3 s; Alarm: Red on steady; Error: Yellow on steady; Network set up successfully: Blue on permanent; AP setup mode: Blue flashes fast (once per 0.5 s); Reset: Red flashes fast (once per 0.5 s)
WLAN frequency: 2.4 GHz (not compatible with 5 GHz wireless networks)
Wi-Fi coverage 50 meters
WLAN-protocol IEEE 802.11b/g/n
Operating frequency 868 MHz / 925 MHz
Maximum number of connected devices: 24 WisuLink wireless products
Colour: White
ABS casing material
Product dimensions 78.2 × 78.2 × 22.9 mm
Product weight 60 g
Mounting: Free-standing / wall mounting
Operating temperature: -10 °C to + +55 °C.
Relative humidity: ≤ 95% RH (non-condensing)
EN 62368-1:2014 + A11:2017
This text is machine translated.
Scope of delivery
- Wisualarm DHI-HY-GW01A base station
- Mounting template
- Mounting material
- User manual
