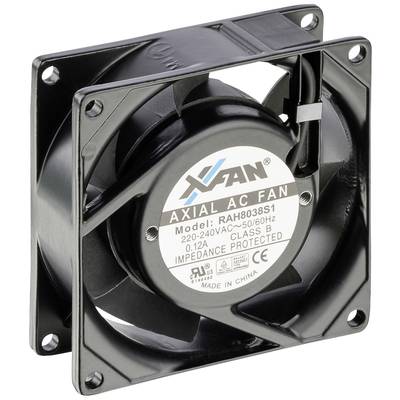

X-Fan RAH8038S1 Axial fan 230 V AC 36 m³/h (L x W x H) 80 x 80 x 38 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Type of bearing
Plain bearing
Air flow rate
36 m³/h
Material
Metal
Datasheet (PDF)
11 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€
Highlights & Details
Axial Fan 230 V 80 x 80 x 38
- Dim. 80 x 80 x 38 mm
- 36 m³/h.
- 230 V
Technical specifications
- Product type
Axial fan
- Type
RAH8038S1
- Nominal voltage
230 V AC
- Operating voltage
- Max. current consumption
100 mA
- Type of bearing
Plain bearing
- Rotational speed
2400 U/min
- Noise emission (max.)
27 dB
- Air flow rate
36 m³/h
- Factory colour
Black
- Material
Metal
- Length
80 mm
- Width
80 mm
- Height
38 mm
- Dim
(L x W x H) 80 x 80 x 38 mm
- Material (details)
Metal
- Type
Plain bearing
- Output (max.) (details)
36 m³/h
- Max. noise generation
27 dBa
- Nominal RPM
2400 U/min
- Nominal voltage (details)
230 V/50 Hz
- Current consumption
voltage:100 mAh
Documents & Downloads
Datasheet
Datasheet 560541 X-Fan RAH8038S1 Axial fan 230 V AC 36 m³/h (L x W x H) 80 x 80 x 38 mm
User & Safety Instructions
User & Safety Instructions 560541 X-Fan RAH8038S1 Axial fan 230 V AC 36 m³/h (L x W x H) 80 x 80 x 38 mm
User & Safety Instructions 560541 X-Fan RAH8038S1 Axial fan 230 V AC 36 m³/h (L x W x H) 80 x 80 x 38 mm
Description
Axial fan with Sleeve bearings and Brushless shaded pole motor for Use in the Electric field.
Scope of delivery
- Axial Fans
- User manual.
