SEPA UF60D23BHW Axial fan 230 V AC 14 m³/h (L x W x H) 60 x 60 x 30 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
230 V AC
Power
5 W
Type of bearing
Ball bearing
Air flow rate
14 m³/h
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Highlights & Details
High power AC exhaust UF60D23BHW
- 2 +1 earthing connection
Technical specifications
- MTBF: 120000
- Max. Pressure: 18 Pa
- Product type
Axial fan
- Type
UF60D23BHW
- Nominal voltage
230 V AC
5 W
- Type of bearing
Ball bearing
- Rotational speed
3100 U/min
- Noise emission (max.)
27 dB
- Air flow rate
14 m³/h
- Connection
Open end cable
- Cable length
29.00 cm
- Pressure (max.)
18 Pa
- Factory colour
Black
- Material
Metal
(L10) 40000 h
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Length
60 mm
- Width
60 mm
- Height
30 mm
- Dim

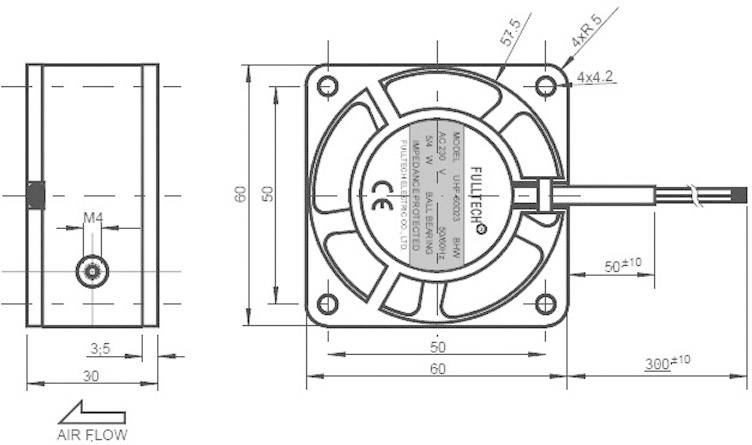

(L x W x H) 60 x 60 x 30 mm
5 W
- Output (max.) (details)
14 m³/h
- Max. noise generation
27 dBa
- Nominal voltage (details)
230 V AC
- Type
UF60D23BWH
- Temperature range
-40 - +70 °C
- Operating voltage
207 - 253 V AC
Documents & Downloads
Datasheet
Datasheet 189491 SEPA UF60D23BHW Axial fan 230 V AC 14 m³/h (L x W x H) 60 x 60 x 30 mm
User & Safety Instructions
User & Safety Instructions 189491 SEPA UF60D23BHW Axial fan 230 V AC 14 m³/h (L x W x H) 60 x 60 x 30 mm
Conformity certificate
Conformity certificate 189491 SEPA UF60D23BHW Axial fan 230 V AC 14 m³/h (L x W x H) 60 x 60 x 30 mm
Conformity certificate 189491 SEPA UF60D23BHW Axial fan 230 V AC 14 m³/h (L x W x H) 60 x 60 x 30 mm
Description
This high power exhaust is used for industrial purposes and has a remarkable flow rate despite its extremely small dimensions. The exhaust can be used for various applications due to it almost linear air flow feature. It has permanent electronic protection against blocking and thermal overloading. It has a high shock and vibration resistance due to low rotor weight and precise balancing. Other features of this fan are, extremely rugged and dimensionally stable aluminium casing, PBT-GV30 rotor as well as the ball bearings made of special steel. Clockwise rotation; Blows over bars
