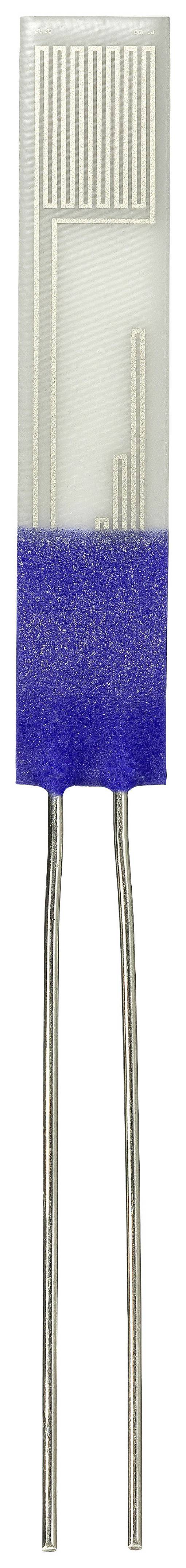

Yageo Nexensos 32208483 M 1020 PT1000 Platinum temperature sensor 0 up to +150 °C 1000 Ω 3850 ppm/K Radial lead
EAN:
Part number:
Item no:
Model
PT1000
Temperature reading range (max.)
+150 °C
Connector
Solder pins
Type
Radial lead
Resistance
1000 Ω
Datasheet (PDF)
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
Highlights & Details
Platinum temperature sensors, wired
- Excellent long-term stability and minimum deviation
- High accuracy and interchangeability
- High vibration and shock resistance
- Optimized for welding, soldering and crimping
- The ideal choice for your large-volume applications
Technical specifications
- DIN EN 60751
- Measurement current 0.1 to 0.3 mA
- Packaging: Blister tape
- Automatic heating 0.2 K/mW at 0 °C.
- Assembly and connection technology: Welding, crimping, brazing
- Connecting wires: NiPt sheathed wire
- Tensile strength of connecting wires: ≥ 9 N.
- Type
M 1020
- Model
PT1000
- Temperature reading range (min.)
0 °C
- Temperature reading range (max.)
+150 °C
- Temperature reading range
0 up to +150 °C
- Connector
Solder pins
- Orientation (connectors)
Radial
- Cable length
10 mm
- Type
Radial lead
- Accuracy class
1/3 B (F0.10)
- Resistance
1000 Ω
- Temperature coefficient
3850 ppm/K
- Length
19.5 mm
- Width
1.9 mm
- Height
0.9 mm
- Dim
(L x W x H) 19.5 x 1.9 x 0.9 mm
- Product type
Platinum temperature sensor
Documents & Downloads
Datasheet
Datasheet 2482847 Yageo Nexensos 32208483 M 1020 PT1000 Platinum temperature sensor 0 up to +150 °C 1000 Ω 3850 ppm/K Radial lead
User & Safety Instructions
User & Safety Instructions 2482847 Yageo Nexensos 32208483 M 1020 PT1000 Platinum temperature sensor 0 up to +150 °C 1000 Ω 3850 ppm/K Radial lead
Description
This wired platinum temperature sensor is typically used in automotive applications, domestic appliances, air-conditioning and heating technology, process industry and medical technology.
This text is machine translated.
This text is machine translated.
Features
- With connection wire 10mm
