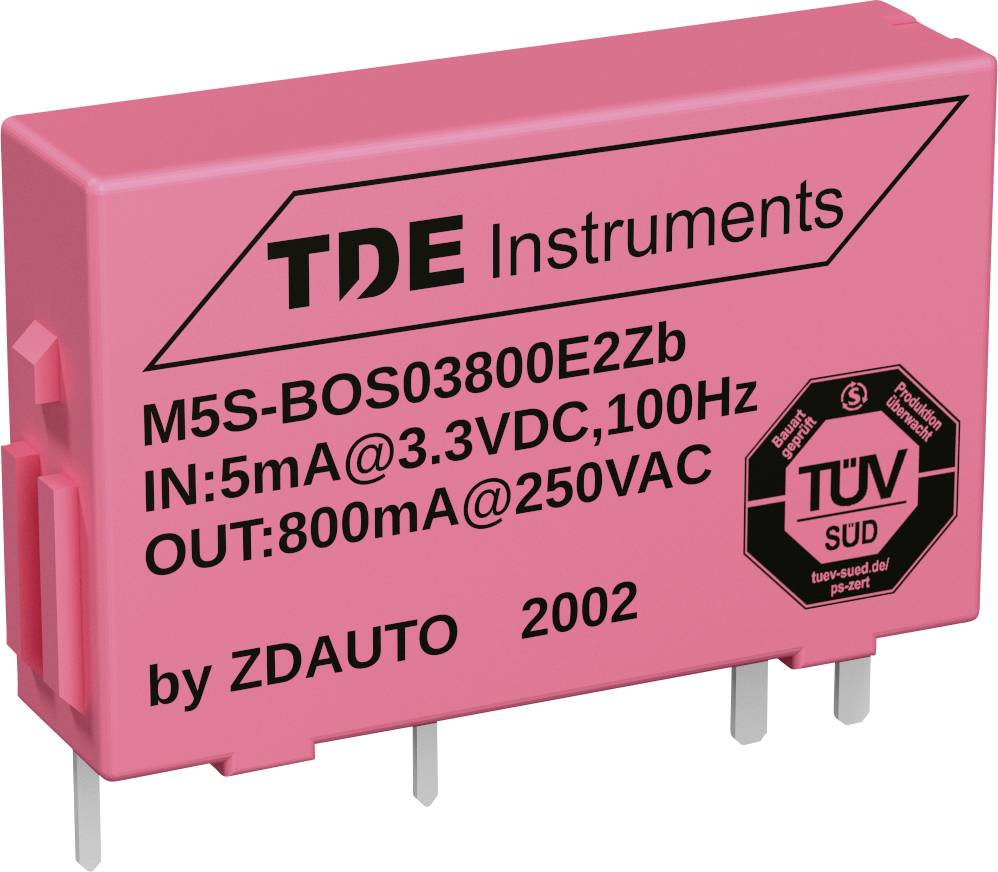

ZDAuto BOS03800E2Zb I/O module 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Highlights & Details
ZDAuto M5S BOS03800E2Zb SSR PCB relay 20-250 V/AC external 3 V/DC internal
- I/O module for PCB mounting
- 5 mm SIP-casing
- SSR binary output, zero crossing
- Voltage/current 3.3 V/5 mA DC, signal 0-100 Hz internal circuit
- Voltage/current 20-250 V, 1-800 mA AC, signal 50-60 Hz AC external circuit
- Galvanic insulation
- Dimensions 5 mm × 12.7 mm × 20 mm
Technical specifications
- Connection: Soldering pins
- Max. switching voltage 250 V/DC
- Switching current (max.) 800 mA
- Contact type: 1 normally open contact
- Control mode: Mono-stable
- Supply voltage 3.3 V/DC.
- Internal signal 0 - 100 Hz
- External signal 50 - 60 Hz
- Dim. (L x W x H) 20 x 5 x 12.7 mm
- Product type
I/O module
- Tool type
I/O module
- Content
1 pc(s)
- Interfaces
Soldering
Documents & Downloads
Datasheet
Datasheet 2352630 ZDAuto BOS03800E2Zb I/O module 1 pc(s)
Datasheet 2352630 ZDAuto BOS03800E2Zb I/O module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2352630 ZDAuto BOS03800E2Zb I/O module 1 pc(s)
Description
M5S modular I/O modules for PCB mounting
Modular interface modules with integrated circuits for versatile use in industrial plants, such as controllers or programmable logic controllers.
Link between electronics and industrial signaling world
The modules serve as a link between the electronics on one side and the industrial signal world on the other. The modules are fully sealed, waterproof, fire-proof and dust-proof.
Universal connection scheme for full flexibility
The universal connection scheme allows all M5S modules to be replaced without having to change the internal or external interconnection. This allows all possible applications to be covered with a universal circuit, customer-specific input and output configurations to be implemented by plugging in the corresponding modules and even further functions to be added to the devices already used in the field.
This text is machine translated.
Modular interface modules with integrated circuits for versatile use in industrial plants, such as controllers or programmable logic controllers.
Link between electronics and industrial signaling world
The modules serve as a link between the electronics on one side and the industrial signal world on the other. The modules are fully sealed, waterproof, fire-proof and dust-proof.
Universal connection scheme for full flexibility
The universal connection scheme allows all M5S modules to be replaced without having to change the internal or external interconnection. This allows all possible applications to be covered with a universal circuit, customer-specific input and output configurations to be implemented by plugging in the corresponding modules and even further functions to be added to the devices already used in the field.
This text is machine translated.
