Buy Zipper ZI-HB204N Jointer planer combo 1500 W

'Green Zipper thickness planing machine with control elements and accessories, including handles and blades, on a white background.'

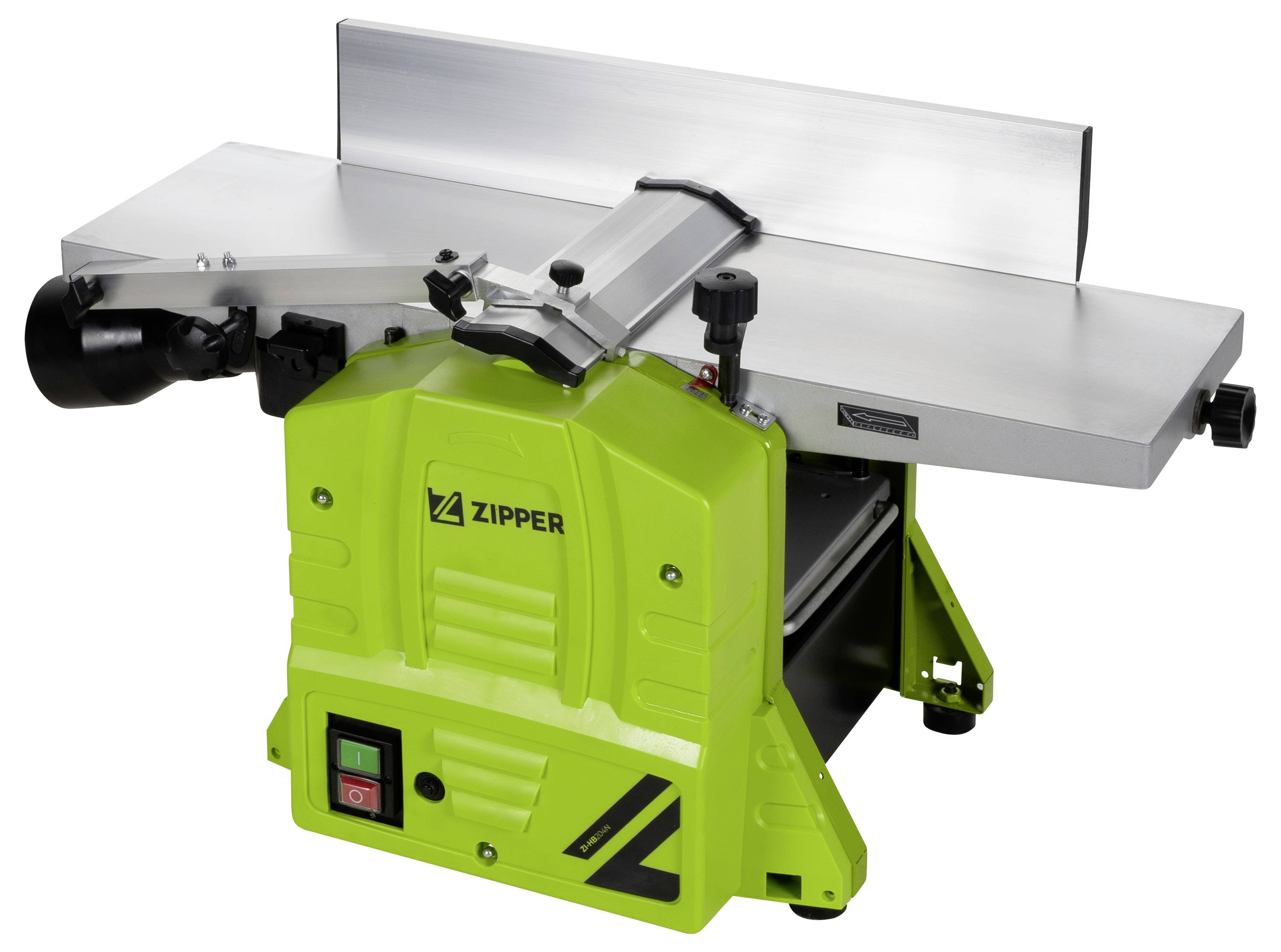

Small green planing machine with two metal tables, branded with 'Zipper'. Main switch and adjustment knobs are visible.

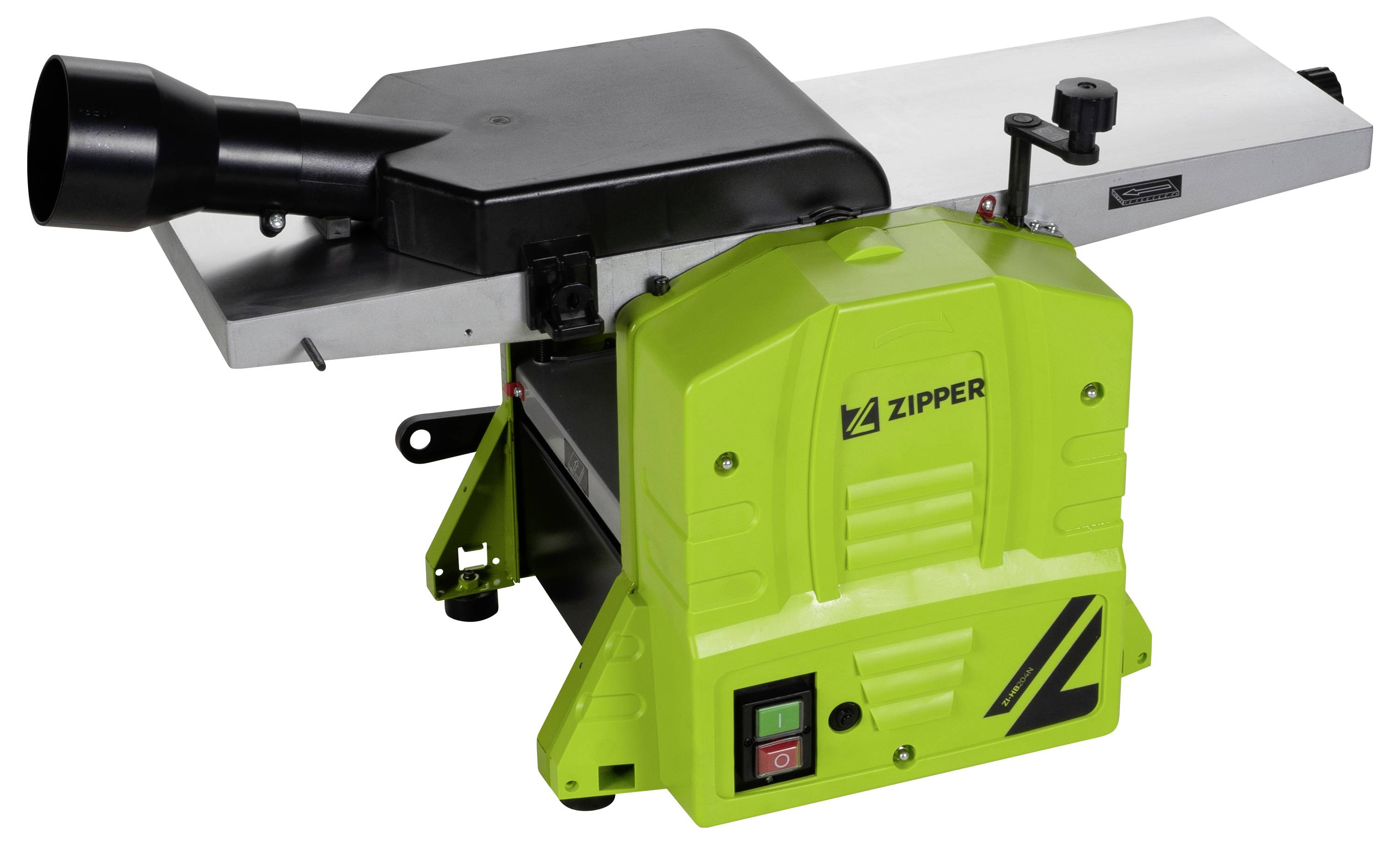

Small green planing and thicknessing machine with black discharge pipe. Suitable for woodworking in workshops.

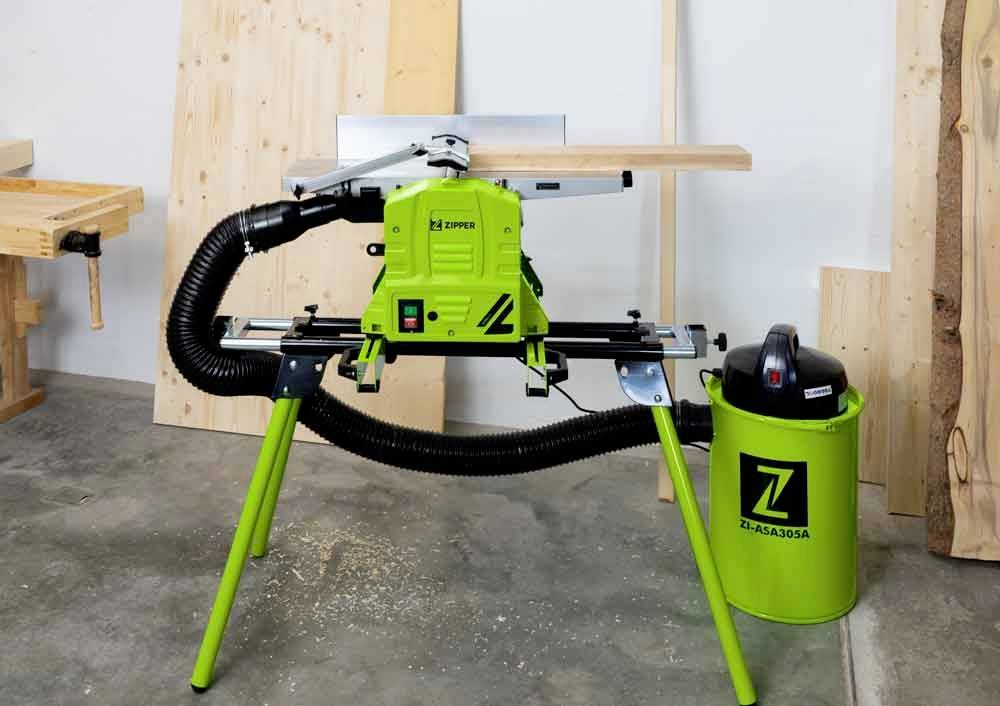

Green table saw mounted on a stand in a workshop. A green vacuum cleaner stands next to the saw. The background shows wooden boards.

Industrial cutting machine with a green casing and sharp metal blade, used for precision cutting of materials in production.

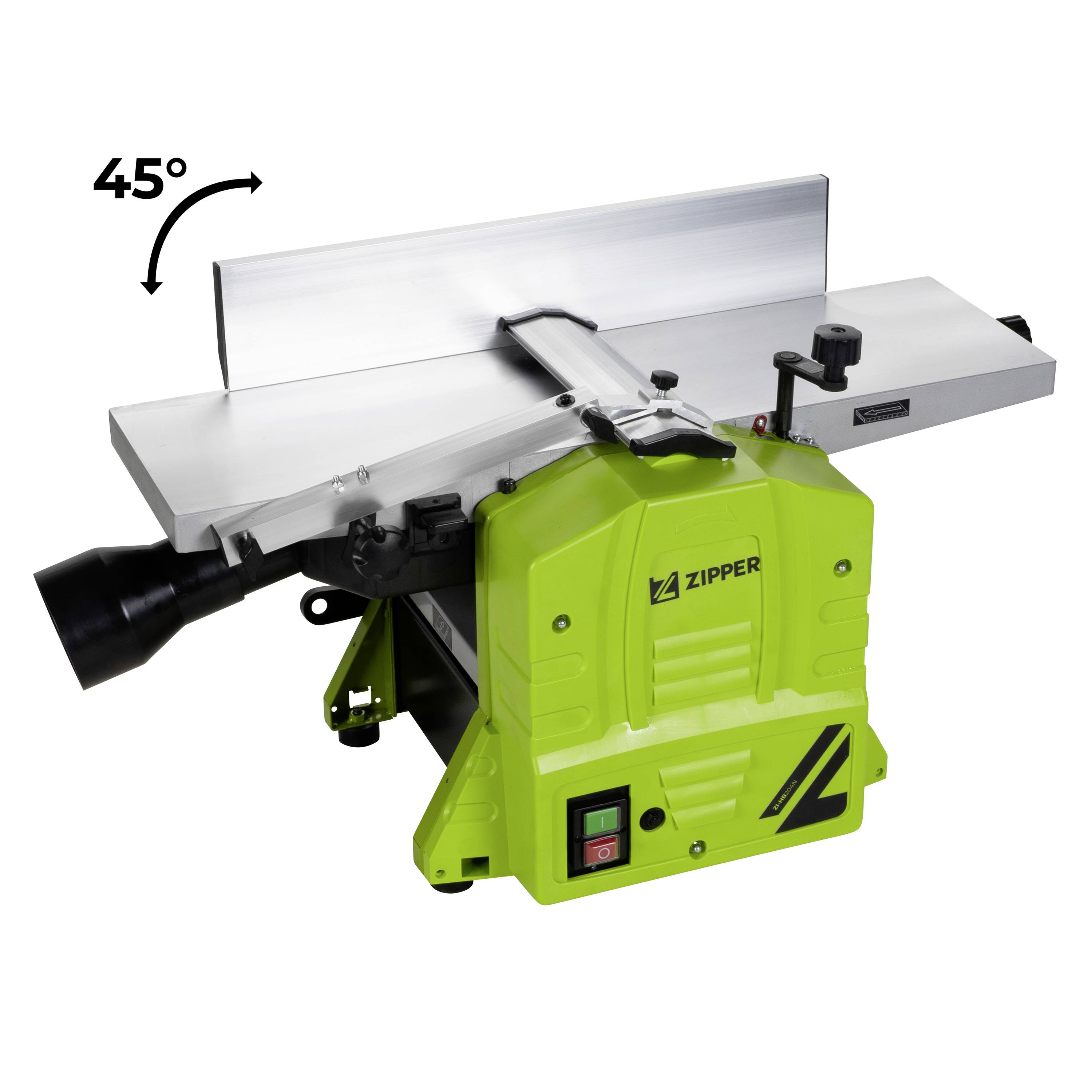

Green planing machine with a silver working surface. The angle of the surface is marked with an upward left arrow at 45°.

1/6

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 289.92 / piece)

€ 289.92

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Highlights & Details

ZI-HB204N Digging machine

Planer width:
Dim. table

Technical specifications

Max. Dressing Clamping acceptance in mm 0-2.5
Alignment stop in mm:520x127
Table size alignment in mm: 740x210
Feed speed 4 m/min.
Thickness planer table size in mm:270x204
Max. Thickness planing Clamping acceptance in mm: 0-2
Passage height in mm 120
Plane shaft speed in min-1: 9000
Number of blades: 2
Sound power level in dB(A) 105

: 1500 W

Rotational speed: 9000 U/min

Swivel range (min): 45°

Swivel range (max.): 90°

Swivel range (range): 45 - 90 °

Operating voltage: 230 V

Length: 75.3 cm

Width: 49.4 cm

Height: 46 cm

Weight: 27 kg

Product type: Jointer planer combo

Documents & Downloads

Datasheet

Datasheet 3344283 Zipper ZI-HB204N Jointer planer combo 1500 W

User & Safety Instructions

User & Safety Instructions 3344283 Zipper ZI-HB204N Jointer planer combo 1500 W

Description

The ZI-HB204N roofing machine with a maximum planing width of 204 mm is Ideal suitable for DIYers. Thanks to its light weight and the pedestal it can be set up easily on your workbench. It has a suction connection, a pivoting dressing stop and a thickness planer function with feed. An all-rounder, which finds place in each wood workshop.

This text is machine translated.
