Name: 2USB 2U-449528 PG socket incl. USB charging port, Child safety, VDE IP20 Pure white (matt)
Brand: 2USB
SKU: 2337154
Availability: InStock

A white socket with two plug sockets and USB ports mounted on the wall.

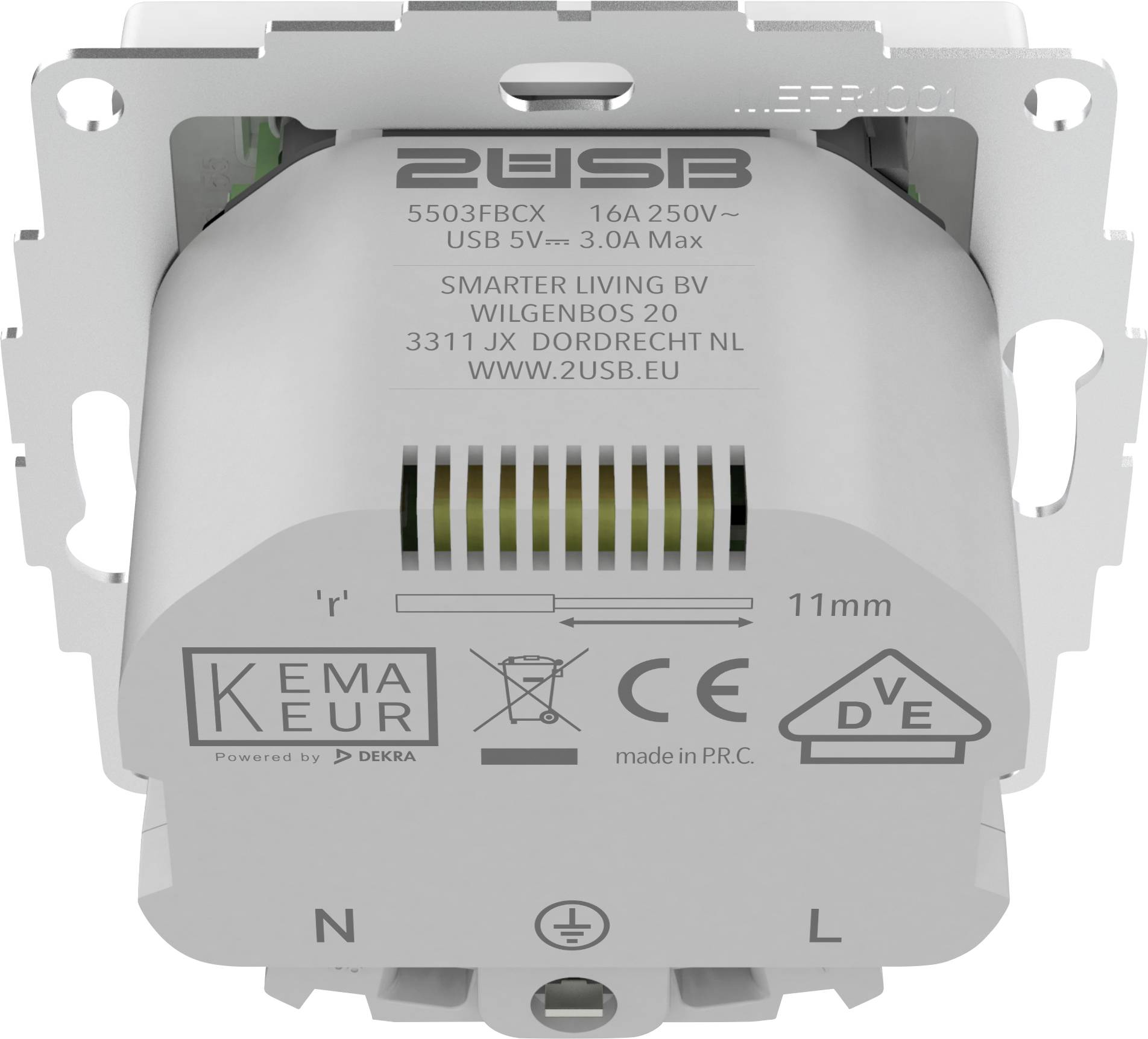

Rear view of a USB socket module with technical specifications: 16A, 250V, manufacturer's address in the Netherlands.

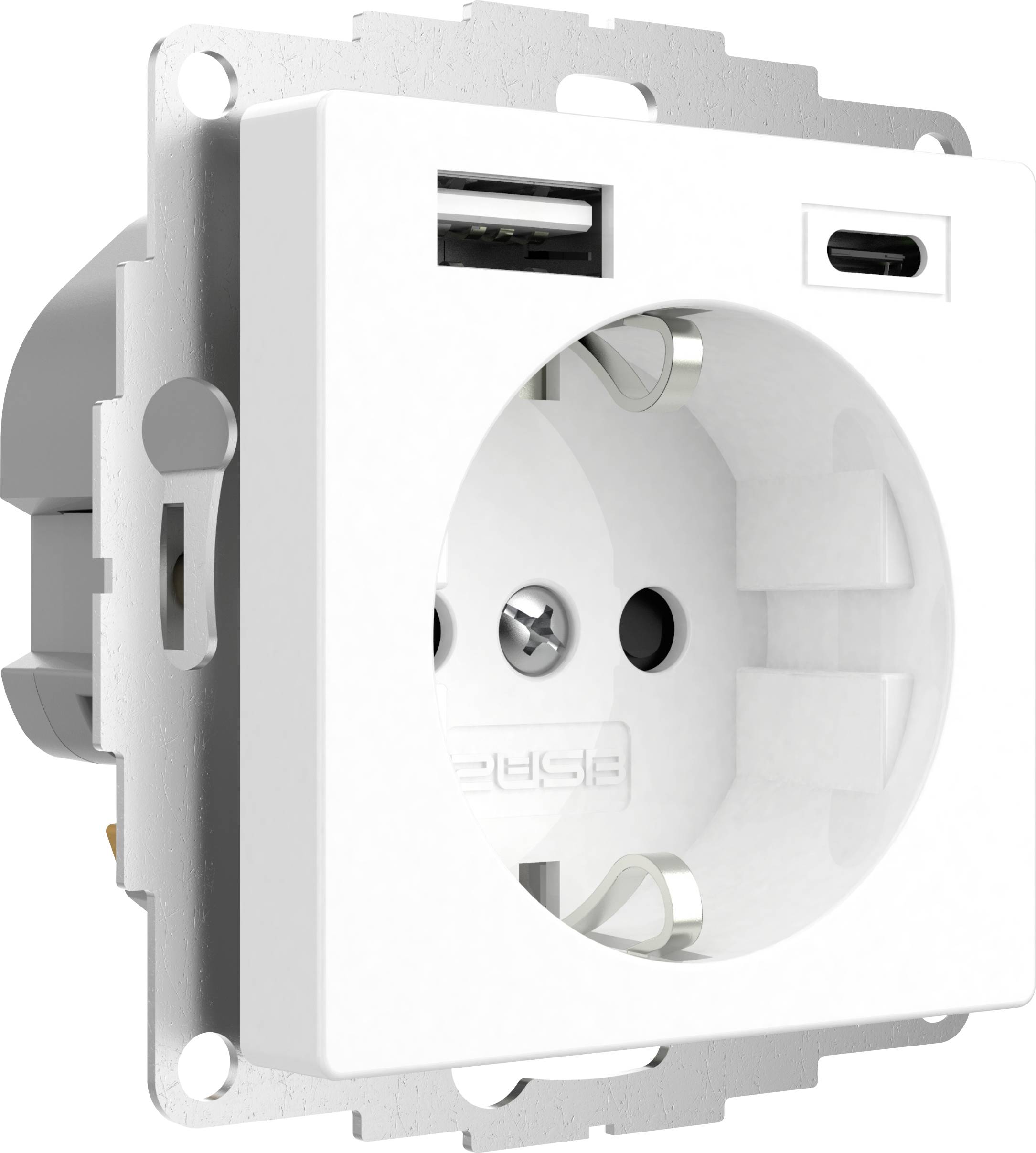

Socket with USB ports built-in, offering dual charging options.

White socket with USB-A and USB-C ports for versatile charging options.

A grey electrical switch with certifications and inscriptions: 'KEMA KEUR', 'made in P.R.C.' Suitable for wall mounting.

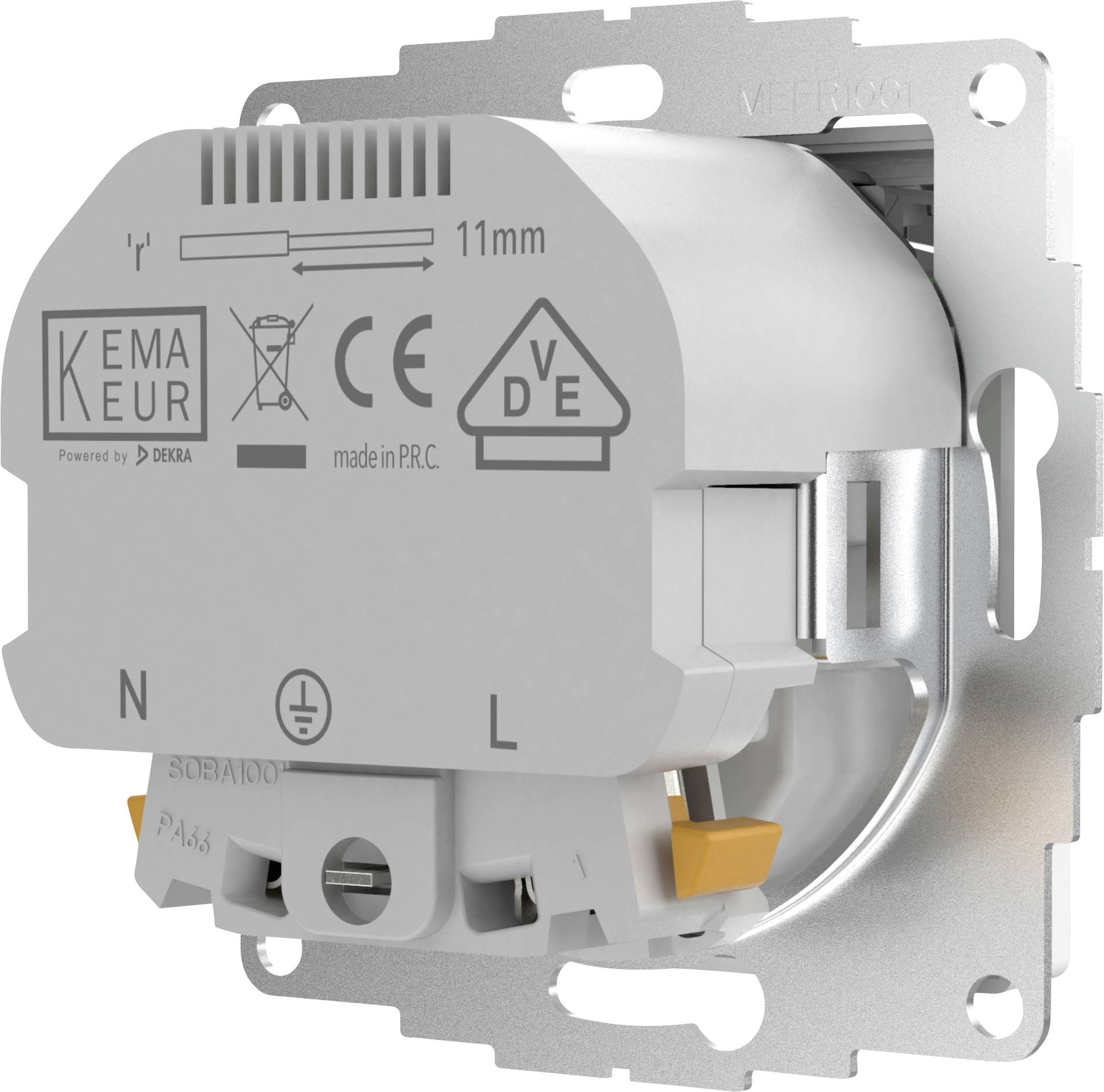

Electrical switch module in a steel frame, showing connection terminals marked with 'N' and 'L'. Contains test mark and inscription 'made in P.R.C.'.

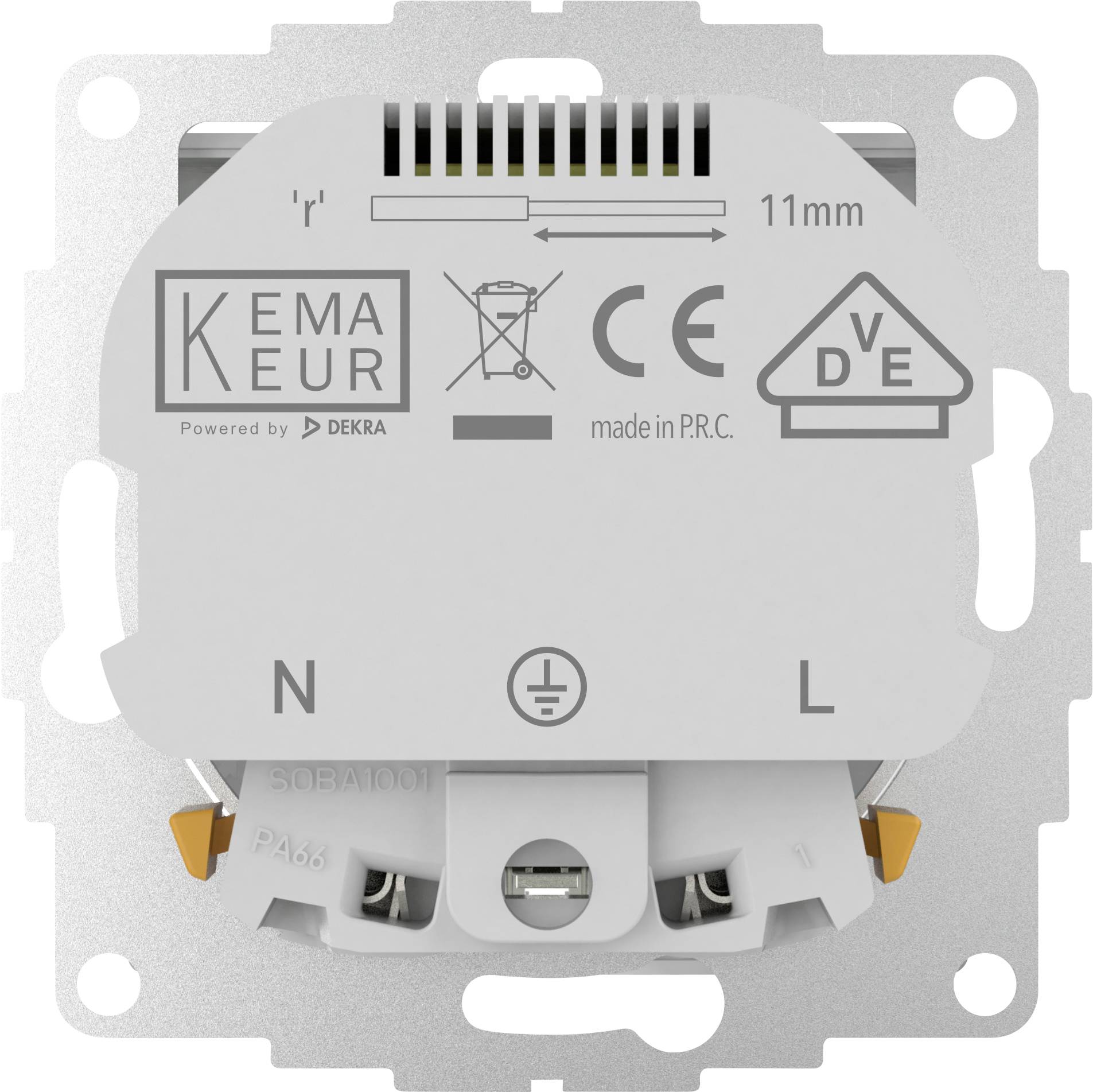

An electronic installation component with CE marking, symbols for N, L and earthing. Marked as 'Made in P.R.C.'.

1/7

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

2USB inCharge 2USB

USB-C and USB charging socket
VDE-certified
Only 32 mm flat
With intelligent charging management (up to 3A, 15W)

Technical specifications

Standby consumption less than 0.70 mW

Product type: PG socket

Light bulb features: incl. USB charging port
Child safety
VDE

Outlets: 1

Nominal voltage: 230 V

Nominal current: 16 A

Mounting type: Flush mount

Mounting depth: 32 mm

Factory colour: Pure white (matt)

: IP20

Dim: (L x W x H) 71 x 71 x 45 mm

Length: 71 mm

Width: 71 mm

Height: 45 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2337154 2USB 2U-449528 PG socket incl. USB charging port, Child safety, VDE IP20 Pure white (matt)

Description

Like all 2USB 2USB products, the inCharge PRO 15W is equipped with the latest version of chargeMAX technology. ChargeMax provides intelligent and efficient charging, the charging protocol of the connected device is detected dynamically. This guarantees efficient and optimized charging, regardless of which brand the device belongs to (Samsung, Apple, Huawei etc.). In addition to the integrated USB charger, the inCharge PER 15W is a completely normal 16A 250VAC socket with increased touch protection. You can thus use powerful devices (alternating current, e.g. washing machine, hair dryer) in parallel with 2 devices to be charged (direct current, e.g. mobile phone, tablet).

The coverage of the inCharge PER 15W is 55x55mm. Thanks to these features, it can be perfectly combined with the various design framework programs of third-party manufacturers. Whether Gira, Jung, Hager-Berker, Merten or Busch-Jäger ... the 2USB 2USB
PRO 15W is compatible with almost all switching programs as a universal solution.

Furthermore, the low installation depth of only 32mm is unique. This socket fits into any European standard flush-mounted socket from 40mm. The installation and installation is just as simple as with a conventional socket without charger and is regulated within minutes.

This text is machine translated.
