Name: ABUS ABWO10000S Window actuator Structure
Brand: ABUS
SKU: 3532278
Availability: InStock

A sleek, silver door handle with a keyhole in the center, designed for modern interiors or secure access points.

A person taking a photo with a smartphone, standing outside, facing a small brown dog sitting near a light-colored wall.

A man enters a bright dining room holding a dog. The room has a table with chairs, large windows, and several plants.

Door lock with keypad labeled 'ABUS', with the text 'Gratis Tastatur im Wert von 139,95 EUR (UVP) Aktion gültig bis 30.04.2025'.

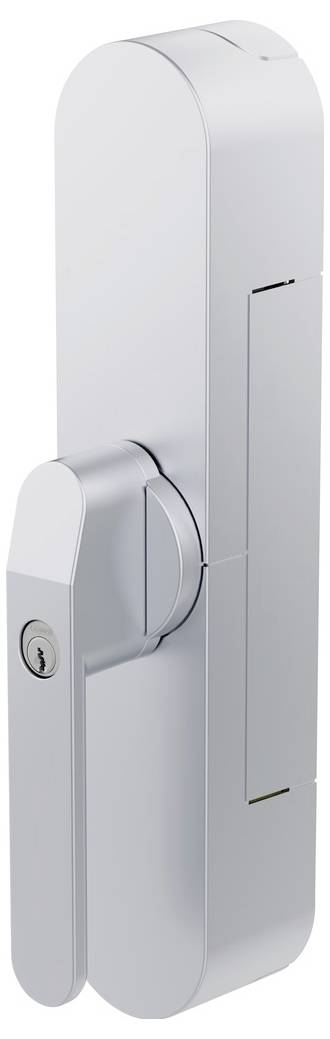

A sleek silver door lock with a lever handle and keyhole, designed for security and modern aesthetics.

A sleek silver door handle with a keyhole, featuring a modern, minimalist design, photographed against a plain white background.

A sleek, modern silver door lock with a keyhole in the center, mounted vertically on a rectangular metallic plate.

Silver door handle with a sleek, modern design, featuring a circular knob and a keyhole on the left side.

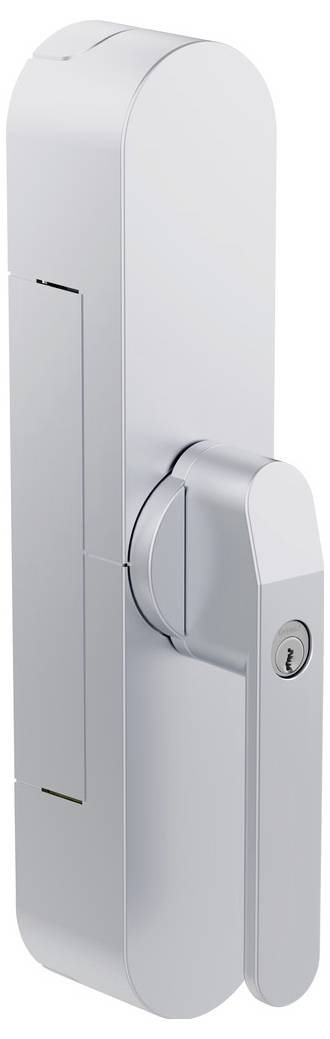

A close-up image of a sleek, modern silver door handle with a built-in lock, showcasing its contemporary design and metallic finish.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 339.00 / piece)

€ 339.00

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

WINTECTO™ One is a smart window door drive silver

Engine opening of window doors, terrace doors, balcony doors
Suitable for inward opening windows and window doors with 7 mm square pin
Easy to use with the free ABUS One APP on your smartphone or smart watch, or with optional accessories by entering a code, finger scan or by pressing a button
Send access permissions and limit time or share permanent access
The mechanical operation of the window handle (tilt, open, close) is also retained with WINTECTO™ One
High security through ABUS SmartX™ technology, AES 128-bit encryption and ABUS key card for authentication of the administrator
Simple and cableless assembly, fast and easy setup with the APP
Power supply by changeable batteries (6 x AA batteries are included)
Early warning in case of burglary attempts thanks to 3D alarm sensors - adjustable alarm volume up to 110 dBA
Easy activation and deactivation of the alarm by manual actuation of the pressure cylinder
100 Nm rotational and tear-off resistance – suitable for anti-burglary elements according to DIN EN 1627

Technical specifications

AES-128-bit encryption
Minimum operating temperature 0 °C.
Maximum operating temperature 40 °C.
Offers 100 Nm worth of rotating and tear-off resistance

Product type: Window actuator

Mounting type: Structure

Connections: Bluetooth® wireless standard

Triggered by: Mobile phone

: Manufacturer-specific

Weight: 1.44 kg

Dim: (L x W x H) 500 cm x 62 mm x 92 mm

Function: Alarm sounder

Weight, information: incl. batteries

Factory colour: Silver

Width: 62 mm

Height: 92 mm

Depth: 300 mm

Cable colour: Multicolour

Length: 500 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3532278 ABUS ABWO10000S Window actuator Structure

User & Safety Instructions

User & Safety Instructions 3532278 ABUS ABWO10000S Window actuator Structure

Description

MORE THAN A PATIO DOOR

Turn your patio door into a full access. Shortly with the dog in the garden and again back or with full hands after shopping on the terrace in the house – this becomes a child's play with the smart window drive WINTECTO One. And with the proven ABUS SmartX™ technology, you're always on the safe side. WINTECTO One can be easily installed on the inside of the door - quickly, without drilling or cable pulling. Thanks to its reliable 3D alarm sensor system, this smart window door motor provides additional security with convenient operation and alerts when the break-in is attempted. Operation is child's play: Open and close your patio door with the handy ABUS One APP on your smartphone or smartwatch, or with your optionally available components. You have an overview of who uses your patio door as the back entrance. To do this, you manage individual access permissions for family and friends – either permanently or temporarily. Use the BRIDGE One available separately to control your WINTECTO One from a distance and integrate it into your Smart home with the advantages of voice-controlled wizards, scenarios and routines. With WINTECTO One installed, you can continue to manually open and lock your door — mechanical operation remains intact. Smart and safe - WINTECTO One.

This text is machine translated.
