Buy Sygonix SY-4777290 RFID keypad Surface-mount 12 V DC, 24 V DC IP65 + touchscreen

Metal numerical lock with buttons 0-9, asterisk and hash. RFID symbol at the bottom indicates contactless opening.

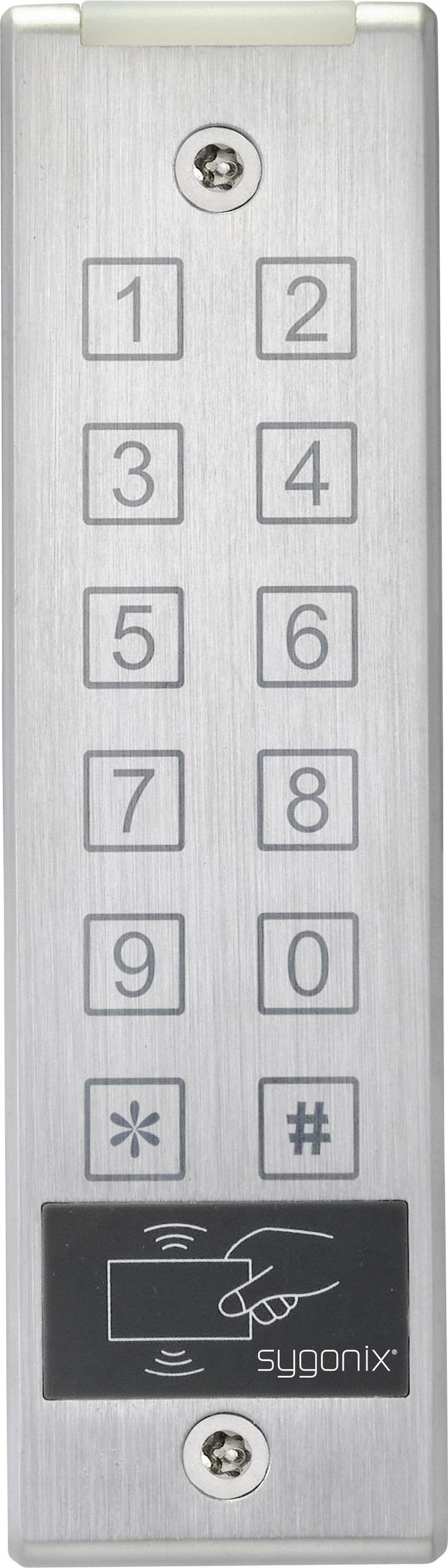

Metallic keypad with digits 0 to 9, star and hash keys. Underneath an RFID symbol with the word 'sygonix'.

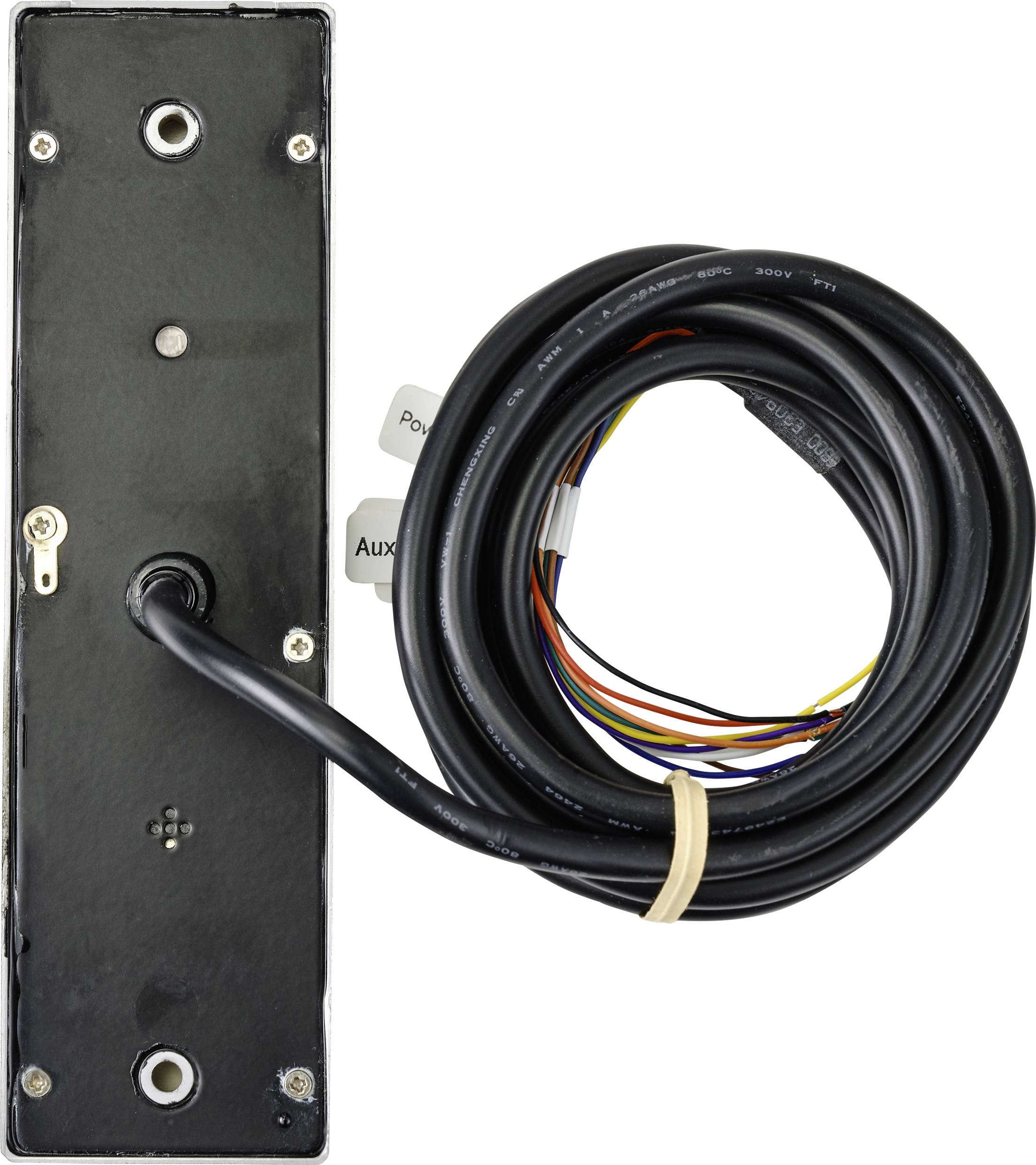

Black rectangular device with multiple coloured cables bundled together. Cable ends are labelled with terms like 'Power' and 'Aux'.

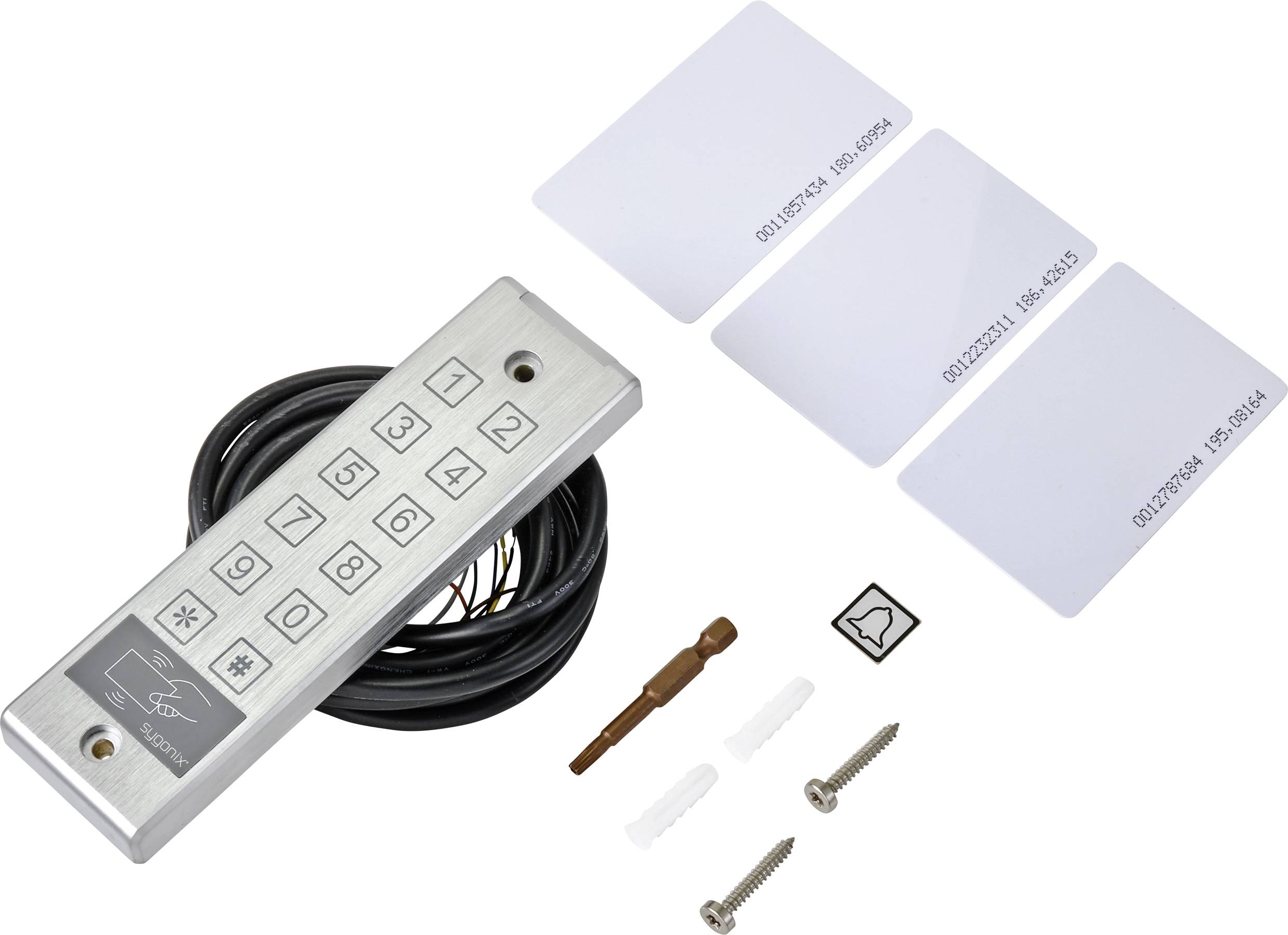

Electronic door lock set with keypad, cable, card reader and three RFID cards, mounting screws and tools.

'A hand presses a keypad, next to an empty, modern conference room with an oval table and white chairs, ready for a meeting.'

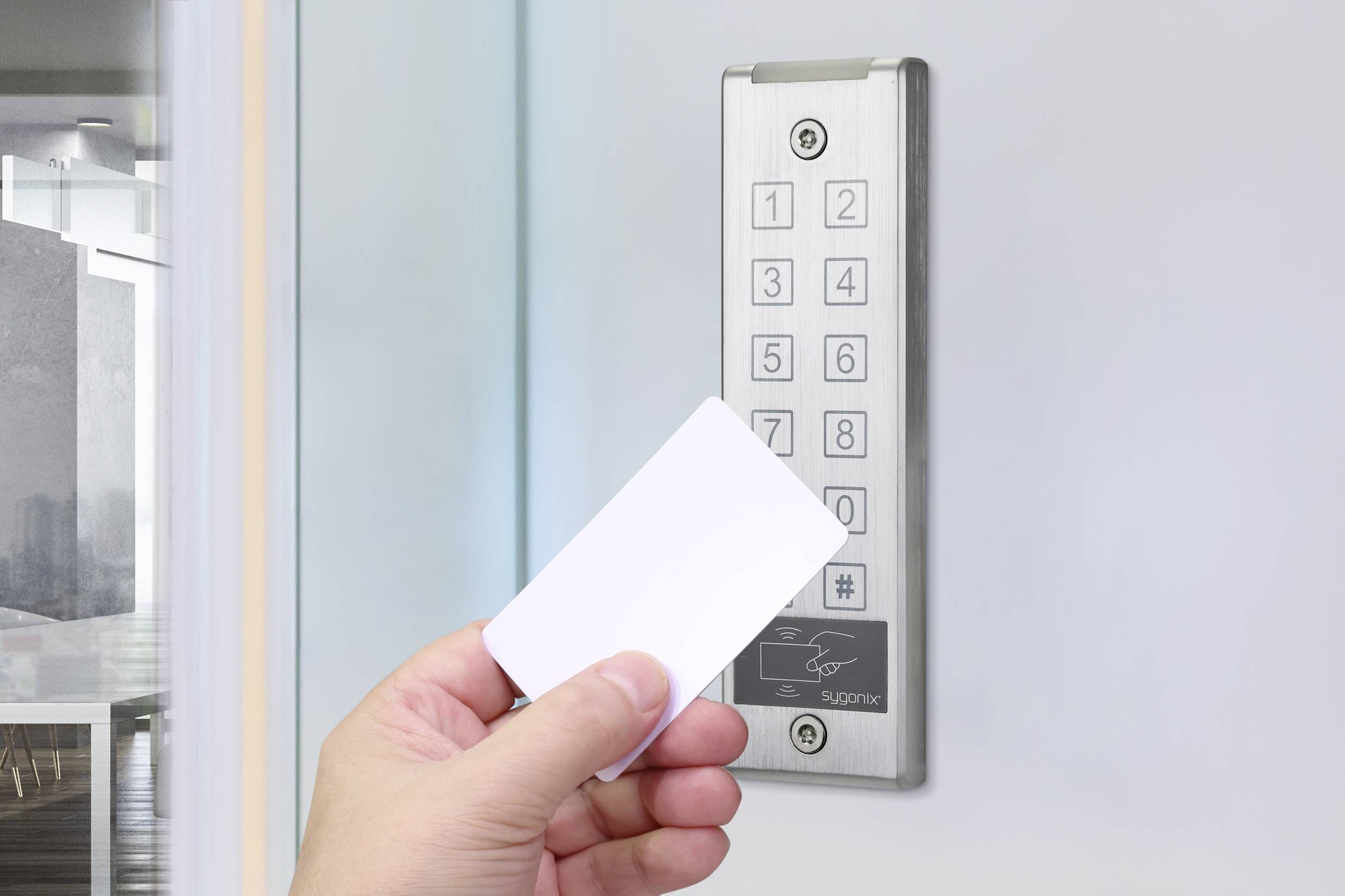

A person holds an access card in front of a numeric lock on a glass door, symbolising entry to a secure area.

1/6

Our service for you

Fast track dispatch on Tue, 15 Sep

115 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

Report legal concerns

Highlights & Details

Touch S RFID/code lock

Anti-vandal aluminium housing
PIN & card access
IP65

Technical specifications

Product type: RFID keypad

Operating voltage: 12 V DC
24 V DC

Mounting type: Surface-mount

Triggered by: Numerical code
Transponder

No. of codes/combinations: 600

: IP65

Weight: 230 g

Dim: (W x H x D) 44 x 155 x 12 mm

Features: + touchscreen

Factory colour: Silver

Width: 44 mm

Height: 155 mm

Depth: 12 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2388645 Sygonix SY-4777290 RFID keypad Surface-mount 12 V DC, 24 V DC IP65 + touchscreen

Warranty Terms

Warranty Terms 2388645 Sygonix SY-4777290 RFID keypad Surface-mount 12 V DC, 24 V DC IP65 + touchscreen

Description

Keys are a thing of the past!
With the Sygonix RFID/code lock with touch-keypad you can secure your doors. The code lock is designed to secure doors against unauthorized entry (e.g. in an office) or to activate/deactivate an alarm system. A maximum of 600 users with different transponders/user codes can be saved.
It is designed for wall mounting in indoor and outdoor areas (IP65). And operation is possible via a voltage of 12 - 24 V/DC. The especially flat design makes it possible to mount it in many difficult installation locations because only one hole is required for the connection cable, but no casing section or flush-mounted housing.
