Buy Sygonix SY-7372602 Fingerprint/RFID access system Surface-mount 12 V DC, 18 V DC IP66 + backlit keypad, + touchscreen

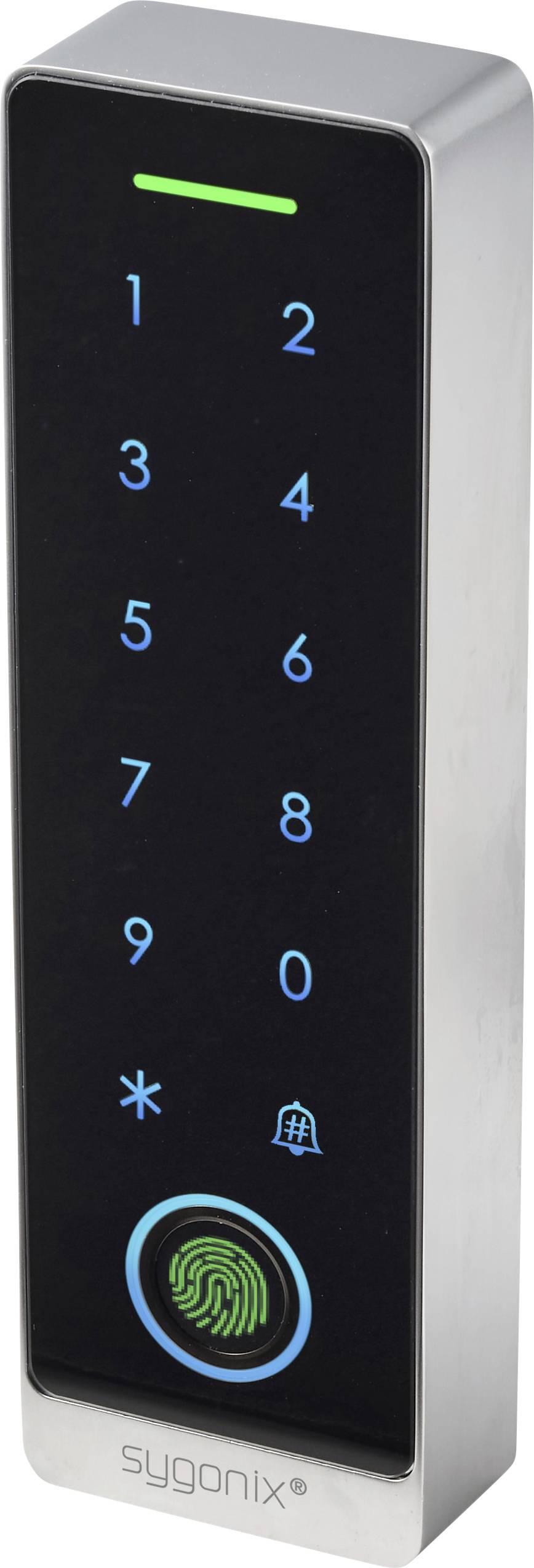

Sygonix access control keypad with numbered touch buttons, fingerprint scanner, and indicator light for secure entry access.

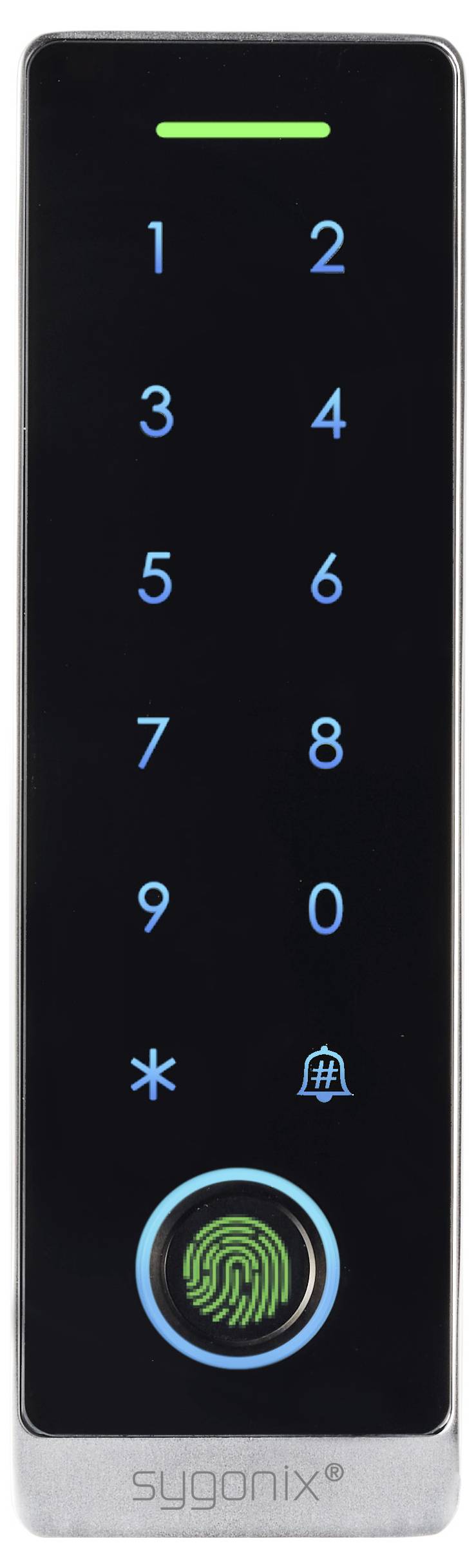

A smartphone-style access keypad with numbers 0–9, star and bell icons, and a green fingerprint scanner button at the bottom.

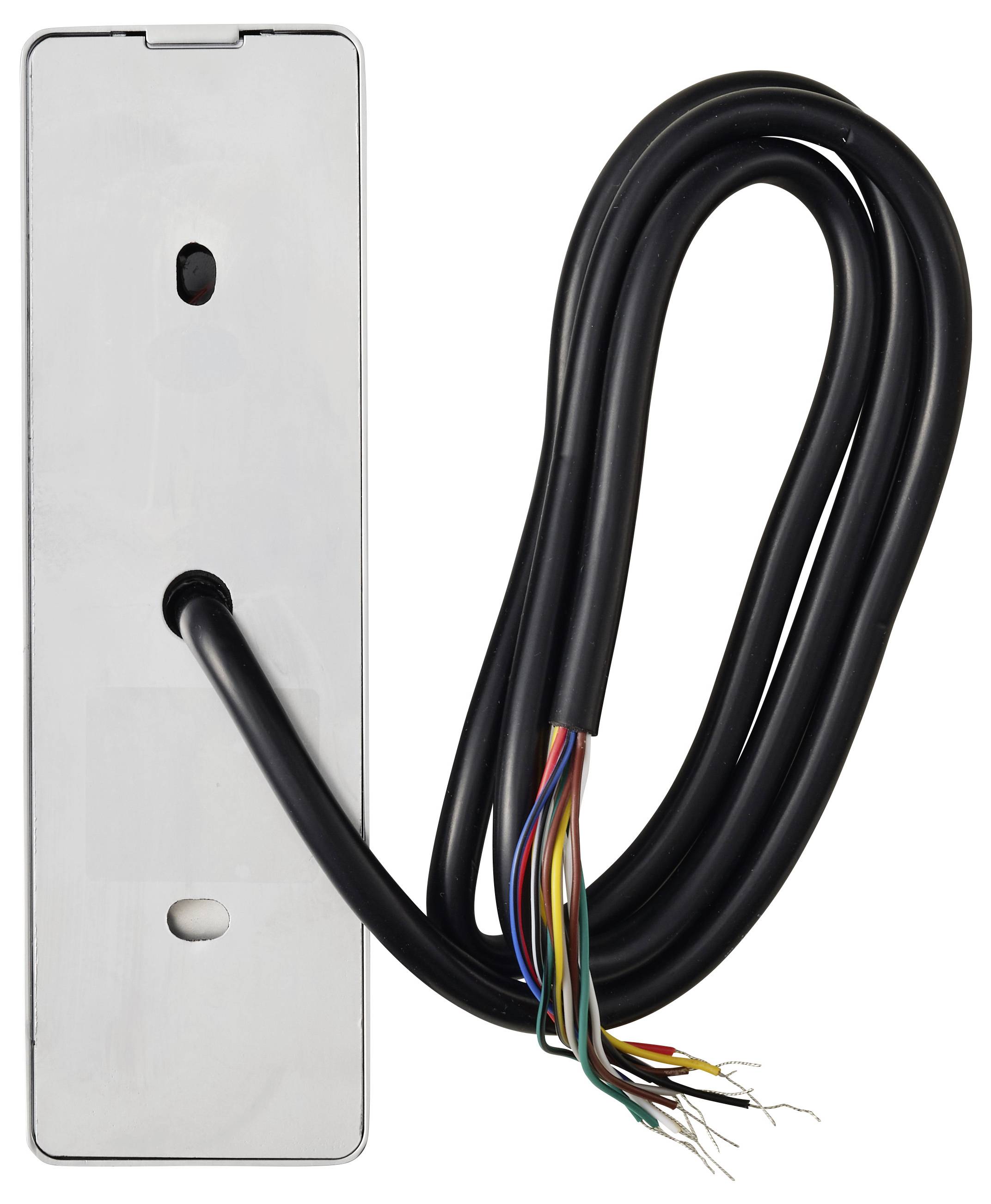

A black multi-wire cable attached to a rectangular metal plate, with exposed colored wires at the end on a white background.

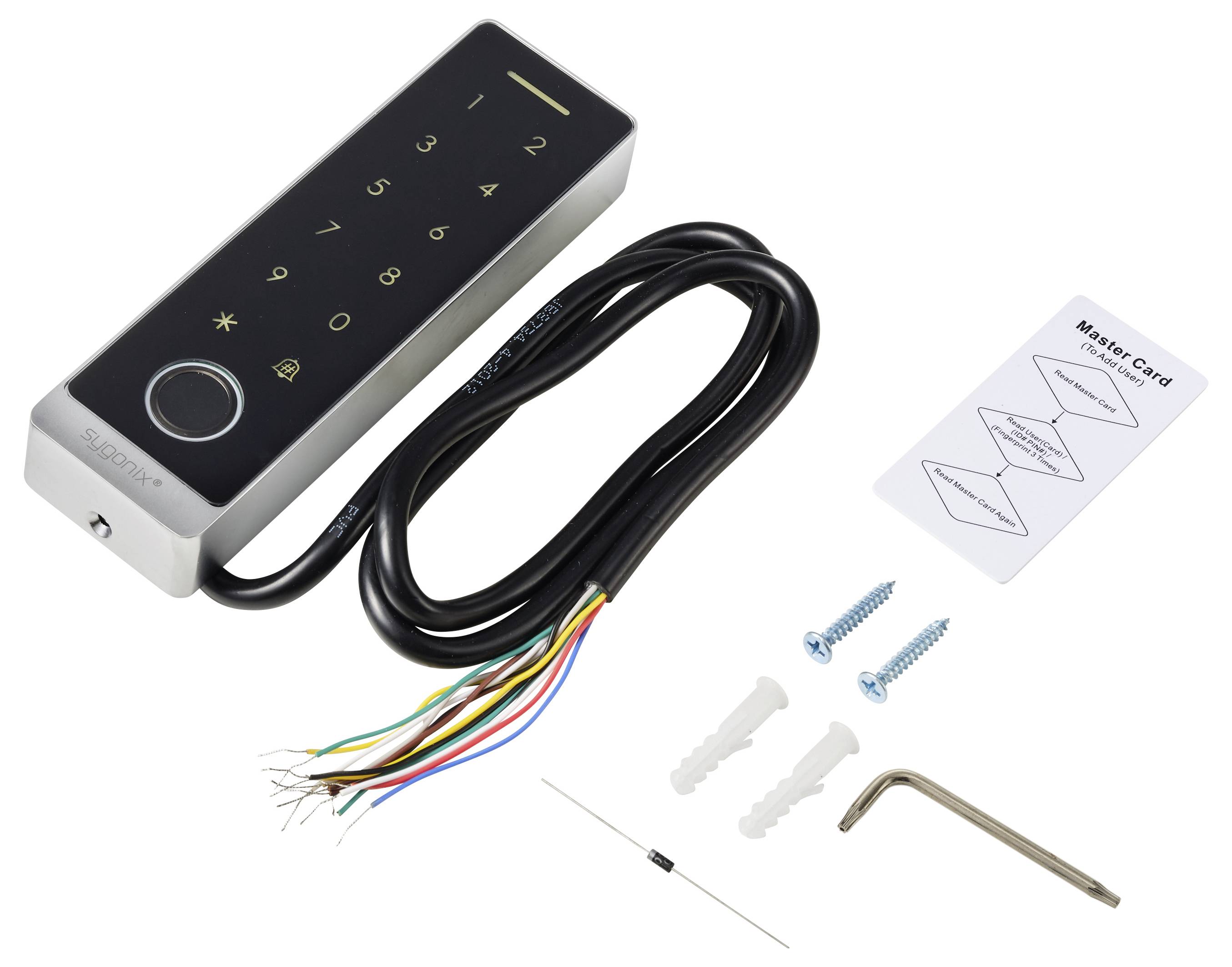

Electronic door lock keypad with cable, master card, screws, wall plugs, and hex key included for installation.

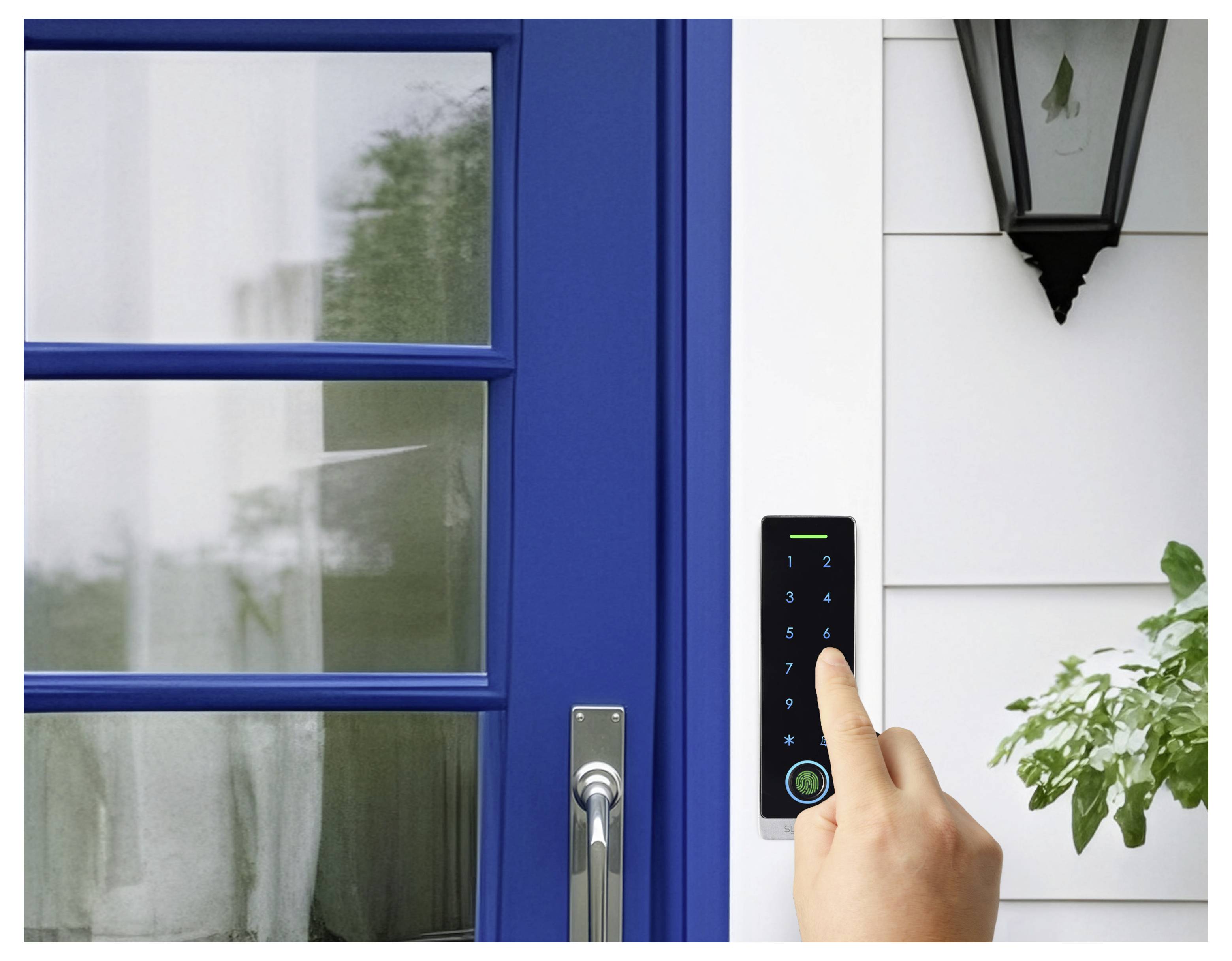

Hand pressing a keypad on a blue front door, suggesting a smart lock or door access system.

Hand holding a white access card near a keypad on a blue front door, suggesting electronic home entry.

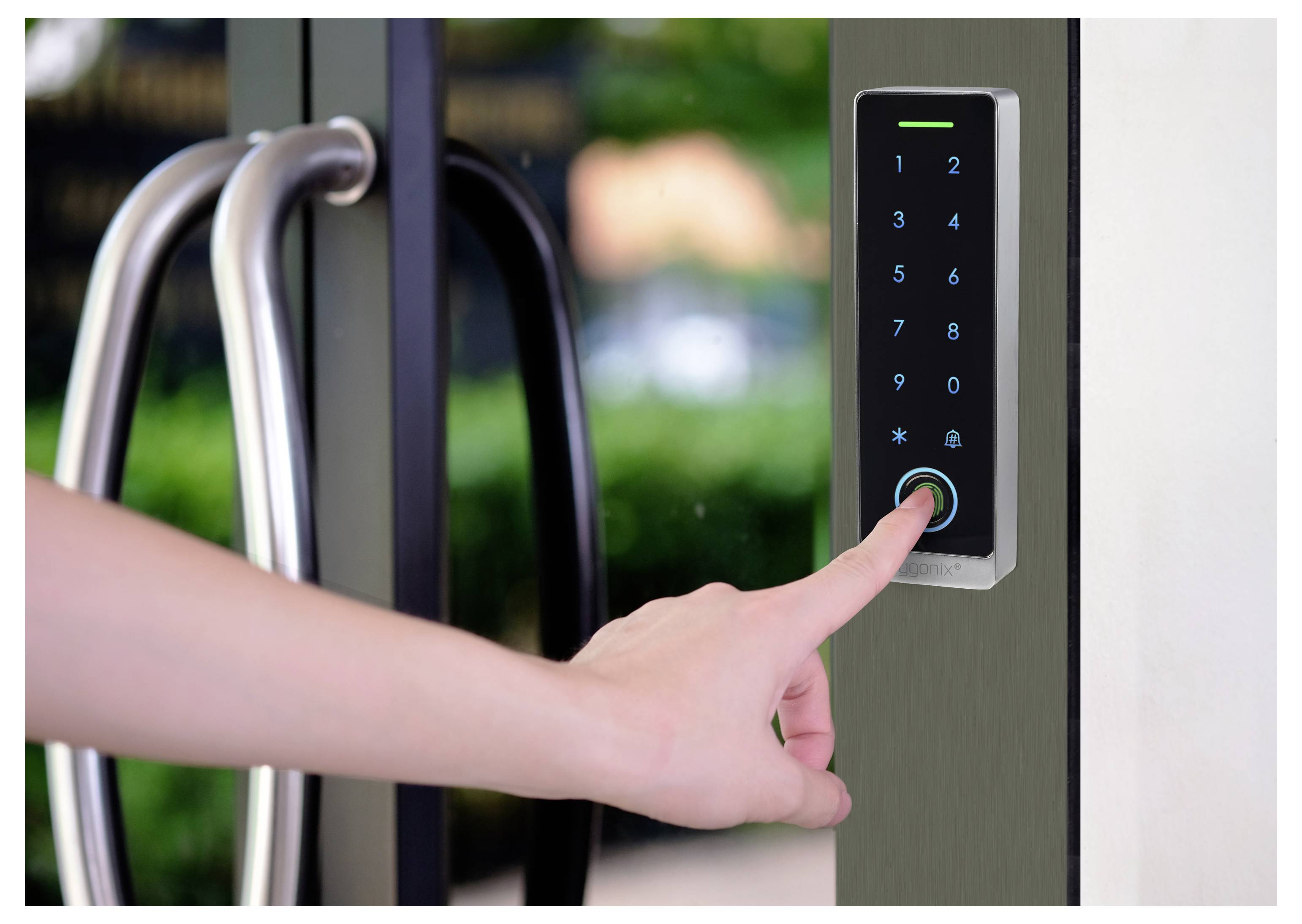

A person presses a lit keypad on a glass door access panel to unlock an entrance.

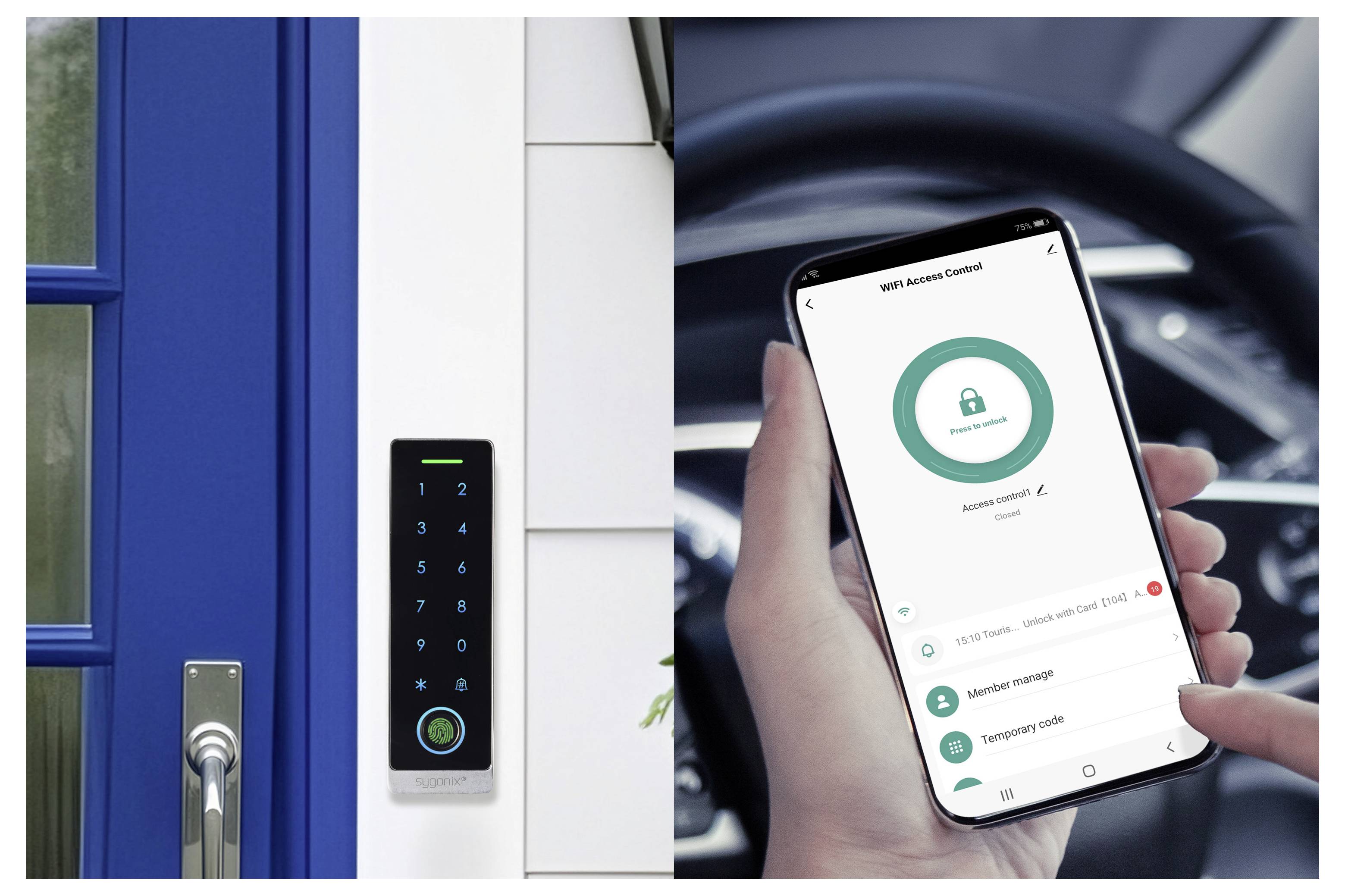

Smart door lock beside a blue front door and a phone showing a remote lock control app with a central lock status button.

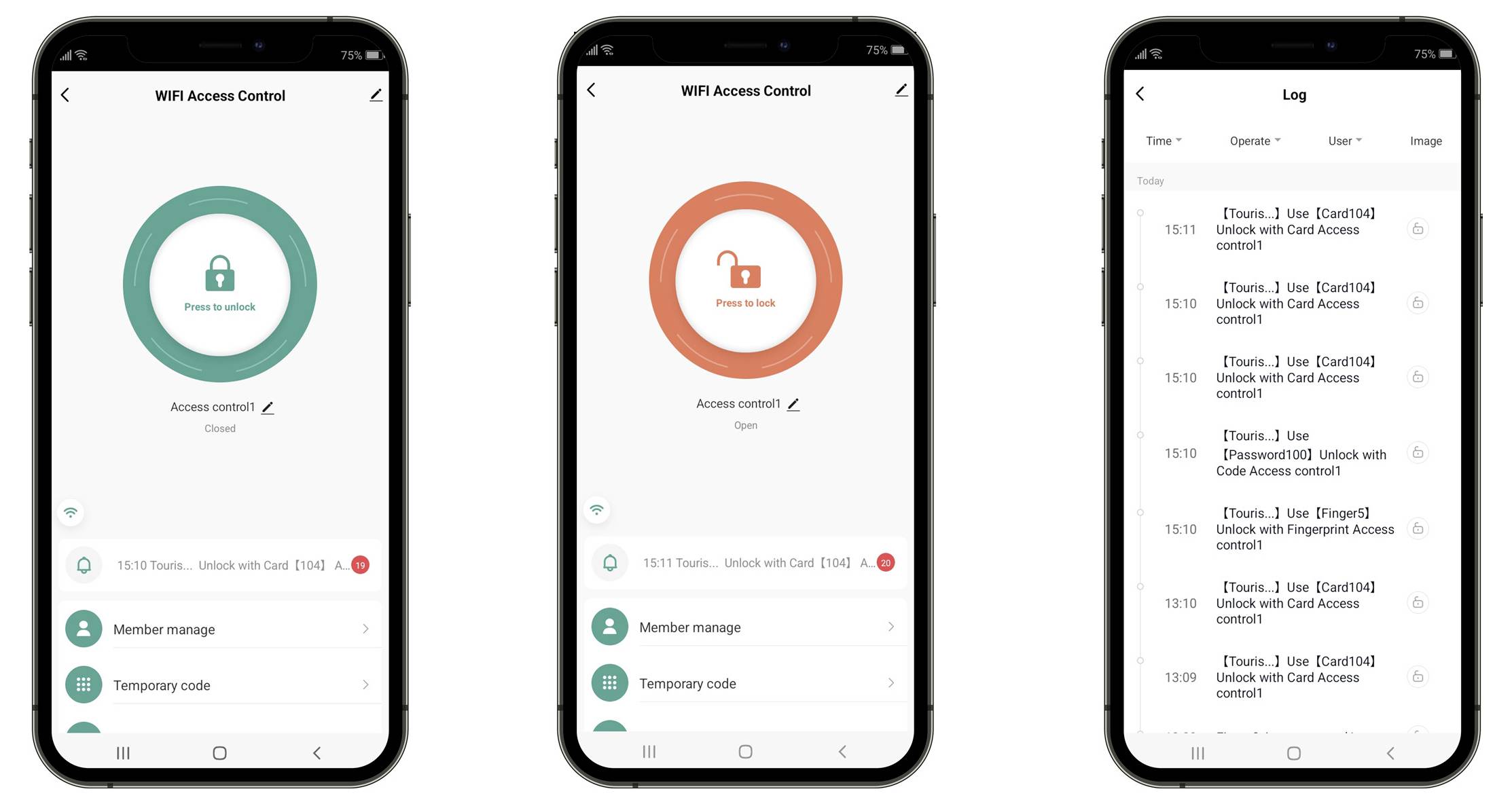

Three smartphone app screens showing WiFi Access Control: one unlocked with a green lock, one locked with a red lock, and a log list of access events.

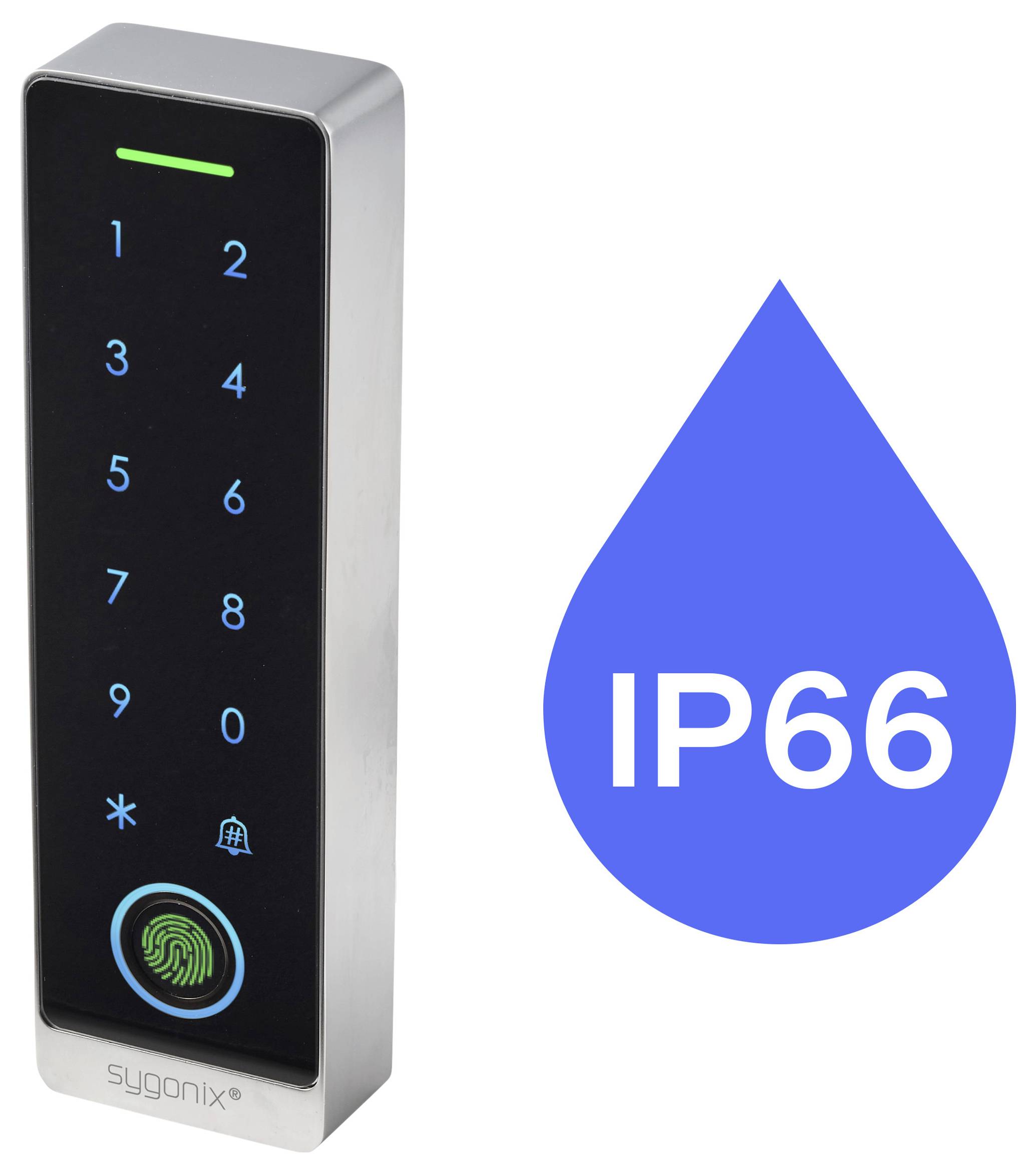

Touchscreen keypad access control device with fingerprint scanner, alongside blue water droplet icon labeled 'IP66' indicating dust- and water-resistance.<br>

1/10

Our service for you

Fast track dispatch on Tue, 15 Sep

161 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 39.49 / piece)

€ 39.49

plus VAT.

Report legal concerns

Highlights & Details

Wi-Fi RFID/ fingerprint code lock

Backlit touch keypad
Multiple access modes: PIN, card, and fingerprint
Remote door unlock via mobile app
Mobile app features: track unlock history, create temporary passwords, and manage users

Technical specifications

Product type: Fingerprint/RFID access system

Operating voltage: 12 V DC
18 V DC

Mounting type: Surface-mount

Triggered by: Fingerprint
Numerical code
Transponder
Mobile phone

No. of codes/combinations: 10500

LEDs: 1 pc(s)

: IP66

: Alexa
Tuya

Weight: 330 g

Dim: (W x H x D) 44 x 148 x 22 mm

Features: + backlit keypad
+ touchscreen

Factory colour: Silver
Black

Width: 44 mm

Height: 148 mm

Depth: 22 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3686301 Sygonix SY-7372602 Fingerprint/RFID access system Surface-mount 12 V DC, 18 V DC IP66 + backlit keypad, + touchscreen

Warranty Terms

Warranty Terms 3686301 Sygonix SY-7372602 Fingerprint/RFID access system Surface-mount 12 V DC, 18 V DC IP66 + backlit keypad, + touchscreen

Description

Features

Durable anti-vandal metal case
Supports up to 10,500 users (9,988 PIN/card users, 500 fingerprint users, 2 panic users, and 10 visitors)
One programmable relay output
Wiegand input and output for controller or reader use
Tri-color LED status indicator
Pulse or toggle operational mode
Two-door interlock function
Built-in Light Dependent Resistor (LDR) for anti-tamper protection
Supports 125 kHz EM cards
Supports Amazon Alexa and Google Assistant (voice control only)
IP66 rated for outdoor use
