Buy Sygonix SY-6421352 RFID keypad Surface-mount 12 V DC/AC, 24 V DC/AC IP66 + backlit keypad

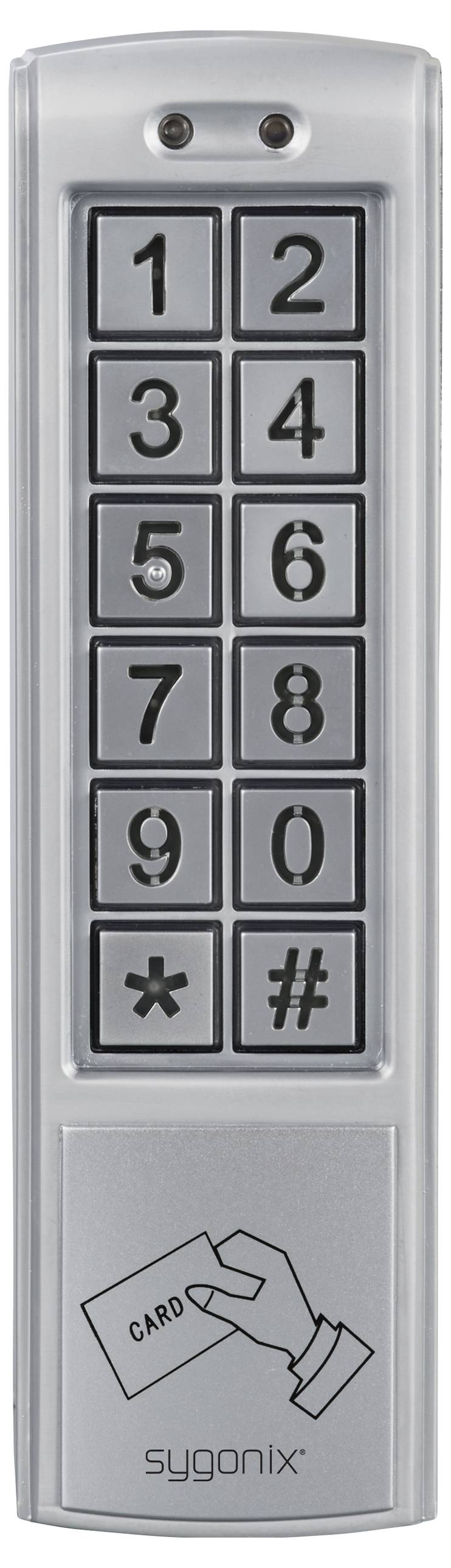

A silver combination lock with buttons from 0 to 9, star, hash, and card reader symbol at the bottom. Below it is written 'sygonix'.

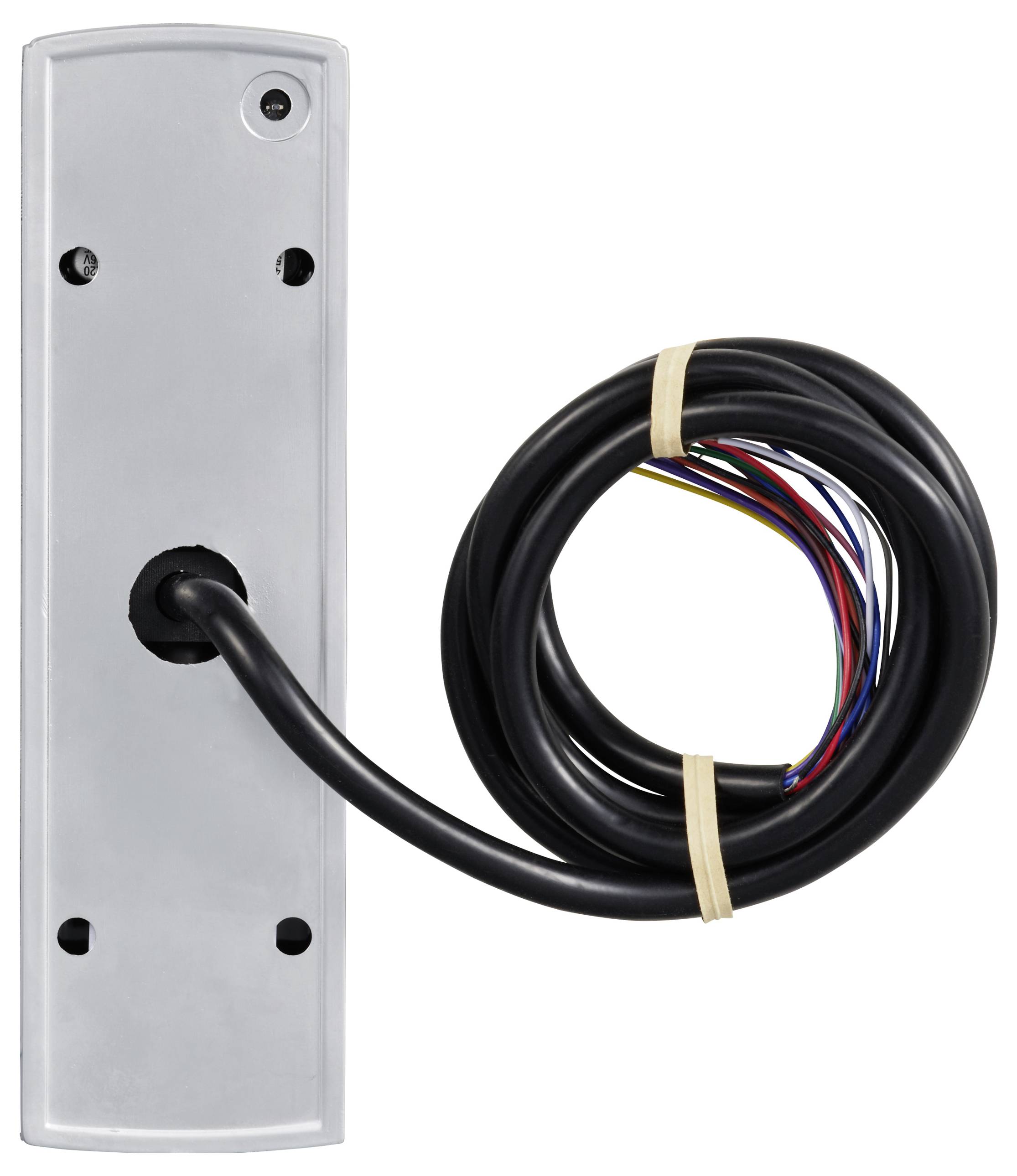

Metal plate with a protruding black cable bundle containing coloured wires.

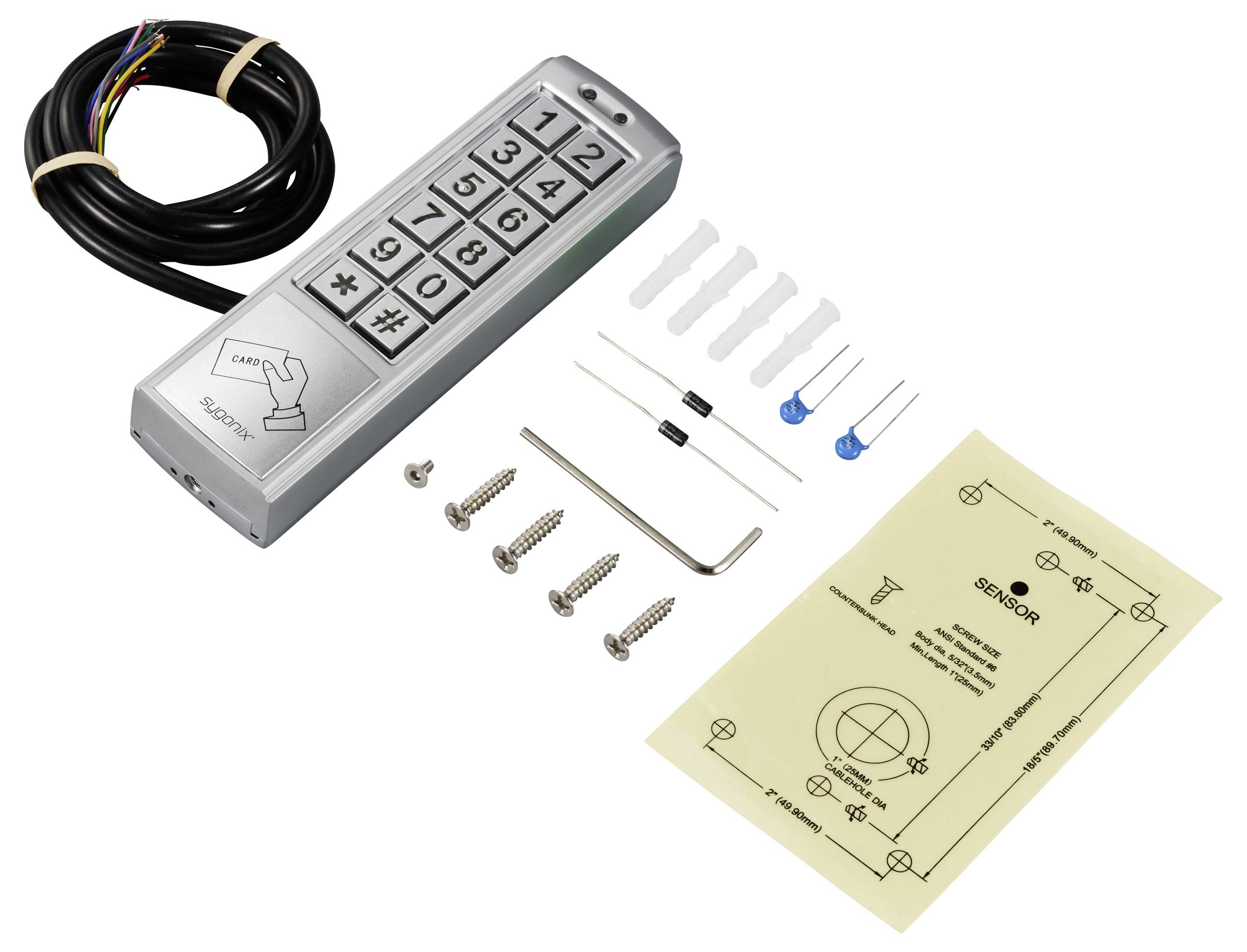

An installation kit with a numeric keypad, screws, sensors, and a connection cable. Instruction sheet included.

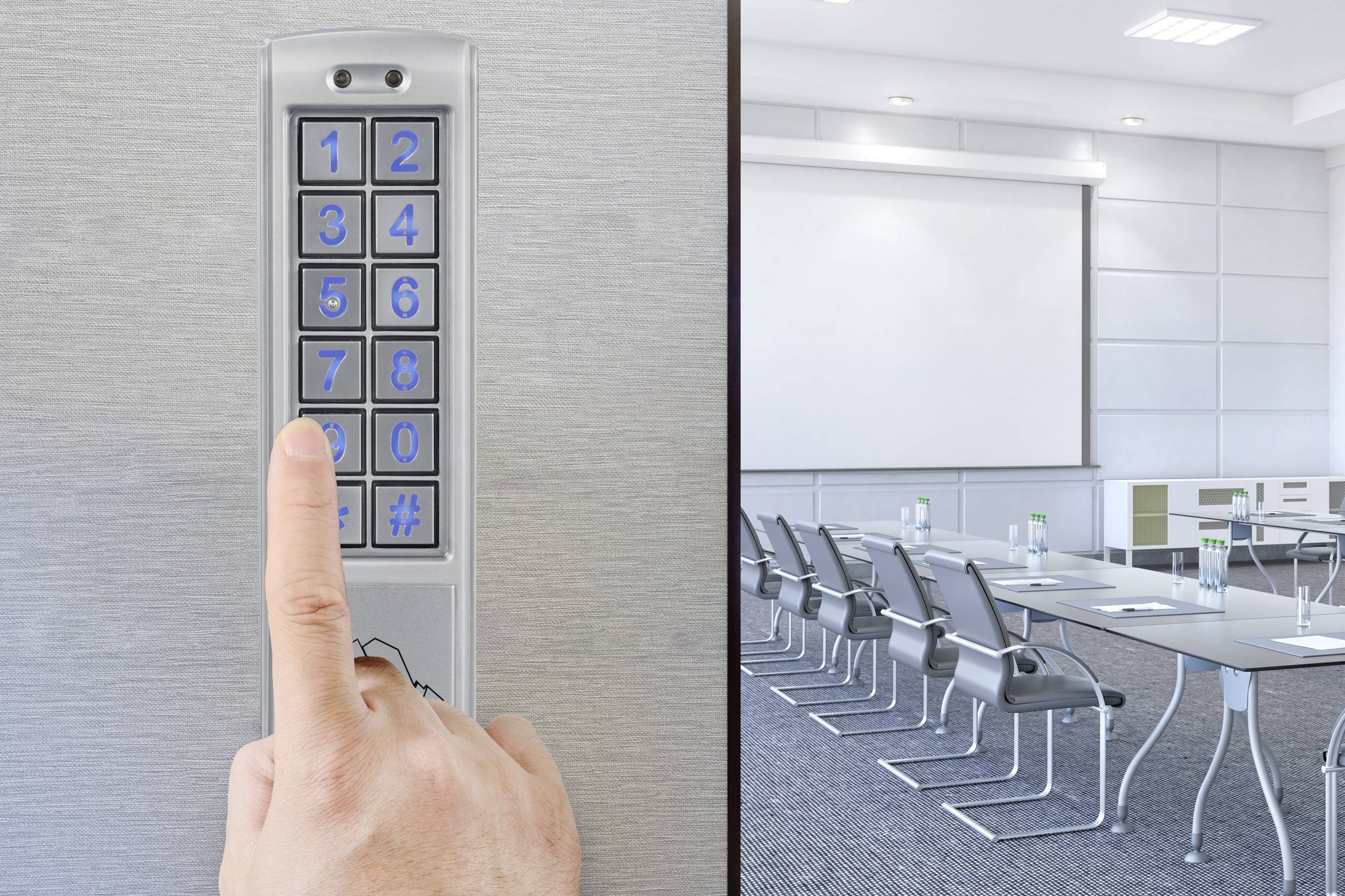

A hand presses a key on a number pad mounted beside an empty conference room.

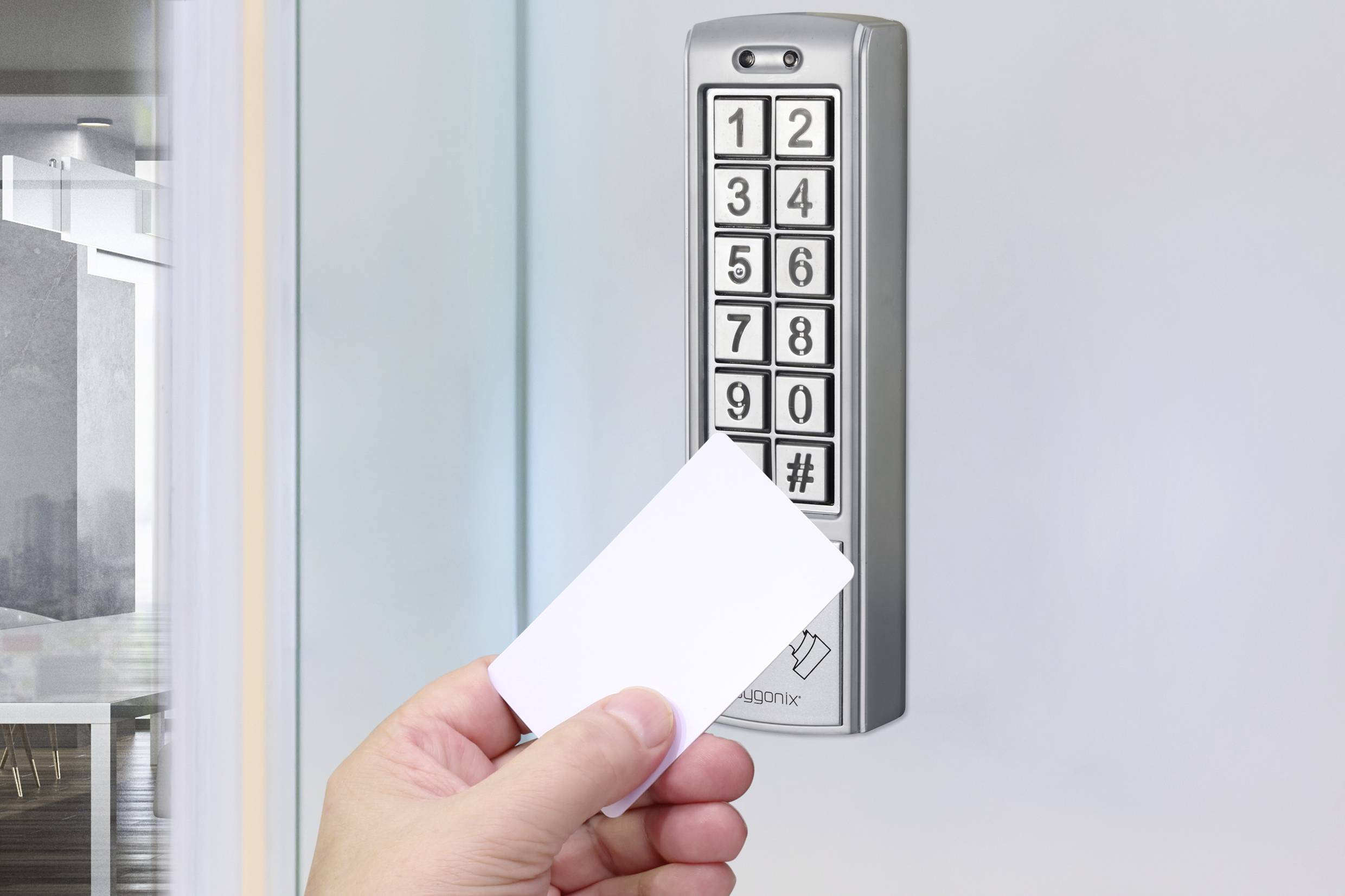

A hand is holding a white access card in front of an electronic door lock with a keypad and numerical keys from 0 to 9.

1/6

Our service for you

Fast track dispatch on Tue, 15 Sep

290 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Report legal concerns

Highlights & Details

RFID/Code lock (slim) IP66

PIN / Card / Card+PIN access
User capacity: 1010 users
2 relay output

Technical specifications

Product type: RFID keypad

Operating voltage: 12 V DC/AC
24 V DC/AC

Mounting type: Surface-mount

Triggered by: Numerical code
Transponder

No. of codes/combinations: 1010

LEDs: 2 pc(s)

: IP66

Weight: 400 g

Dim: (W x H x D) 44 x 152 x 24 mm

Features: + backlit keypad

Factory colour: Silver

Width: 44 mm

Height: 152 mm

Depth: 24 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3210676 Sygonix SY-6421352 RFID keypad Surface-mount 12 V DC/AC, 24 V DC/AC IP66 + backlit keypad

Warranty Terms

Warranty Terms 3210676 Sygonix SY-6421352 RFID keypad Surface-mount 12 V DC/AC, 24 V DC/AC IP66 + backlit keypad

Description

Secure access control
Whether in corporate buildings, leisure facilities such as fitness centers or in the Smart home: The RFID/code lock of Sygonix enables the issuance of PINs and cards to up to 1010 authorized access. The code lock operates on the frequency EM125 kHz and is equipped with two relay outputs. An manipulation protection is provided for comprehensive security.
Robust and easy to use
The casing made of zinc die-cast is weather-proof according to IP66 and fits in restricted areas thanks to its slim design. The key illumination provides a secure input in poor visibility.
Complete delivery package
Everything is included in the delivery, WAS is necessary for mounting and start-up: In addition to the access control these are various screws, plugs and tools, as well as two diodes and piezo resistors. A user manual is also included.

This text is machine translated.
