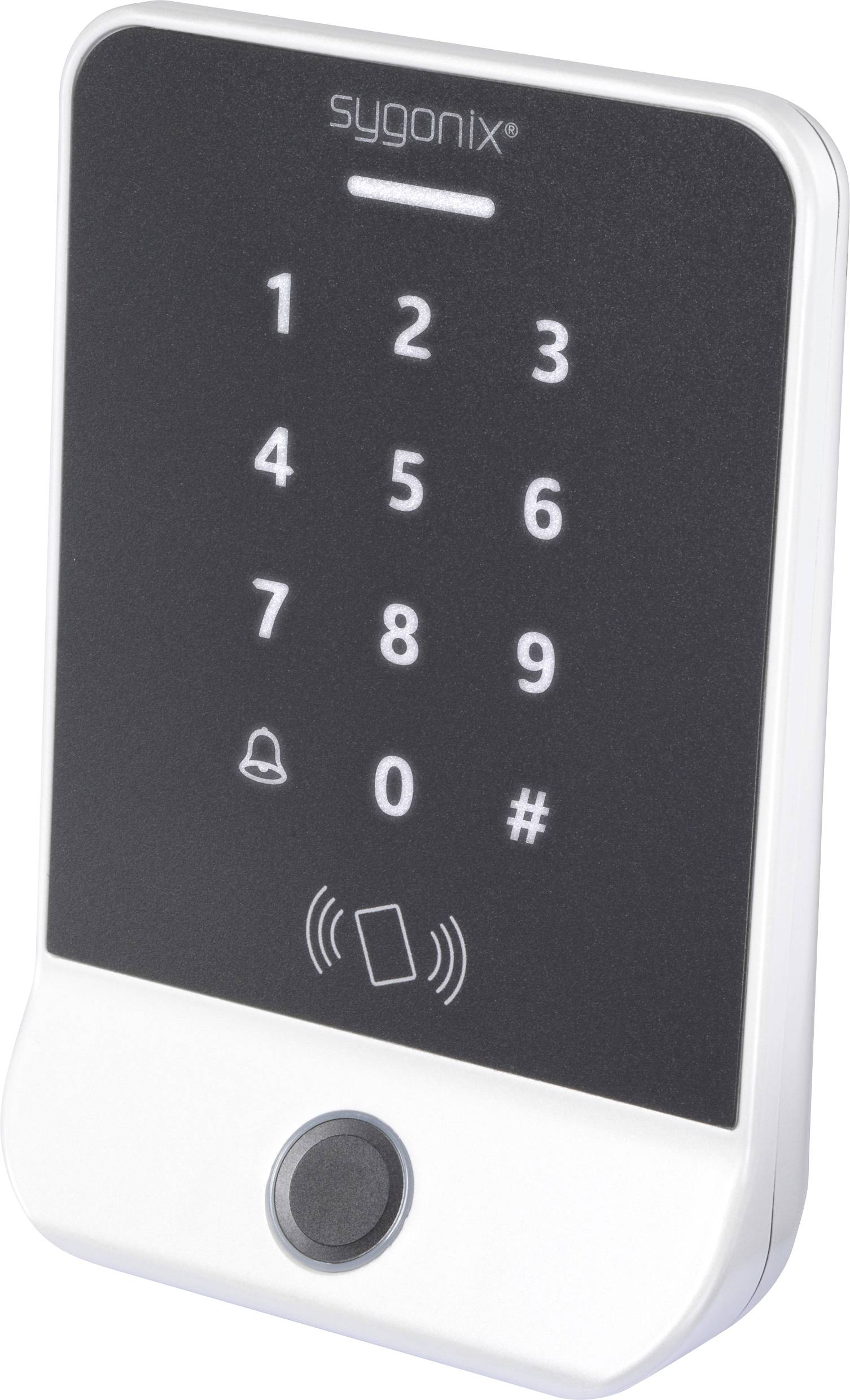

'Numeric keypad with touch buttons and RFID scanner on a security device, labeled sygonix, featuring a bell and hash symbol.'

'Numeric keypad with touch buttons and RFID scanner on a security device, labeled sygonix, featuring a bell and hash symbol.'

Keypad lock with numbers 0-9, bell and hash symbols, card icon indicating NFC or RFID capability, and a fingerprint scanner below.

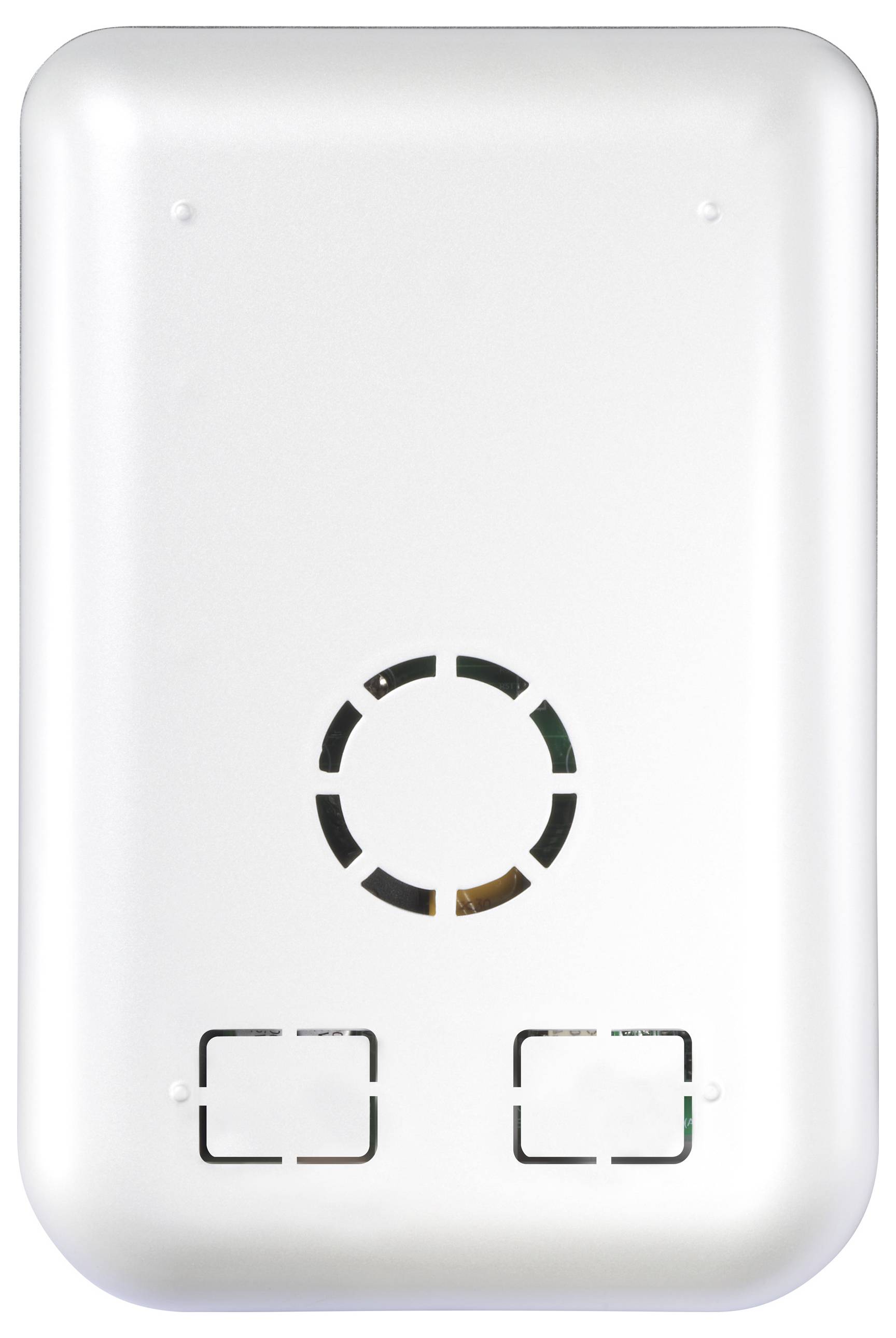

A rectangular white device with vent-like openings and a circular pattern in the center, potentially for ventilation or sound emission.

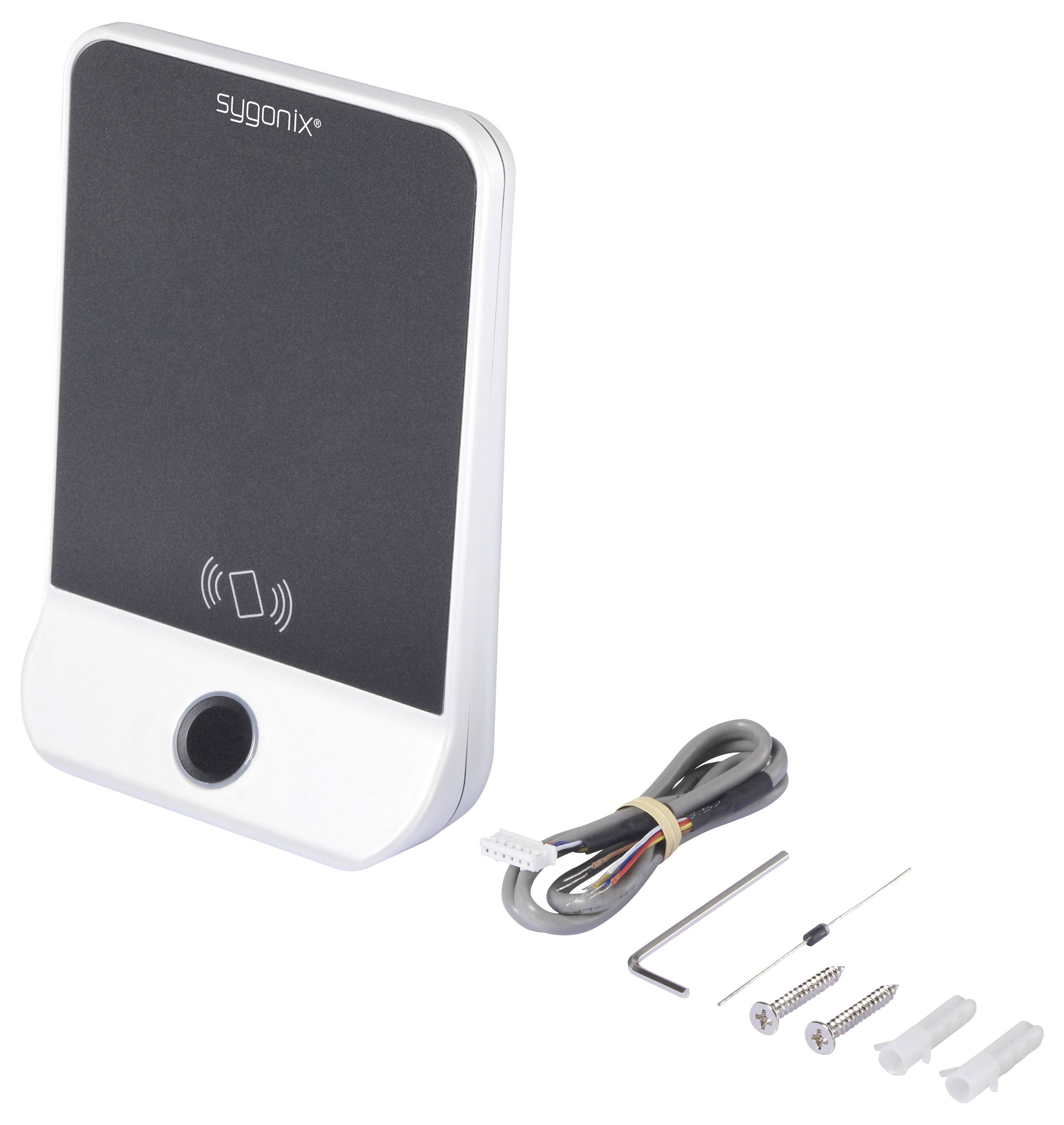

A black and white smart door access panel, showing a card icon, with installation accessories including screws, a cable, and a hex key.

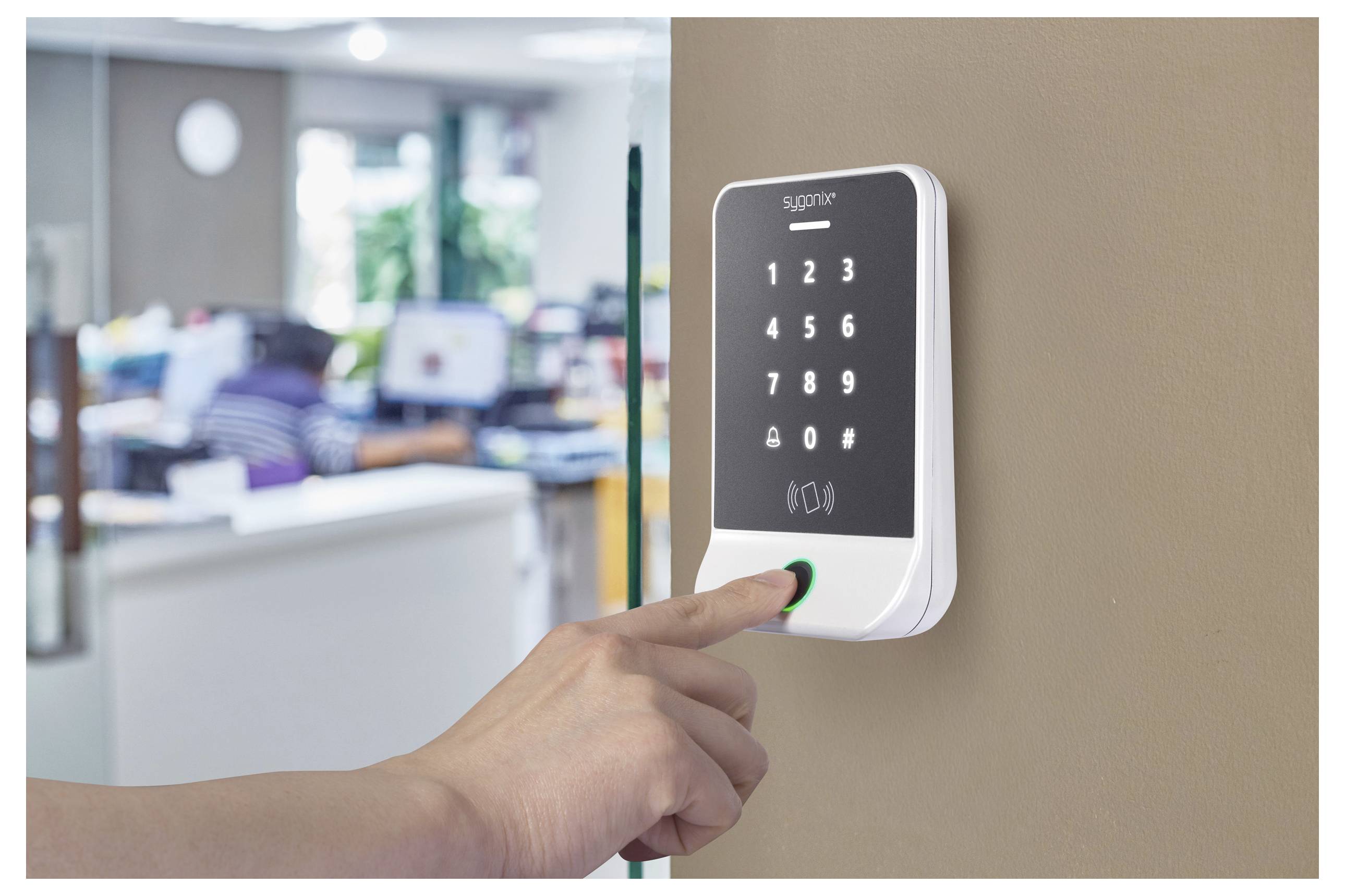

A person's hand pressing a button on a wall-mounted security keypad with numbers and card scanning area, in an office setting.

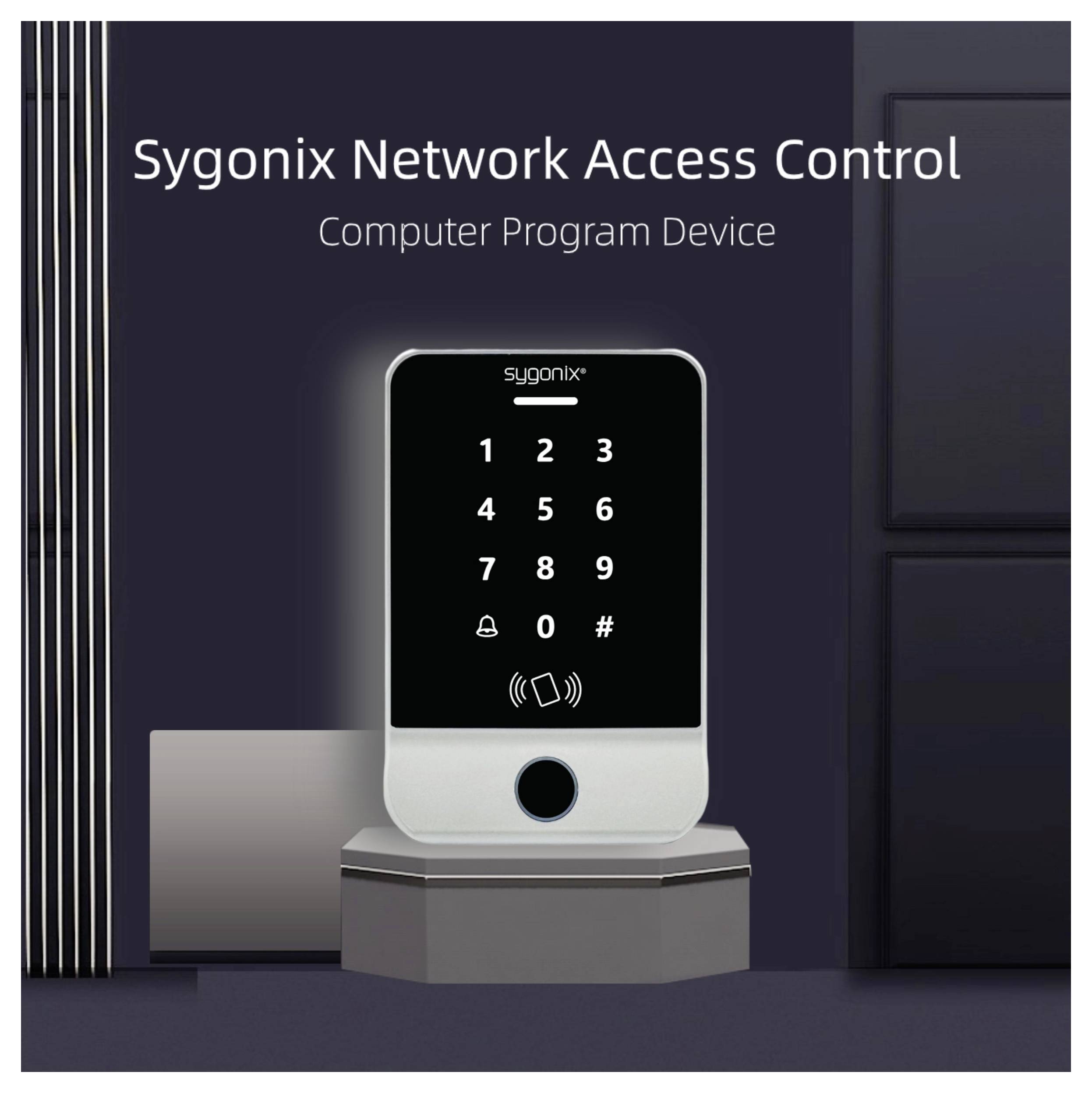

'Sygonix Network Access Control. Computer Program Device.' Image of a digital keypad access control system with illuminated numbers.

'Safety Features: IP Camera Access Control, Fingerprint (100 Users), 13.56MHz Reader, LAN Network, Keypad Data, Easy Use, Alarm Signal.'

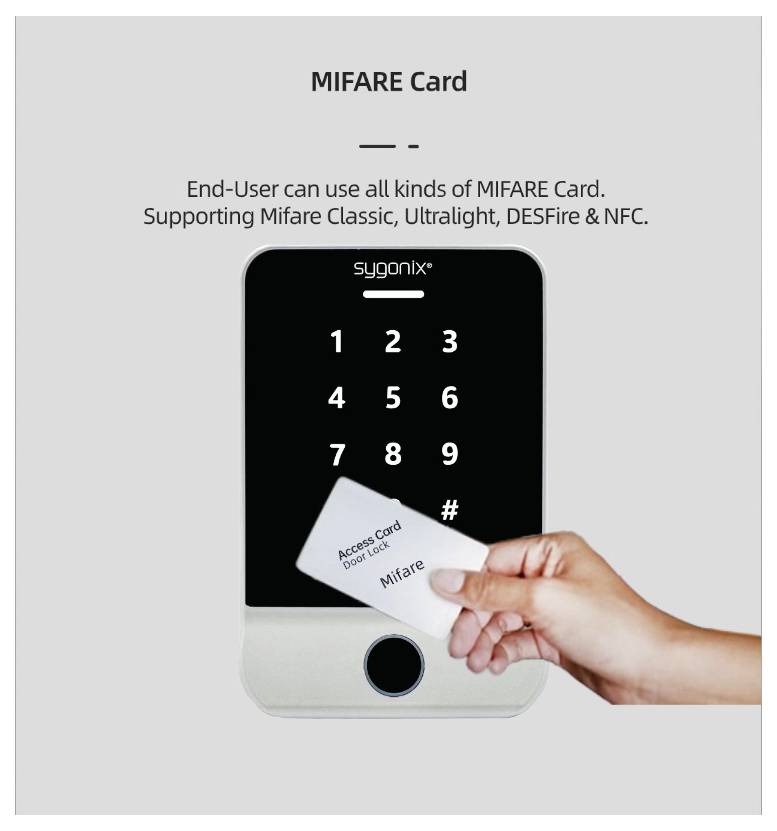

A hand holds a MIFARE access card near a keypad with numbers 1 to 9 and a # symbol. Text reads 'End-User can use all kinds of MIFARE Card'.

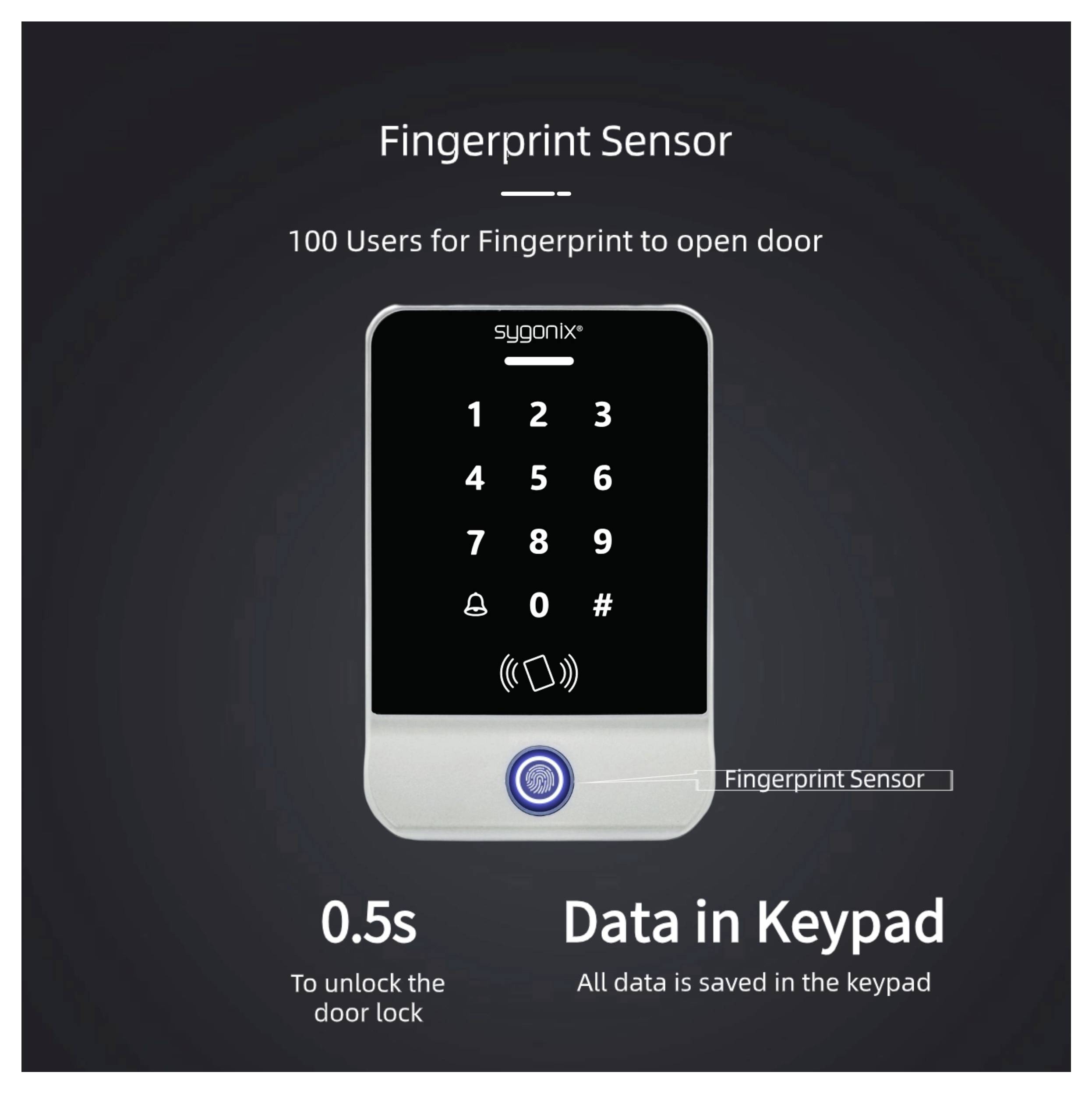

'Fingerprint Sensor' device with numeric keypad allows access for up to 100 users. Unlocks door in 0.5 seconds with stored data.

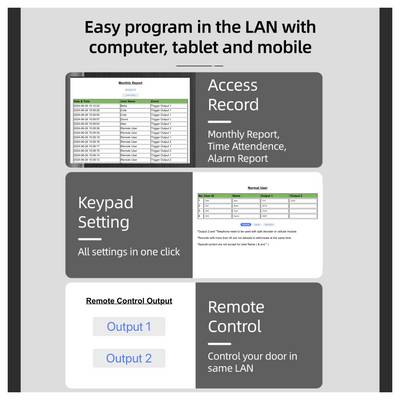

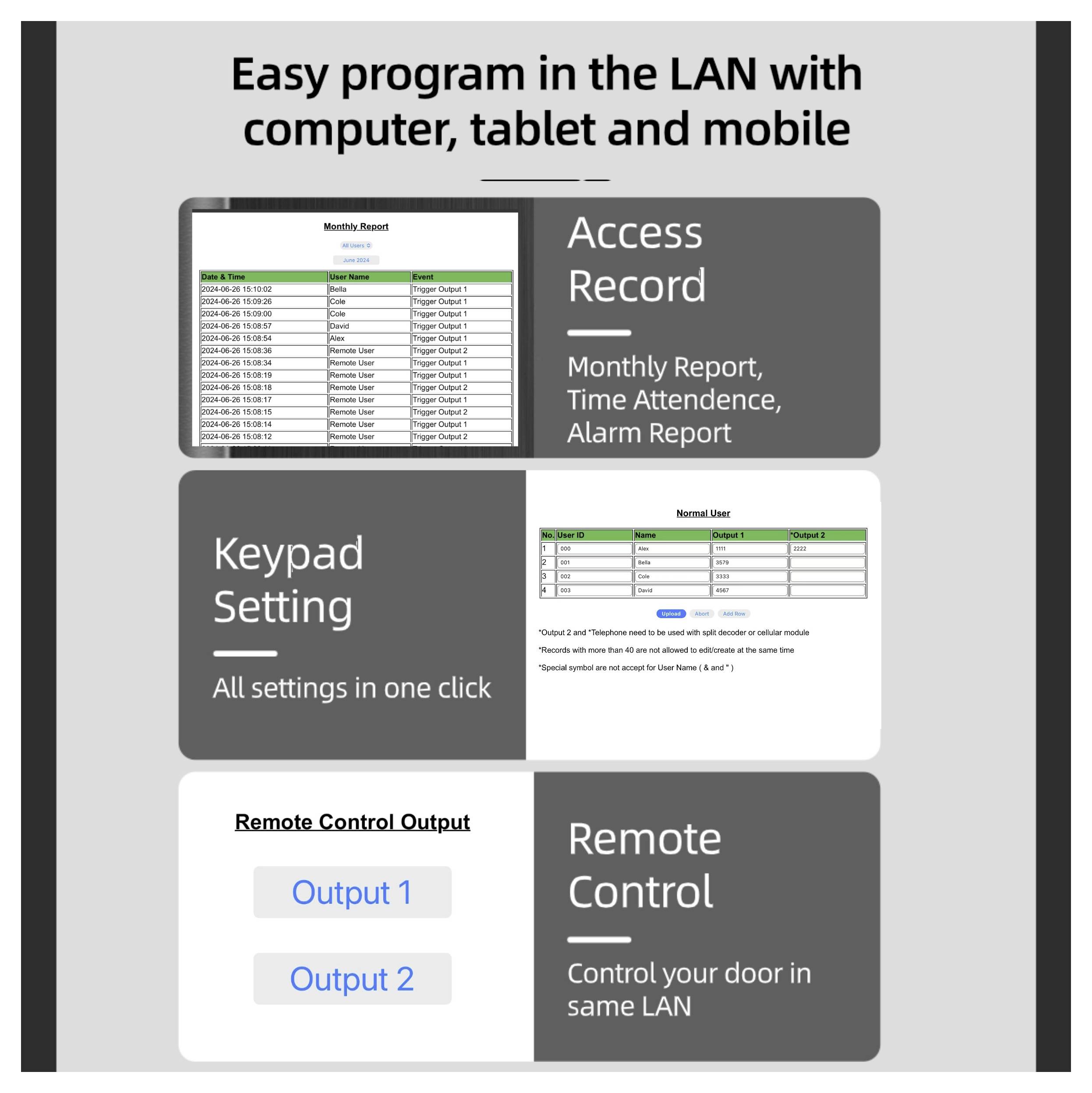

'Easy program in the LAN with computer, tablet and mobile.' Interface mockup with sections: Access Record, Keypad Setting, Remote Control.

'Remote Data' table with ID, Name, Email. 'Transaction Detail' table shows 'transaction_id', 'amount', 'currency'. 'Time Dimensions' table with 'quarter_equivalent', 'month_equivalent'. 'Active Record' table with IDs, high volume highlighted in red.

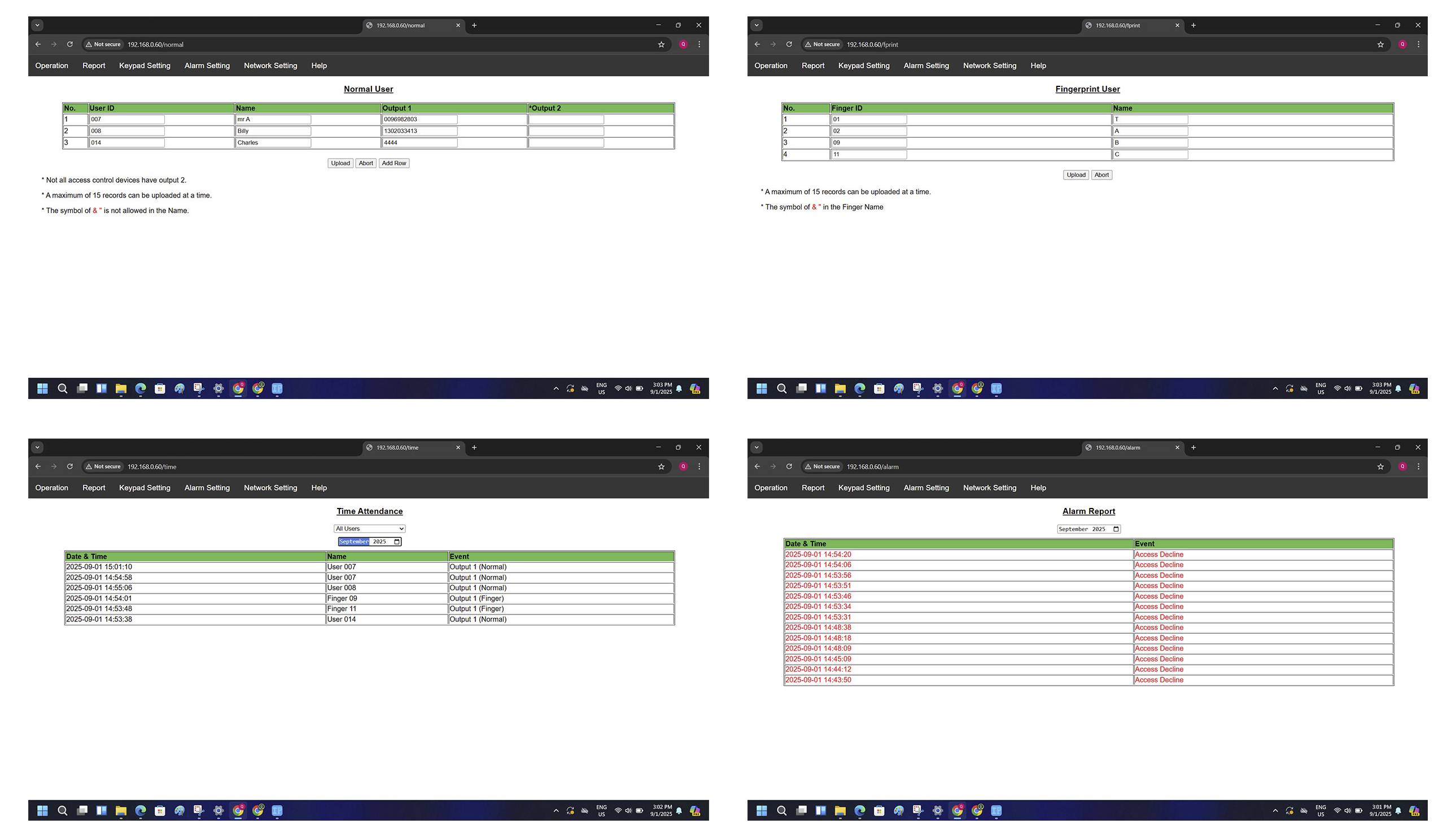

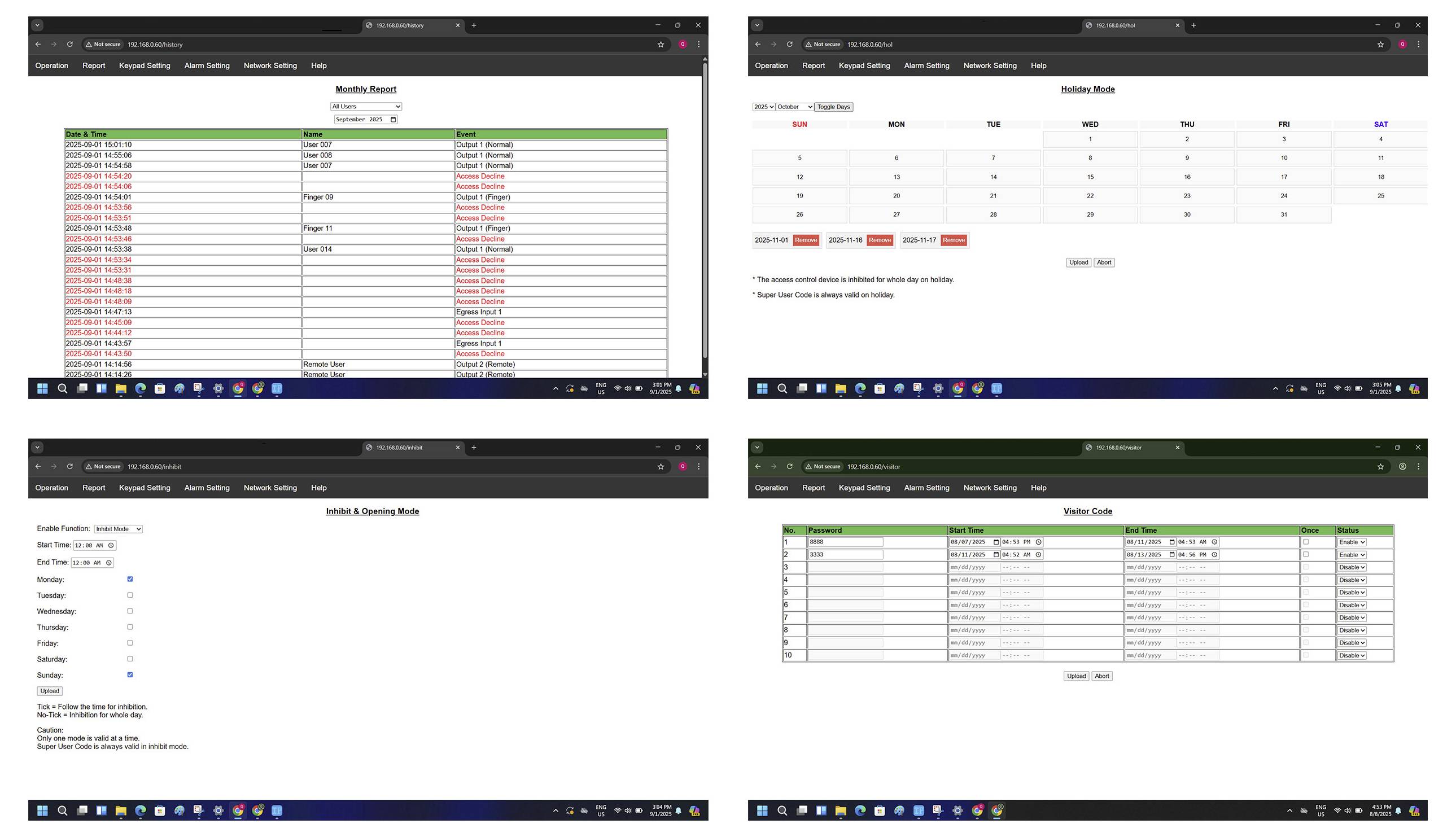

Four browser screenshots show different data tables with dates, times, status updates, rankings, a maintenance log, and custom fields.

1/12

Sygonix

Our service for you

Fast track dispatch on Tue, 15 Sep

276 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 72.26 / piece)

€ 72.26

plus VAT.

Report legal concerns

Highlights & Details

Slim surface-mounted keypad, Mifare, card + finger

Two programming methods: local and TCP/IP web browser
Innovative programming over a LAN connection, allows for convenient setup and management of access type, schedules, and other configuration settings using computer, tablet, smartphone
Simple and clear web browser interface for effortless configuration
Additional software for programming users in multiple devices simultaneously
PIN/card/fingerprint access

Technical specifications

Product type: Fingerprint/RFID access system

Operating voltage: 12 V DC

Mounting type: Surface-mount

Triggered by: Fingerprint
Numerical code
Transponder

No. of codes/combinations: 1000

Weight: 200 g

Dim: (W x H x D) 100 x 150 x 40 mm

Features: + backlit keypad

Function: PC interface

Factory colour: Silver
Black

Width: 100 mm

Height: 150 mm

Depth: 40 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 3444031 Sygonix SY-6888062 Fingerprint/RFID access system Surface-mount 12 V DC + backlit keypad

User & Safety Instructions 3444031 Sygonix SY-6888062 Fingerprint/RFID access system Surface-mount 12 V DC + backlit keypad

User & Safety Instructions 3444031 Sygonix SY-6888062 Fingerprint/RFID access system Surface-mount 12 V DC + backlit keypad

Warranty Terms

Warranty Terms 3444031 Sygonix SY-6888062 Fingerprint/RFID access system Surface-mount 12 V DC + backlit keypad

Download

Deutsch (Deutschland)

Download 3444031 Sygonix SY-6888062 Fingerprint/RFID access system Surface-mount 12 V DC + backlit keypad

Description

Features

Touch keypad with backlight
1000 users
Single output solid state relay
12 V/DC operation, compatible with fail-safe or fail-secure electric door lock
One-time code/visitor code
Access and alarm record
Time attendance with web browser report
Wiegand output
Door sensing input for alarm alert
Egress input
Doorbell button
Supports ISO14443 A/B card (MIFARE Classic, MIFARE Ultralight, MIFARE DESFire, NFC)

Scope of delivery

Keypad
Wiegand cable
2x Screws
2x Dowels
Diode
Hex wrench
User manual
