Name: ABUS ABWO10000W Window actuator Structure Bluetooth support
Brand: ABUS
SKU: 3532279
Availability: InStock

A minimalist white door handle with a built-in keyhole at its base, showcasing a sleek, modern design.

A person holding a smartphone takes a photo of a small brown dog sitting on a patio.

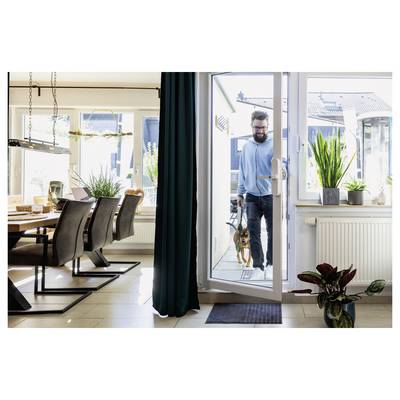

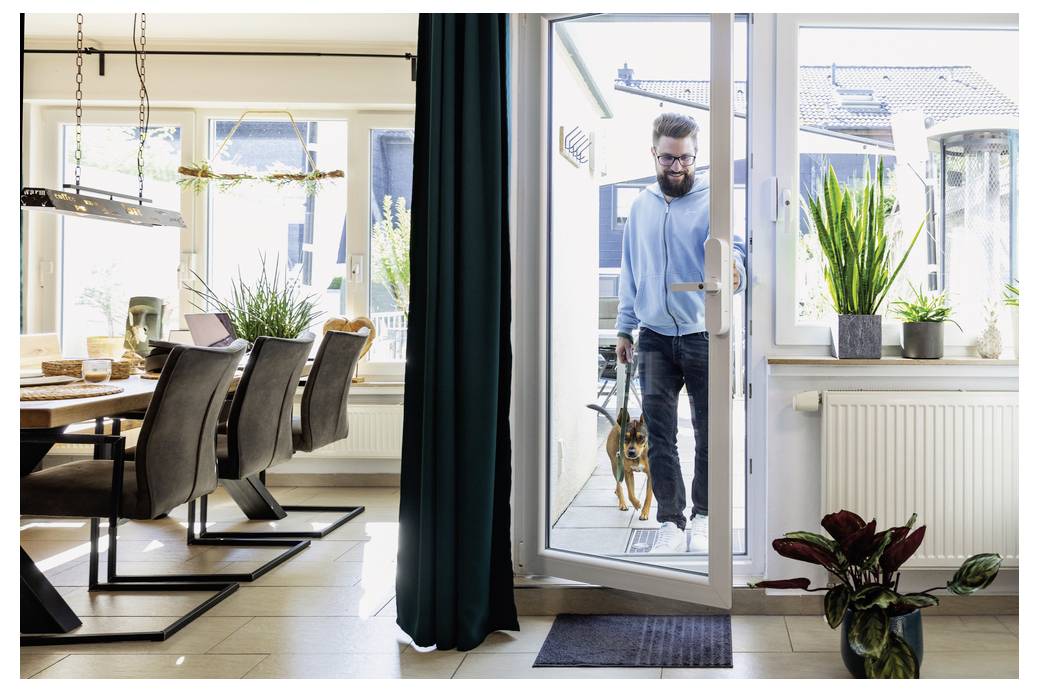

A man wearing a light blue sweater enters a bright, modern dining room with large windows, holding a small dog on a leash.

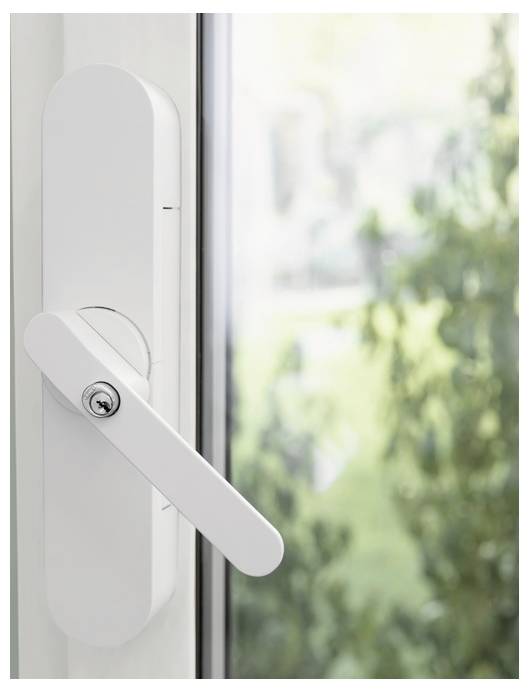

The image shows a white window handle in a locked position on a glass door. Blurred greenery is visible outside through the glass.

White electronic door lock with a sleek, vertical design and a key slot on the handle, suitable for modern home security.

A white door lock featuring a vertical handle and a keyhole, designed for secure closing of doors, depicted against a plain background.

A sleek, modern white door handle with an integrated keyhole in the center, set against a plain background.

A white modern door lock with a vertical handle and keyhole, designed for security.

A modern white door lock with a sleek design, featuring a vertical handle and a visible keyhole on the side.

1/9

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 30 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 329.00 / piece)

€ 329.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

WINTECTO™ One is a smart white window door motor

Engine opening of window doors, terrace doors, balcony doors suitable for inward opening windows and window doors with 7 mm square pin
Easy to use with the free ABUS One APP on your smartphone or smart watch, or with optional accessories by entering a code, finger scan or by pressing a button
Send access permissions and limit time or share permanent access
The mechanical operation of the window handle (tilt, open, close) is also retained with WINTECTO™ One
High security with ABUS SmartX™ technology, AES 128-bit encryption and ABUS key card for authentication of the administrator;Easy and wireless mounting, fast and easy start-up with the APP
Power supply by changeable batteries (6 x AA batteries are included)
Early warning in case of burglary attempts thanks to 3D alarm sensors - adjustable alarm volume up to 110 dBA
Easy activation and deactivation of the alarm by manual actuation of the pressure cylinder
100 Nm rotational and tear-off resistance – suitable for anti-burglary elements according to DIN EN 1627

Technical specifications

AES-128-bit encryption
Minimum operating temperature 0 °C.
Maximum operating temperature 40 °C.
Offers 100 Nm worth of rotating and tear-off resistance

Product type: Window actuator

Mounting type: Structure

Connections: Bluetooth® wireless standard

Triggered by: Mobile phone

VdS No.: DIN EN 1627

: Manufacturer-specific

Weight: 1.44 kg

Dim: (W x H x D) 62 x 92 x 300 mm

Features: Bluetooth support

Function: Vibration sensor

Factory colour: Multicolour

Width: 62 mm

Height: 92 mm

Depth: 300 mm

Cable colour: Multicolour

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3532279 ABUS ABWO10000W Window actuator Structure Bluetooth support

User & Safety Instructions

User & Safety Instructions 3532279 ABUS ABWO10000W Window actuator Structure Bluetooth support

Description

MORE THAN A PATIO DOOR

Turn your patio door into a full access. Shortly with the dog in the garden and again back or with full hands after shopping on the terrace in the house – this becomes a child's play with the smart window drive WINTECTO One. And with the proven ABUS SmartX™ technology, you're always on the safe side. WINTECTO One can be easily installed on the inside of the door - quickly, without drilling or cable pulling. Thanks to its reliable 3D alarm sensor system, this smart window door motor provides additional security with convenient operation and alerts when the break-in is attempted. Operation is child's play: Open and close your patio door with the handy ABUS One APP on your smartphone or smartwatch, or with your optionally available components. You have an overview of who uses your patio door as the back entrance. To do this, you manage individual access permissions for family and friends – either permanently or temporarily. Use the BRIDGE One available separately to control your WINTECTO One from a distance and integrate it into your Smart home with the advantages of voice-controlled wizards, scenarios and routines. With WINTECTO One installed, you can continue to manually open and lock your door — mechanical operation remains intact. Smart and safe - WINTECTO One.

This text is machine translated.
