Name: ABUS Akku Cam PPIC90520B Wi-Fi IP-Add-on camera 1920 x 1080 p
Brand: ABUS
SKU: 2622515
Availability: SoldOut

A surveillance camera in a black housing with lenses and sensors visible, for security monitoring indoors or outdoors.

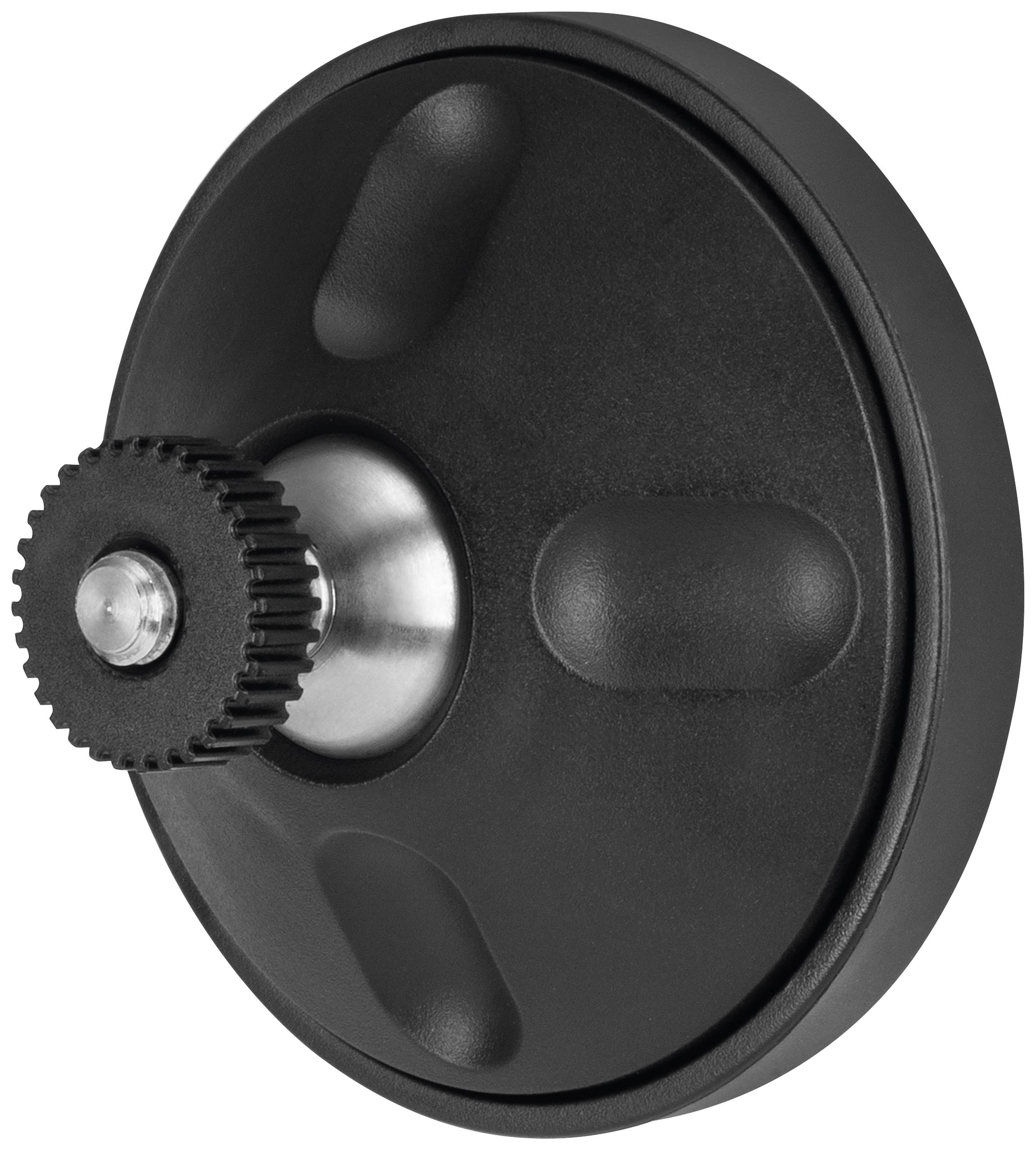

Black round metal head with a rotary knob in the centre. Used for holding or securing items to smooth surfaces.

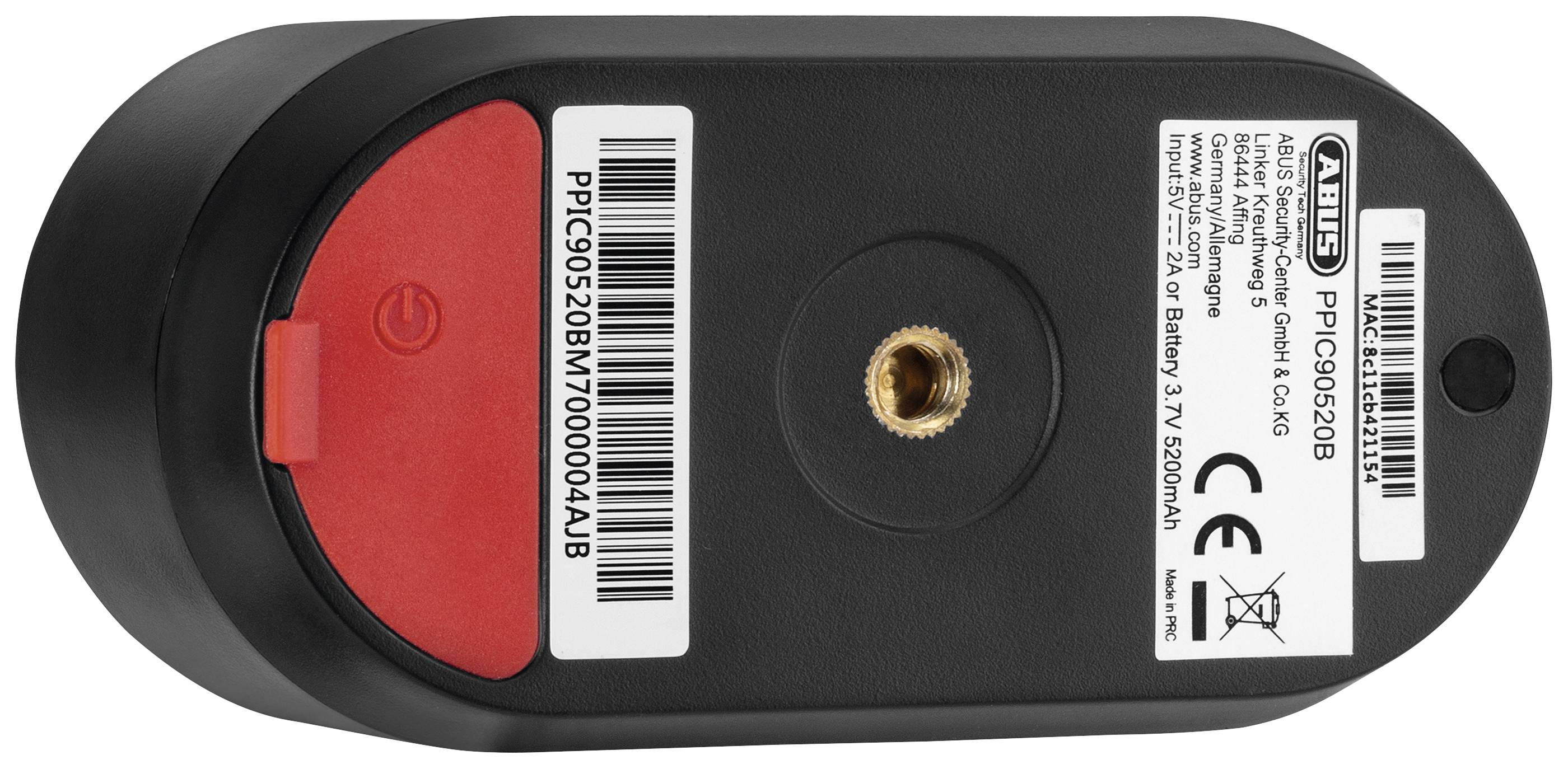

Underside of a black, rectangular electronic device with red and black stickers and technical specifications.

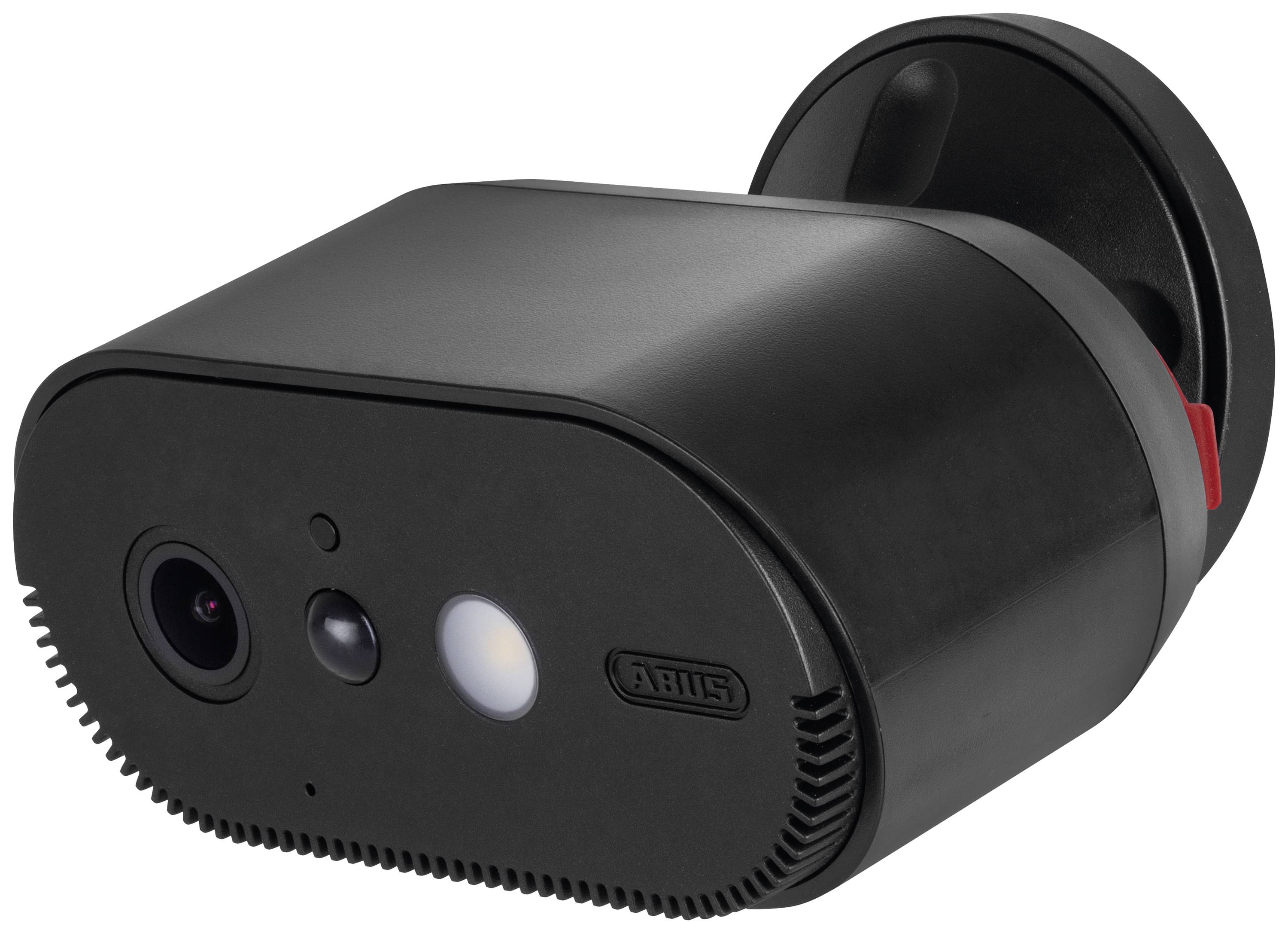

A black surveillance camera with three lenses on the front and a rounded housing, suitable for wall mounting.

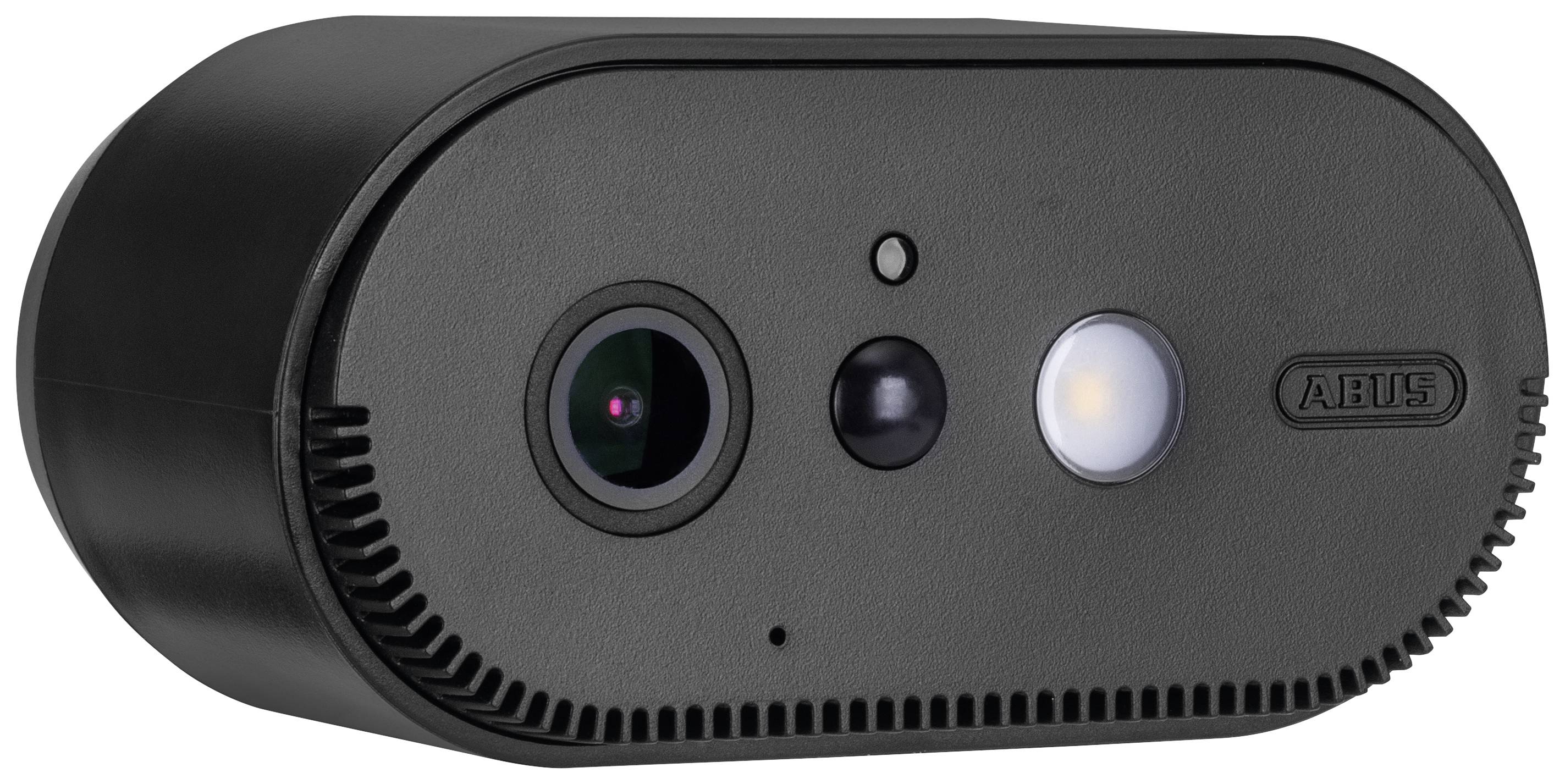

A black external camera with infrared sensors for surveillance. Contains a camera lens and an LED light on the front.

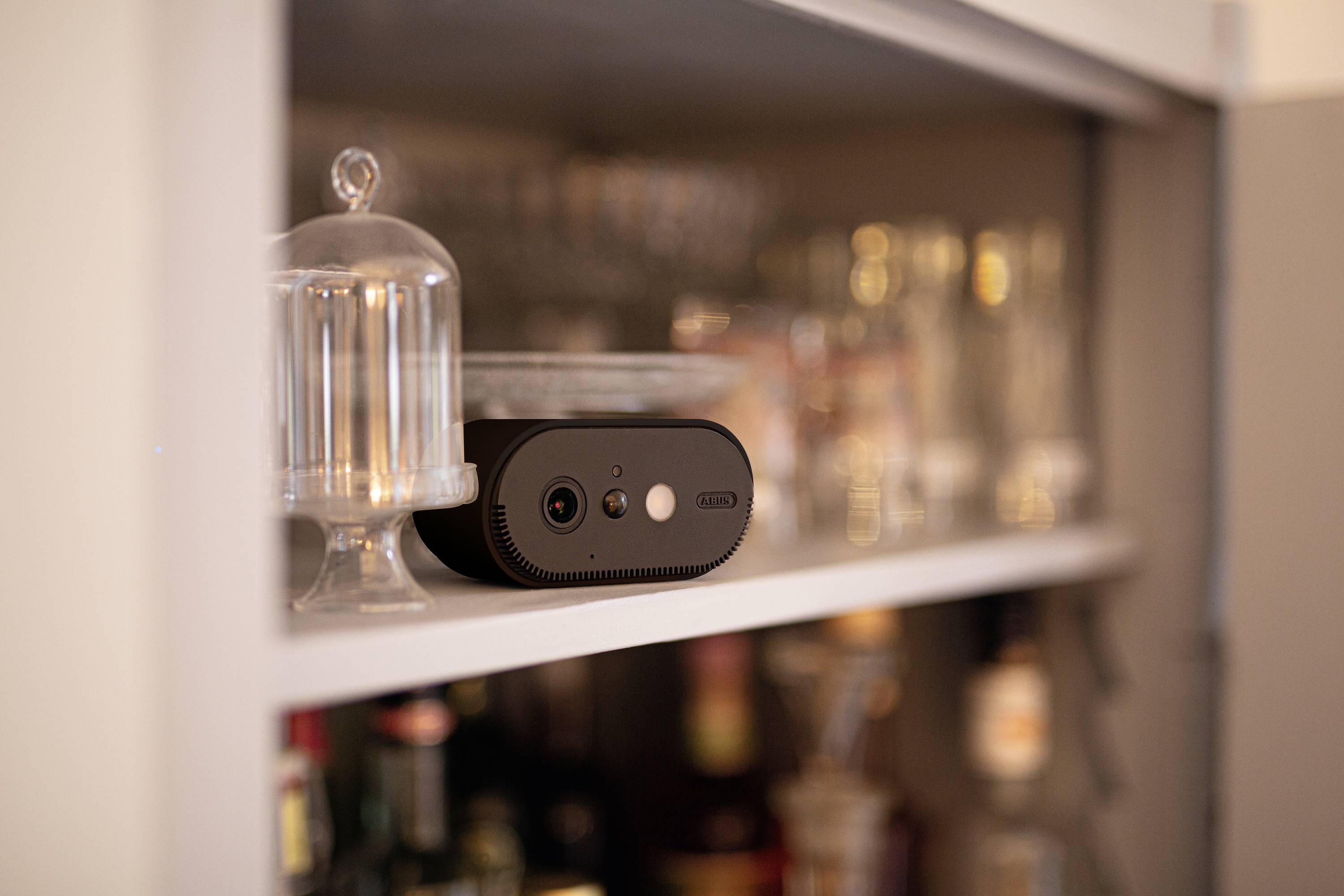

A small, black camera sits on a shelf in a kitchen, surrounded by glasses. It is used for surveillance or recording.

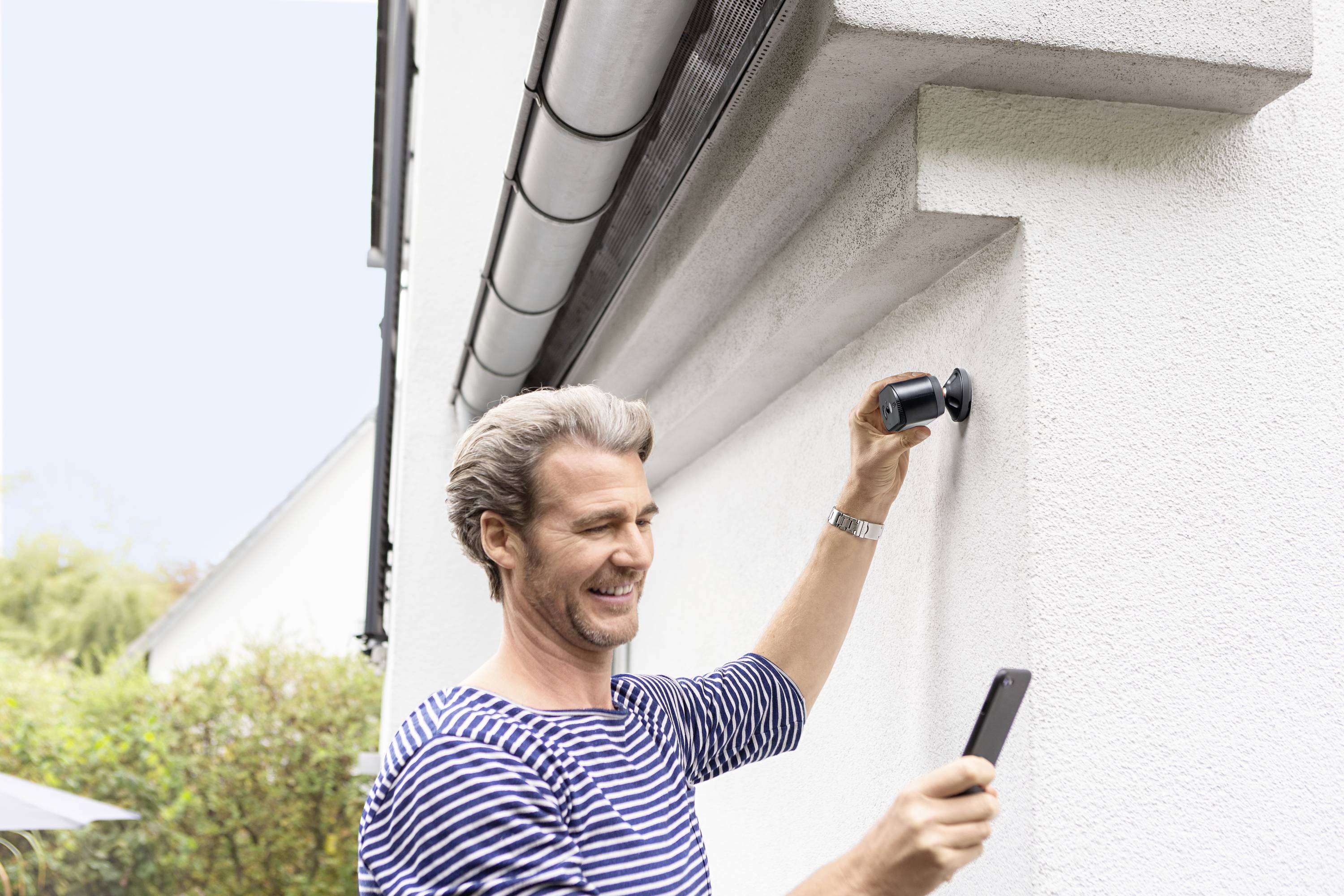

A man is mounting a camera on a house wall and looking at his mobile phone. The surroundings are green and the sky is clear.

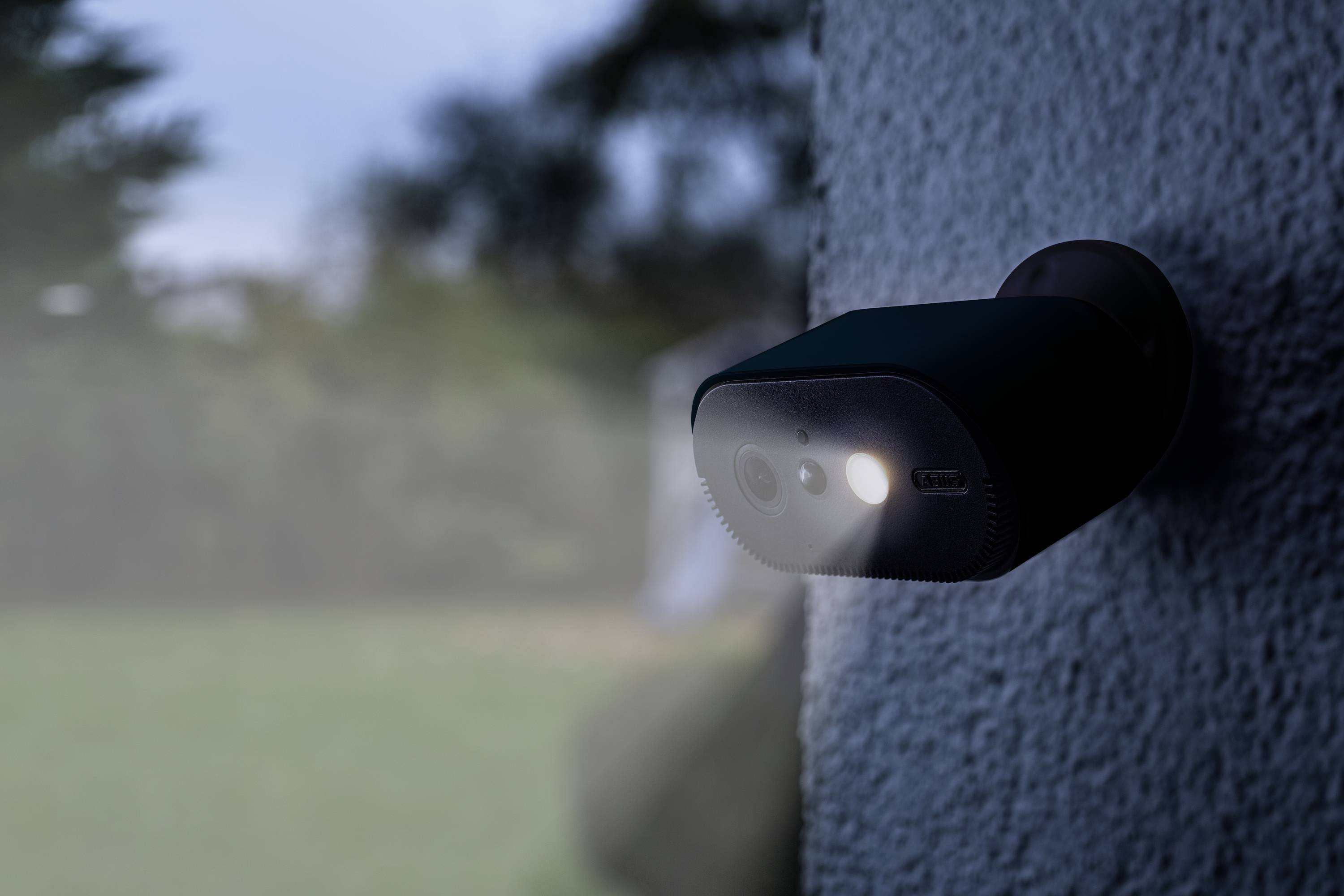

Outdoor camera with night vision and motion sensor, mounted on a wall, in a garden with a blurred background.

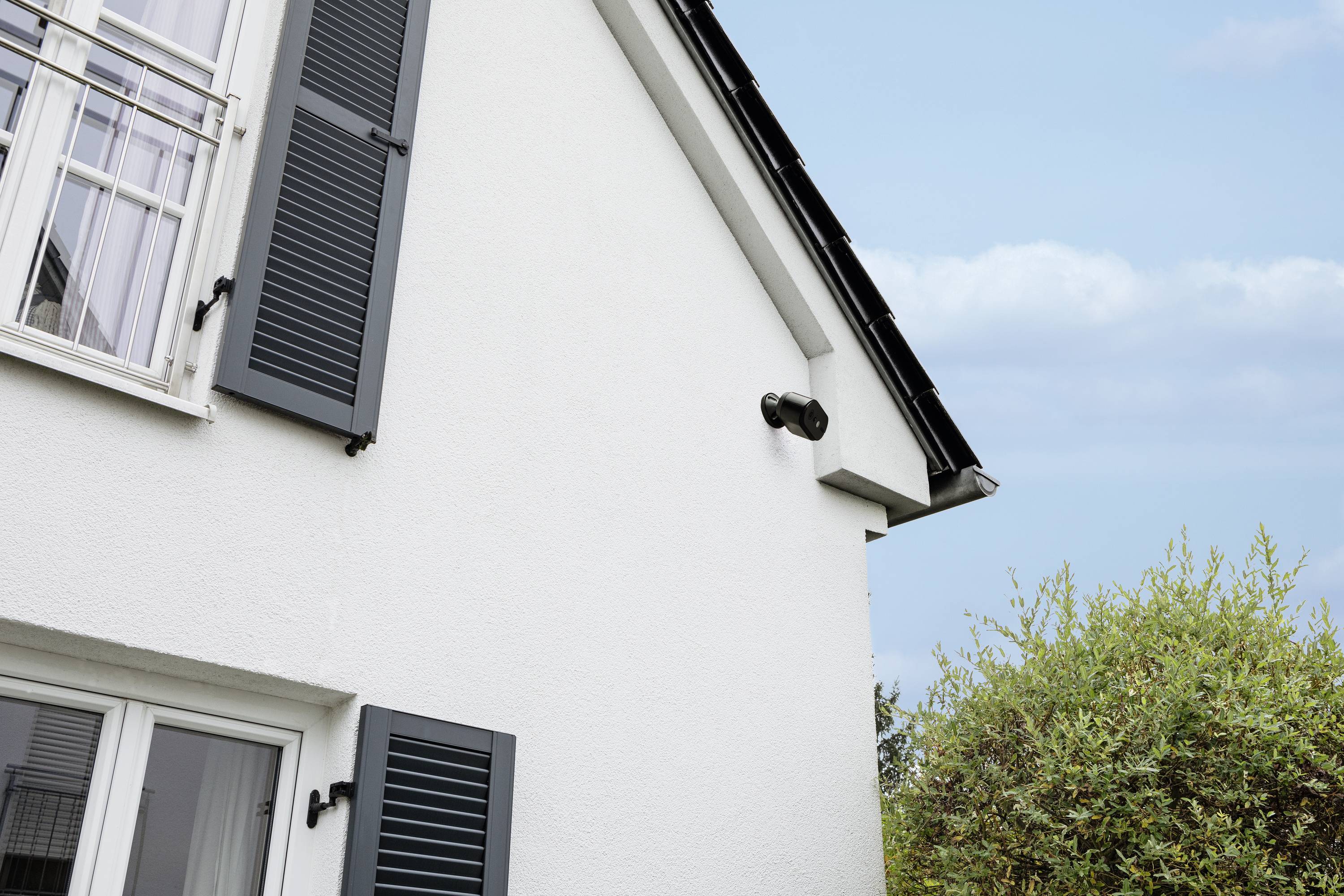

A white building with blue shutters, a security camera on its exterior, a tree beside it, and a blue sky in the background.

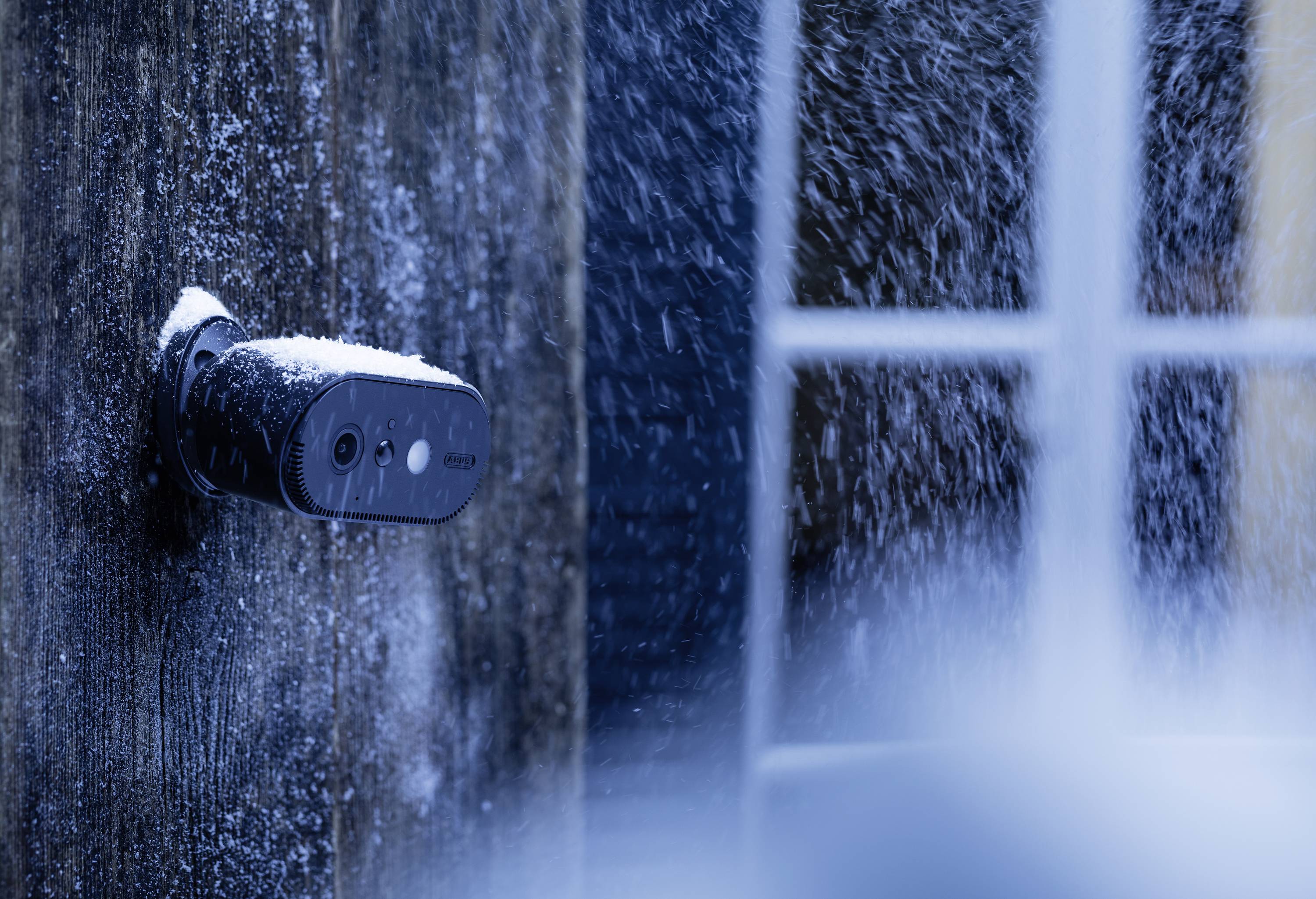

Security camera on a wooden wall, covered in snow and ice, gazing towards a snow-covered window. Wintry scene.

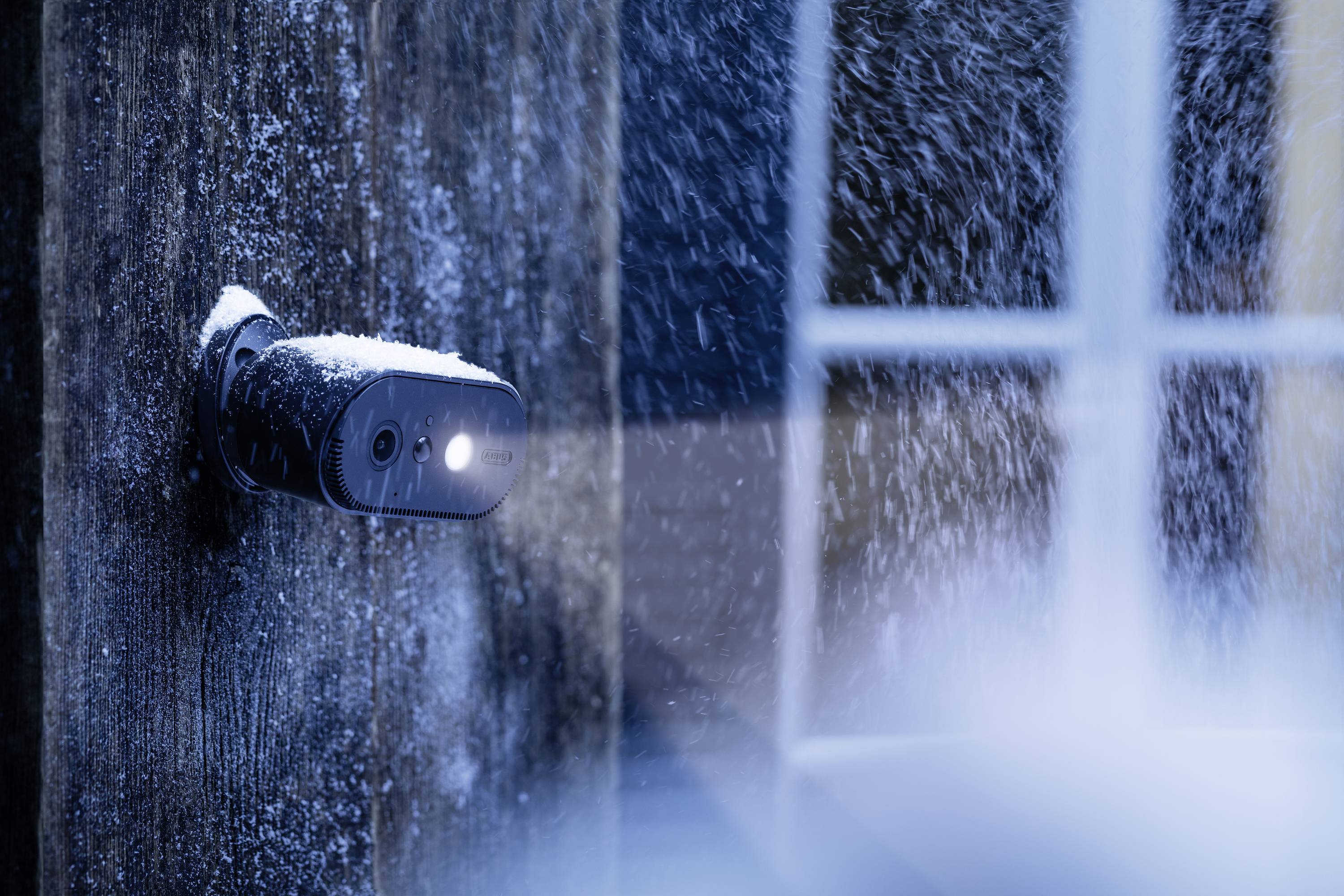

A camera with its light on is attached to a snow-covered wooden post, with snowflakes falling in the foreground.

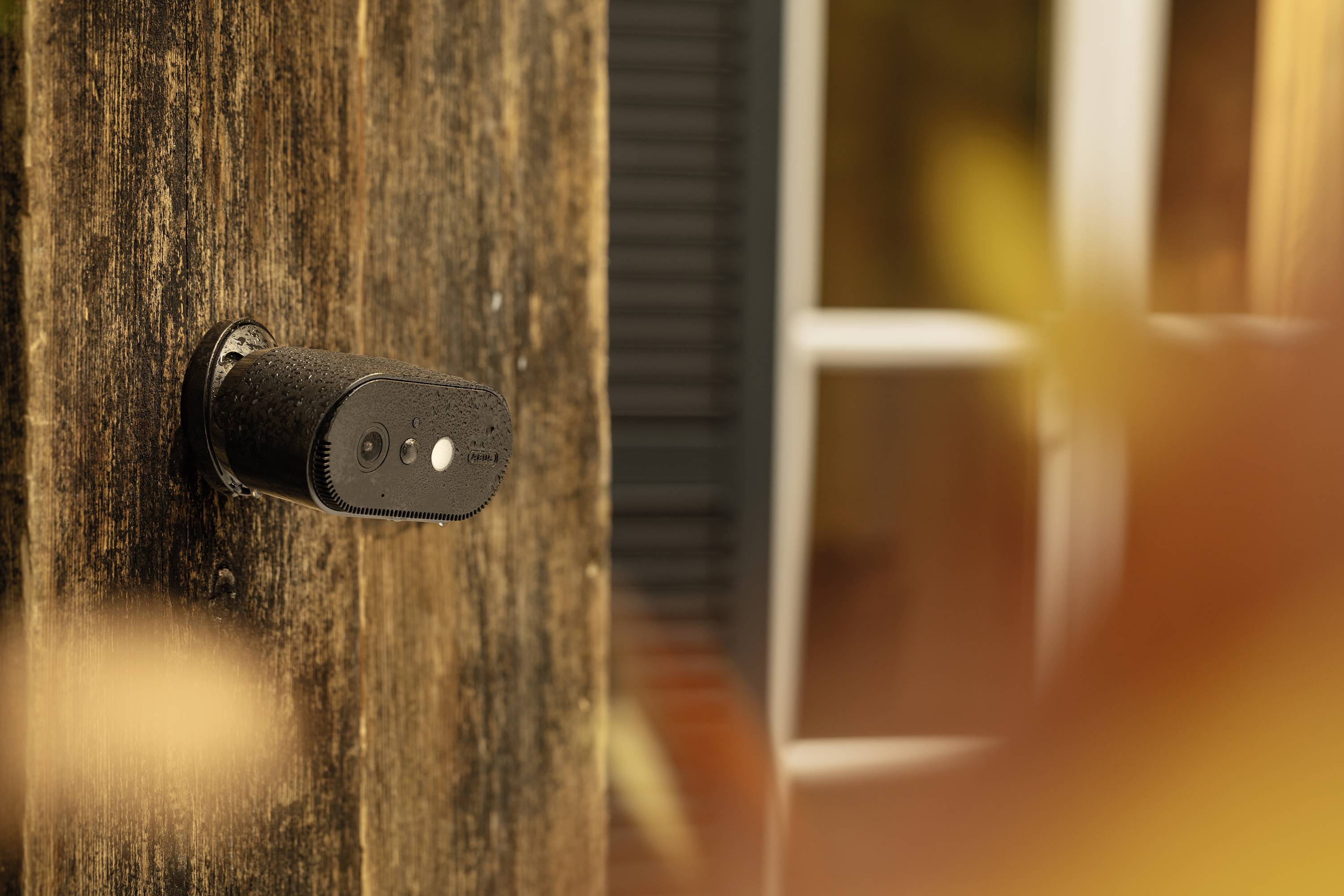

A security camera is mounted sideways on a wooden wall, with a window in the background.

1/12

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ABUS IP Add-on camera for Outdoors Akku Cam

100% wirelessMotion detection with push messageCounter voice functionIntegrated white light LED

Technical specifications

Sony IMX307 image sensor
Max. Resolution @ Frame rate: Full HD (1080p) @ 15fps
Number of white light LEDs: 1
Encryption: WPA2
112° PIR angle of view
Audio compression: G711
Storage medium: MicroSD card (up to 128 GB)
Lens mount: 5G
Minimum lighting (color): 1 lx
White balance: AWB
PIR range: 8 m
Plug type: Micro-USB
DSP: Ingenic T30

Product type: Add-on camera

CCTV features: 2-way communication
Speaker
Microphone
IR LEDs
Saves footage on SD card
Battery-powered

Signal standard: IP

Camera type: Compact camera

Transfer type: Wi-Fi

Wi-Fi standard: IEEE802.11b
IEEE802.11g
IEEE802.11n

Used at: Outdoors

Recording mode: Movement detection
Manual

Focal length: 2,9 mm

Max. viewing angle hor.: 115°

Vertical viewing angle: 75°

Frequency: 2.4 GHz

Width: 103 mm

Depth: 51 mm

Height: 54 mm

Factory colour: Black

Operating temperature: -20 - 50 °C.

Dim: (W x H x D) 103 x 54 x 51 mm

App compatibility: Yes

Resolution (max.): 1920 x 1080 p

Hub: Required

: IP65

Power supply: USB

Documents & Downloads

Datasheet

Datasheet 2622515 ABUS Akku Cam PPIC90520B Wi-Fi IP-Add-on camera 1920 x 1080 p

User & Safety Instructions

User & Safety Instructions 2622515 ABUS Akku Cam PPIC90520B Wi-Fi IP-Add-on camera 1920 x 1080 p

Description

Another multi-talentThe ABUS WLAN Additional Akku Cam supplements an existing set of ABUS WLAN Akku Cam and WLAN Base station or a separate WLAN Base station. Like your existing Akku Cam, the additional camera is suitable for all applications without socket or power connection. With a base station you can operate up to 2 battery cams (also available in the set). More needs? Then simply add another base station – the app can integrate up to 8 base stations and 16 battery cams.The additional camera, like the set camera(s), is 100% wireless and operates just as quickly. The camera's 120-degree viewing angle gives you a good overview. The app shows you the live pictures & recordings. You receive push messages when the camera detects movement (via PIR sensor) or when the battery runs low. The battery life is up to 6 months (depending on the conditions on site). The battery is fully charged again in just 4 hours. The full HD resolution and the white light LED provide day & night for detailed color pictures. Rain, snow and strong sunlight are no problem for the weatherproof camera.

This text is machine translated.

Features

100% wireless surveillance camera with WLAN, rechargeable battery, push message in case of motion alarm, full HD resolution, color pictures even at night as well as free access via mobile phone and tablet app App2Cam PlusRequired for operation: ABUS WLAN base station for Akku Cam (available individually or in the set)Can be placed flexibly both indoors and outdoors thanks to battery and WLAN operation, weather-proof housing (protection class IP65), can be placed indoors on a shelf, and can be fixed outside with a practical ball-head holder (instead of a magnet that can be manipulated)Convenient base station extends the WLAN range (optimally placed between own router and battery cam at free socket), insert microSD card (accessories, up to 128 GB) for camera recordings stored on site (no cloud, no subscription)Quickly ready to use thanks to simple commissioning (with App Assistant in a few minutes), encrypted access in your own WLAN and on live streaming, memory and all functions while traveling (motion detector/PIR sensor, white light LED, etc.)Fully automatic motion detection, push notification and recordings (responds reliably to body heat and ignores movements of e.g. Branches/sheets)Intelligent battery management, battery life up to 6 months (with around 4 shots/accesses per day, with more frequent/longer use, heat/frost or greater distance to the base station, the runtime is reduced)Recognize important details, at any time of the year, in any weather, even in darkness through detailed color pictures thanks to integrated white light LED, full HD resolution (1080p, 2 megapixels) and wide 120-degree viewing angleJust tap the finger in the app and the intercom function is active, in order to clarify situations on site quickly by a few changed words (2-way audio through loudspeaker & microphone)Camera in black design, suitable for dark as well as wood and red brick facadesPart of ABUS Comfort-Line & smart security world & compatible with wireless alarm system Smartvest.

Scope of delivery

ABUS battery Cam
Micro-USB charging cable
Mount
Quick Guide.

Hints

Base station required for operation (PPIC90010).Compatible with ABUS Smartvest wireless alarm system.
