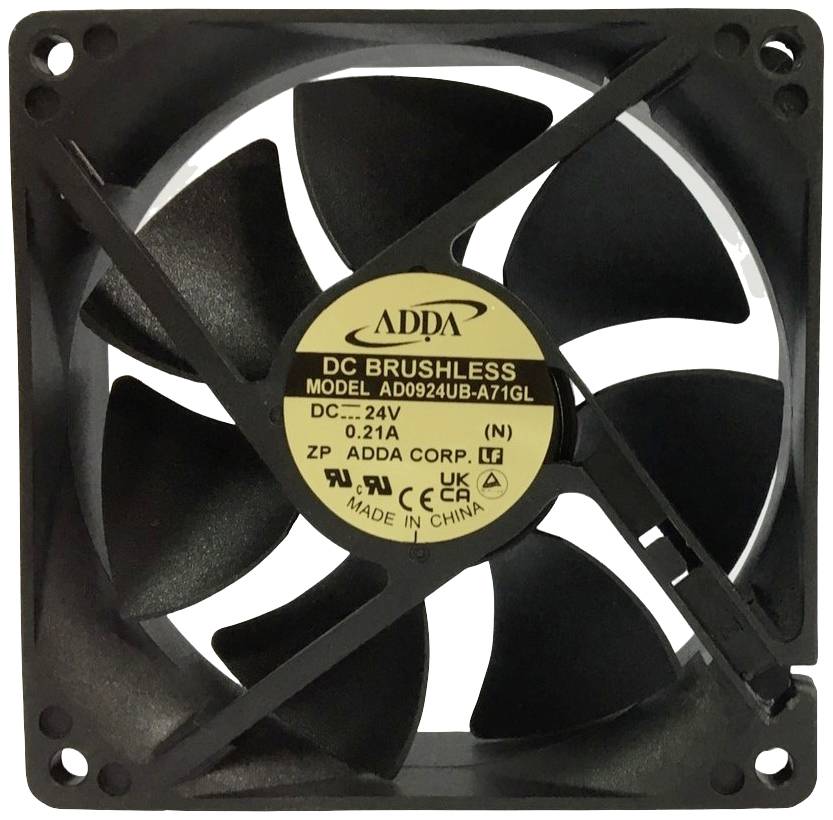

ADDA AD0924UB-A71GL (N) Axial fan 24 V DC (L x W x H) 92 x 92 x 25 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
24 V DC
No. of wires
2
Type of bearing
Ball bearing
Connection
Open end cable
Datasheet (PDF)
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Highlights & Details
ADDA axial fan 92 x 92 x 25 mm, 24 VDC
- Axial fan, 24 VDCWith two strands each 290 mm in length
Technical specifications
- Product type
Axial fan
- Type
AD0924UB-A71GL (N)
- Nominal voltage
24 V DC
- No. of wires
2
- Min. operating voltage
21.6 V DC
- Max. operating voltage
26.4 V DC
- Operating voltage
21.6 - 26.4 V DC
- Type of bearing
Ball bearing
- Rotational speed
3300 U/min
- Noise emission (max.)
46.2 dB
- Connection
Open end cable
- Cable length
290 mm
- Factory colour
Black
70,000 h
- Weight
92 g
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
92 mm
- Width
92 mm
- Height
25 mm
- Dim
(L x W x H) 92 x 92 x 25 mm
Documents & Downloads
Datasheet
Datasheet 2852749 ADDA AD0924UB-A71GL (N) Axial fan 24 V DC (L x W x H) 92 x 92 x 25 mm
User & Safety Instructions
User & Safety Instructions 2852749 ADDA AD0924UB-A71GL (N) Axial fan 24 V DC (L x W x H) 92 x 92 x 25 mm
Description
ADDA axial fan 92 x 92 x 25 mm, 24 VDC. Fan with two strands each 290 mm in length.
