Akyga USB charger 30 W USB-C®, USB-A Quick Charge 3.0 White Indoors GaN
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Packaging: EcoBox
- Earthing: Without (II protection class)
- Product Colour: White
- Series: Universal
- Power supply voltage 110-240 V/50/60 Hz
- Power 30 W (USB-C) or 2 x 15 W (5 V / 3A)
- Manufacturing material: ABS
- Power input < 0.25 A.
- Power supply line: CEE 7/16 (Europlug)
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- MTBF: 100000 h
- Standard: Quick charge 3.0, Power delivery 3.0, Samsung AFC, HUAWEI FCP, Apple 2.4A, PPS, GaN
- USB-A power supply: 5 V/3 A, 9 V/2 A, 12 V/1.5 A (max. 18 W
- USB-C VOLTAGE SUPPLY: 5 V/3 A, 9 V/3 A, 12 V/2.5 A, 15 V/2 A, 20 V/1.5 A (MAX. 30 W
- Matching with DCP (Dedicated Charging Port): Yes
- Product type
USB charger
30 W
- Inputs
Europlug
- No. of outputs
2 x
- Outputs
USB-C®
USB-A
- Output current (max.) - rounded
3 A
- Max. output current
3 A
- Max. output current per channel
3 A
- Type
AK-CH-27
- Suitable for
Smartphone
- Suitable for
Smartphones. Tablets. Kopfhörer und andere mobile Geräte
- PSU features
GaN
- Dim
(L x W x H) 15 x 81 x 36 mm
- Height
36 mm
- Length
15 mm
- Width
81 mm
- Weight
57 g
- Factory colour
White
- Used at
Indoors
- Charging method
Quick Charge 3.0
- Operating voltage
100 - 240 V / AC
- Max. temperature
35 °C
- Min. temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3731363 Akyga USB charger 30 W USB-C®, USB-A Quick Charge 3.0 White Indoors GaN
User & Safety Instructions
User & Safety Instructions 3731363 Akyga USB charger 30 W USB-C®, USB-A Quick Charge 3.0 White Indoors GaN
Description

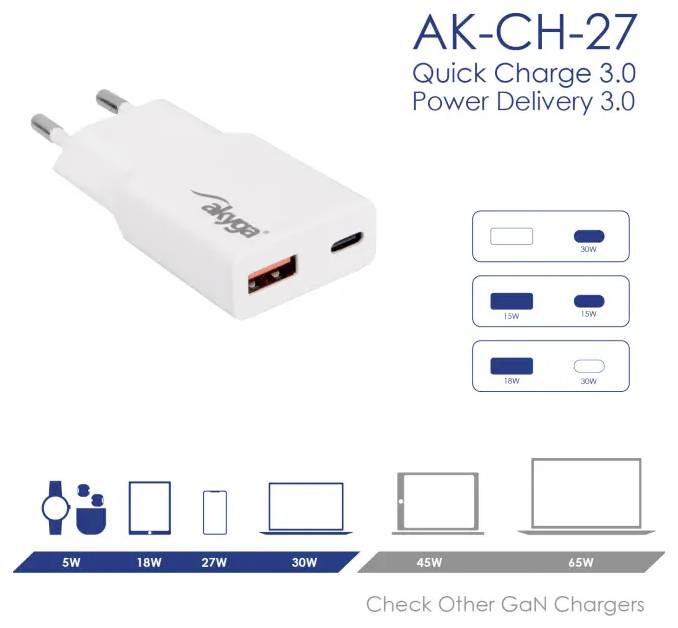

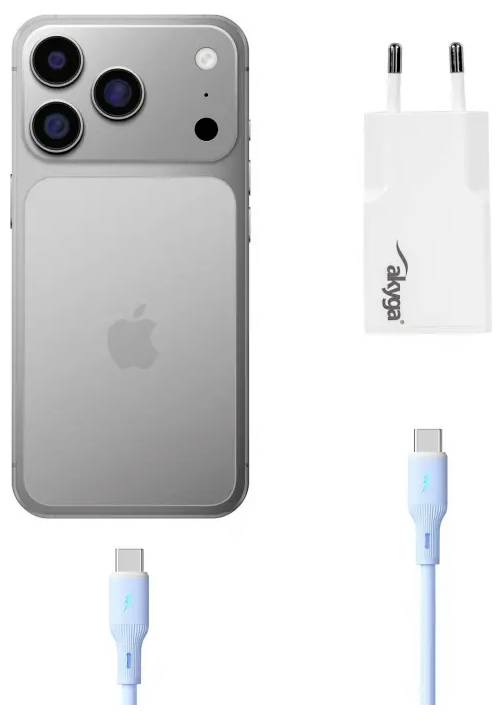

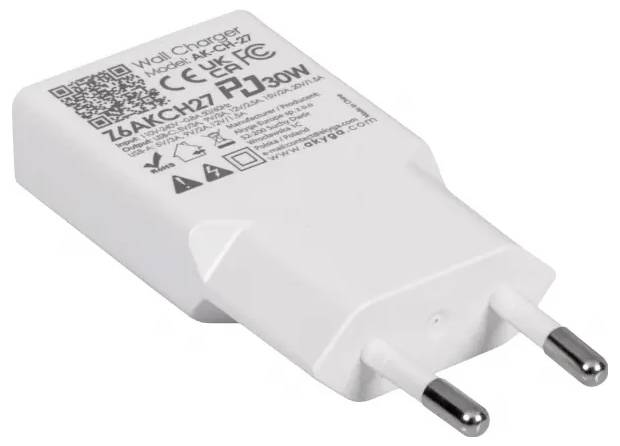

The Akyga® AK-CH-27 is a practical and modern USB-C charger with an additional USB-A connector. It is designed to charge smartphones, tablets, headphones and other mobile devices quickly and securely. Thanks to its USB-C and USB-A outputs, the USB charger supplies power to two devices at the same time. It is an excellent solution for all those who value comfort and efficiency in the daily use of technology.
High-performance USB-C charger with GaN technology
Thanks to the advanced GaN technology (gallium nitride) this charger offers excellent performance with a compact size. This allows the Akyga® AK-CH-27 USB Type C charger to charge quickly without overheating or loss of energy. The perfect solution for anyone who attaches importance to modern, durable and energy-efficient accessories.
USB-C and USB-A ports – complete flexibility
The Akyga® AK-CH-27 is equipped with a USB-C port with a power rating of up to 30 W and a classic USB-A port with a power of up to 18 W. This combination offers compatibility with a variety of devices - from the latest smartphones to older accessories - but above all it gives you complete freedom in selecting your USB cables. Whether you need a longer cable or one with USB-C, Micro-USB or Lightning connectors, you can use the cable that meets your individual requirements. In addition, the charger supports the charging of two devices simultaneously and provides a total power of 15 W, if both connections are used - Ideal for safe and comfortable charging in the daily routine.
Quick charging with Quick Charge 3.0 and Power delivery
The Akyga® AK-CH-27 USB-C charger supports a wide range of fast charging standards, including Power Delivery 3.0, Quick Charge 3.0, PPS, Apple 2.4A, FCP and AFC. This allows it to automatically adjust the performance parameters to meet the requirements of the device to ensure optimum and safe charging. Whether you use a Samsung Galaxy, Google Pixel, Apple iPhone or a tablet such as an iPad, Galaxy Tab or pixel tablet, this charger guarantees complete compatibility between brands and devices.
Compact and safe
The Akyga® USB-C charger has been designed for user safety. It possesses a complete protection against over-voltage, over-heating and short-circuit and thus offers safety in the daily use. This makes it an excellent choice for anyone looking for a reliable, high-quality charger at a reasonable price. It is a wise investment in time saving and comfort – properties that are important in the fast-moving technology world of today. Through its compact shape and the slim white design it is perfectly suitable for use at home, in office or while traveling.
This text is machine translated.
High-performance USB-C charger with GaN technology
Thanks to the advanced GaN technology (gallium nitride) this charger offers excellent performance with a compact size. This allows the Akyga® AK-CH-27 USB Type C charger to charge quickly without overheating or loss of energy. The perfect solution for anyone who attaches importance to modern, durable and energy-efficient accessories.
USB-C and USB-A ports – complete flexibility
The Akyga® AK-CH-27 is equipped with a USB-C port with a power rating of up to 30 W and a classic USB-A port with a power of up to 18 W. This combination offers compatibility with a variety of devices - from the latest smartphones to older accessories - but above all it gives you complete freedom in selecting your USB cables. Whether you need a longer cable or one with USB-C, Micro-USB or Lightning connectors, you can use the cable that meets your individual requirements. In addition, the charger supports the charging of two devices simultaneously and provides a total power of 15 W, if both connections are used - Ideal for safe and comfortable charging in the daily routine.
Quick charging with Quick Charge 3.0 and Power delivery
The Akyga® AK-CH-27 USB-C charger supports a wide range of fast charging standards, including Power Delivery 3.0, Quick Charge 3.0, PPS, Apple 2.4A, FCP and AFC. This allows it to automatically adjust the performance parameters to meet the requirements of the device to ensure optimum and safe charging. Whether you use a Samsung Galaxy, Google Pixel, Apple iPhone or a tablet such as an iPad, Galaxy Tab or pixel tablet, this charger guarantees complete compatibility between brands and devices.
Compact and safe
The Akyga® USB-C charger has been designed for user safety. It possesses a complete protection against over-voltage, over-heating and short-circuit and thus offers safety in the daily use. This makes it an excellent choice for anyone looking for a reliable, high-quality charger at a reasonable price. It is a wise investment in time saving and comfort – properties that are important in the fast-moving technology world of today. Through its compact shape and the slim white design it is perfectly suitable for use at home, in office or while traveling.
This text is machine translated.
