Akyga USB charger 65 W USB-C®, USB-A Power Delivery 3.0 White Indoors GaN
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.82
€ 20.18
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
14-day return policy included
Akyga USB charger
Technical specifications
- Packaging: EcoBox
- Earthing: Without (II protection class)
- Product Colour: White
- Series: Universal
- Power supply voltage 110-240 V/50/60 Hz
- Power: 65 W (USB-C) or 27 W (USB-A) or (45 W + 12 W)
- Manufacturing material: ABS
- Power input < 0.25 A.
- Power supply line: CEE 7/16 (Europlug)
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- MTBF: 100000 h
- Standard: Quick charge 4+/3.0, Power delivery 3.0, Samsung AFC, HUAWEI FCP, DCP, SCP, Apple 2.4A, PPS, GaN
- USB-A POWER SUPPLY: 5 V/3 A, 9 V/2.5 A, 12 V/2.25 A, 15 V/1.75 A, 20 V/1.35 A (MAX. 27 W
- USB-C VOLTAGE SUPPLY: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3.25 A (MAX. 65 W), PPS 5-20 V/3 A
- Matching with DCP (Dedicated Charging Port): Yes
- Product type
USB charger
65 W
- Inputs
Europlug
- No. of outputs
2 x
- Outputs
USB-C®
USB-A
- Output current (max.) - rounded
3.25 A
- Max. output current
3.25 A
- Max. output current per channel
3.25 A
- Type
AK-CH-31
- Suitable for
Smartphone
- PSU features
GaN
- Dim
(L x W x H) 46 x 86 x 58 mm
- Height
58 mm
- Length
46 mm
- Width
86 mm
- Weight
99 g
- Factory colour
White
- Used at
Indoors
- Charging method
Power Delivery 3.0
- Operating voltage
100 - 240 V / AC
- Max. temperature
35 °C
- Min. temperature
-10 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3731367 Akyga USB charger 65 W USB-C®, USB-A Power Delivery 3.0 White Indoors GaN
User & Safety Instructions
User & Safety Instructions 3731367 Akyga USB charger 65 W USB-C®, USB-A Power Delivery 3.0 White Indoors GaN
Description

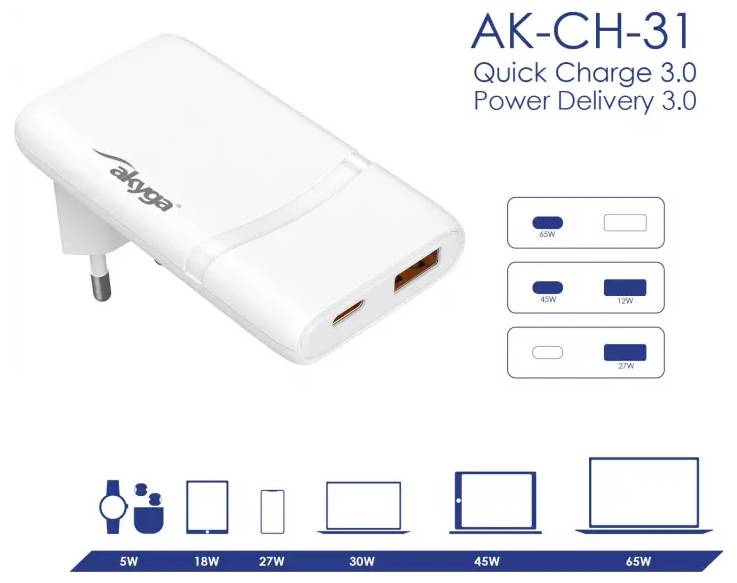

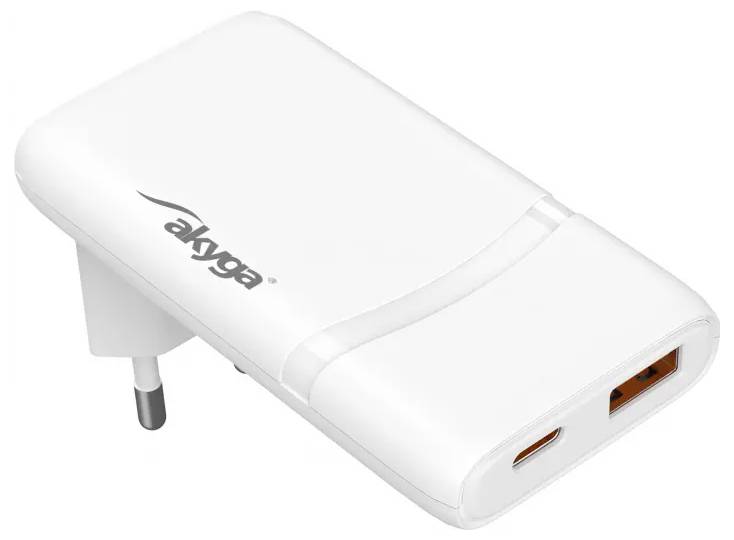

Akyga® AK-CH-31 is a modern USB-C charger with a power of up to 65 W, designed for maximum ease of use – not only in terms of functionality, but also in terms of space requirements. Thanks to its ultra-slim design, the charger can be mounted almost flush to the wall so that it can be mounted easily behind a bed, a bedside table or a desk, without having to worry about protruding plugs or limited space. It is the perfect solution for modern, tidy interiors, where every inch counts.

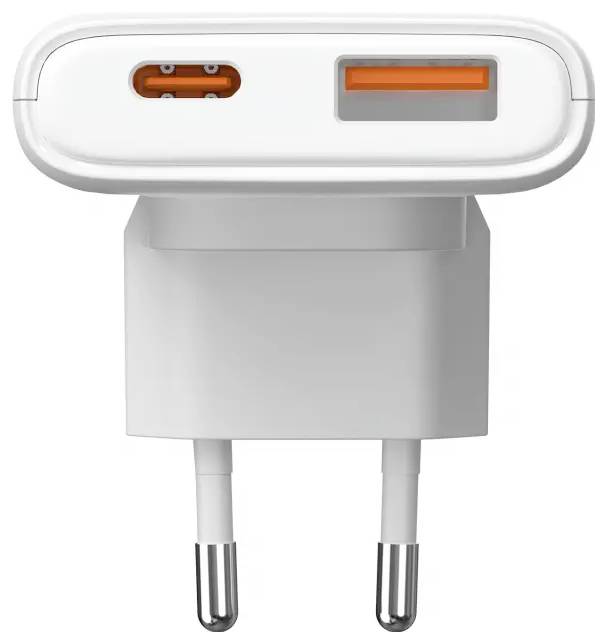

Universal ports – USB-C and USB-A.
The charger AK-CH-31 is equipped with a USB-C-PD port and a classic USB-A port with quick charge function, so that you can charge two devices at the same time. The USB-C port supports voltages from 5 to 20 V and power up to 65 W. It also supports PPS technology, which enables dynamic power matching for compatible devices such as Samsung smartphones or laptops with USB-C. The USB-A port can power up to 27 W and ensures quick charging of devices - whether you're using your smartphone, headphones or power bank.
Wide compatibility with charging standards
The flat USB-C charger AK-CH-31 supports all common quick charging protocols, including: Power delivery 3.0 and 2.0, PPS, Quick Charge 4+, QC 3.0 / 2.0, SCP, FCP, AFC, DCP, Apple 2.4A and Samsung 5 V/2 A. This means that the charger adjusts its output automatically, regardless of whether you are using an iPhone, iPad, Samsung Galaxy S, USB-C laptop or other mobile devices, to ensure a safe, efficient and fast charging.
GaN technology – performance without compromise
Thanks to the innovative GaN technology (gallium nitride) the size of the charger has been reduced and at the same time it increases its energy efficiency. This causes the device to heat up less and maintains its full power for longer periods. This is especially important when the charger is installed in hard-to-reach locations – you can rely on its reliability without having to remove or reposition it frequently.
This text is machine translated.
Universal ports – USB-C and USB-A.
The charger AK-CH-31 is equipped with a USB-C-PD port and a classic USB-A port with quick charge function, so that you can charge two devices at the same time. The USB-C port supports voltages from 5 to 20 V and power up to 65 W. It also supports PPS technology, which enables dynamic power matching for compatible devices such as Samsung smartphones or laptops with USB-C. The USB-A port can power up to 27 W and ensures quick charging of devices - whether you're using your smartphone, headphones or power bank.
Wide compatibility with charging standards
The flat USB-C charger AK-CH-31 supports all common quick charging protocols, including: Power delivery 3.0 and 2.0, PPS, Quick Charge 4+, QC 3.0 / 2.0, SCP, FCP, AFC, DCP, Apple 2.4A and Samsung 5 V/2 A. This means that the charger adjusts its output automatically, regardless of whether you are using an iPhone, iPad, Samsung Galaxy S, USB-C laptop or other mobile devices, to ensure a safe, efficient and fast charging.
GaN technology – performance without compromise
Thanks to the innovative GaN technology (gallium nitride) the size of the charger has been reduced and at the same time it increases its energy efficiency. This causes the device to heat up less and maintains its full power for longer periods. This is especially important when the charger is installed in hard-to-reach locations – you can rely on its reliability without having to remove or reposition it frequently.
