Name: Alinco Team-Set DJ-PAX-4 + KEP-24-VK 150097 PMR handheld transceiver 5-piece set
Brand: Alinco
SKU: 3386479
Availability: InStock

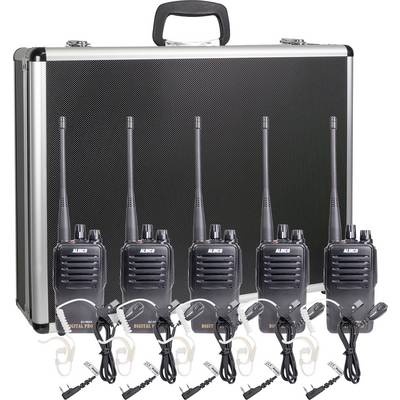

Five radio devices with antennas and earpieces are positioned in front of a silver hard-shell case, ready for communication use.

Open suitcase with multiple two-way radios and charging cables, securely stored in a padded foam interior.

Two walkie-talkies with aerials, an earpiece with cable and microphone. Text: '5-person Team Set'.

Digital radio device with antenna, earpiece and cables, suitable for professional communication. Marked 'Alinco DJ-A42 DIGITAL PRO'.

A radio set with handheld device, antenna, charging station, power adapter, earpiece, belt clip and additional cables.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,209.00 / piece)

€ 1,209.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Alinco 5-piece team set DJ-PAX-4 with KEP-24-VK in radio case

80 channels total (72 pre-programmed channels & 8 more channels available for individual programming)

Technical specifications

Analogue modulation (12.5 kHz): 8K50F3E
Modulation Digital (6.25 kHz): 4K00F1E
Operating voltage:7.4 V DC (included battery pack)
Dim. With battery without antenna: 102 x 59 x 38 mm
Antenna length: 140 mm
Weight with battery and antenna: 238 g.

Product type: PMR handheld transceiver

Features: incl. case
Splashproof

Transfer type: Analogue
Digital

Transmitter power: 0.5 W

Frequency: 446 MHz

Channels: 8 PMR

Width: 59 mm

Height: 102 mm

Depth: 38 mm

Weight: 238 g

Dim: (W x H x D) 59 x 102 x 38 mm

Factory colour: Black

Content: 1 pc(s)

US DoD Military Standards: MIL-STD-810G

Documents & Downloads

Datasheet

Datasheet 3386479 Alinco Team-Set DJ-PAX-4 + KEP-24-VK 150097 PMR handheld transceiver 5-piece set

User & Safety Instructions

User & Safety Instructions 3386479 Alinco Team-Set DJ-PAX-4 + KEP-24-VK 150097 PMR handheld transceiver 5-piece set

Description

Pack of 5 cases at a bargain price consisting of the following components:

1 x Aluminium case including foam insert suitable for 5 x Alinco DJ-PAX-4
5 x Alinco DJ-PAX-4 walkie-talkies
5 x KEP-24-VK Sound hose headset for Alinco DJ-PAX-4

BRAND NEW FROM Alinco: DJ-PAX4 digital and analogue handheld radio (standards DPMR446 & PMR-446)

This text is machine translated.

Features

Fully compatible e.g. with Kenwood TK-3701 / TK-3401D & Kenwood TK-3601D in DIGITAL mode !!
Fully compatible with Kenwood TK-3701 / 3301/ 3401/ 3501 / 3601/ PKT-23 and MAAS PT devices in ANALOGUE mode
It is of course also possible to adapt the PMR-446 radio devices of any other manufacturer via the optional software
2-pin Kenwood connector socket for external audio accessories, suitable for use with Kenwood and MAAS KEP..K audio accessories
IP-67 housing (highest resistance against water and dust)
Immerse yourself in fresh water up to 1 meters of water depth up to 30 minutes without damage (headset socket must be closed)
MIL-810G housing (absolutely resistant to shock and vibration)
Clear and loud playback through a 1 watt loudspeaker
AMBE+2 (TM) Vocoder
Digital channels pre-programmed (all are naturally approved in Germany and Europe)
Pre-programmed analogue channels
There are a total of 80 channels for free programming (within the PMR-446 frequency range)
The memory of the device is programmed in 5 zones with 16 channels each
CTCSS/ DCS decoder in the analogue mode
simple operation
Large loudspeaker channel selection regulator
Monitor function (squelch can be opened by pressing a button)
Battery detect - battery protection circuit
Channel / feature message in English (can also be switched off with PC software)
The following features can be programmed only with optional software (requires Alinco ERW-22 programming cable - can be purchased as an option):
3 programmable function keys each with 2 functions (long press, short press)
Work Alone - Protection of workers
SOS Emergency button
VOX hands-free automatic voice transmission
SCAN - channel search
Nuisance Channel Delete - occupied channel fade-out
Encrypt - voice encryption for increased protection against eavesdropping
Priority scan - preferential channel monitoring
Key Lock - keypad lock.

Scope of delivery

5 x Alinco DJ-PAX4 walkie-talkie
5 x battery pack EBP-101 (Li-Ion/ 7.4 Volt/ 1800 mAh)
230 Volt desktop charger (standing charger) Antenna
Belt clip EBC-51 & Carrying strap
User manual
5 x KEP-24-VK Sound hose headset for Alinco DJ-PAX-4
Case.
