Ansmann 1201-0024 Mains PSU (adjustable voltage) 12 V DC, 9 V DC, 7.5 V DC, 6 V, 4.5 V DC, 3 V 1500 mA 18 W

Black power supply with various adapters for different connections, suitable for versatile electronic devices.
Black power supply with model number APS 1000, with multiple output voltages and current ratings. CE and UKCA marking visible.

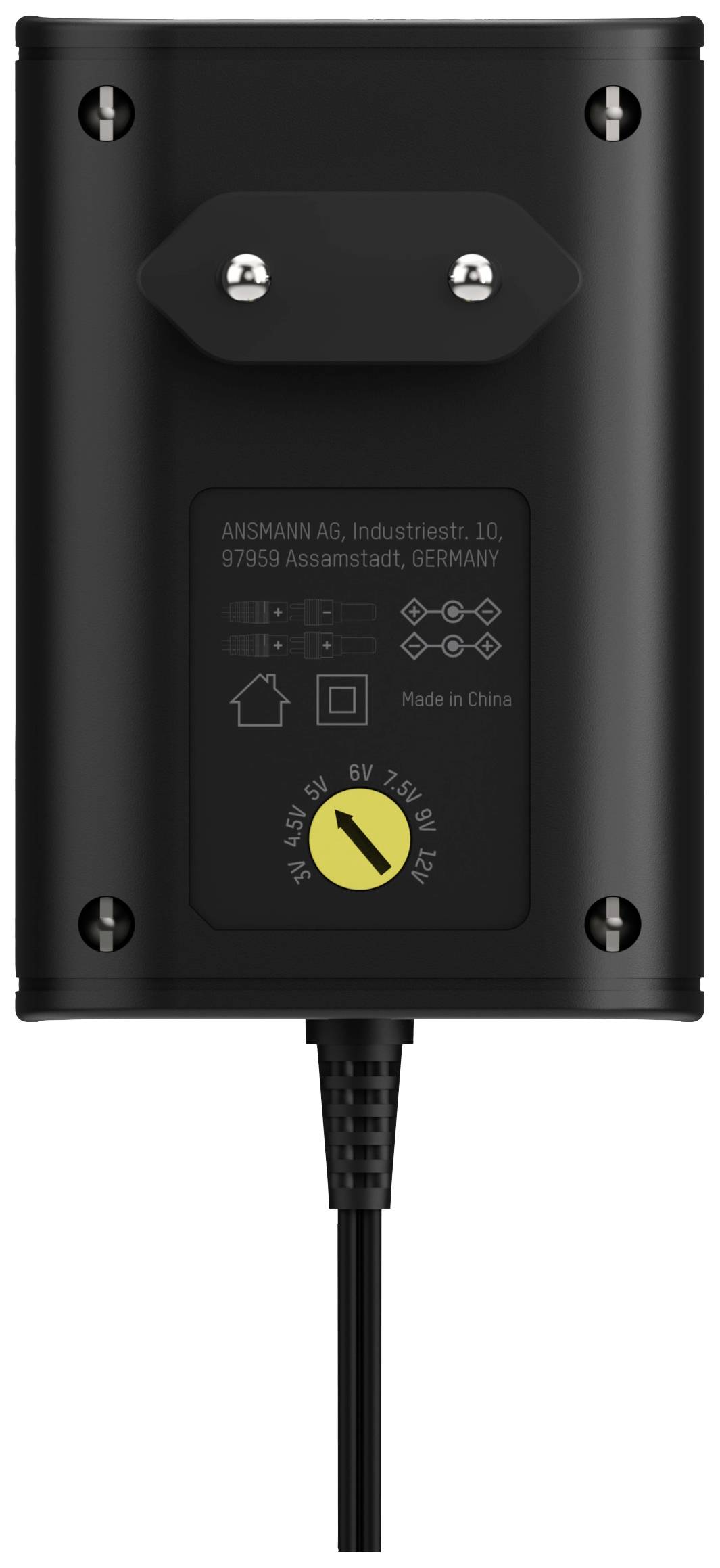

Black charger with cable, two upper metal contacts and an instruction manual on the front. Manufactured in China.
A black charger in profile with European plug and cable, presented vertically with a view to the right side.

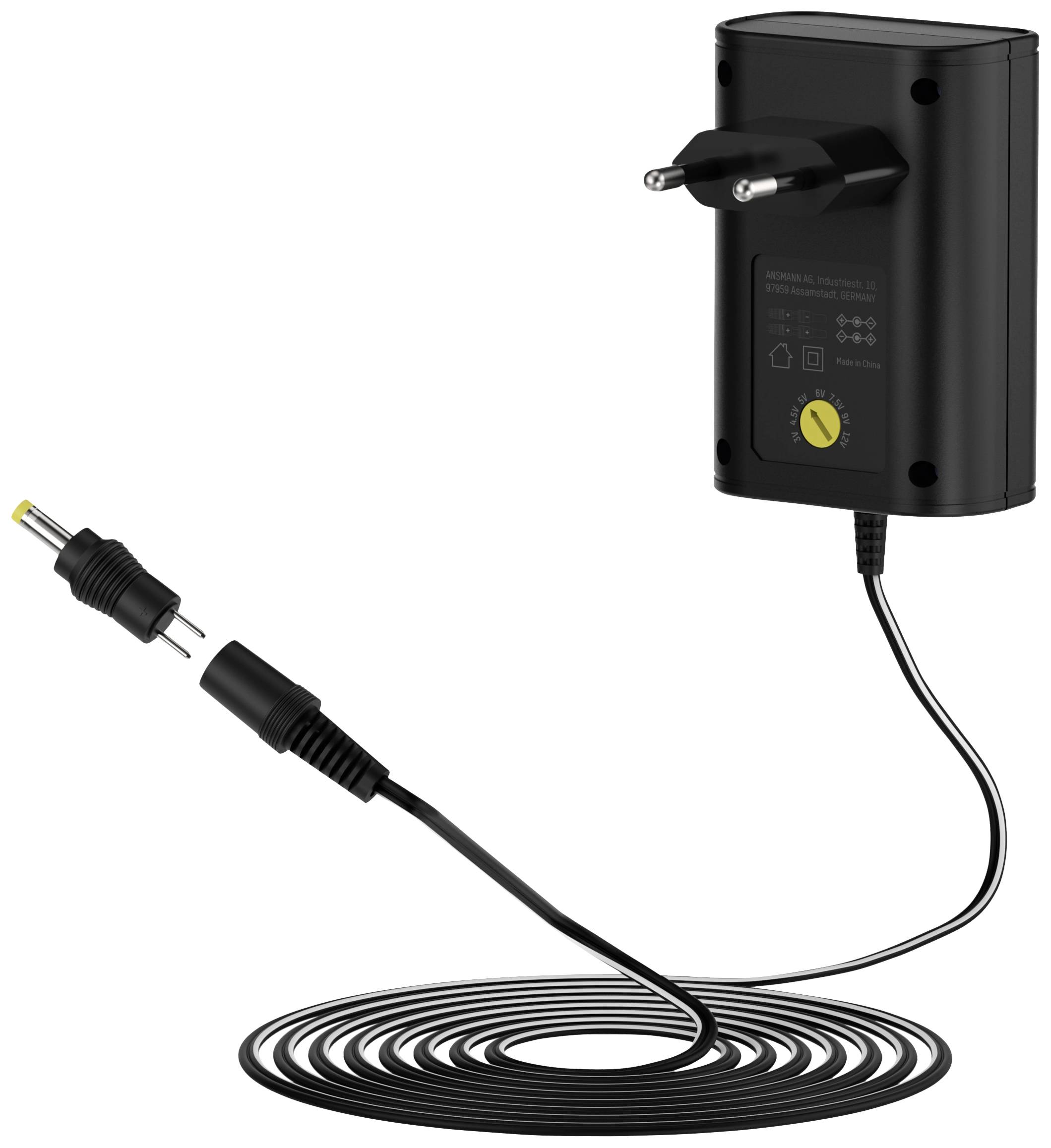

A black charger with a plug cable and an interchangeable plug adapter.

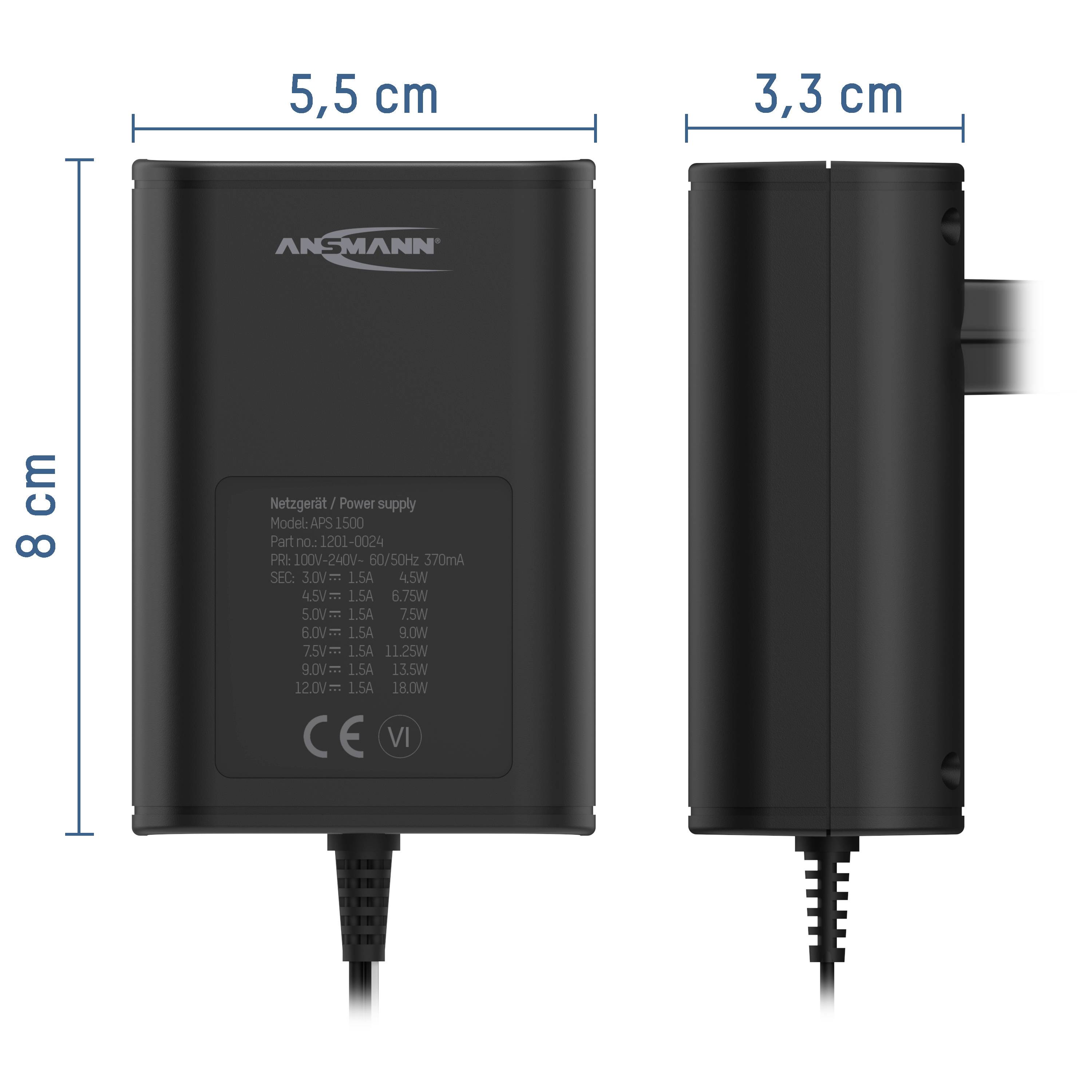

Ansmann power supply with dimensions: 8 cm height, 5.5 cm width, 3.3 cm depth. Shows two views: front and side view.

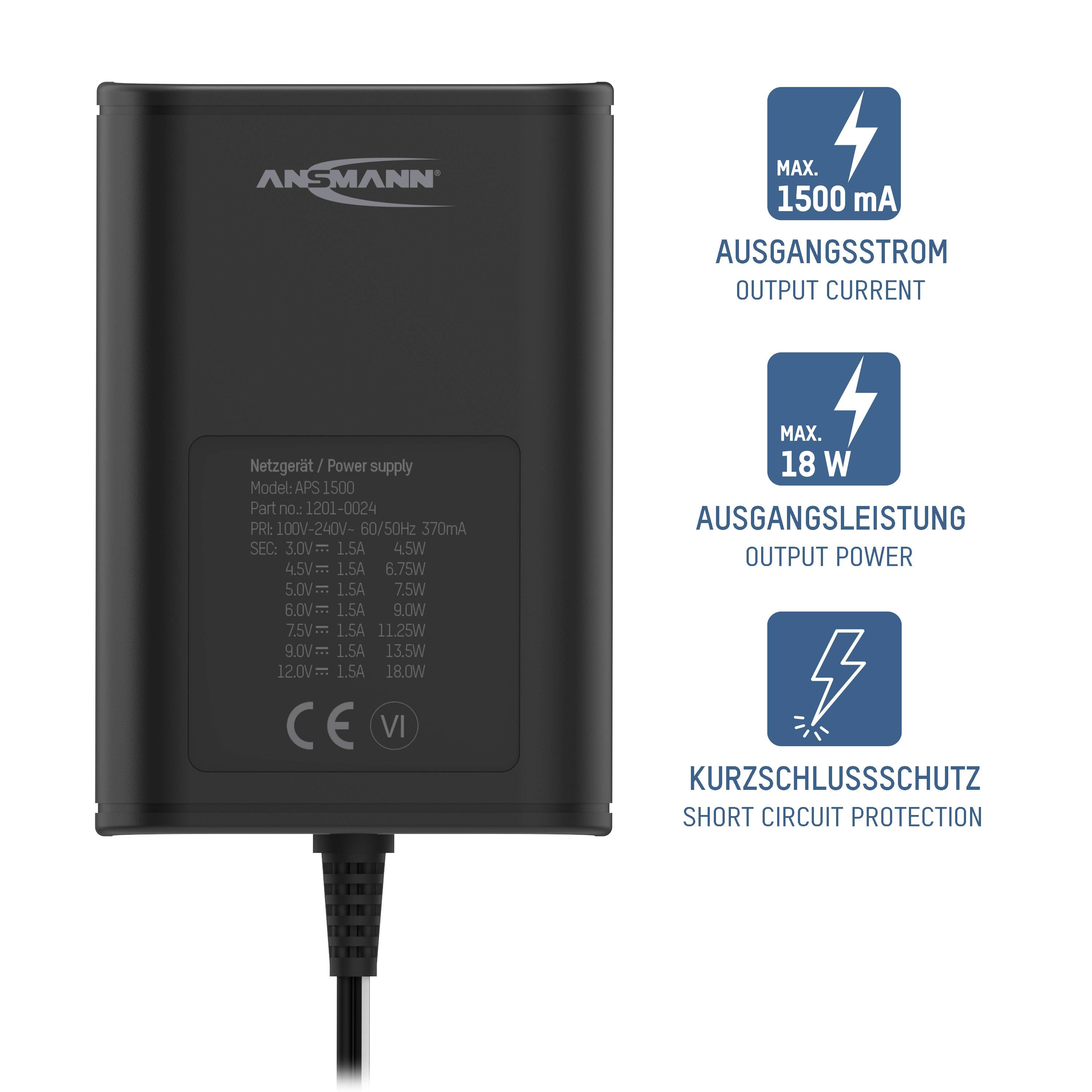

A rectangular power supply from Ansmann with cable. Text to the right: 'Max. 1500 mA output current' and 'Short-circuit protection'.

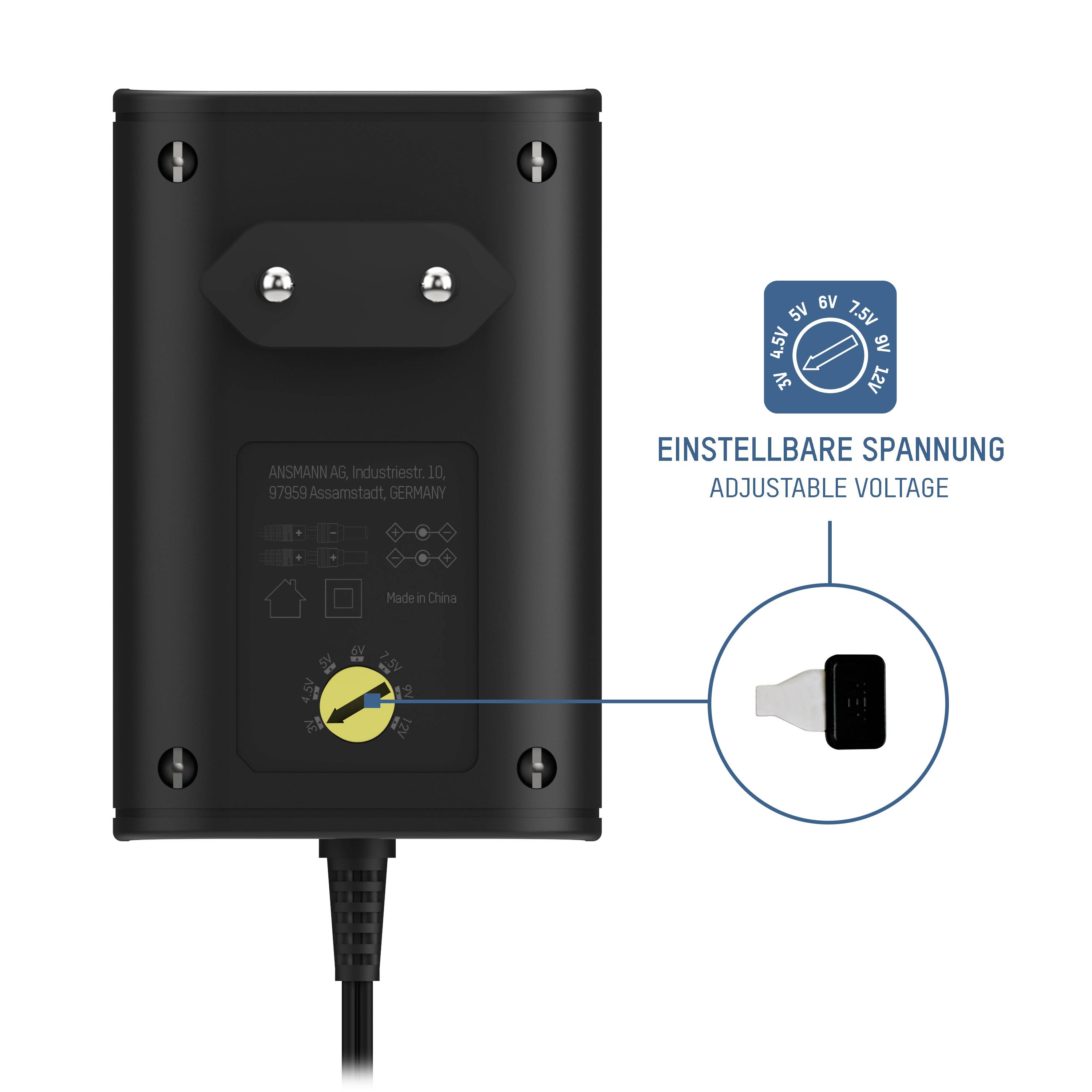

Black and grey adapter with adjustable voltage, shown as a rotary dial. Label: 'Adjustable Voltage'.
Mains adapter with seven different plug attachments and 1.8 m cable for versatile application possibilities.

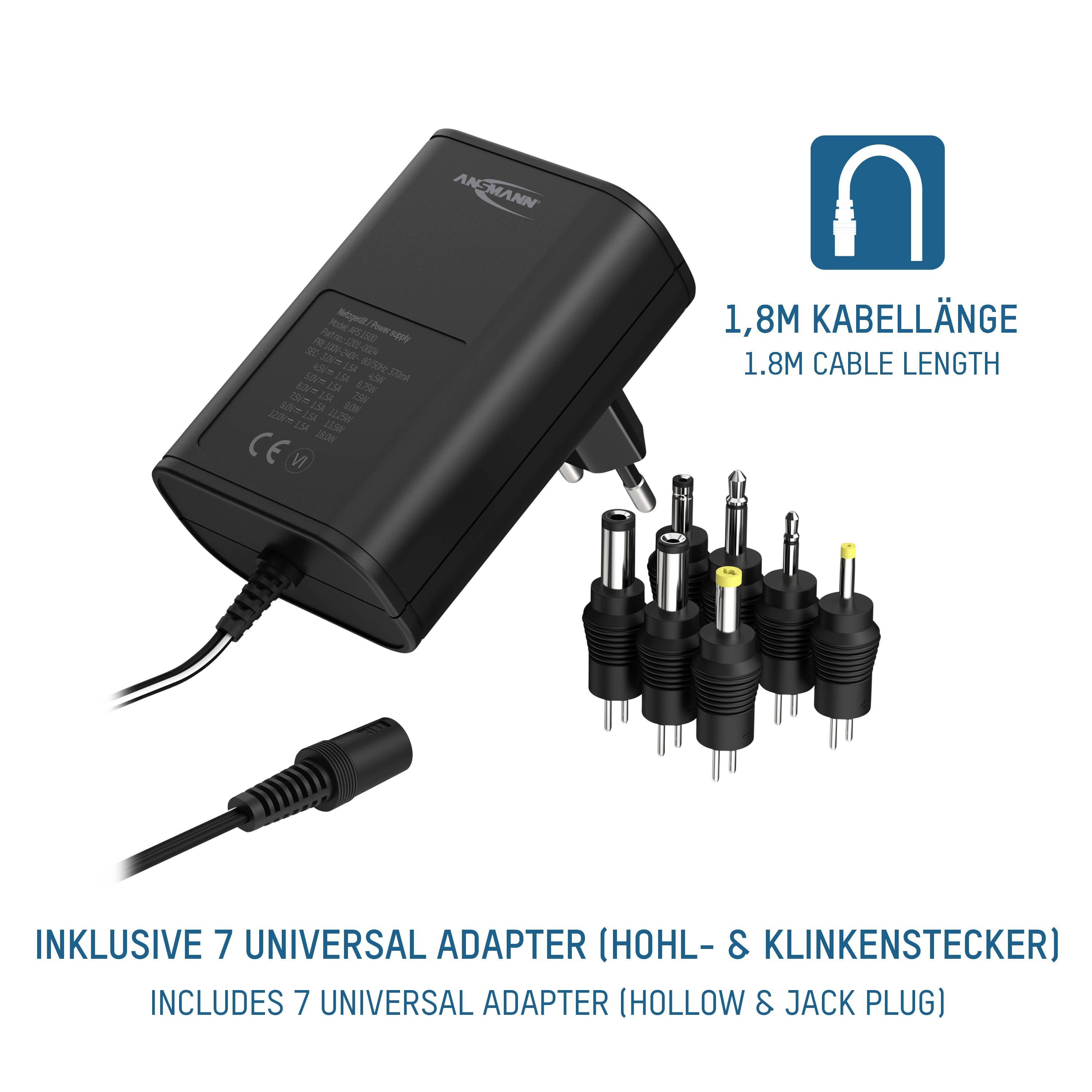

Black power adapter set with seven interchangeable plugs, suitable for various connection types. Cable length: 1.8 m.
1/10
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
168 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 32.99 / piece)
€ 32.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

ANSMANN universal power supply APS 1500

  • UNIVERSAL thanks to seven adapter plugs
  • Check the current and voltage of the original power supply
  • Select THE VOLTAGE with the rotary switch on the back

Technical specifications

Product type

Mains PSU (adjustable voltage)

Used at

Mains socket

Indoors

Max. output current

1500 mA

Output voltage

12 V DC

9 V DC

7.5 V DC

6 V

4.5 V DC

3 V

Output current (max.) - rounded

1.5 A

Input voltage

240 V AC

100 V AC

18 W

Dim

(L x W x H) 50 cm x 150 mm x 200 mm

No. of outputs

1 x

No. of inputs

1 x

Input voltage (max.)

240 V

Min. input voltage

100 V

Weight

250 g

Cable length

1.80 m

Width

150 mm

Height

200 mm

Length

50 cm

Type

APS 1500

Depth

50 mm

UKCA

yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2300545 Ansmann 1201-0024 Mains PSU (adjustable voltage) 12 V DC, 9 V DC, 7.5 V DC, 6 V, 4.5 V DC, 3 V 1500 mA 18 W

Datasheet 2300545 Ansmann 1201-0024 Mains PSU (adjustable voltage) 12 V DC, 9 V DC, 7.5 V DC, 6 V, 4.5 V DC, 3 V 1500 mA 18 W

User & Safety Instructions

User & Safety Instructions 2300545 Ansmann 1201-0024 Mains PSU (adjustable voltage) 12 V DC, 9 V DC, 7.5 V DC, 6 V, 4.5 V DC, 3 V 1500 mA 18 W

Conformity certificate

Conformity certificate 2300545 Ansmann 1201-0024 Mains PSU (adjustable voltage) 12 V DC, 9 V DC, 7.5 V DC, 6 V, 4.5 V DC, 3 V 1500 mA 18 W

Warranty Terms

Warranty Terms 2300545 Ansmann 1201-0024 Mains PSU (adjustable voltage) 12 V DC, 9 V DC, 7.5 V DC, 6 V, 4.5 V DC, 3 V 1500 mA 18 W

Description


Universal power supply for a variety of devices

With the APS 1500 you have the possibility to operate a variety of small electrical devices such as pocket computers, digital cameras, measuring devices, MP-3 players, CD players etc. For best compatibility with the many different devices a 7-part plug set is supplied. The common jack and hollow plugs contained in them provide for ideal contact. No matter which device is to be operated.

The output voltage can be set via a rotary switch on the back of the power supply unit. The APS 1500 is short circuit proof and voltage stabilized. Suitable for consumers up to max. 1.5 A, 18 W power.

This text is machine translated.

Scope of delivery

  • APS 1500 with 1.8m cable
  • 7-piece secondary plug set
