Arduino A000093 Board Micro without Headers Core ATMega32
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.

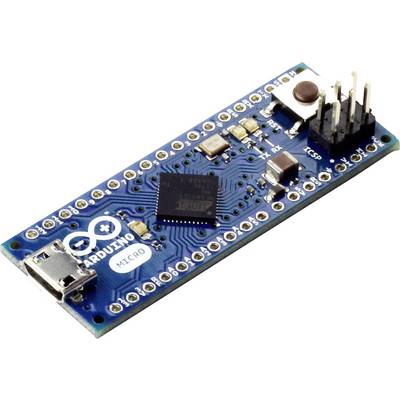

Arduino Micro without Headers
Technical specifications
- Microcontroller: ATmega32U4
- Operating voltage 5V
- Input voltage (recommended): 7-9V
- Input voltage (limit): 6-9V
- Digital I/O pins 20
- PWM channels 7
- Analogueue input channels: 12
- DC current per I/O pin 20 mA
- DC current for 3.3V pin: 50 mA
- Flash memory: 32 KB (ATmega32U4), of which 4 KB is used by the boot loader
- SRAM: 2.5 KB (ATmega32U4)
- EEPROM 1 KB (ATmega32U4)
- Clock speed: 16 MHz
- Weight: 13g
- Series
Core
- Length
48 mm
- Width
18 mm
- Product type
Board
- Series
ATMega32
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2445508 Arduino A000093 Board Micro without Headers Core ATMega32
Description
The Arduino Micro has a built-in USB port that makes the Micro recognizable as a mouse or keyboard.
The Micro is a microcontroller board based on the ATmega32U4, which was developed in cooperation with Adafruit. It has 20 digital input/output pins (7 of which can be used as PWM outputs and 12 as analogueue inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header and a reset button. It contains everything was needed to support the microcontroller; simply connect it to a computer with a micro-USB cable to get started. It has a form factor that makes it easy to place on a breadboard. The Micro-Board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a second processor. This allows the Micro to appear as a mouse and keyboard to a connected computer, in addition to a virtual (CDC) serial/COM port. It also has other effects on the behavior of the board; these are described in detail on the Getting Started page with the Arduino Micro.
This text is machine translated.
The Micro is a microcontroller board based on the ATmega32U4, which was developed in cooperation with Adafruit. It has 20 digital input/output pins (7 of which can be used as PWM outputs and 12 as analogueue inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header and a reset button. It contains everything was needed to support the microcontroller; simply connect it to a computer with a micro-USB cable to get started. It has a form factor that makes it easy to place on a breadboard. The Micro-Board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a second processor. This allows the Micro to appear as a mouse and keyboard to a connected computer, in addition to a virtual (CDC) serial/COM port. It also has other effects on the behavior of the board; these are described in detail on the Getting Started page with the Arduino Micro.
This text is machine translated.
