Asus PRIME B365M-A Motherboard PC base Intel® 1151 Form factor (details) Micro-ATX Motherboard chipset Intel® B365
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

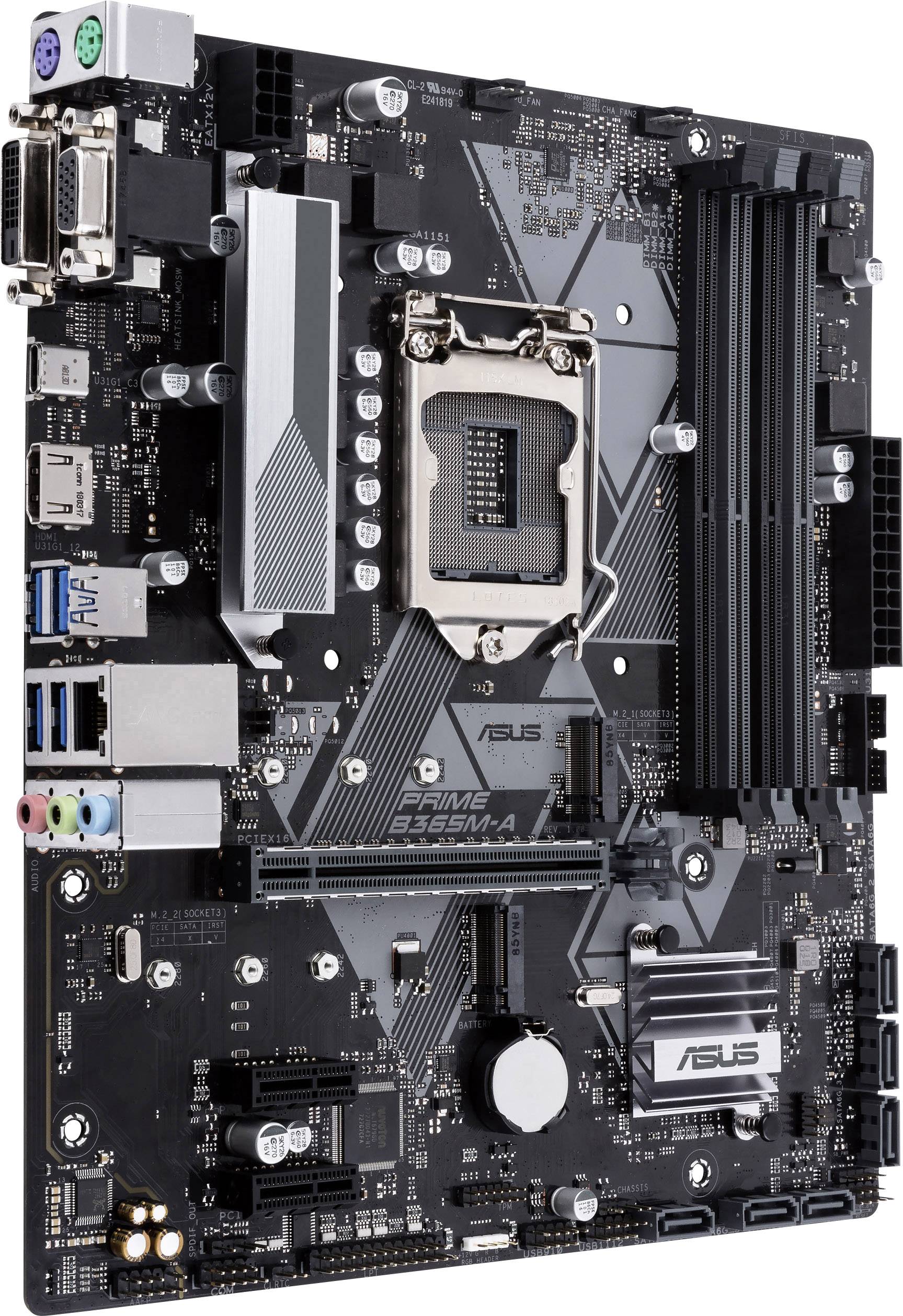

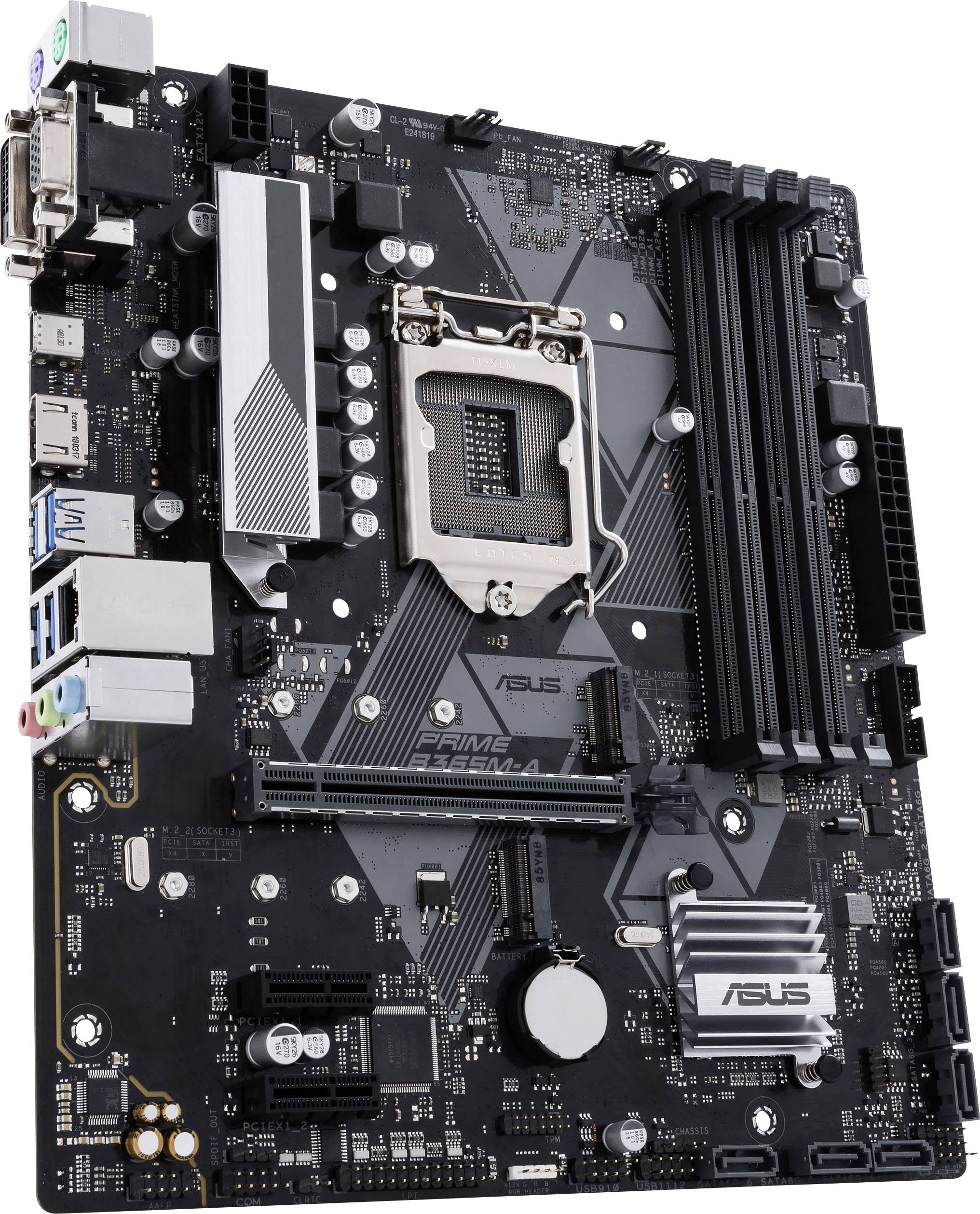

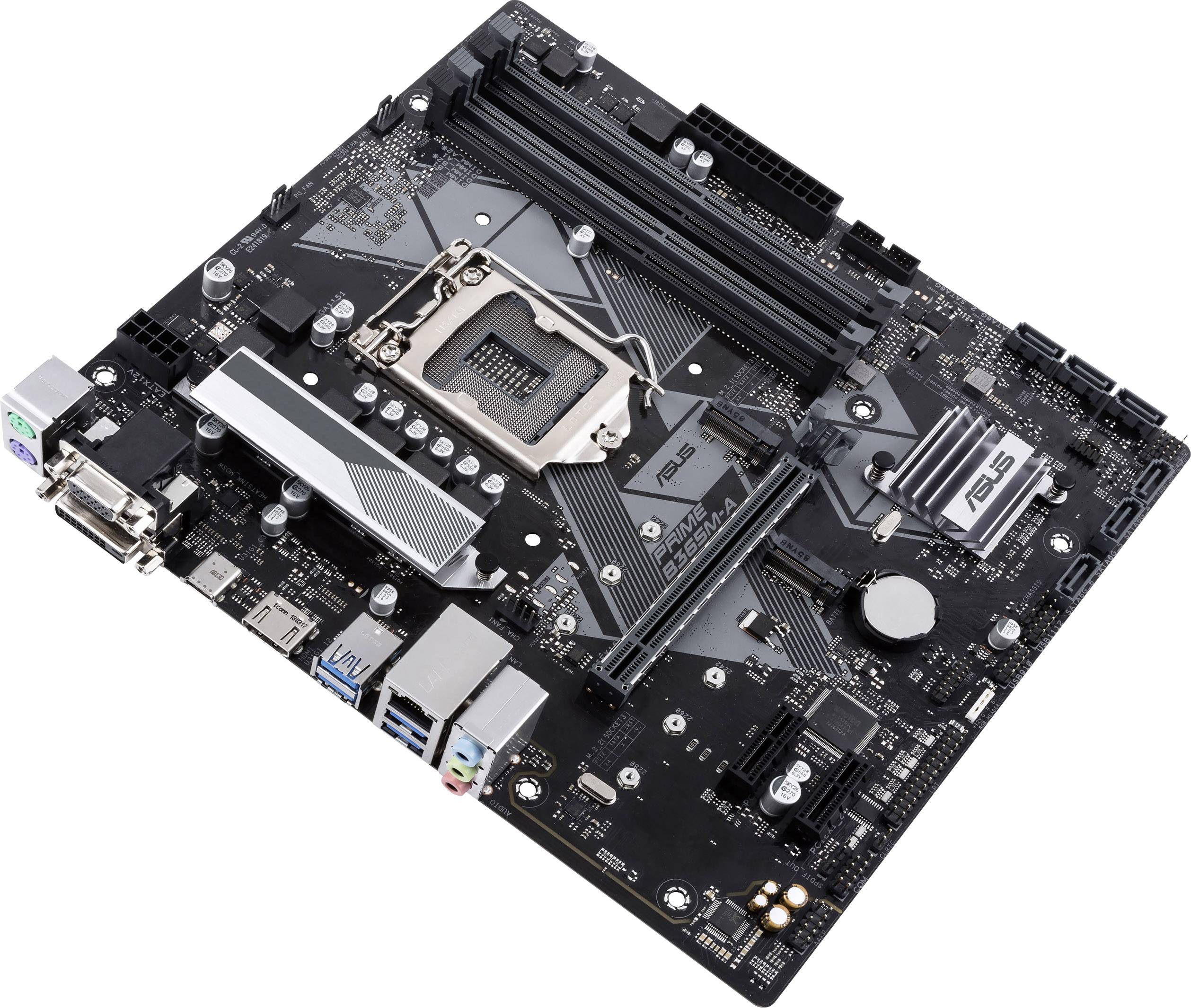

ASUS Prime B365M-A motherboard socket 1151
- Intel processors for socket 1151
- Supports 9th/8th generation Intel® processors
- 4x DDR4 DIMM slots up to 2666 MHz / max. 64 GB
- Internal connections: 6x SATA III, 2x M.2
- I/O PANEL: 4X USB 3.0, USB-C™, HDMI™, DVI, VGA, 2X PS/2
Technical specifications
- Product type
Motherboard
- Chipset
Intel® B365
- Features
Intel® Optane™ Memory Ready
Intel® 1151
- Form factor
Micro-ATX
- Interfaces
USB A (USB 3.2 1st gen)
USB C®
HDMI™
DVI
VGA
PS/2
Gigabit LAN (1 Gbps)
Audio 7.1 (3.5 mm jack)
- No. of DDR4 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
2 x
- No. of USB type A 3.0 ports
4 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
6 x
- Onboard audio
7.1 HD
- No. of PS/2 ports
2 x
- Connectors
DVI, VGA, HDMI
- Graphics card type
Intel HD Graphics
Documents & Downloads
Datasheet
Datasheet 2176128 Asus PRIME B365M-A Motherboard PC base Intel® 1151 Form factor (details) Micro-ATX Motherboard chipset Intel® B365
User & Safety Instructions
User & Safety Instructions 2176128 Asus PRIME B365M-A Motherboard PC base Intel® 1151 Form factor (details) Micro-ATX Motherboard chipset Intel® B365
Description
The ASUS Prime 300er series mainboards form the stable basis for your first self-assembly system and at the same time offer enough possibilities to grow with your requirements. We've combined all the good features included in the latest processors with the most important technology and the fundamental design of ASUS to help you take advantage of industry-leading technologies – including automated system optimization, comprehensive cooling control and high-quality onboard sound. With an ASUS Prime-Mainboard of the 300er series the PC-assembly becomes simple and economical – an intelligent choice.
This text is machine translated.
This text is machine translated.
Features
- ASUS OptiMem: The careful arrangement of the conductor paths and contacts preserves the signal integrity and improves the memory stability.
- Fan Xpert 2+: Flexible control for ultimate cooling and an extremely quiet operation, including temperature detection for the graphics card.
- 5x Protection III: Multiple hardware protection for comprehensive security.
- ASUS Aura Sync port: Onboard connector for RGB LED strips, which can be easily synchronized with an ever-growing selection of Aura Sync-enabled hardware.
- Ultra-fast connectivity: Superior flexibility with M.2 slot for lightning-fast data transfers
Scope of delivery
- Manual
- 2x SATA 6Gb/s cable
- I/O shield
- 2x M.2 screws
- 1x Supporting DVD.
