ATEN VS1804T-AT-G 4 ports HDMI splitter 1920 x 1080 p Black

Black HDMI splitter with multiple inputs and control buttons on the front. Brand logo on the top. Device for video distribution.

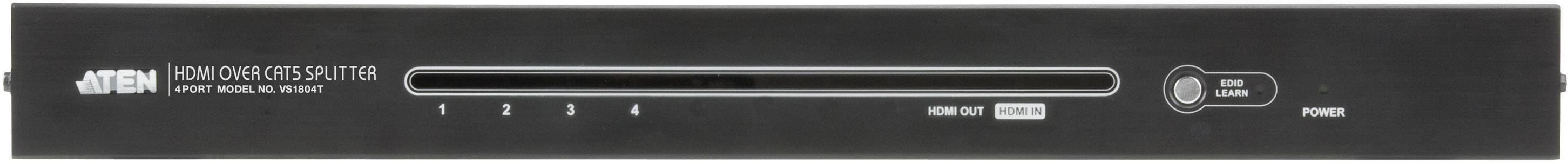

A black device for channel switching with an ATEN logo. Contains buttons and connections for HDMI and USB on the front panel.

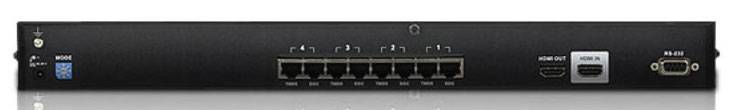

A black network device with eight LAN ports in the centre, a USB port on the left, and an HDMI port on the right.

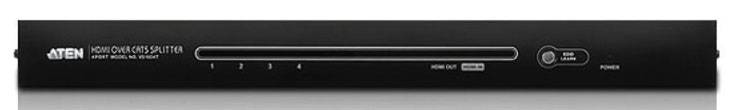

A black electronic device with 'Aten' printed on it, four LEDs and a power button. This is a video converter.
A black network device with eight Ethernet ports, two HDMI ports, a serial port and a power connection on the rear.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 24 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 425.00 / piece)
€ 425.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Aten 4 Port HDMI Splitter over CAT 5e/6

  • An HDMI input to 4 HDMI outputs via CAT 5e/6 cable
  • Distance between the display of up to 60 m
  • Supports the best video quality up to 1920 x 1080 pixels
  • 'HDMI' logo with the text 'High Definition Multimedia Interface' underneath.<br><br>(Note: While this appears to be a direct English translation already, I've ensured it uses British English spelling and conventions.)

Technical specifications

Product type

HDMI splitter

Supported monitors

4

No. of inputs

1 x

Interfaces (input)

HDMI™

No. of outputs

4 x

Interfaces (output)

HDMI™

LAN (10/100 Mbps)

Resolution (max.)

1920 x 1080 p

Switch function

Manual

Power supply (LOV)

via PSU

Factory colour

Black

Weight

2.82

Port

4 ports

Type

Splitter Box

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 989256 ATEN VS1804T-AT-G 4 ports HDMI splitter 1920 x 1080 p Black

User & Safety Instructions

User & Safety Instructions 989256 ATEN VS1804T-AT-G 4 ports HDMI splitter 1920 x 1080 p Black

Description

The ATEN VS 1804 T HDMI Splitter offers the fastest and most efficient over CAT 5-option, an HDMI-multimedia content and HDCP-information from a source to 4 displays.
A "one-to-many", point-to-multi point system for the transmission of high-definition video and audio signals. The VS1804 T transmits extensive multimedia content in real time from the HDMI source via CAT5e cables to the HDMI displays.

The VS1804 T offers the flexibility you need for a customer-specific digital signal or an installation of HDMI displays. The display device may be up to 60 m from the HDMI source.

This text is machine translated.

Features

  • Supports HDMI (3D, Deep Color)
  • Offers local HDMI output
  • HDCP compatible
  • Consumer Electronics Control (CEC) allows connected HDMI devices via a remote control to operate
  • On three levels can be cascaded
  • EDID mode selection
  • In the rack mountable.

Scope of delivery

  • HDMI Splitter
  • Power supply unit
  • Foot pads (4 pieces)
  • Mounting kit
  • User manual
